Home >> Mazda >> 2011 >> 3 L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Description and Operation

Powertrain Management: Description and Operation

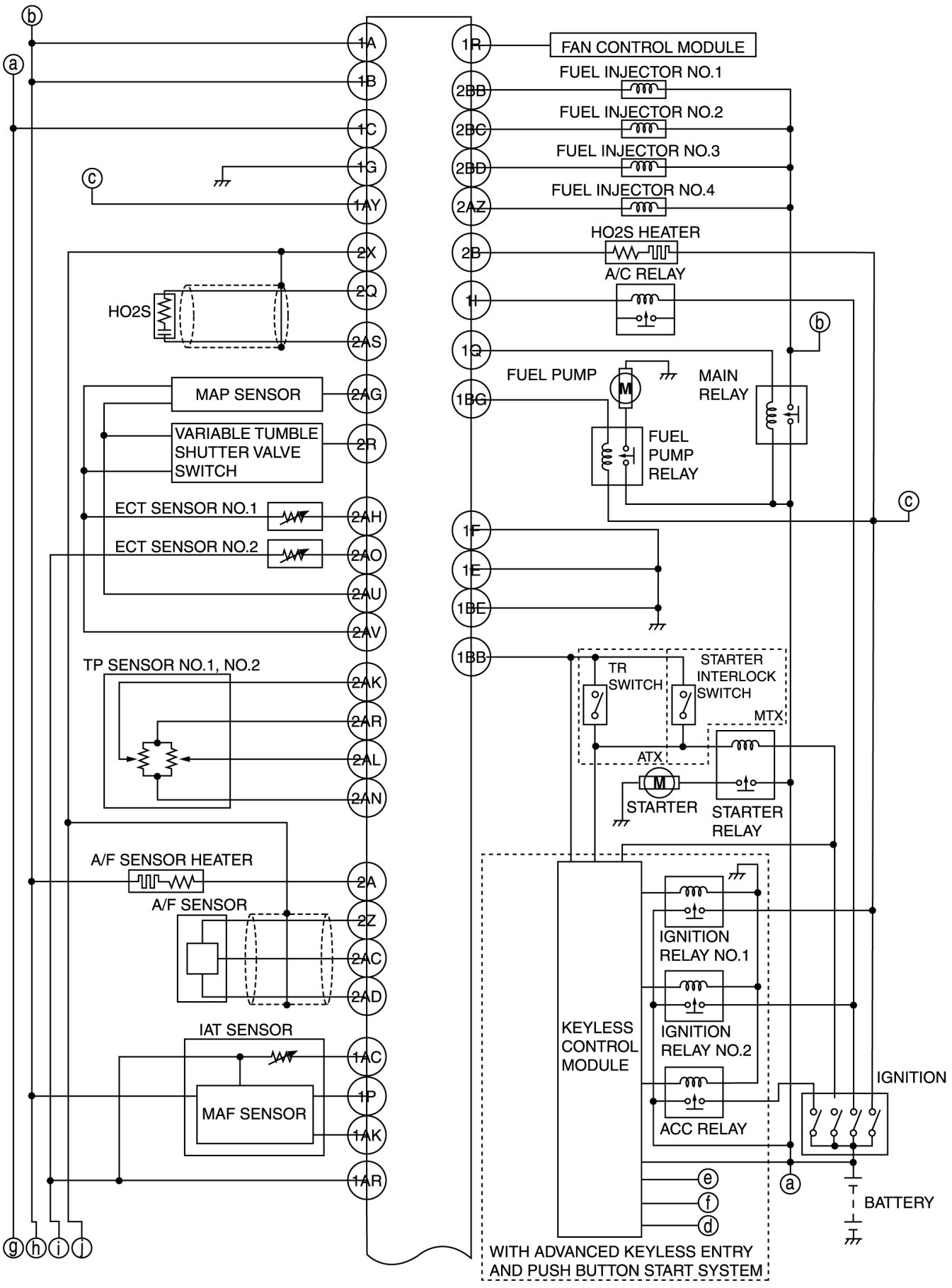

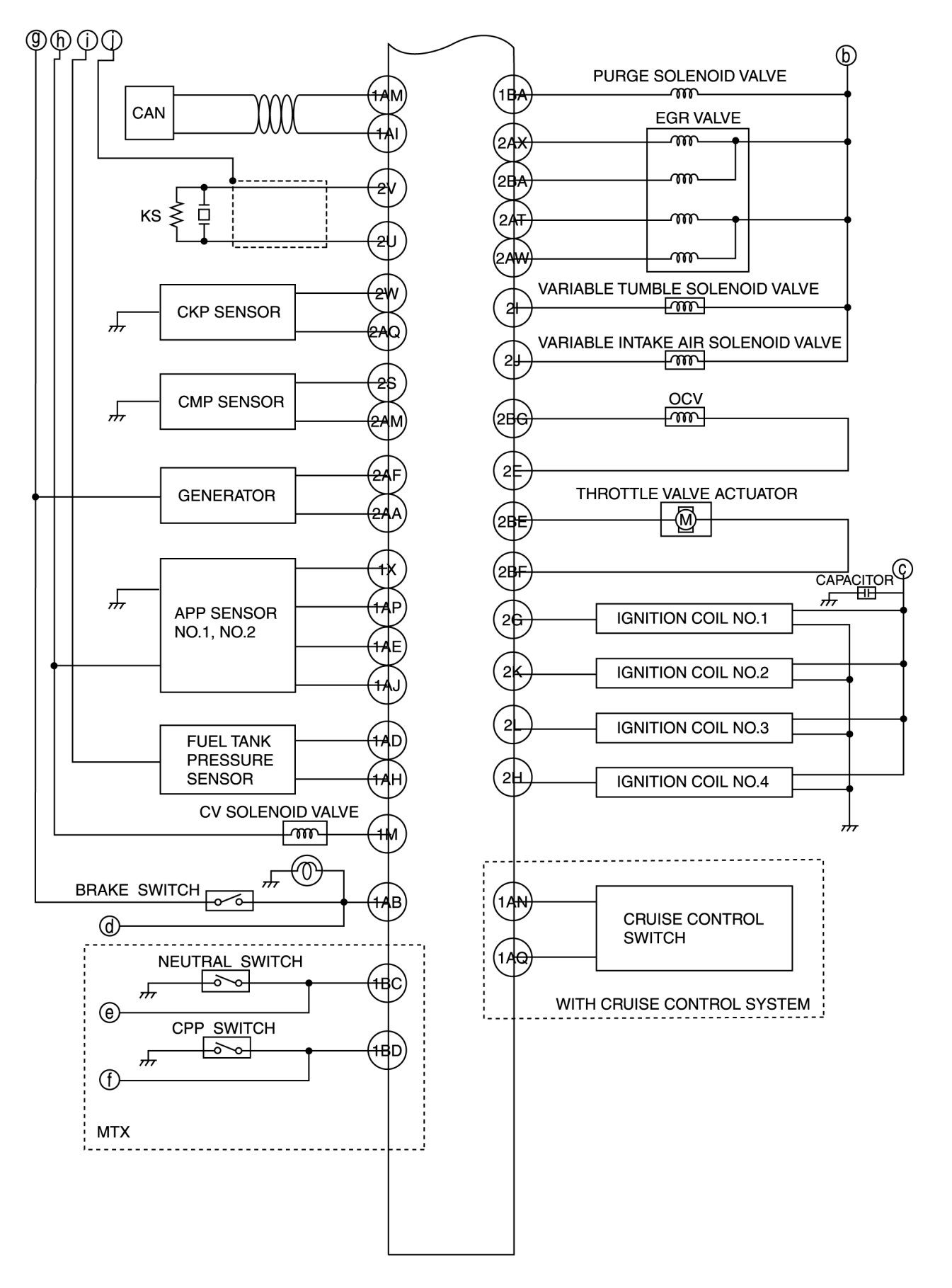

CONTROL SYSTEM WIRING DIAGRAM [LF, L5]
