Home >> Mazda >> 2011 >> 2 L4-1.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

Timing Cover

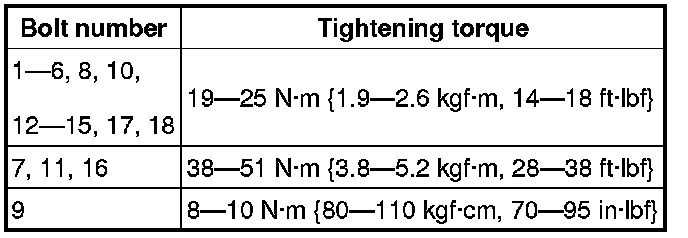

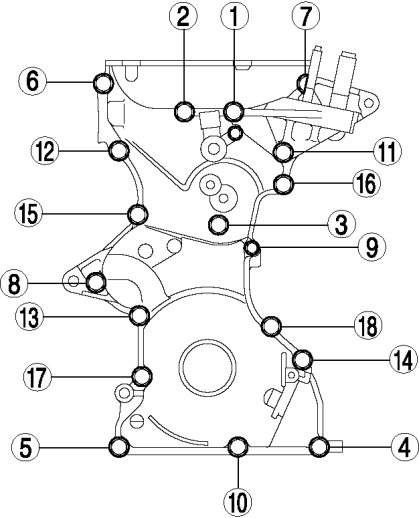

Tighten the engine front cover installation bolts in the order shown in the figure.
