Home >> Mazda >> 2011 >> 2 L4-1.5L >> Repair and Diagnosis >> Powertrain Management >> Description and Operation

Powertrain Management: Description and Operation

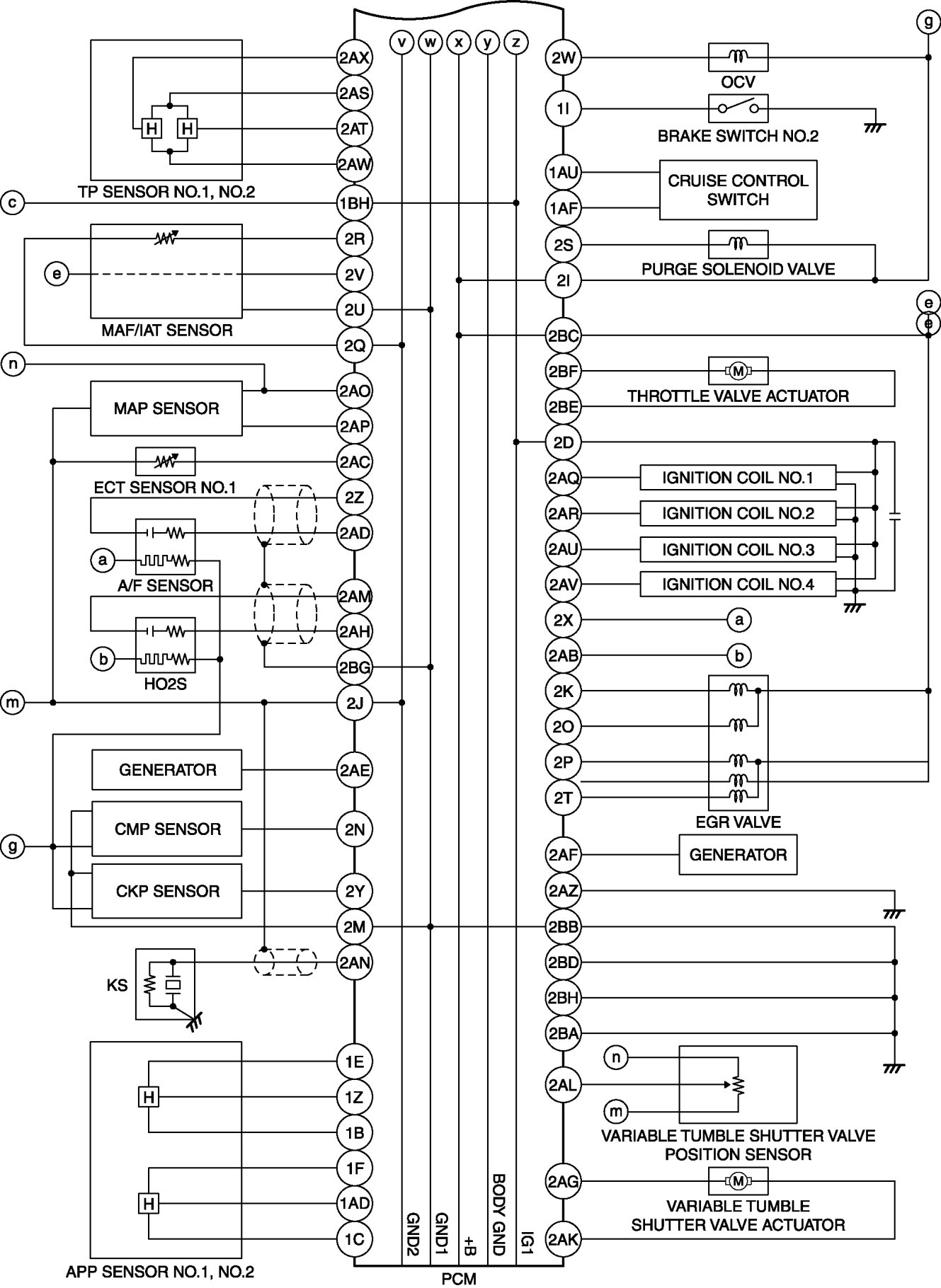

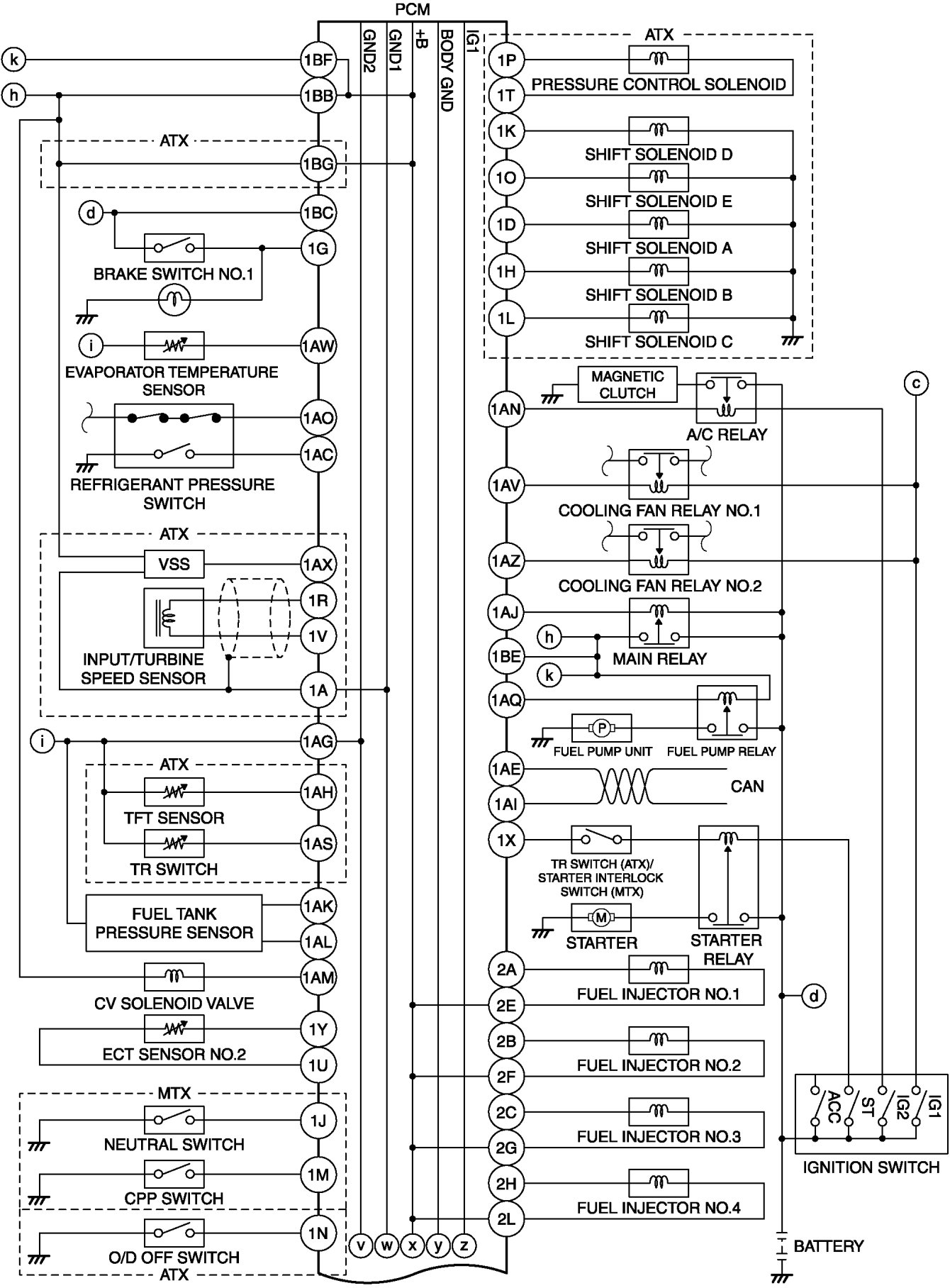

CONTROL SYSTEM WIRING DIAGRAM [MZR 1.5]
