Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

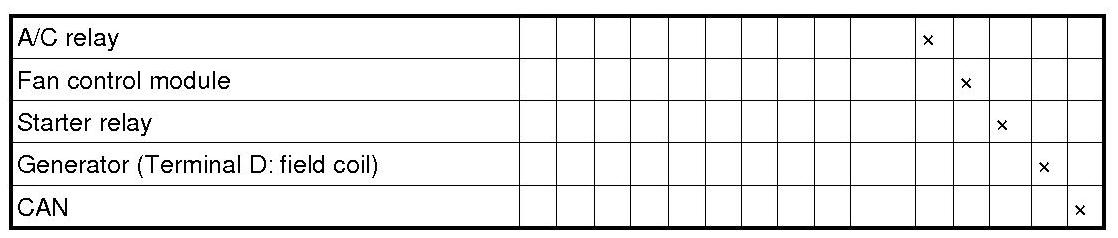

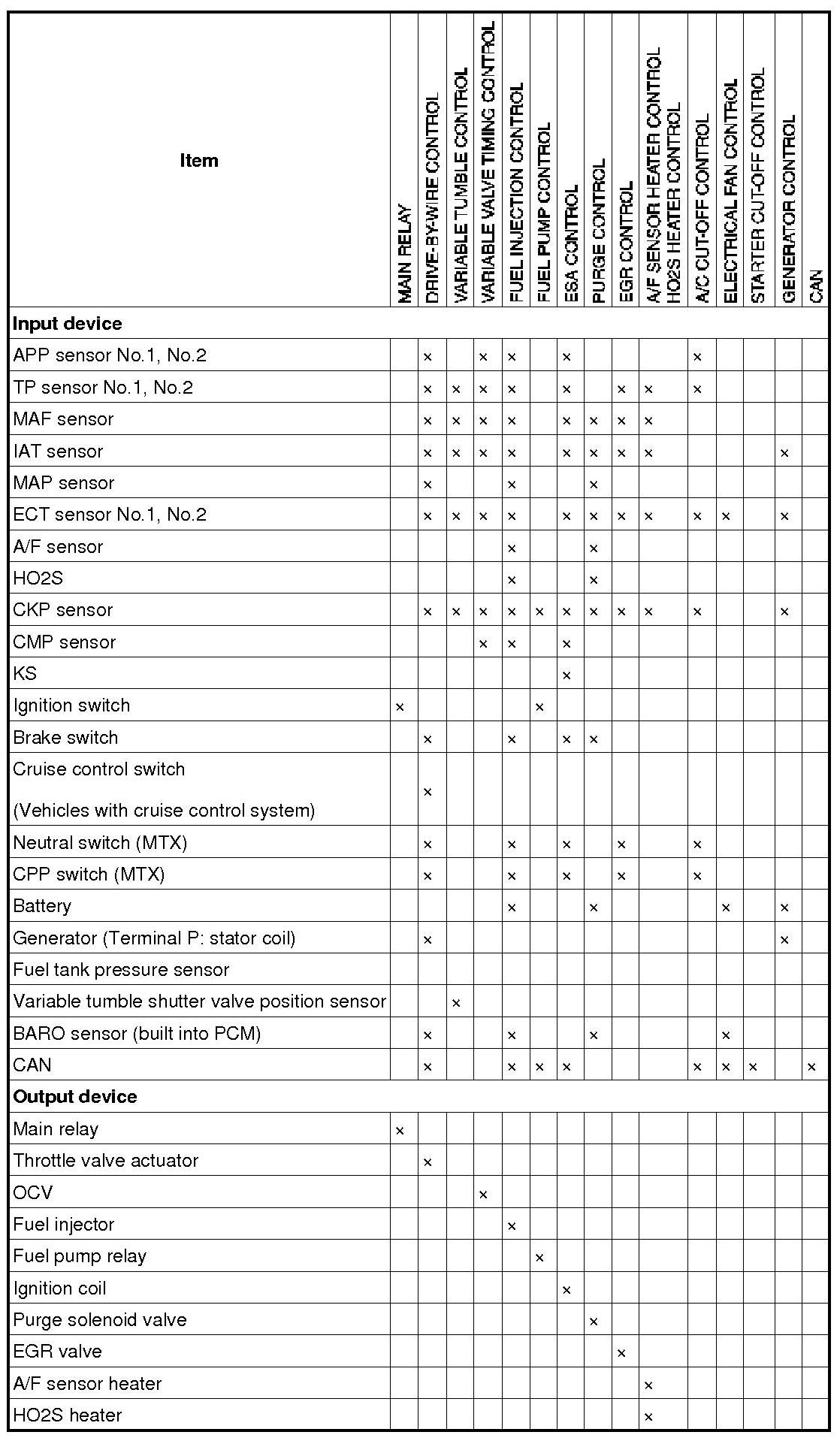

CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [MZR 1.5]
x: Applicable
