Flywheel

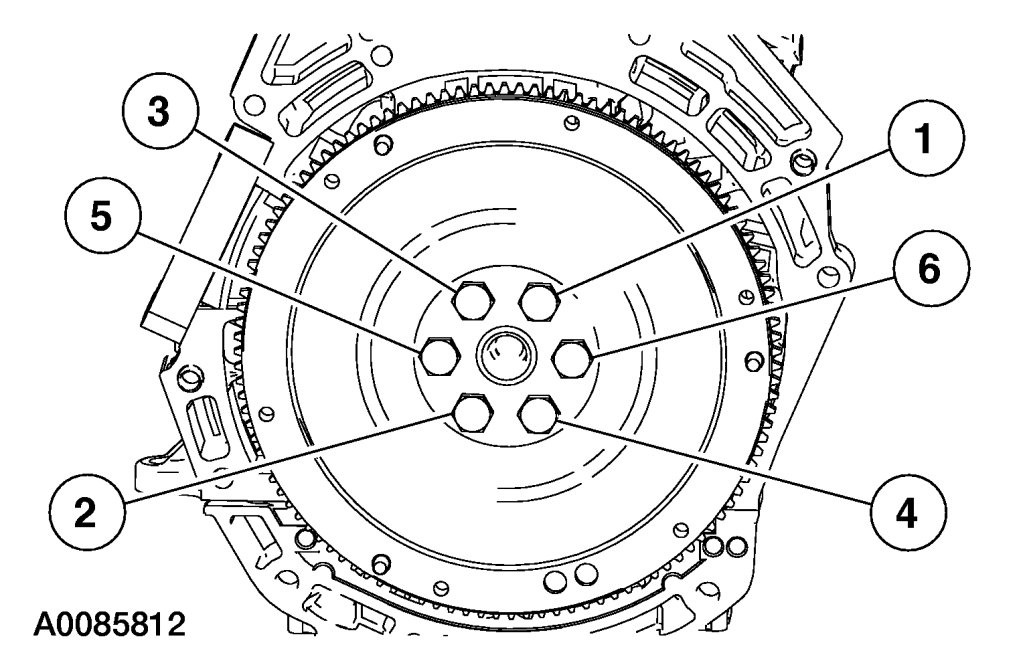

flywheel and tighten the bolts in the sequence shown in 3 stages.






Stage 1: Tighten to 50 Nm {5.1 kgf-m, 37 ft-lbf}
Stage 2: Tighten to 80 Nm {8.2 kgf-m, 59 ft-lbf}
Stage 3: Tighten to 112 Nm {11.4 kgf-m, 83 ft-lbf}
