Timing Cover

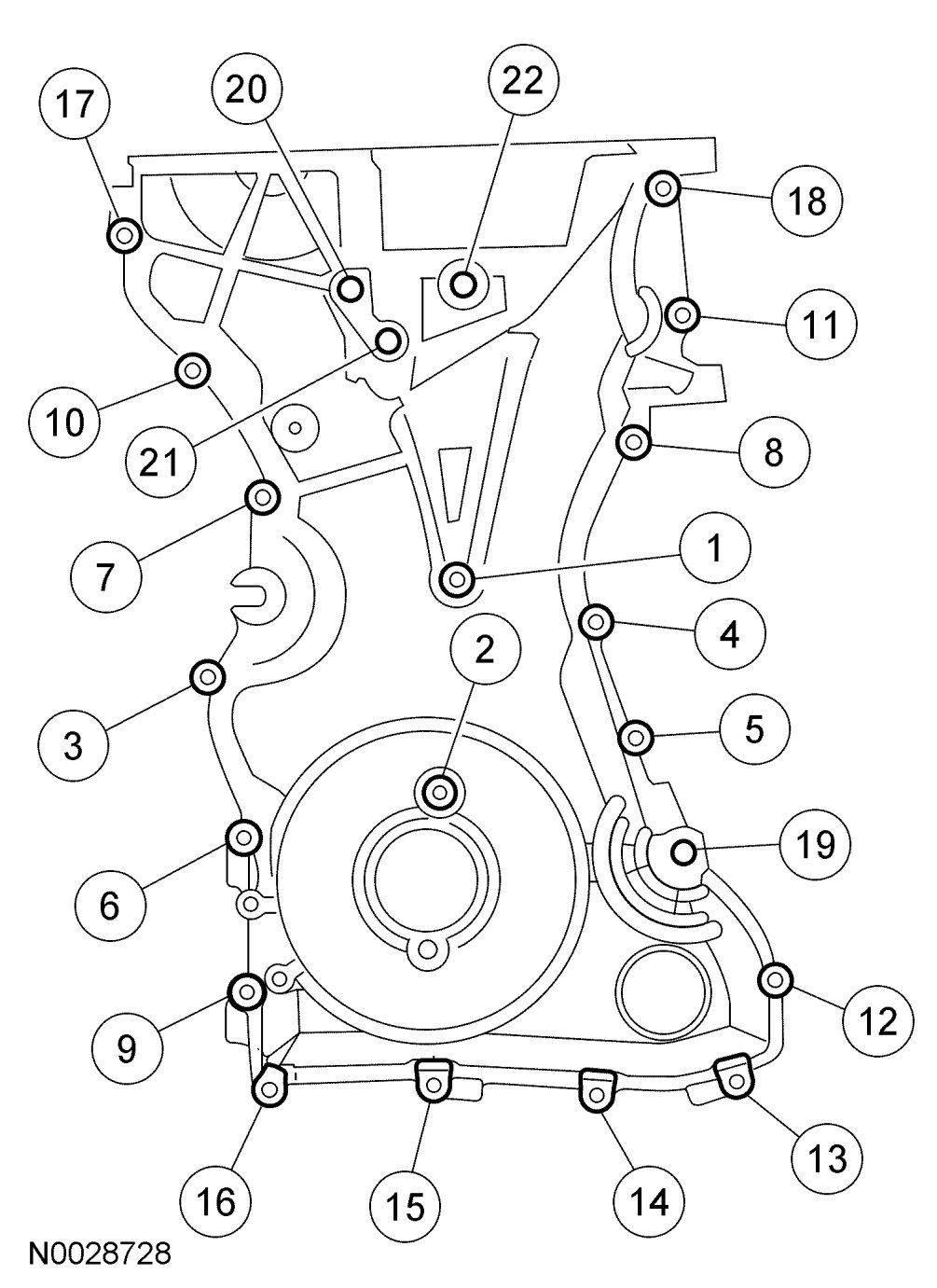

Engine front cover. Tighten the bolts in the sequence shown, to the following specifications:
Tighten the 8 mm bolts and stud bolt to 10 Nm {1.0 kgf-m, 89 in-lbf}
Tighten the 13 mm bolts to 48 Nm {4.9 kgf-m, 35 ft-lbf}
Tighten the 8 mm bolts and stud bolt to 10 Nm {1.0 kgf-m, 89 in-lbf}
Tighten the 13 mm bolts to 48 Nm {4.9 kgf-m, 35 ft-lbf}
