Alignment: Specifications

SPECIFICATIONS

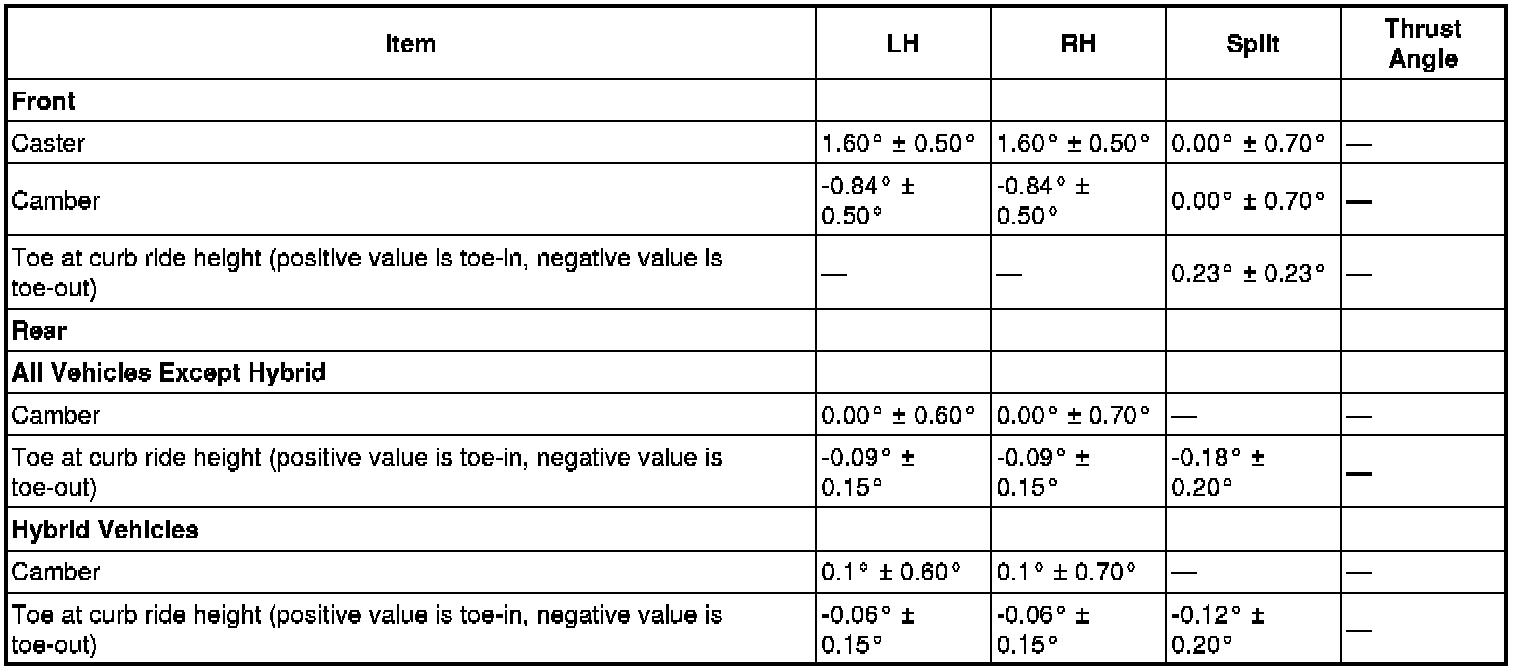

Alignment Specifications





NOTE:All alignment specifications are with the vehicle fuel tank full.

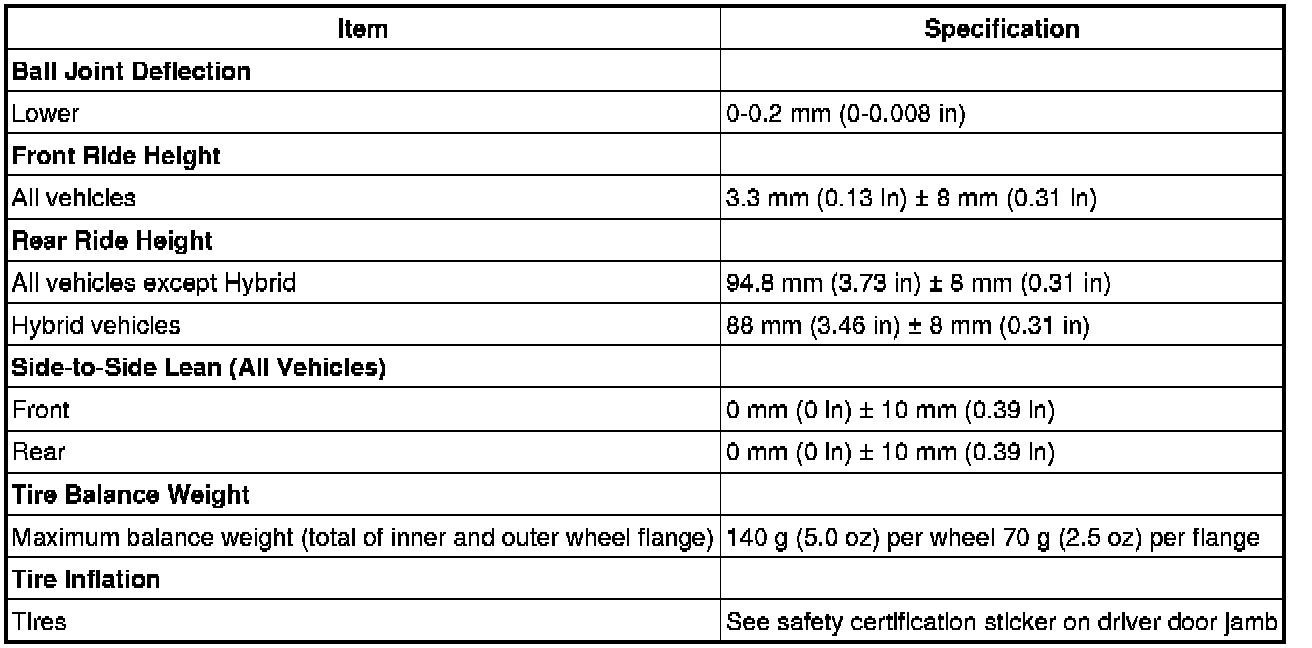

General Specifications

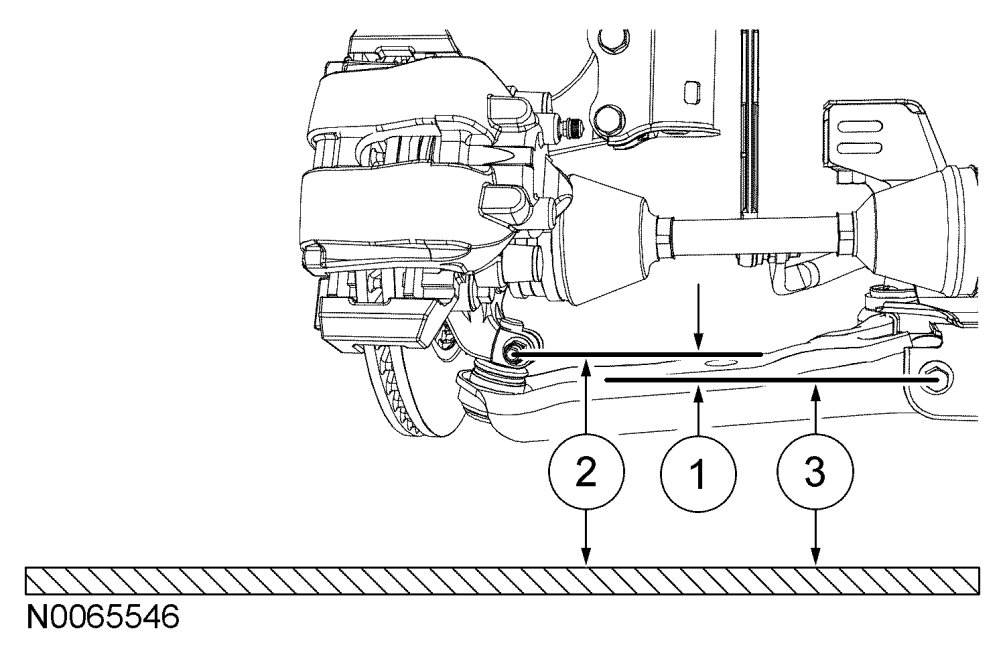

RIDE HEIGHT MEASUREMENT

Front









NOTE:Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
