Home >> Mazda >> 2010 >> 3 L4-2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

ENGINE TECHNICAL DATA

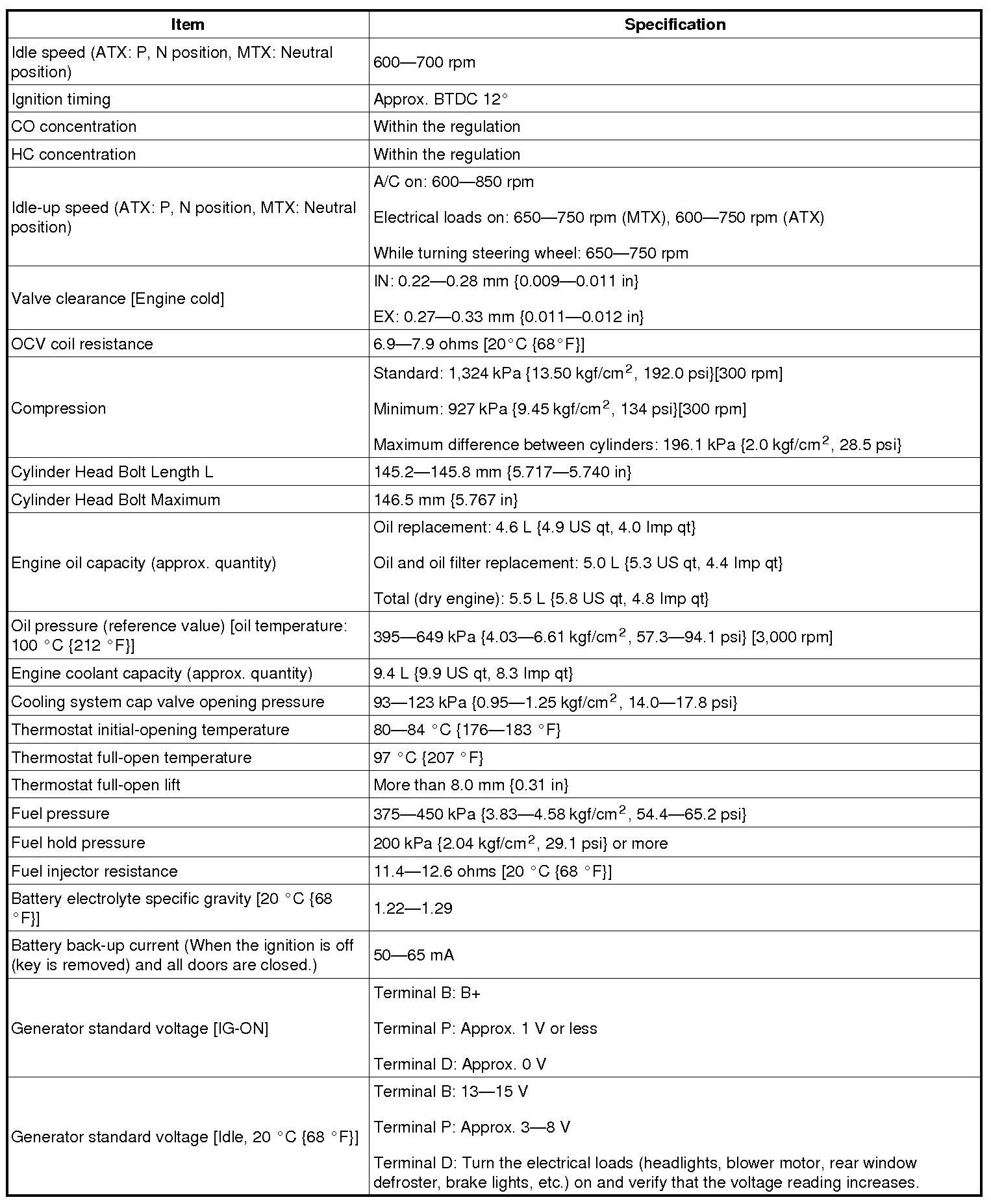

Engine Technical Data (Part 1):

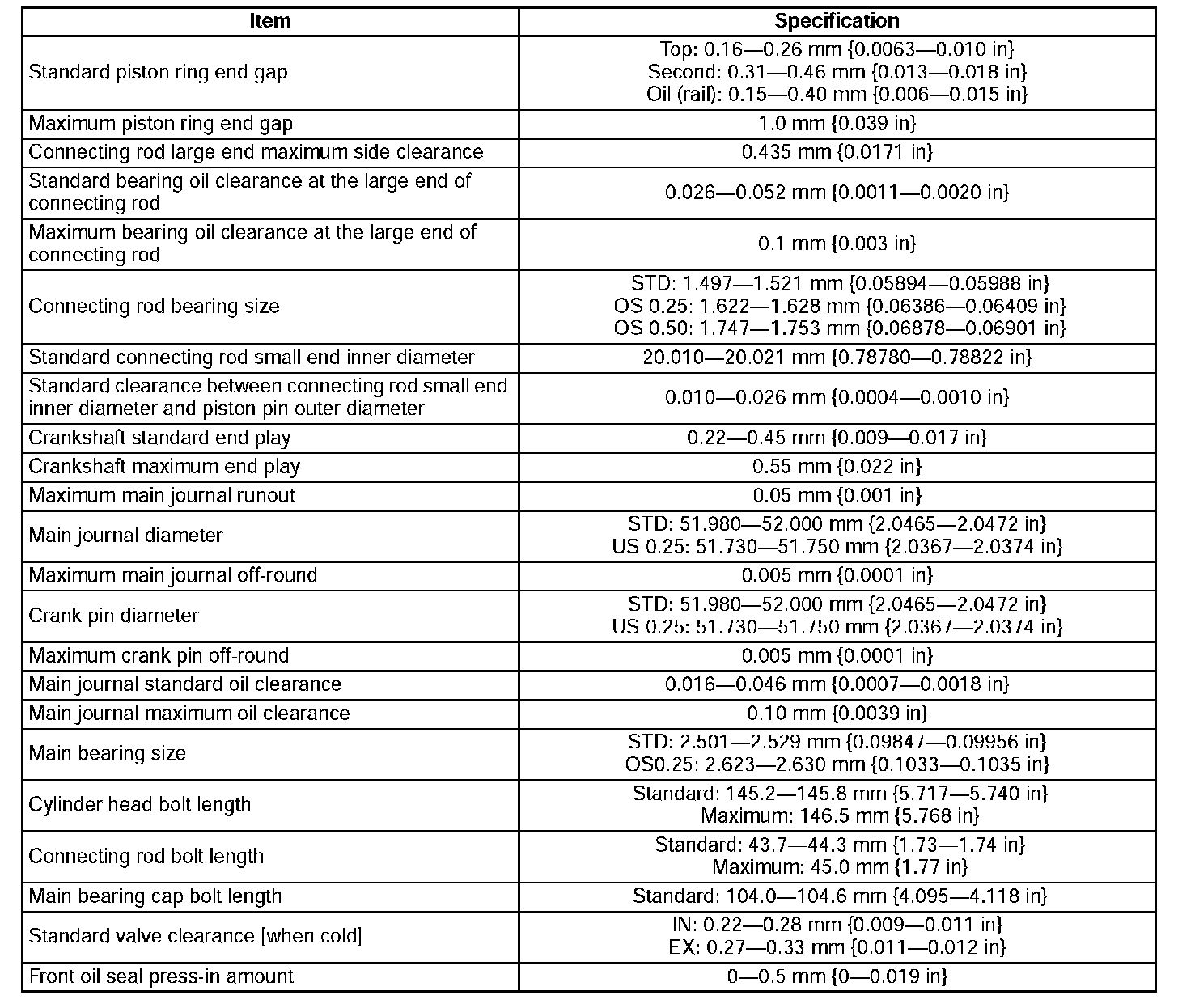

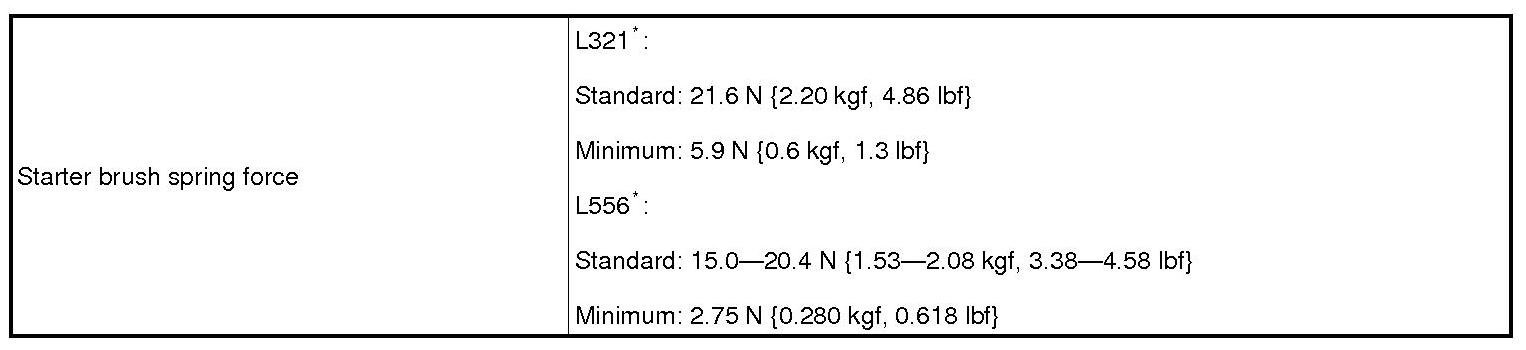

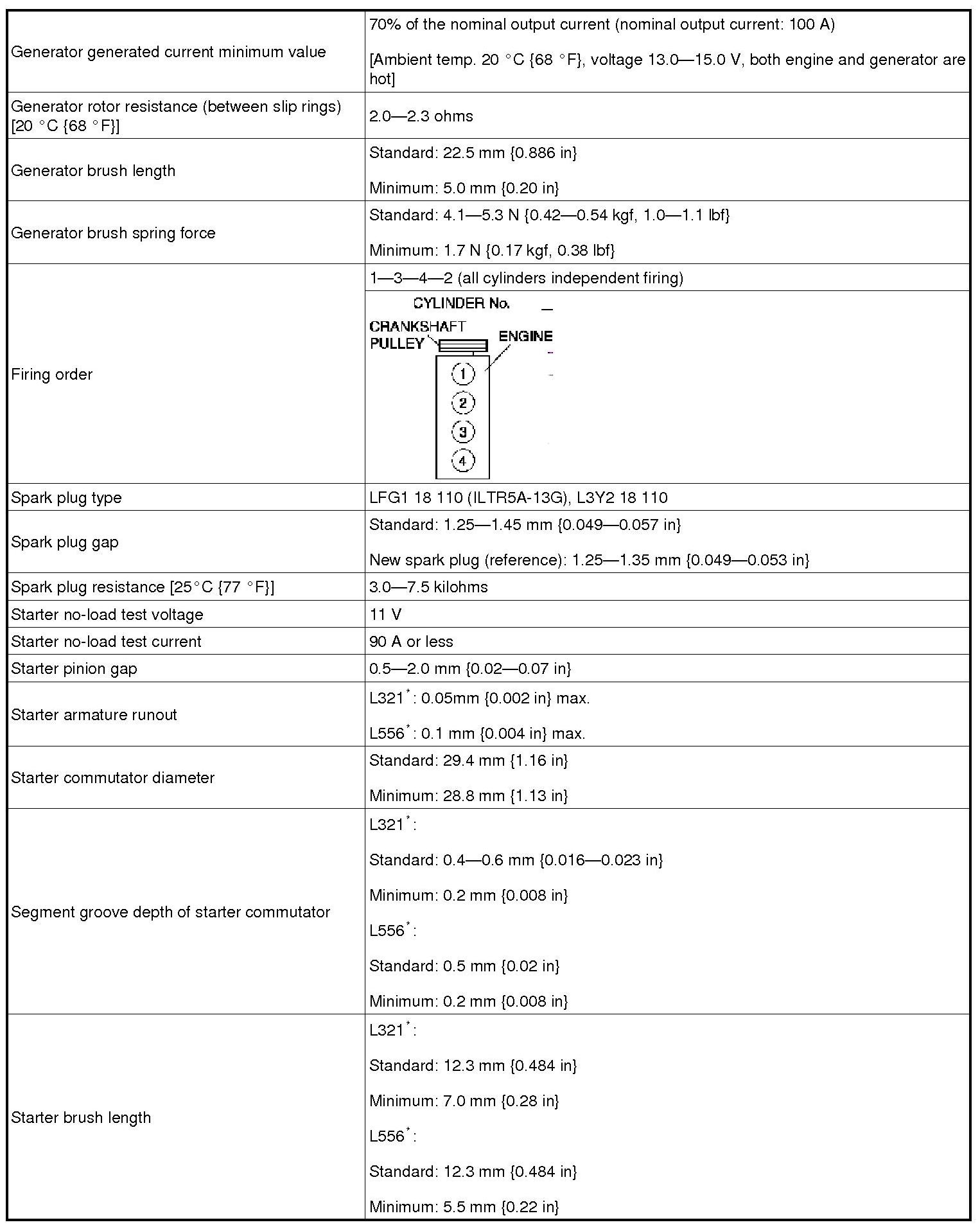

Engine Technical Data (Part 2):

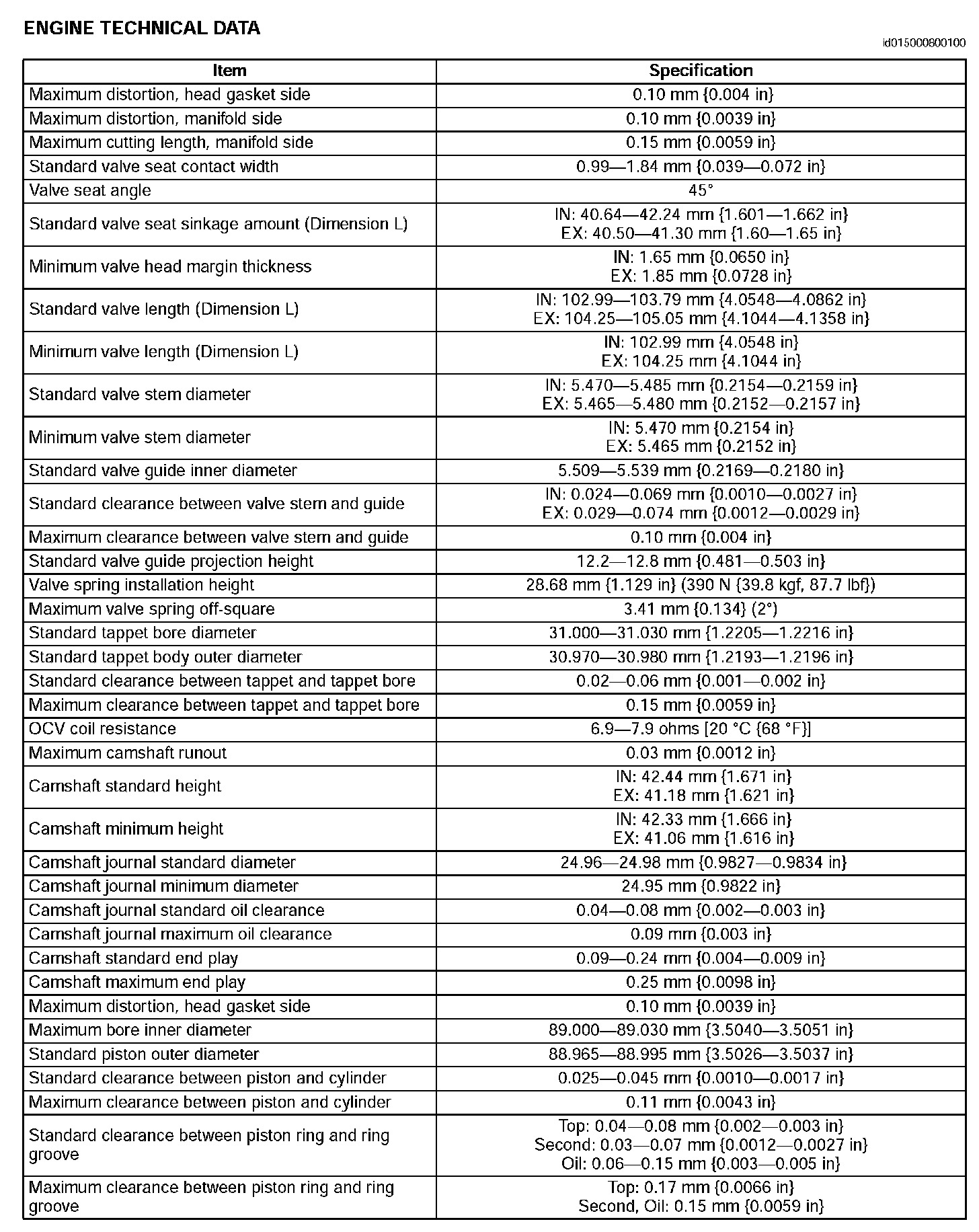

ENGINE TECHNICAL DATA [L5]













*

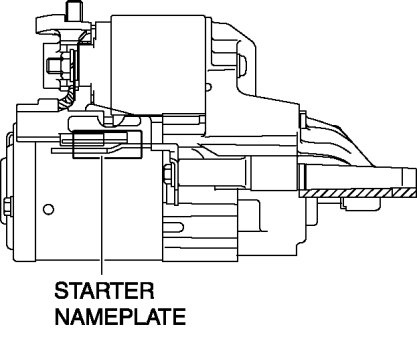

The first four digits of the part number indicated on the starter nameplate

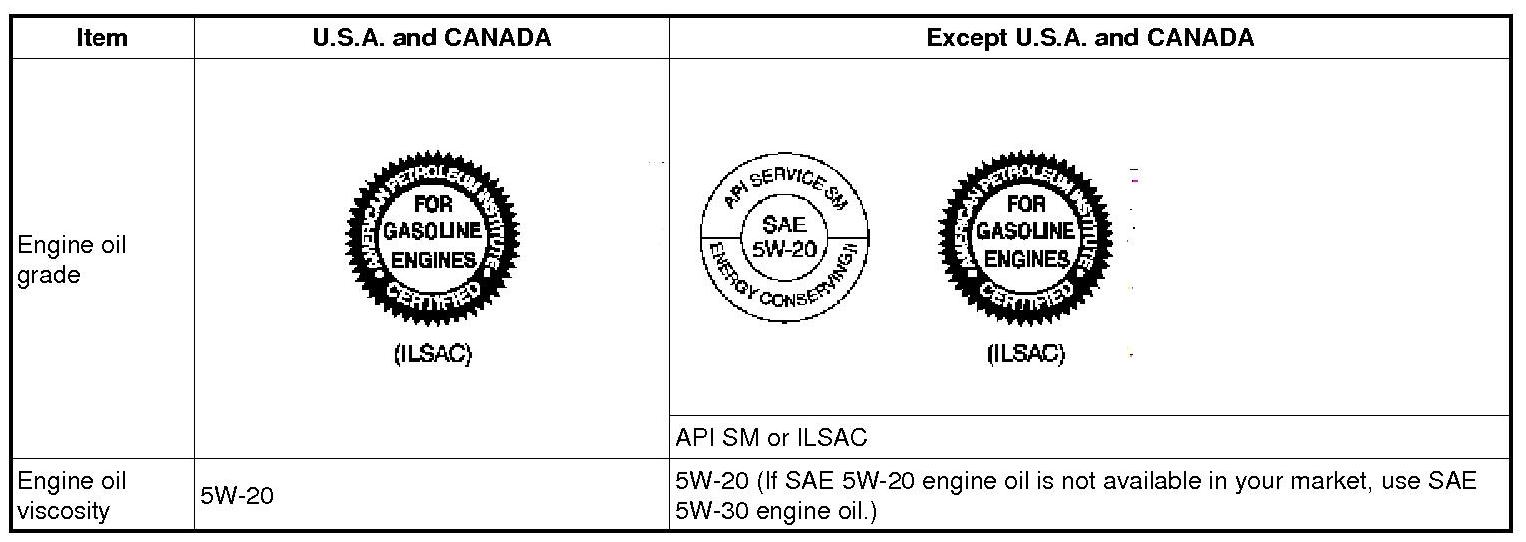

Engine oil specification
