Home >> Mazda >> 2010 >> 3 L4-2.5L >> Repair and Diagnosis >> Diagrams >> Components >> Audio Unit

Audio Unit

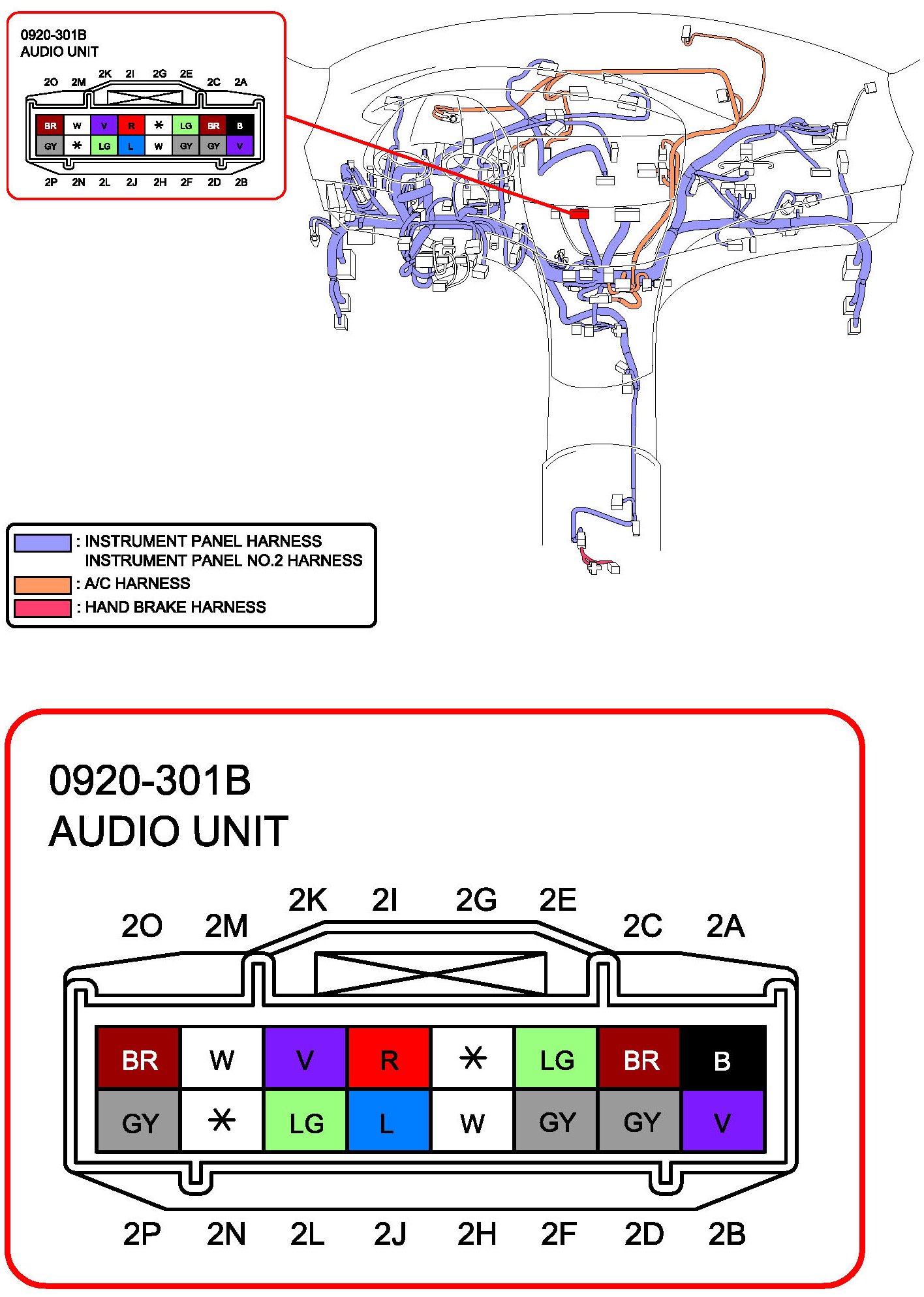

Audio Unit:

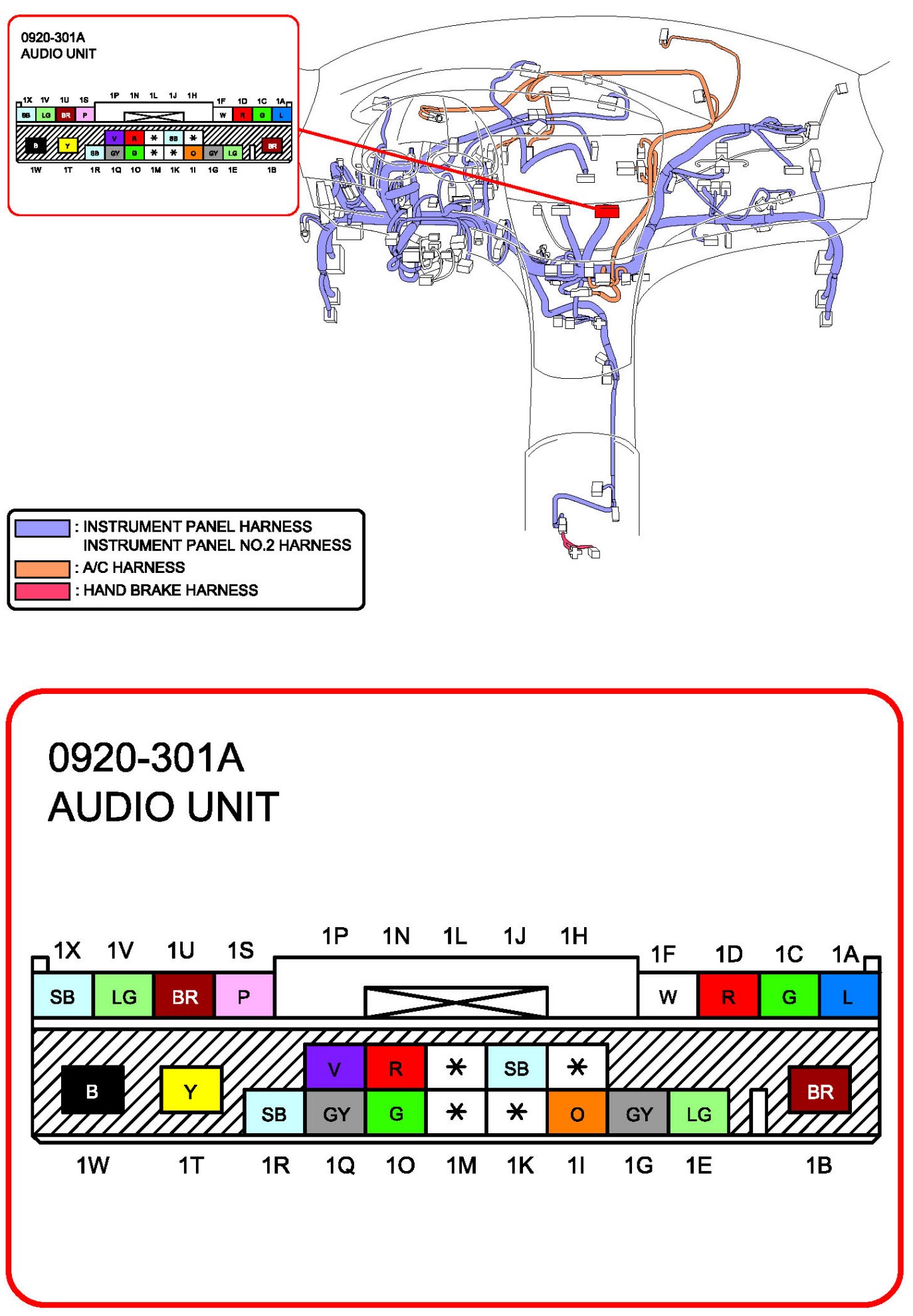

Audio Unit:

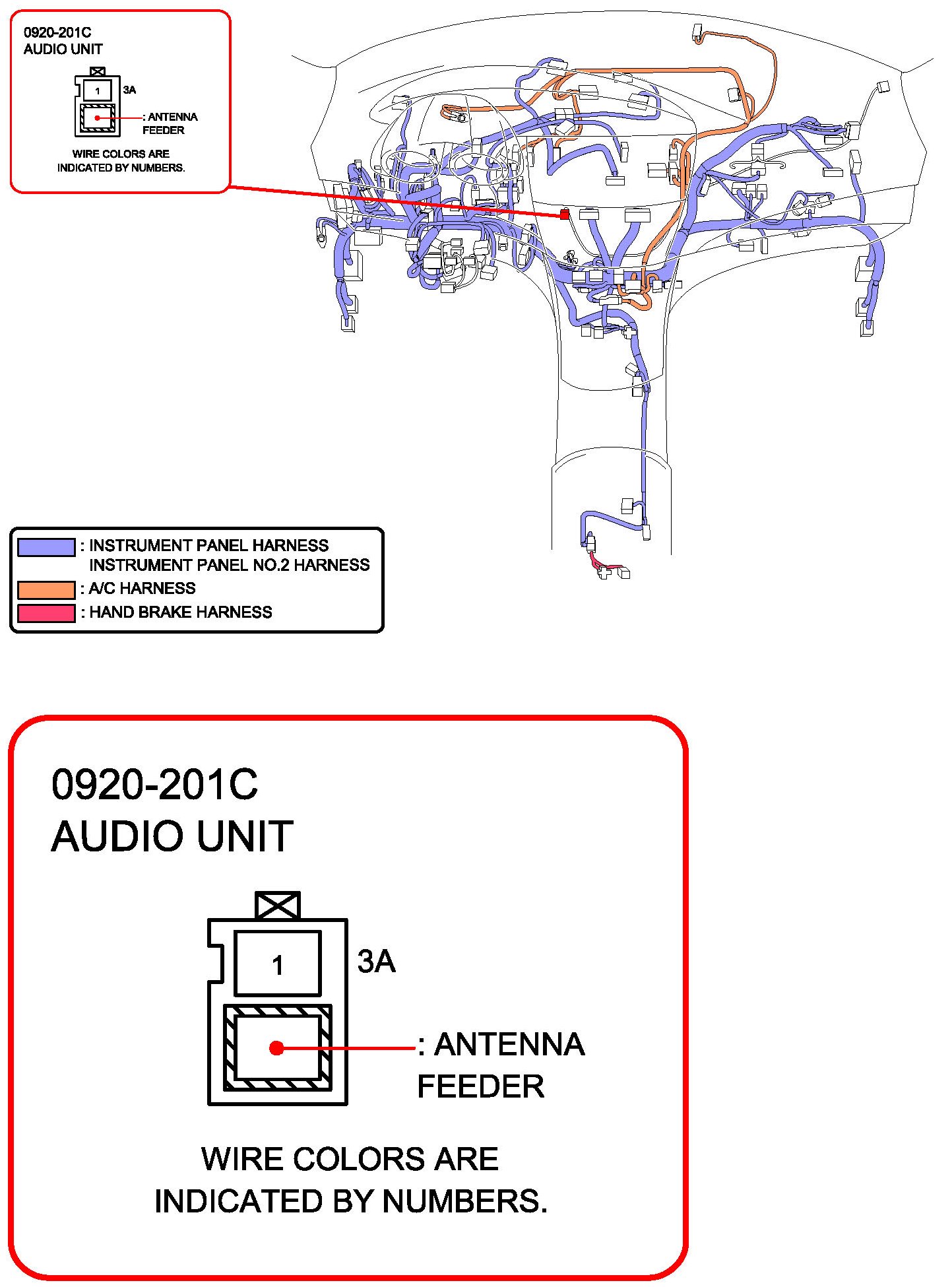

Audio Unit:

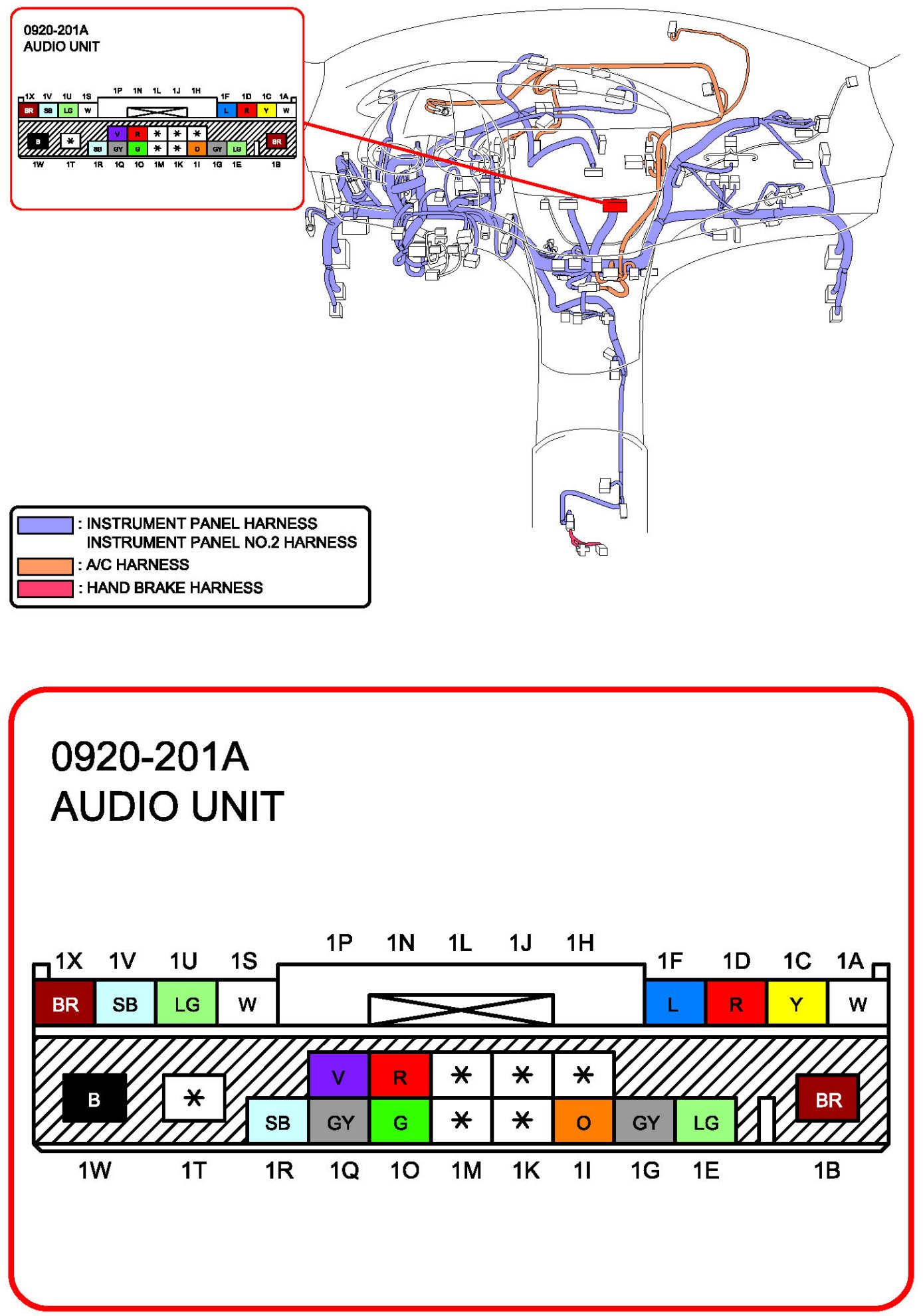

Audio Unit:

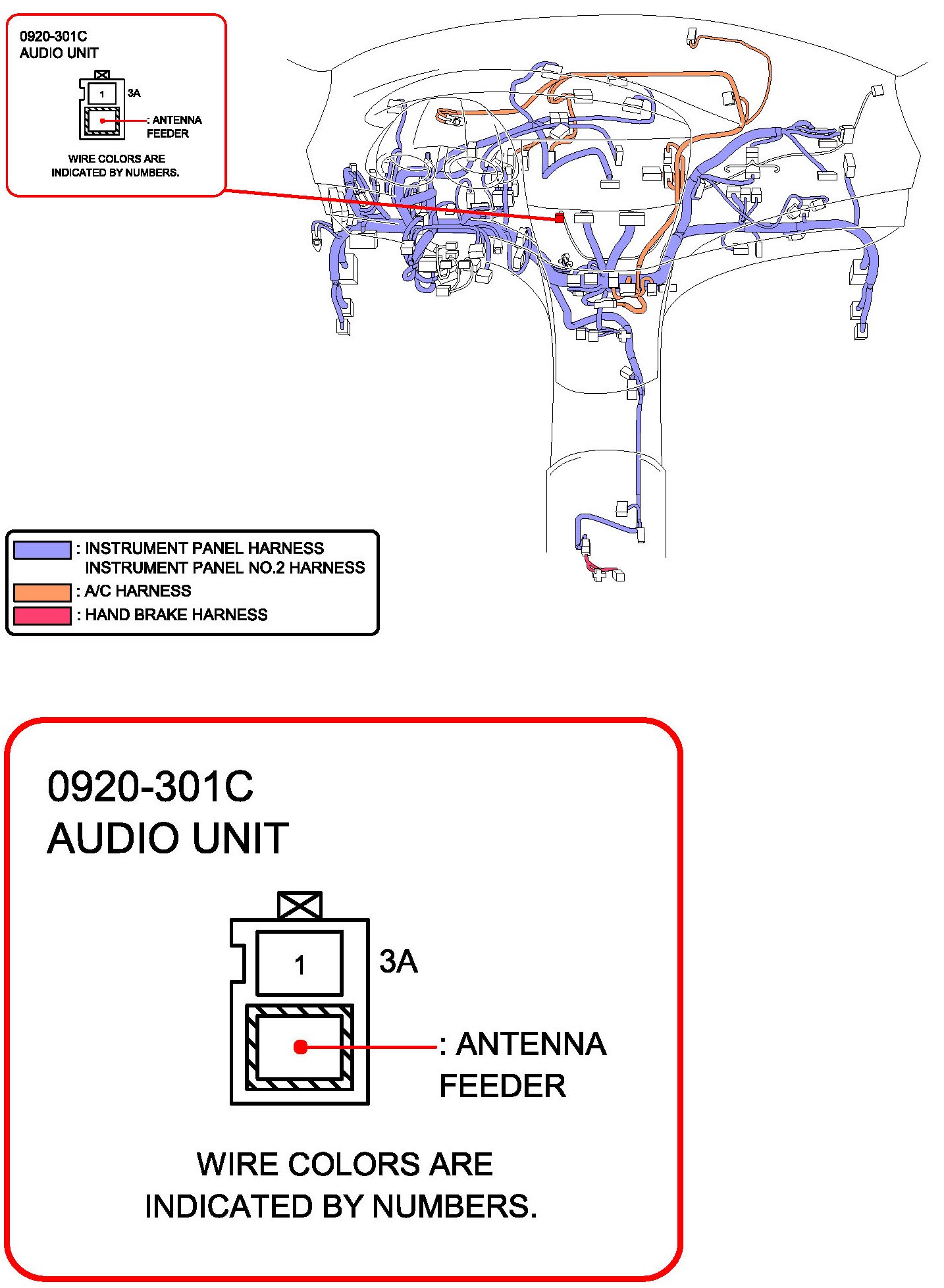

Audio Unit:

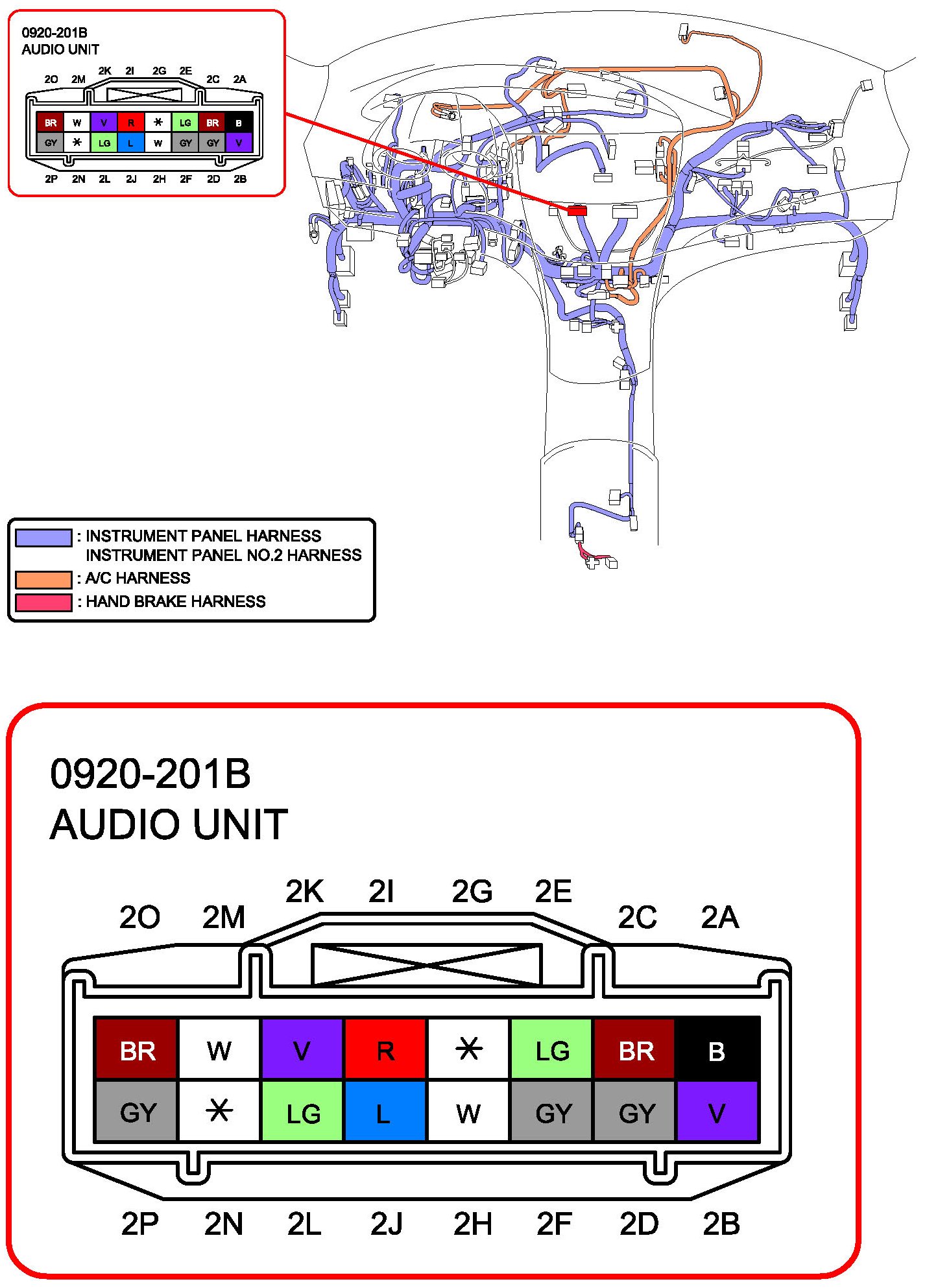

Audio Unit:
