Keyless Entry Module: Locations

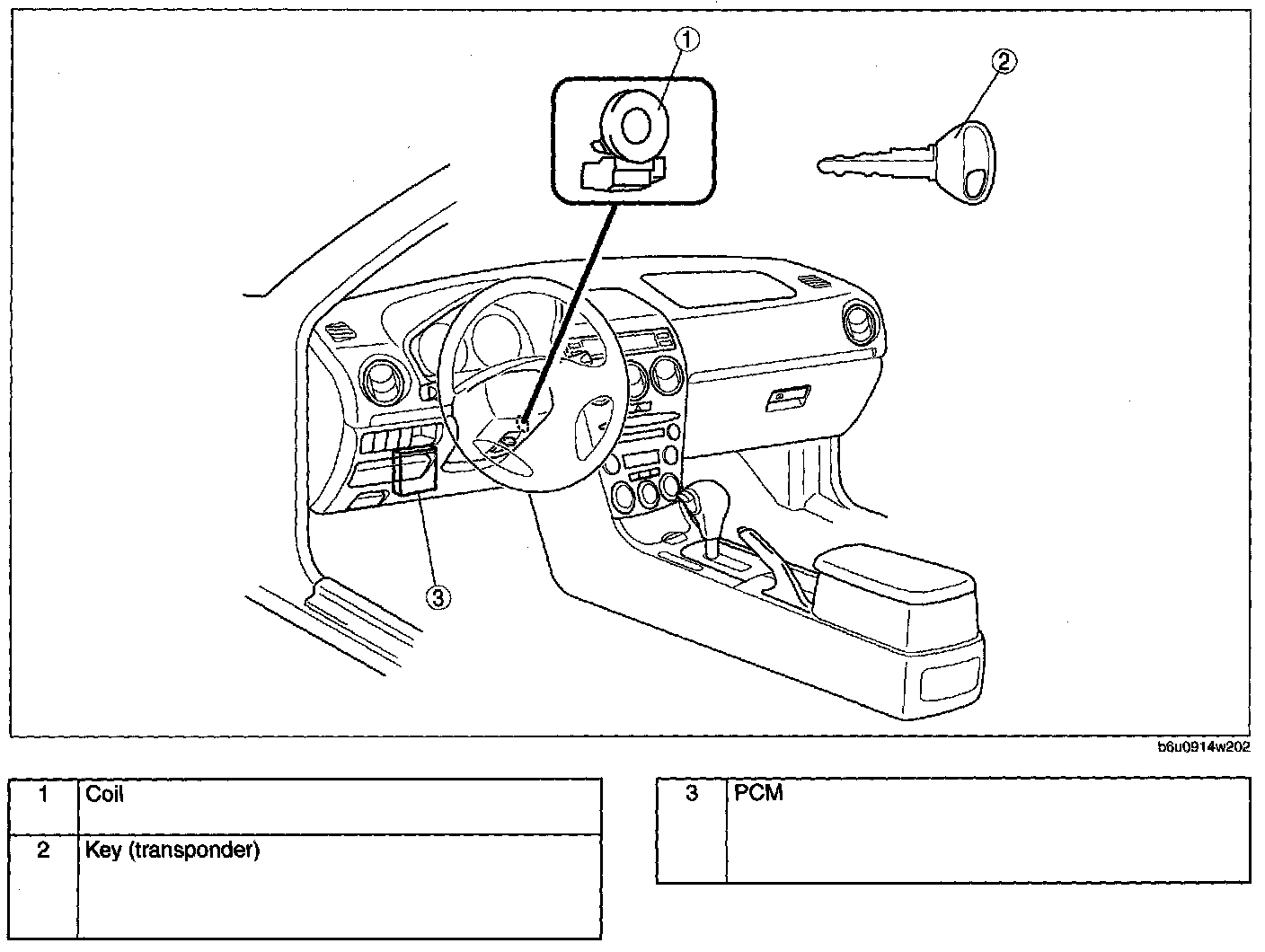

Immobilizer System Location Index [Advanced Keyless System]:

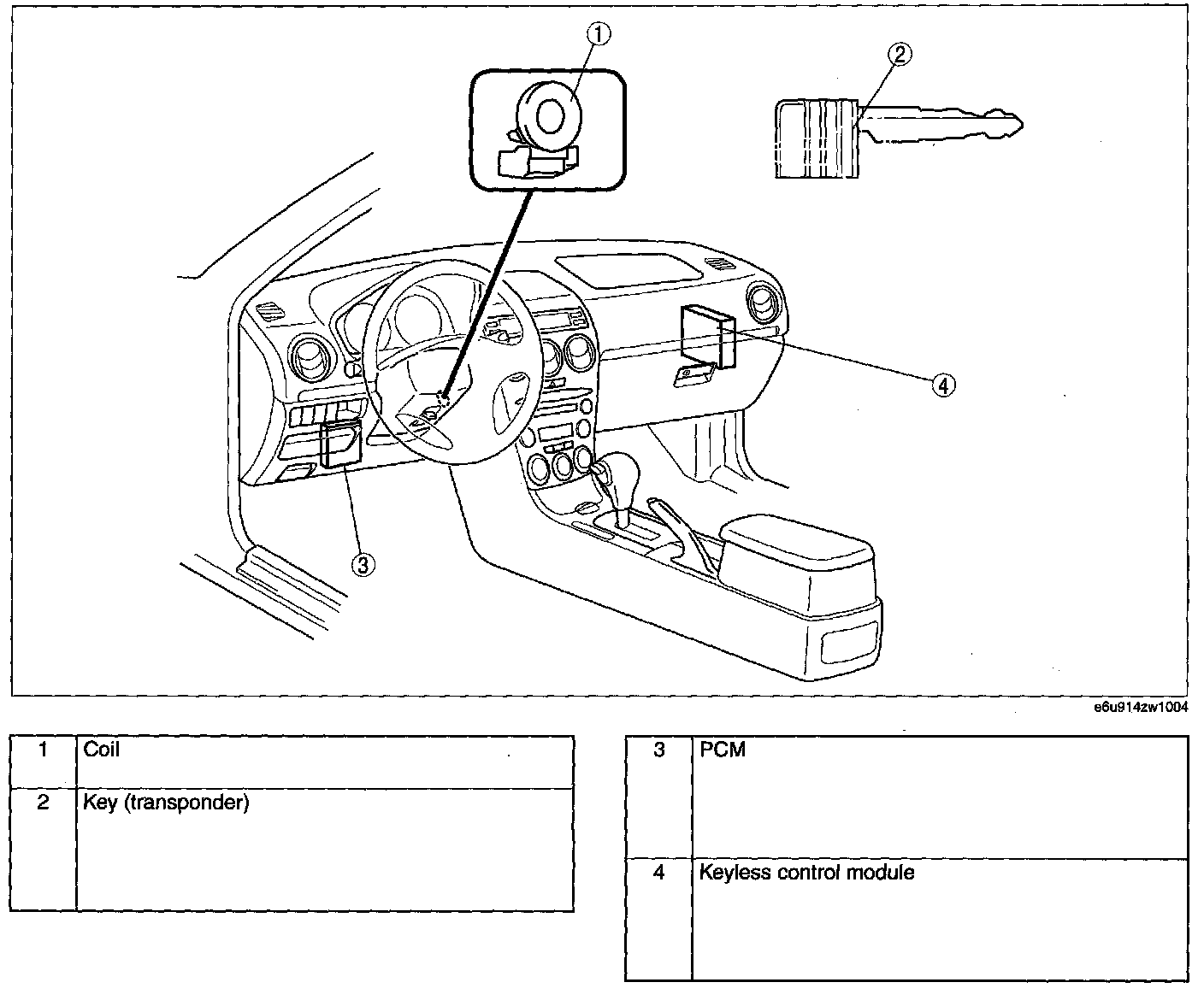

Immobilizer System Location Index [keyless Entry System]:

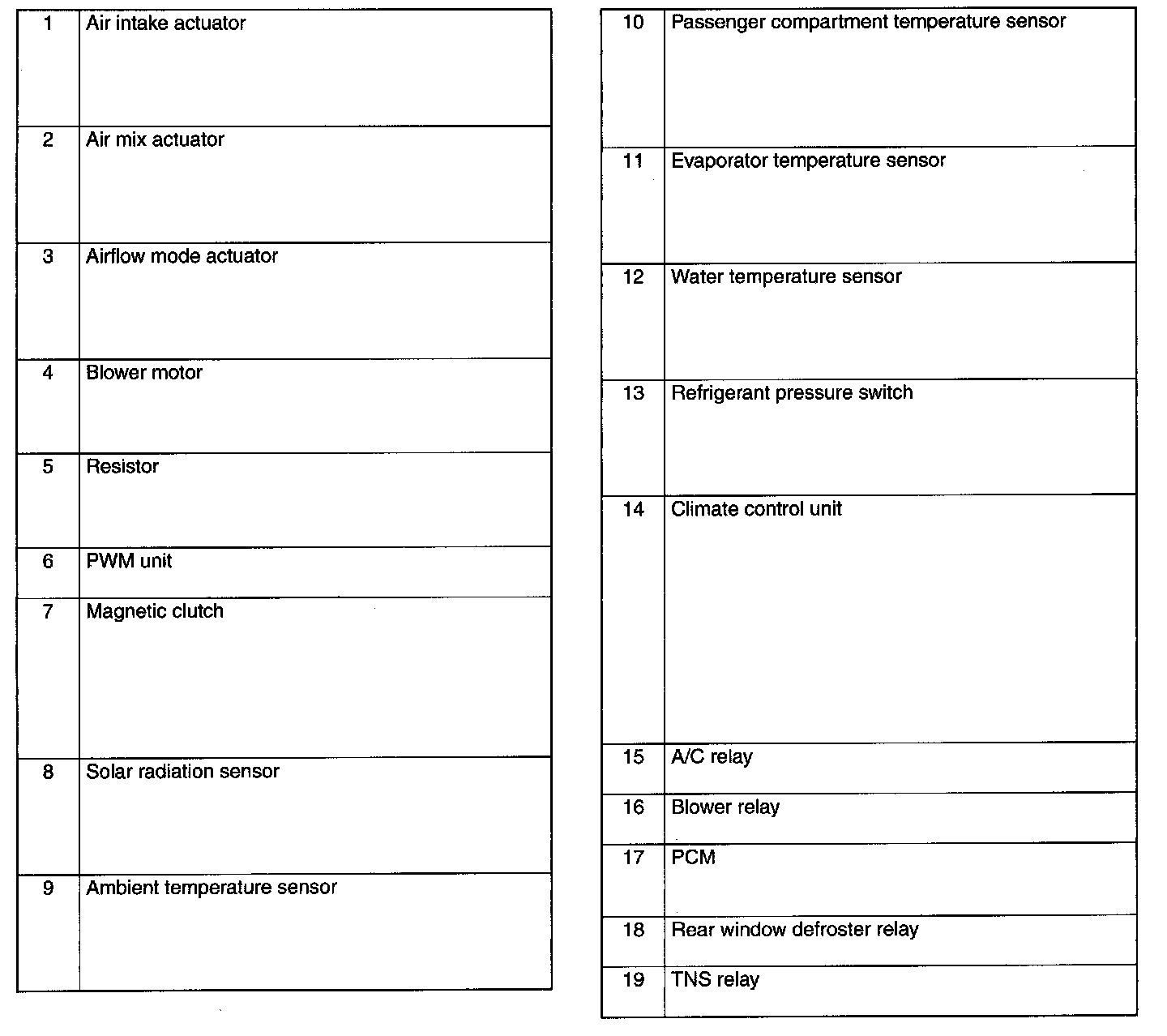

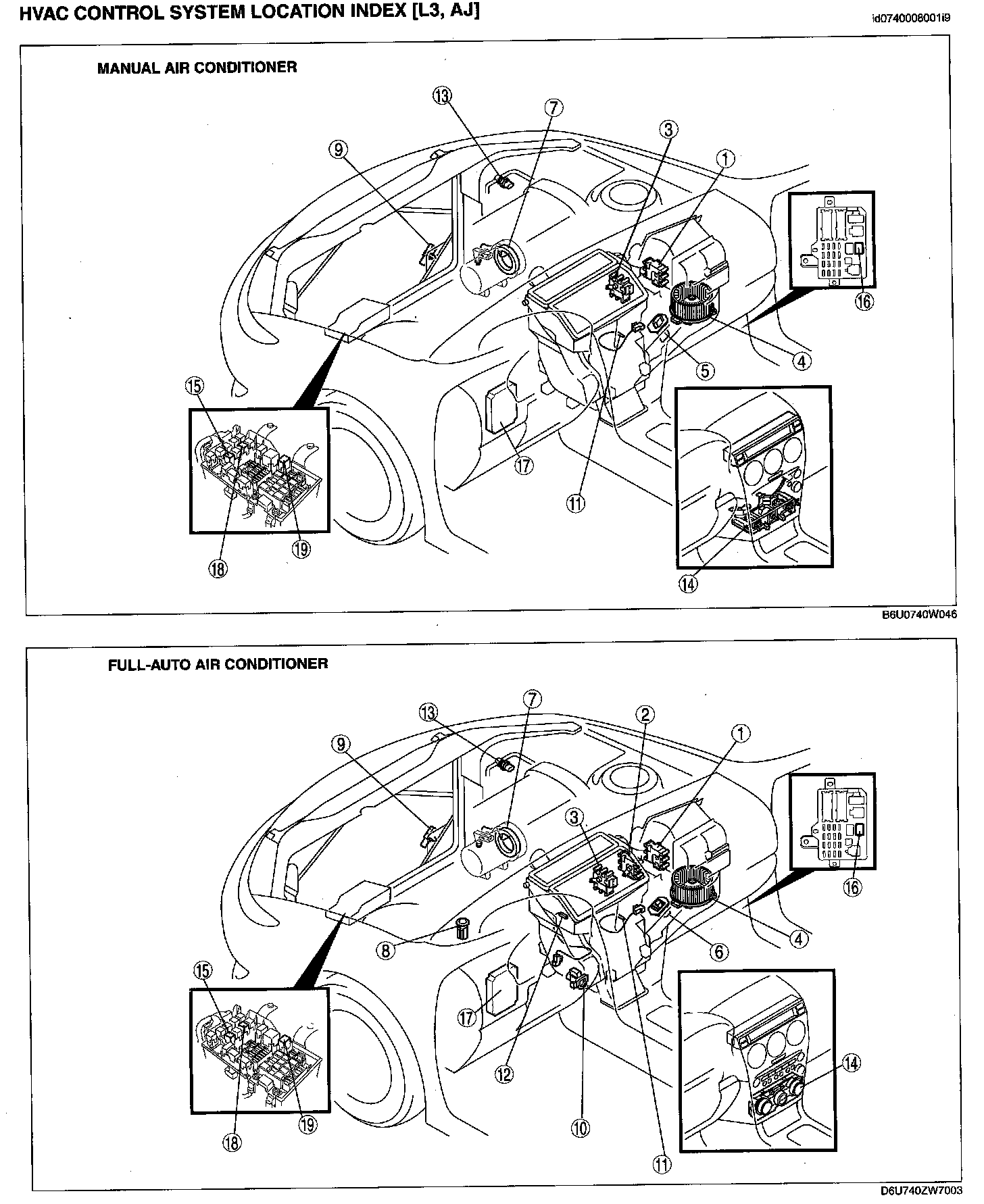

HVAC Control System Location Index [L3, AJ] (Part 1):

HVAC Control System Location Index [L3, AJ] (Part 2):
