Flex Plate





Drive Plate

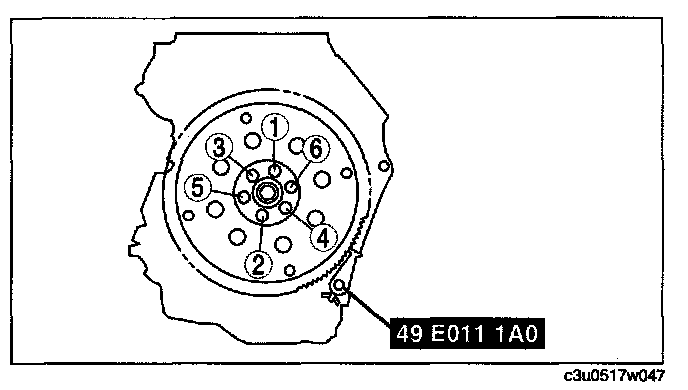

Tighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.
Tightening torque 108-116 N-m (11.0-11.8 kgf-m, 79.7-85.5 ft-lbf)
