Home >> Mazda >> 2007 >> CX-7 L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Cover

Timing Cover

Engine Front Cover

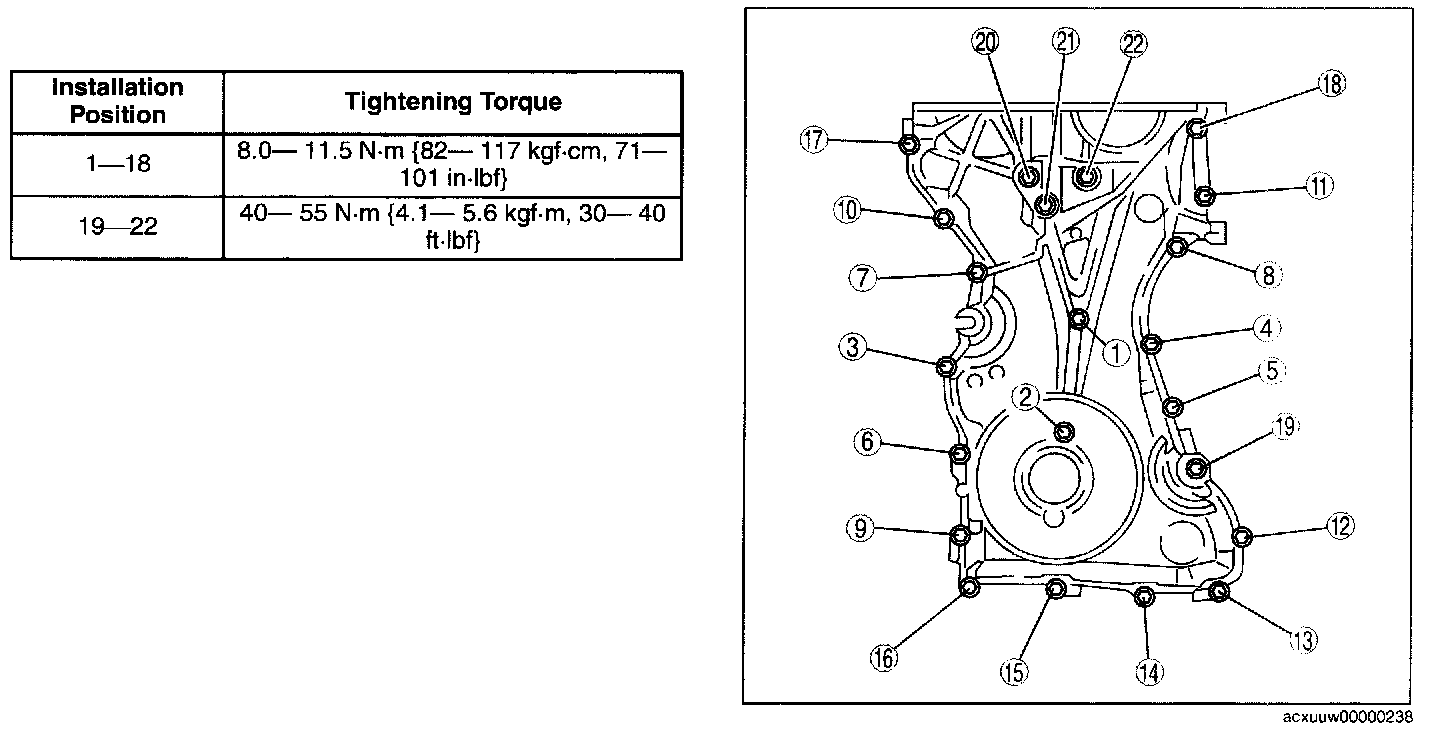

Tighten the engine front cover installation bolts in the order shown in the figure.
