Pinout Values and Diagnostic Parameters

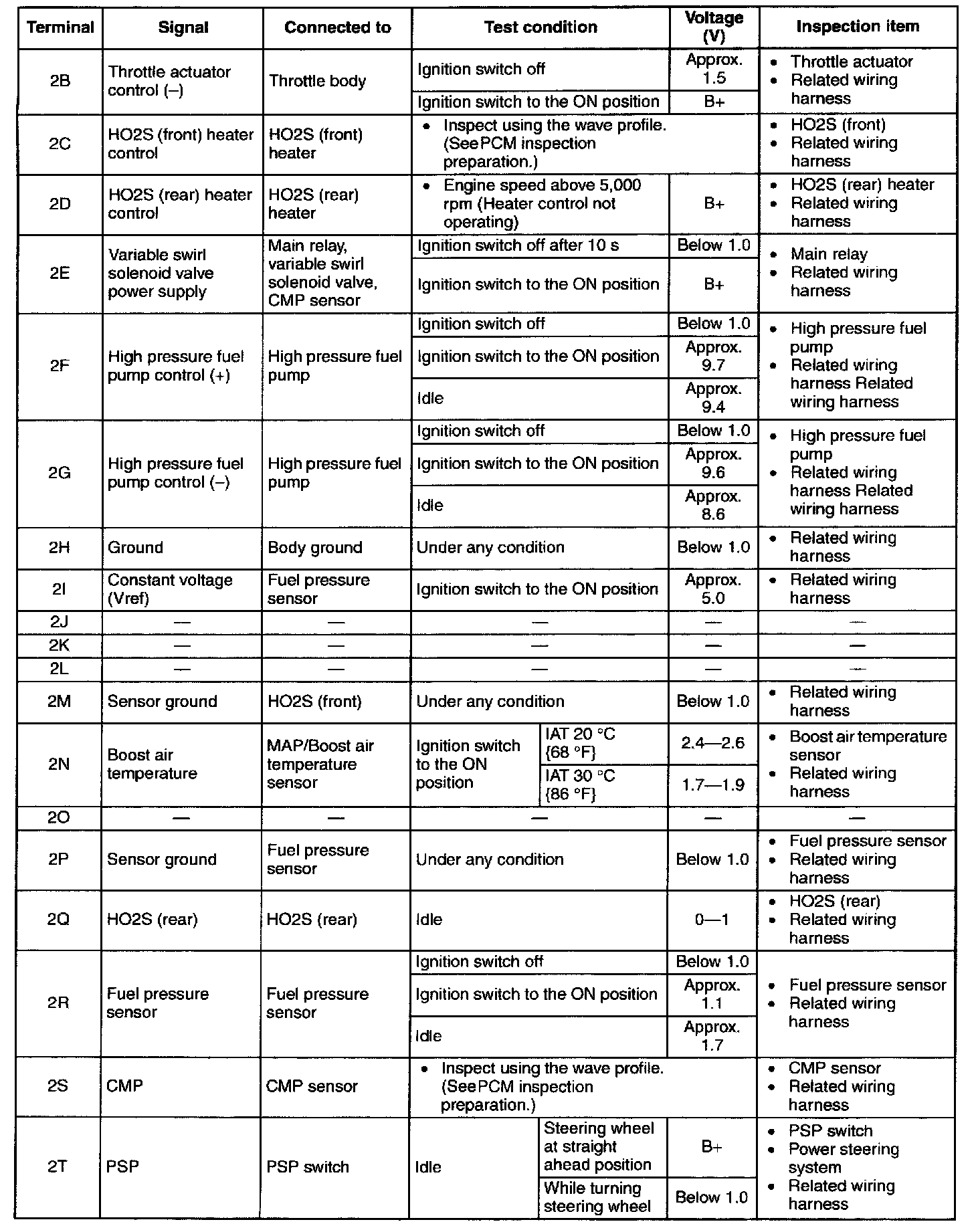

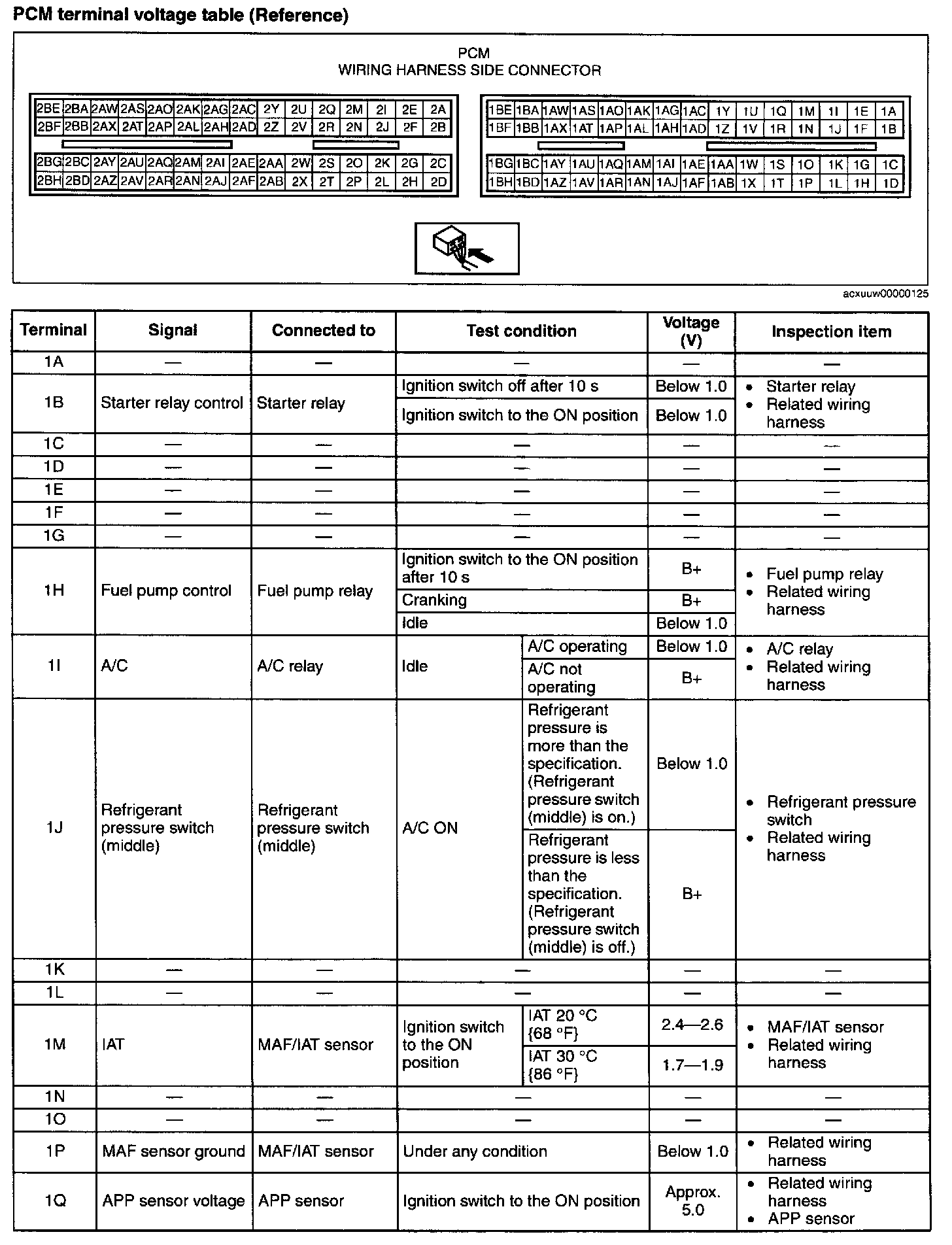

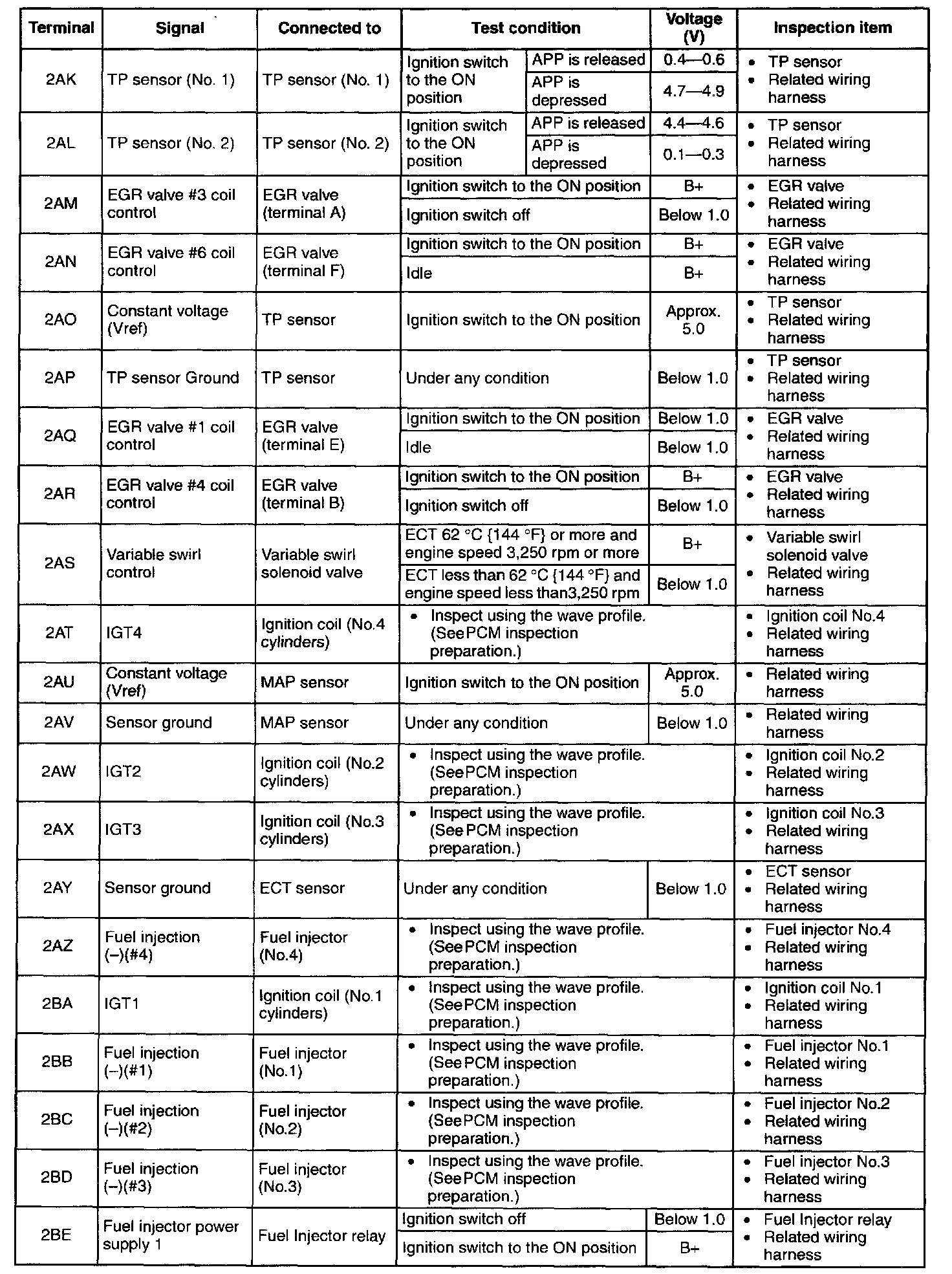

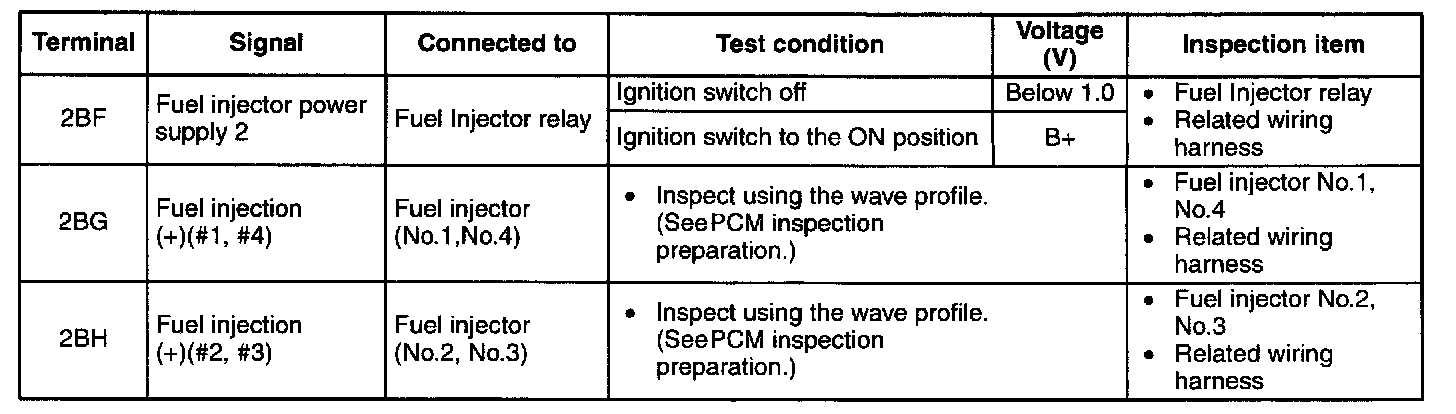

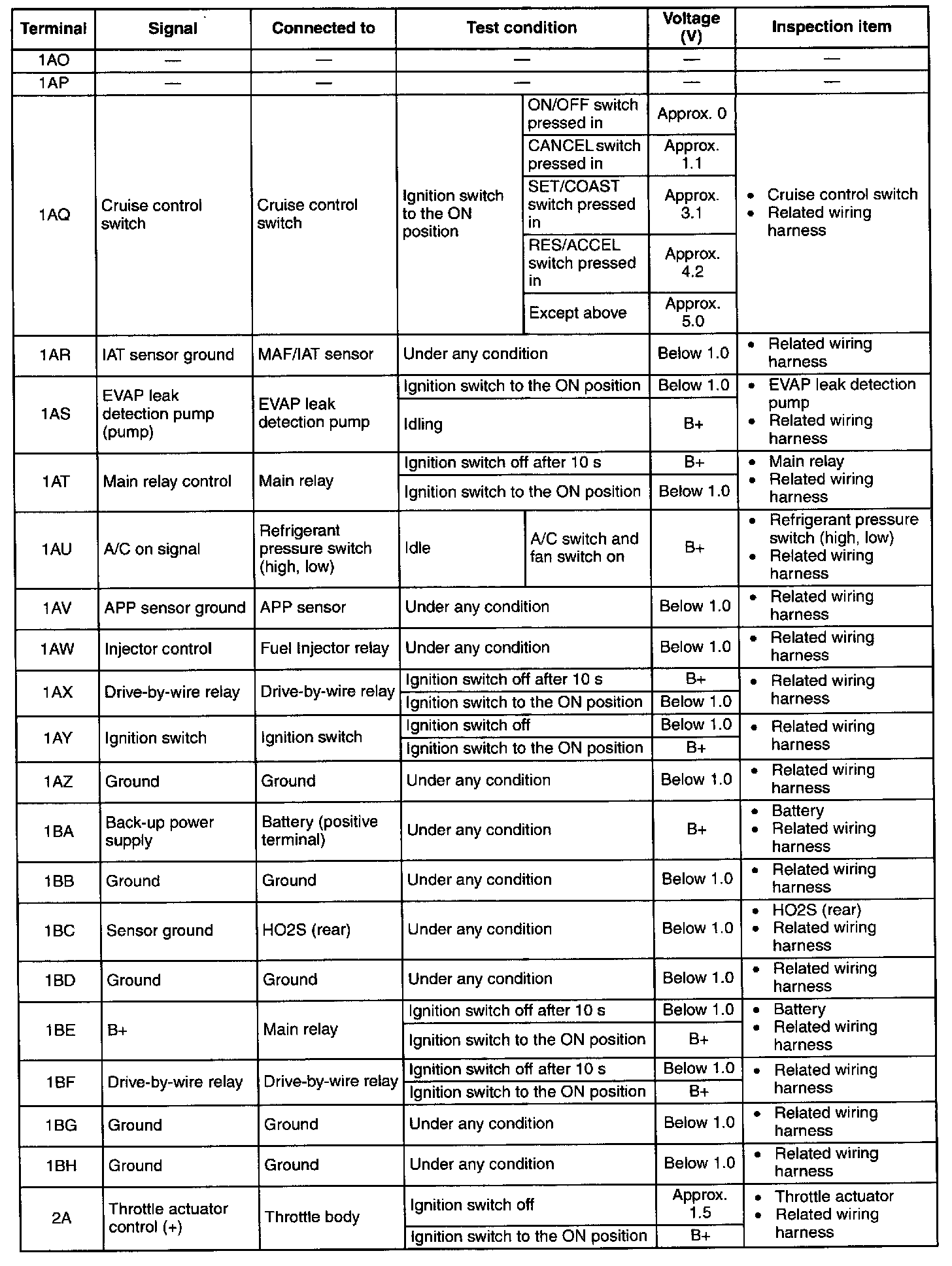

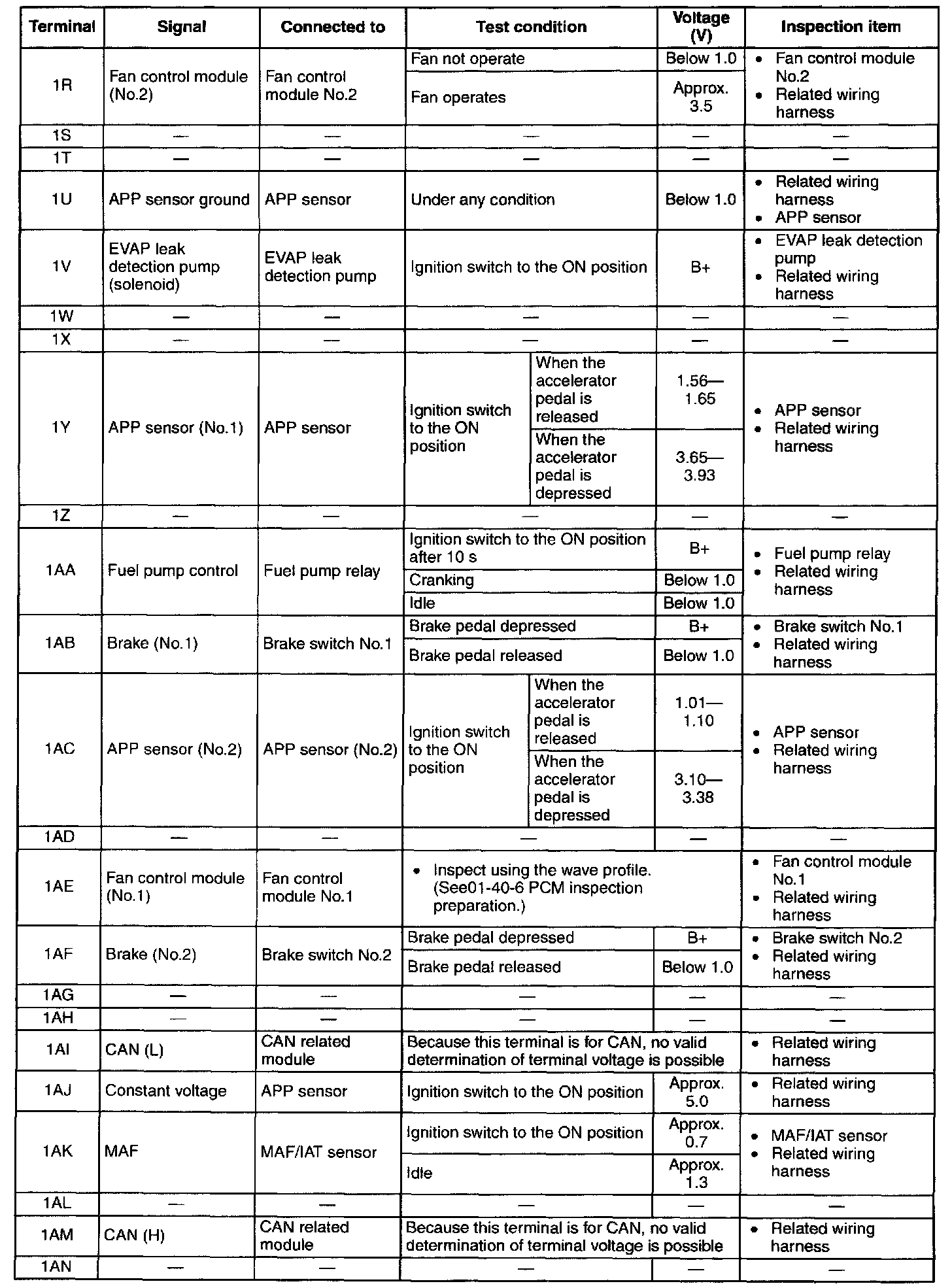

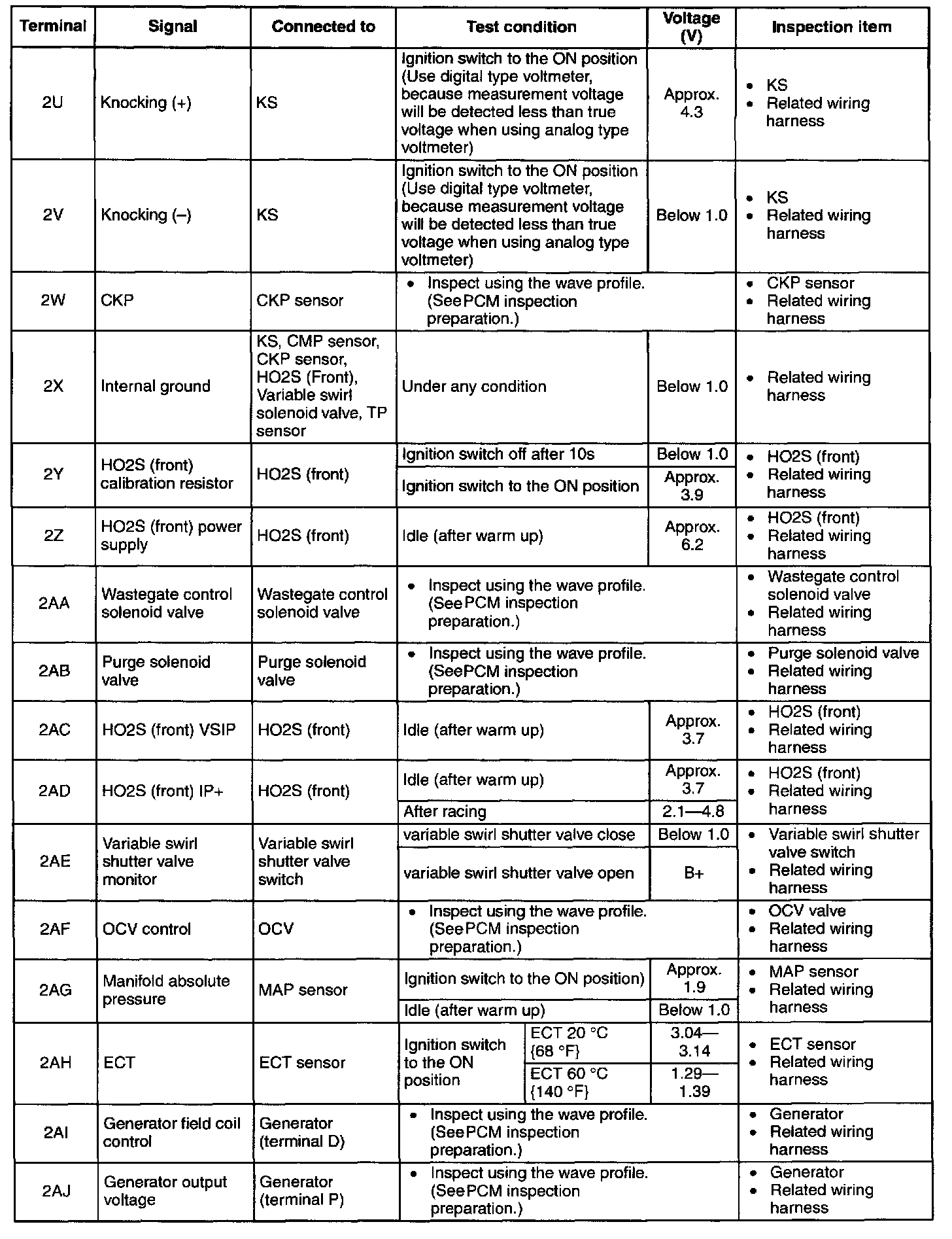

PCM Terminal Voltage Table (Reference) Part 1:



PCM Terminal Voltage Table (Reference) Part 2:



PCM Terminal Voltage Table (Reference) Part 3:



PCM Terminal Voltage Table (Reference) Part 4:



PCM Terminal Voltage Table (Reference) Part 5:



PCM Terminal Voltage Table (Reference) Part 6:



PCM Terminal Voltage Table (Reference) Part 7:
