Total Toe-In Adjustment

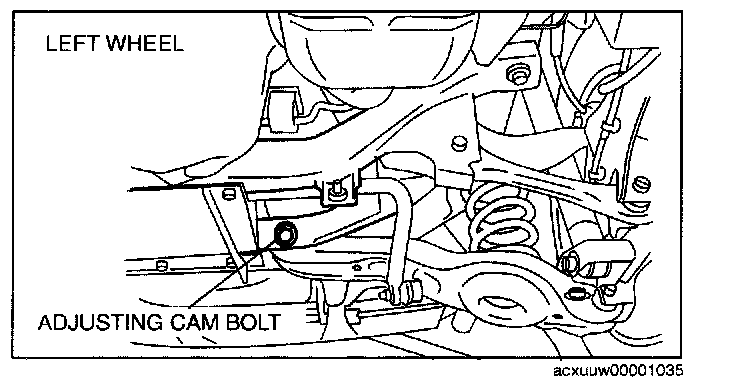

Total Toe-in Adjustment1. Loosen the securing nut of the adjusting cam bolt.

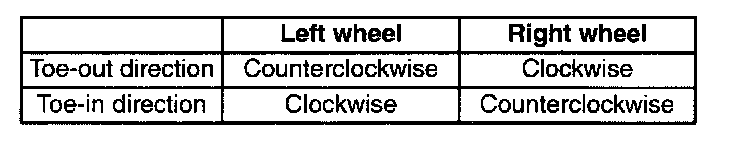

2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.
3. Tighten the nut.
Tightening torque 80 - 100 N-m (8.2 - 10.1 kgf-m, 59.1 - 73.7 ft-lbf)
