Keyless Entry System (With Advanced Keyless System)

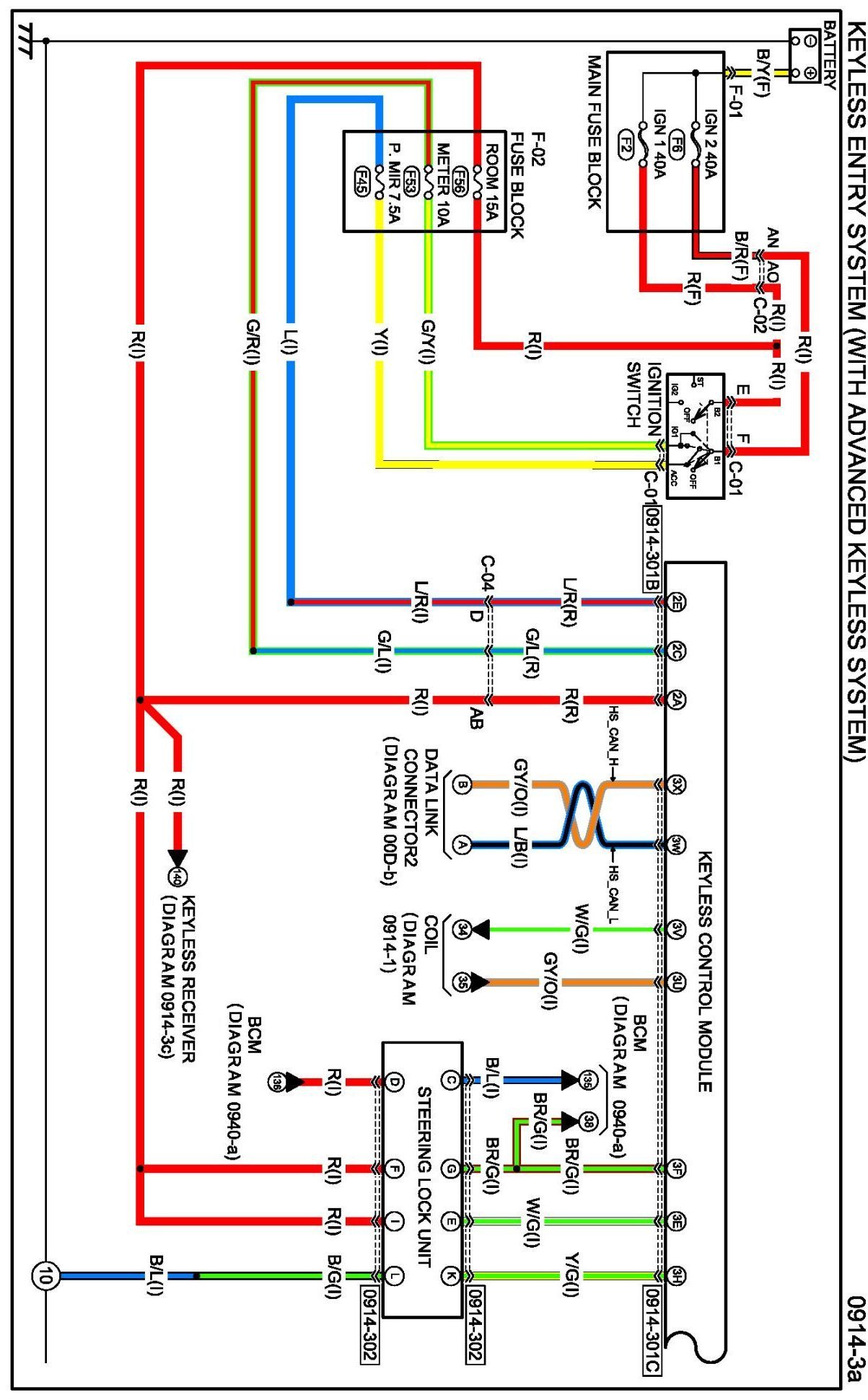

Diagram 0914-3a:

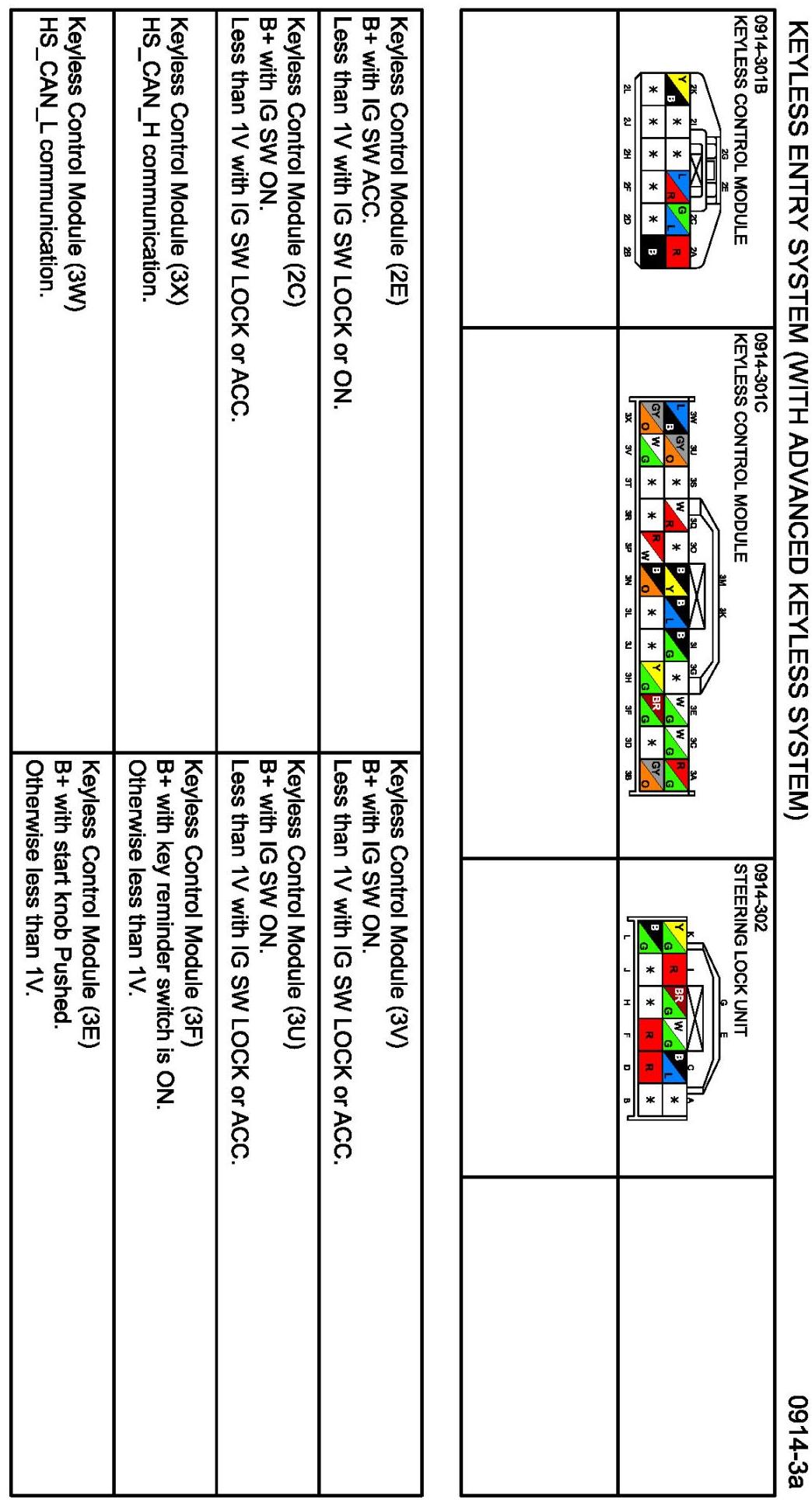

Connectors 0914-3a:

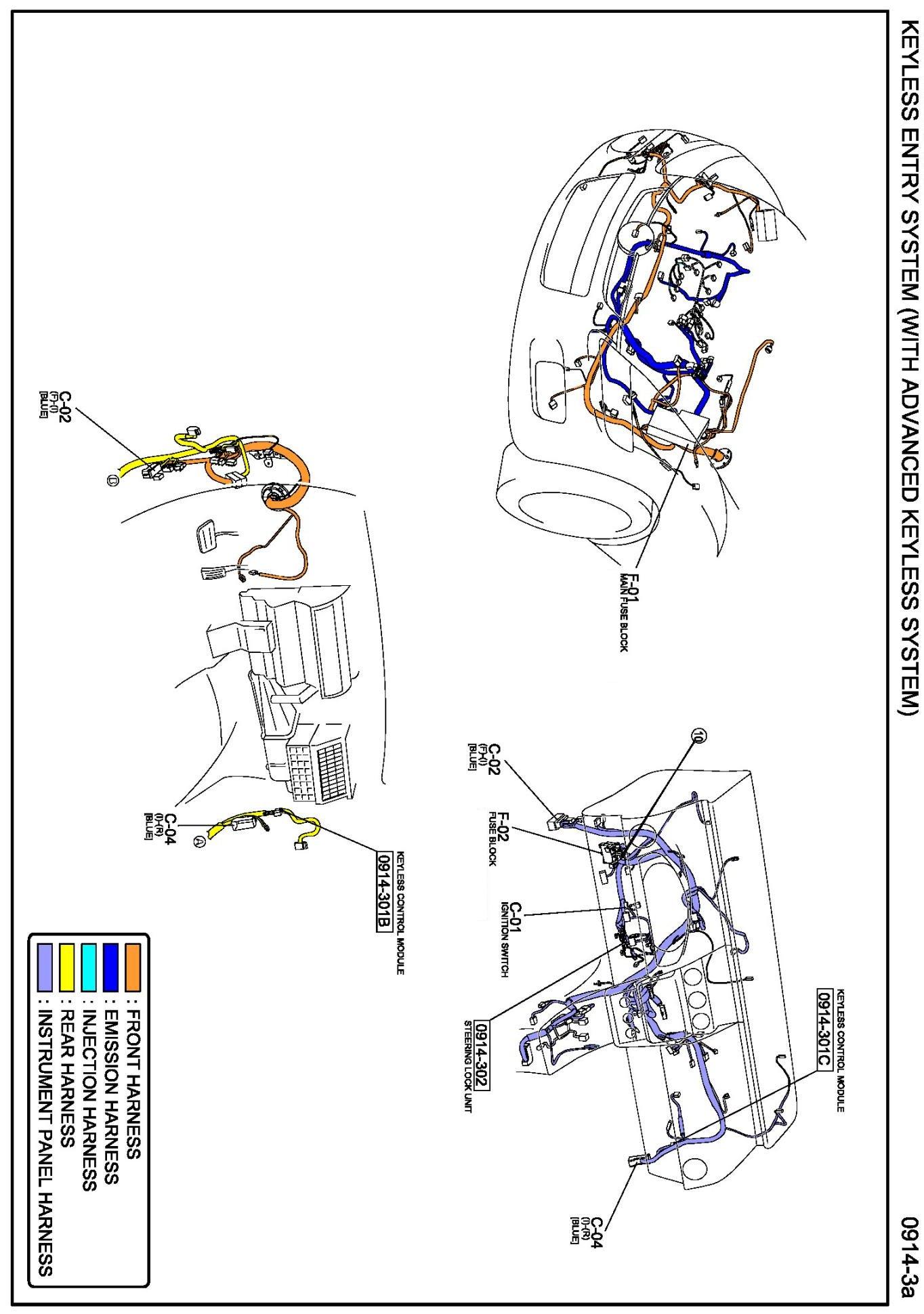

Routing View 0914-3a:

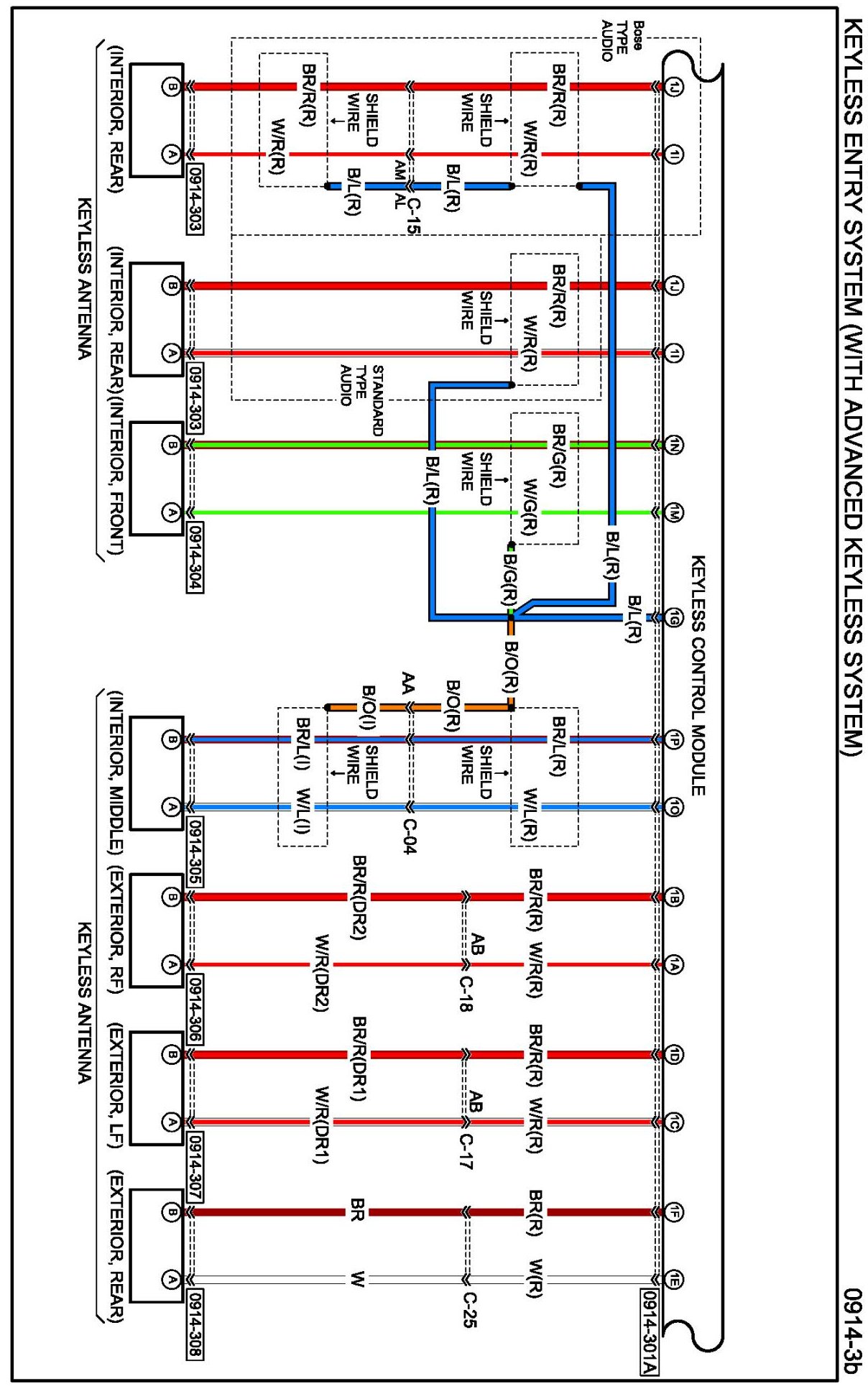

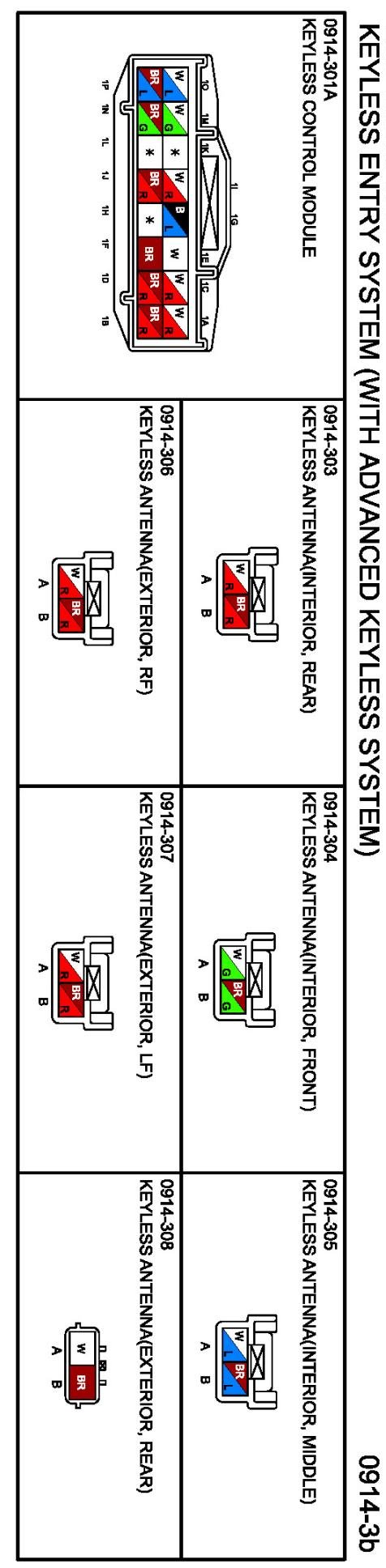

Diagram 0914-3b:




Connectors 0914-3b:

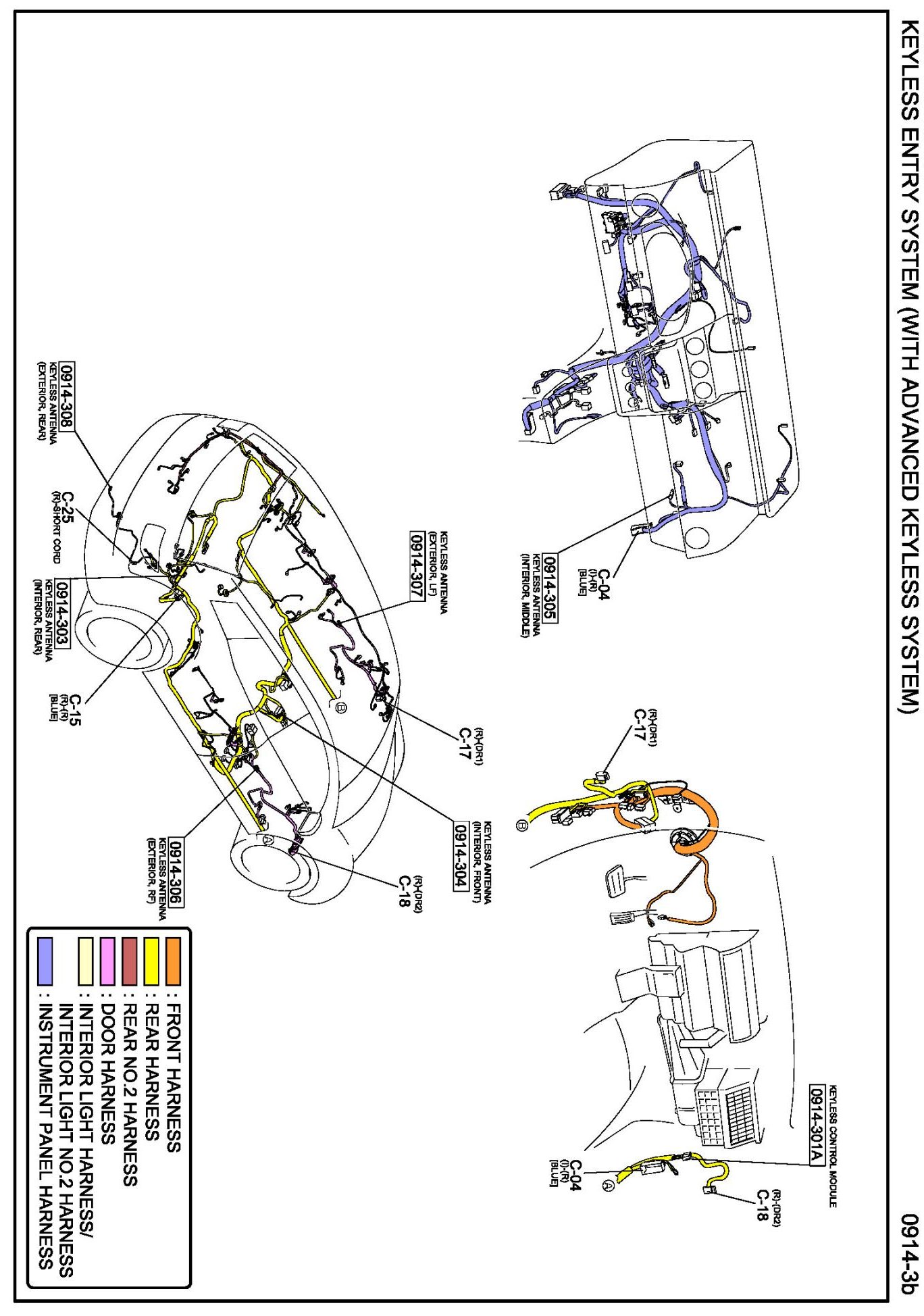

Routing View 0914-3b:

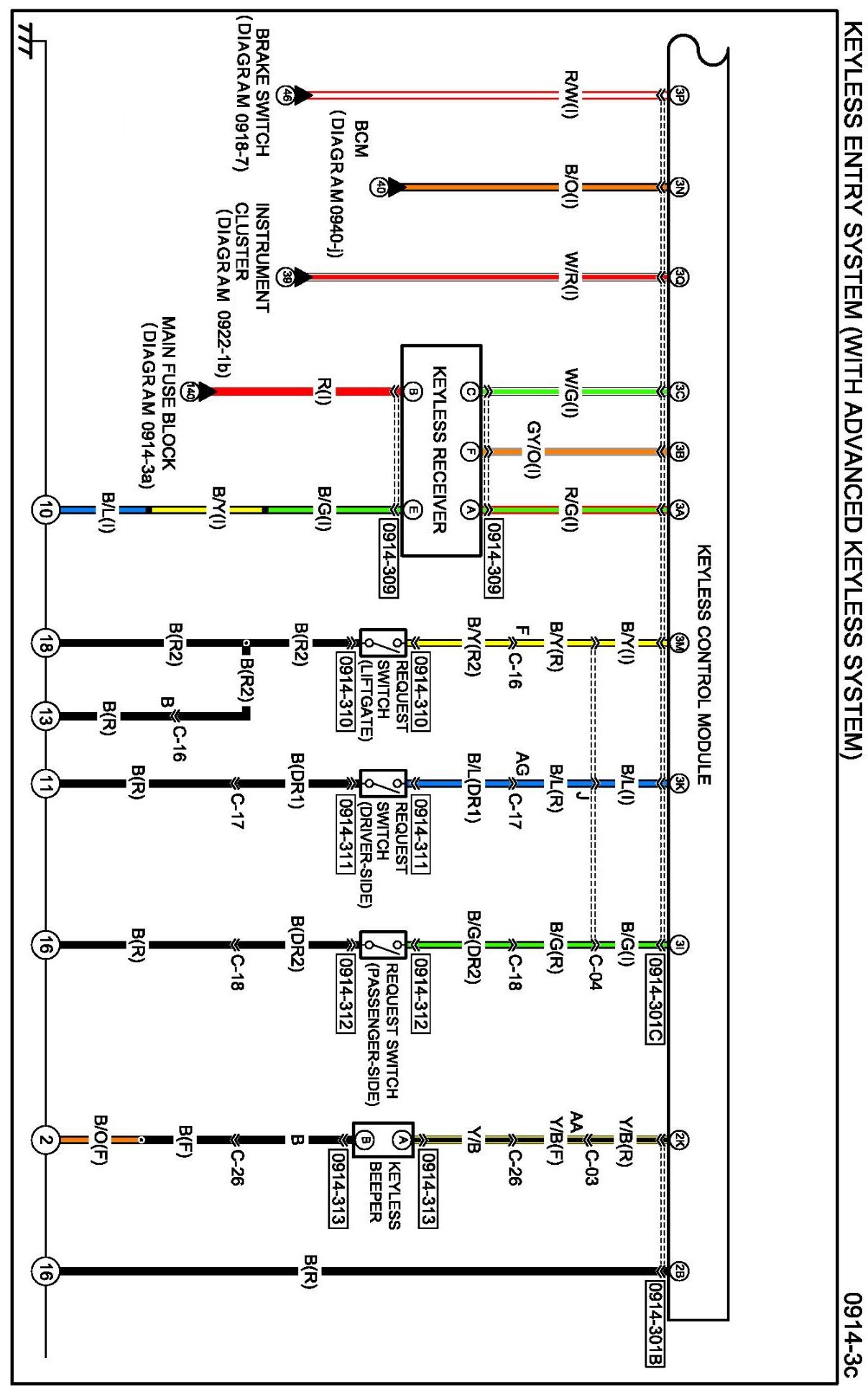

Diagram 0914-3c:

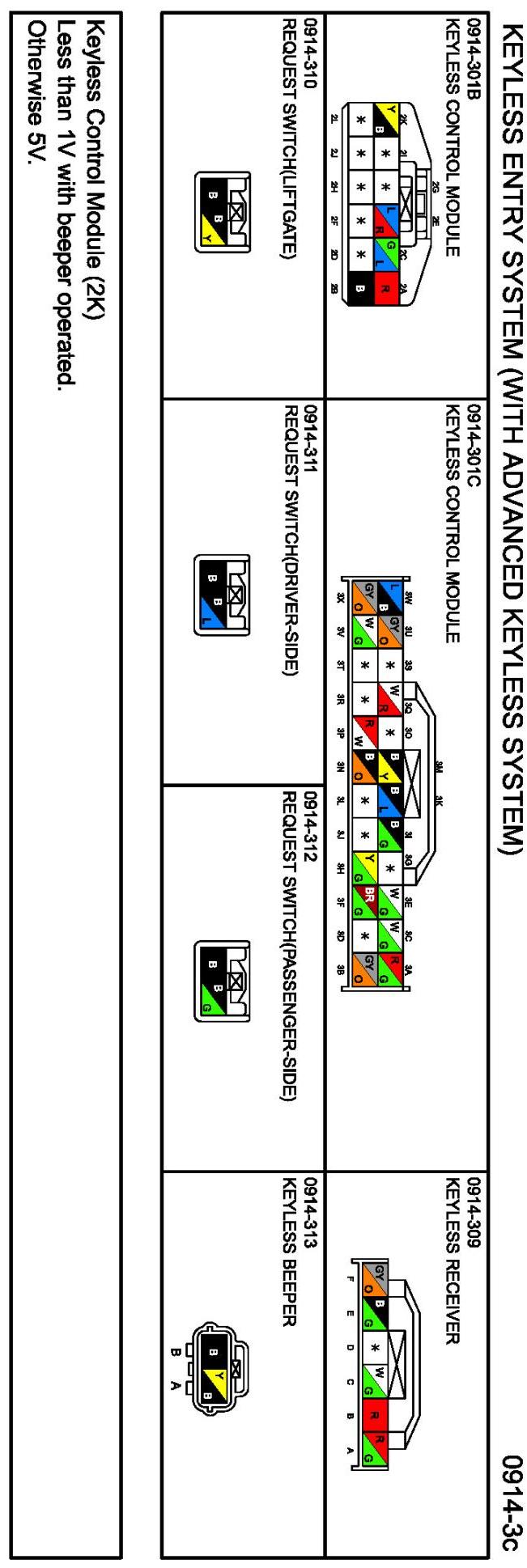

Connectors 0914-3c:

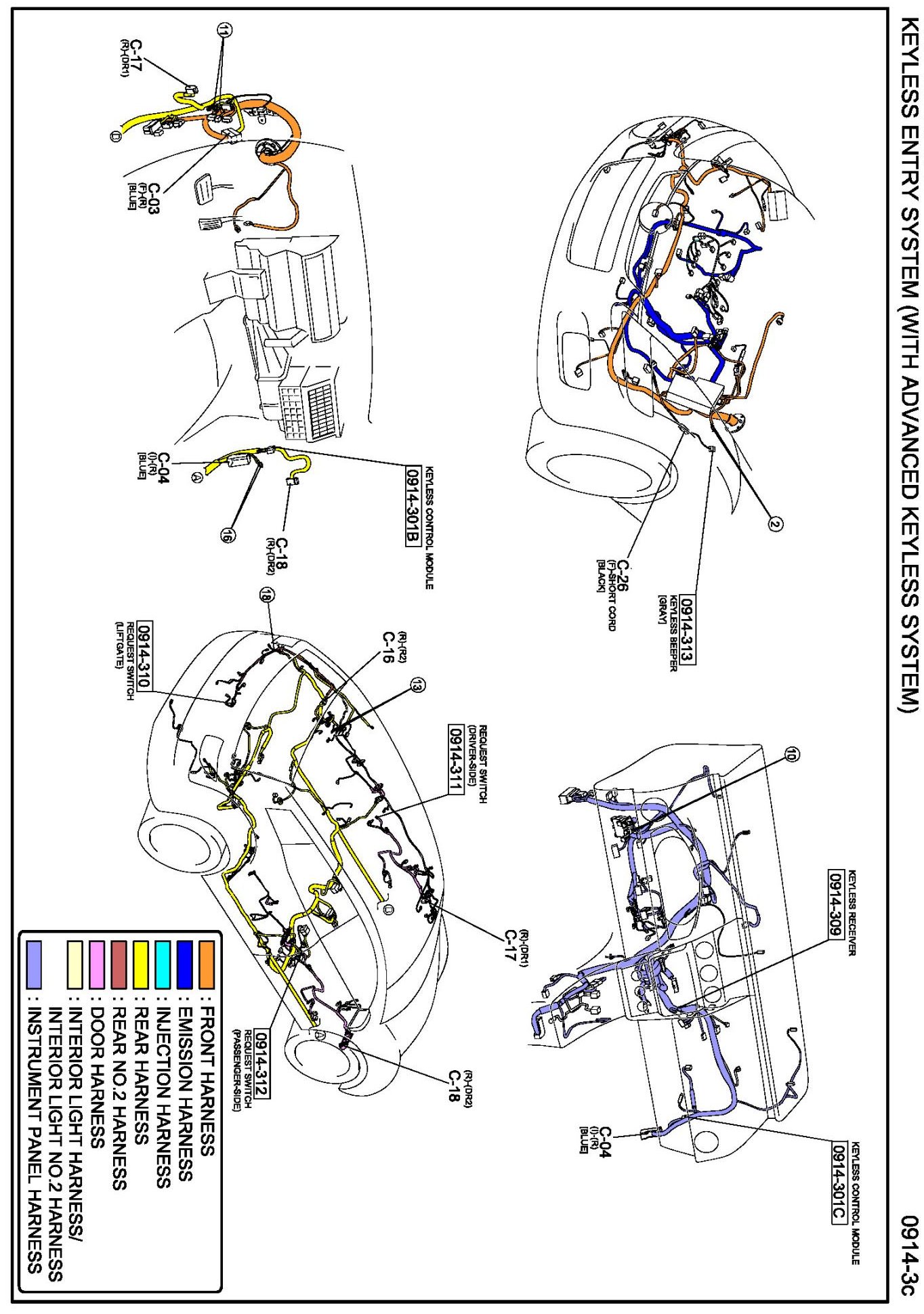

Routing View 0914-3c:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by diagram Name. Diagrams By Diagram Name
