Differential Assembly
>>

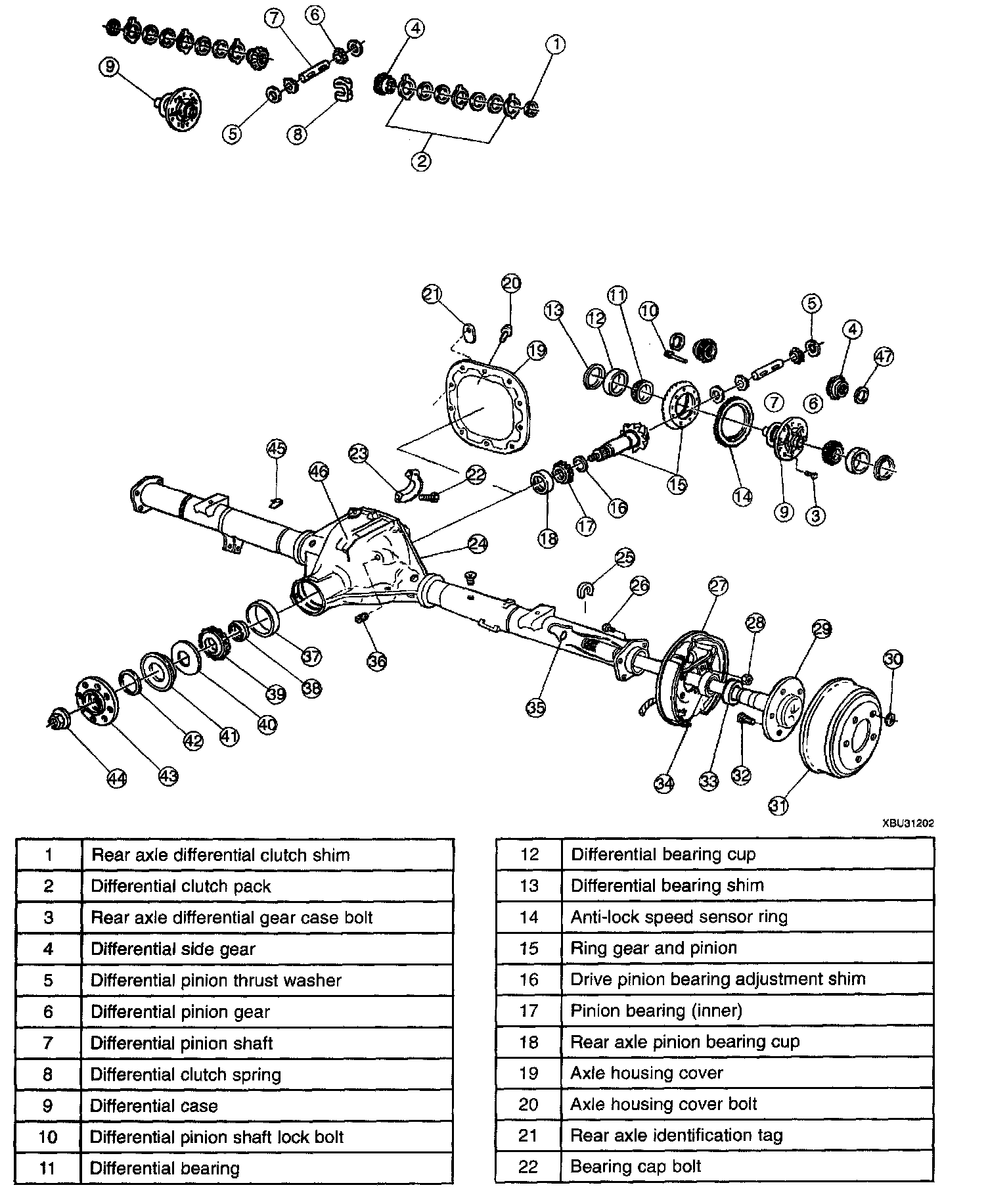

Axle Structural View Rear (Limited Slip)
Axle Structural View Rear (Limited Slip)
