Home >> Mazda >> 2007 >> B2300 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1

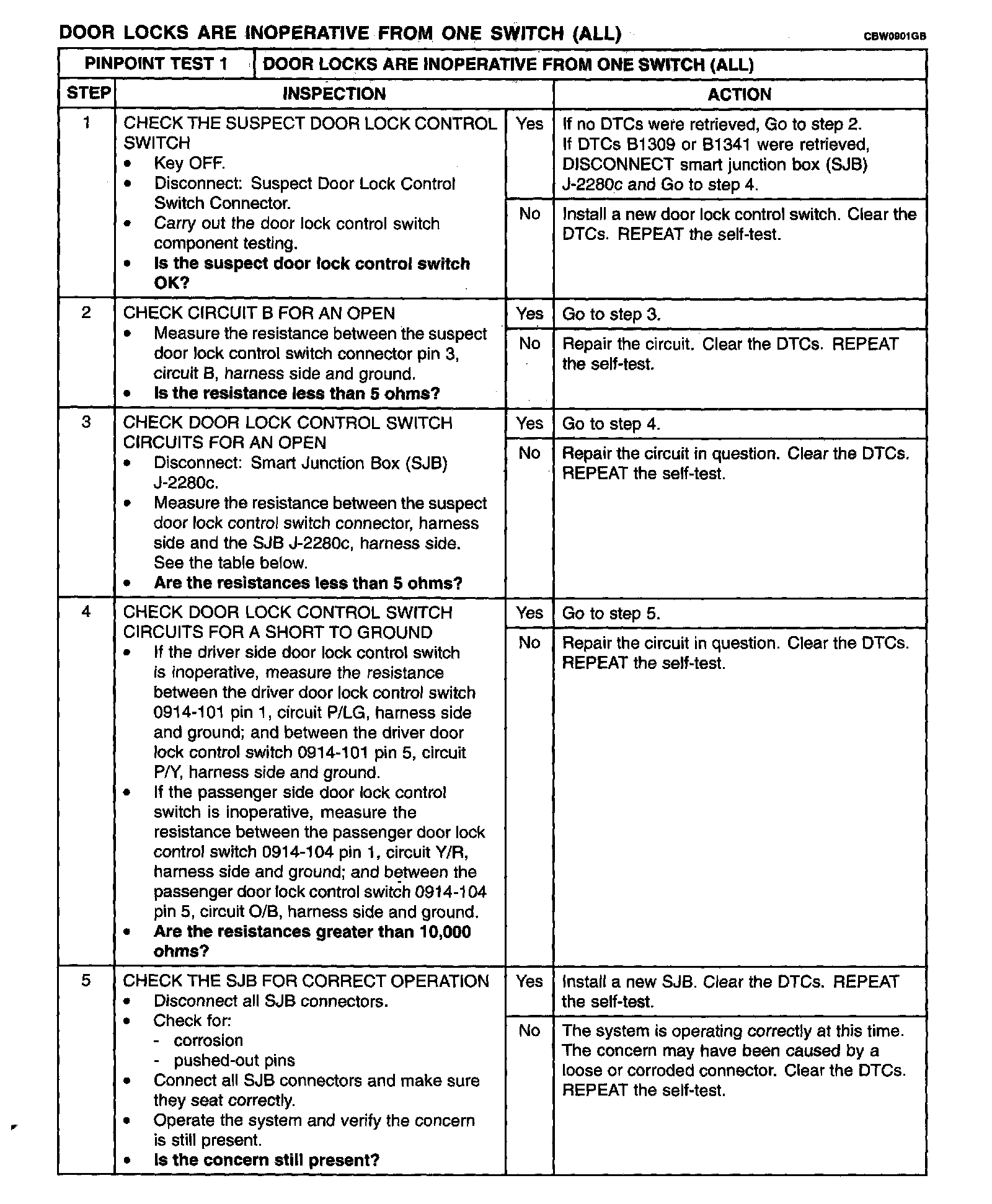

Pinpoint Test 1

Step 1 - 5:

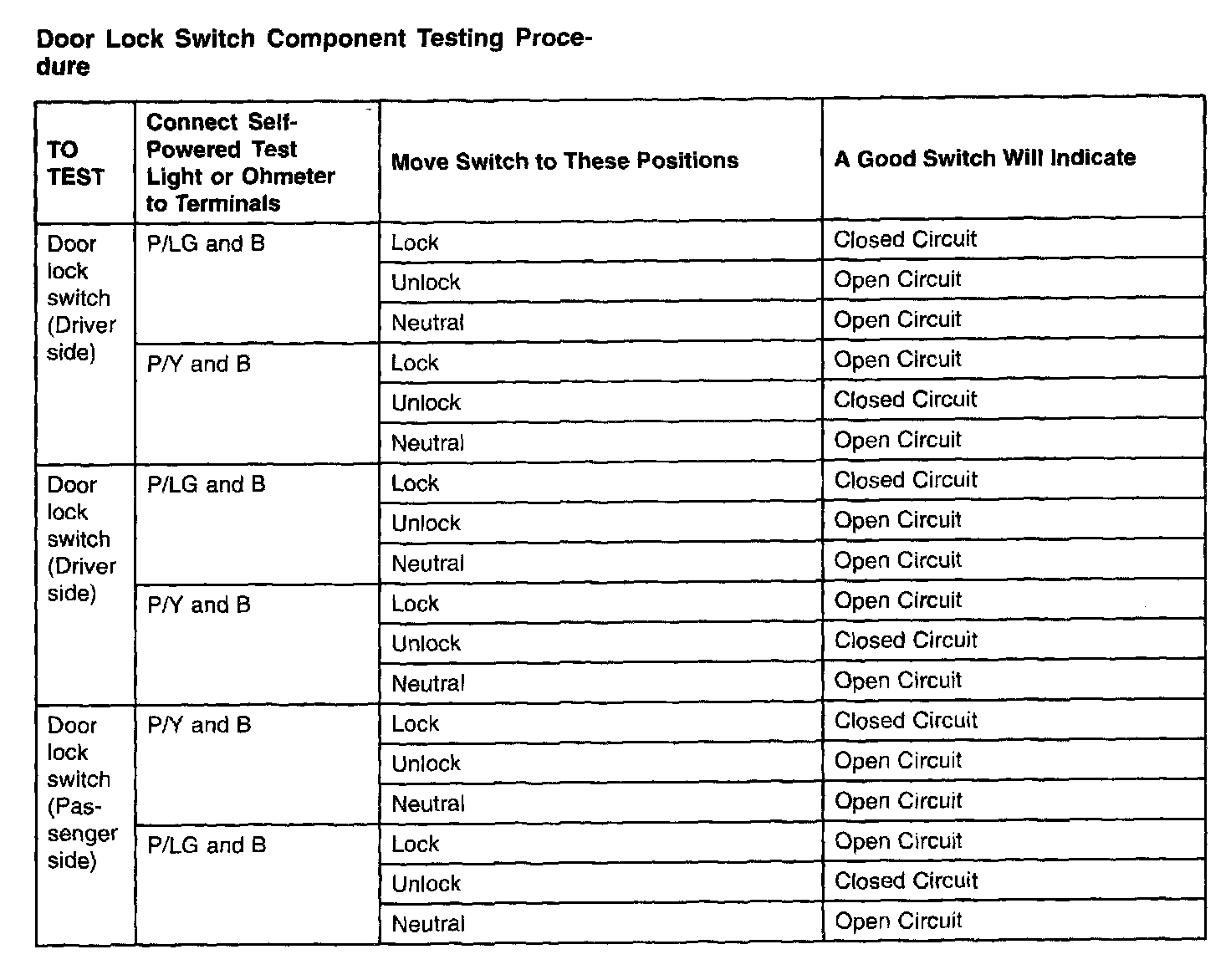

Door Lock Switch Component Testing Procedure:
