Idle Speed

Idle Speed Inspection

Note:
^ Idle speed is not adjustable.
^ Idle speed verification requires M-MDS.

1. Verify that the idle speed (M-MDS: RPM PID) is within the specification using M-MDS.

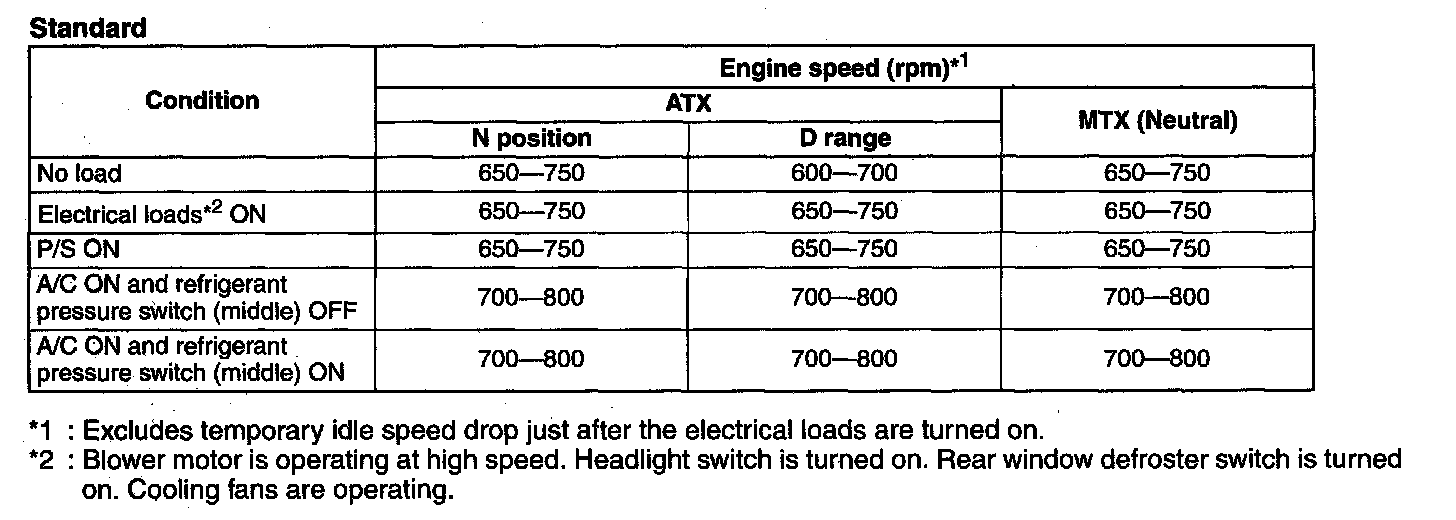

Standard:
