Home >> Mazda >> 2007 >> 6 L4-2.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

Intake Manifold

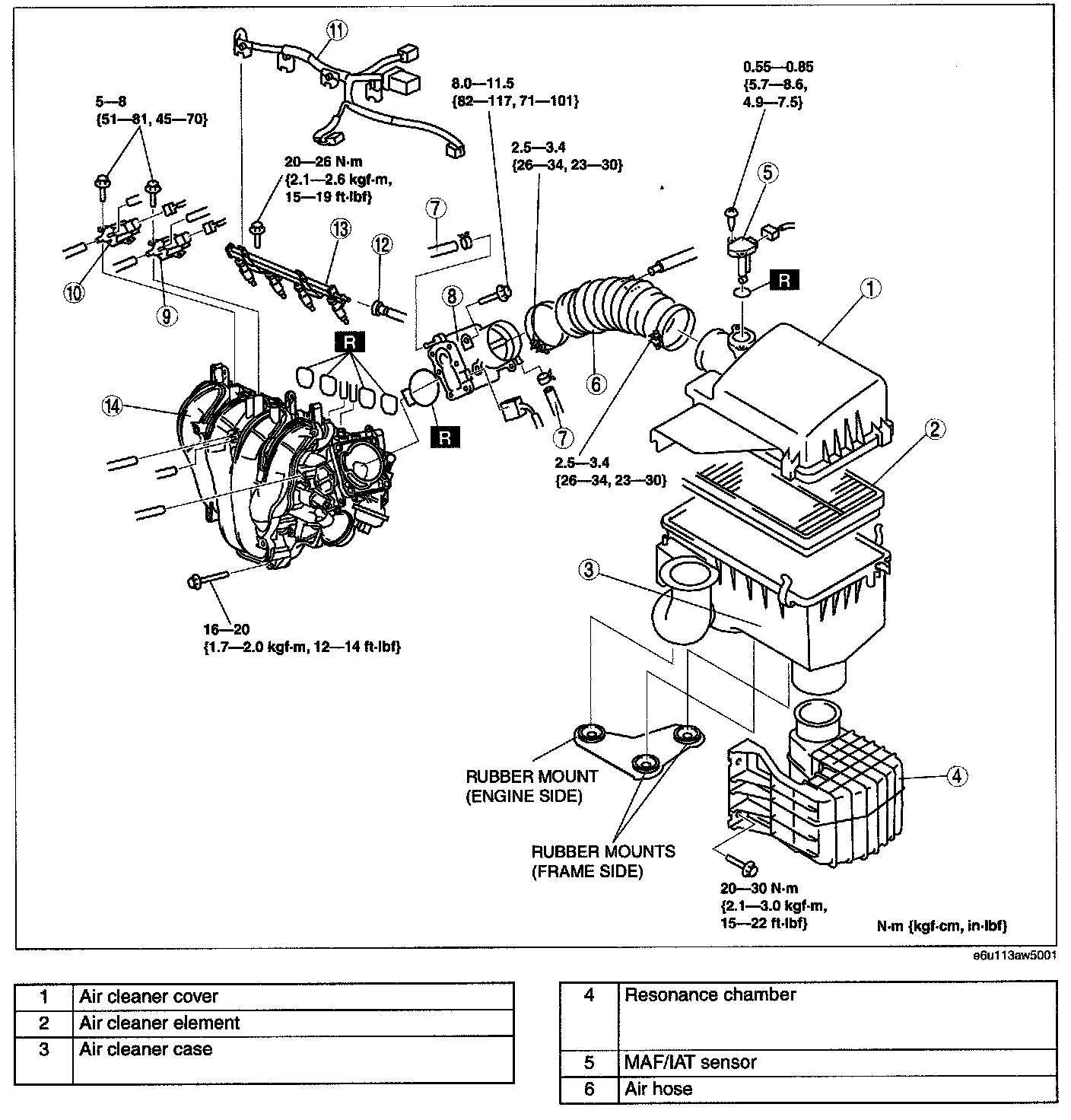

INTAKE AIR SYSTEM [L3]

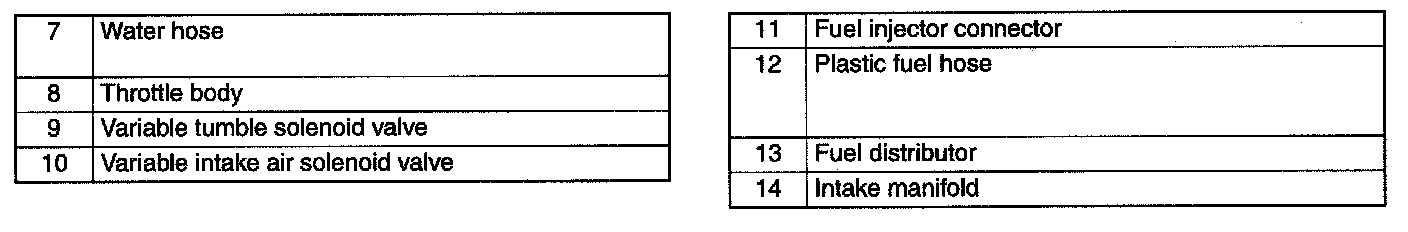

Remove in the order indicated in the table.
Install in the reverse order of removal.

Part 1:




Part 2:
