Home >> Mazda >> 2007 >> 6 L4-2.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

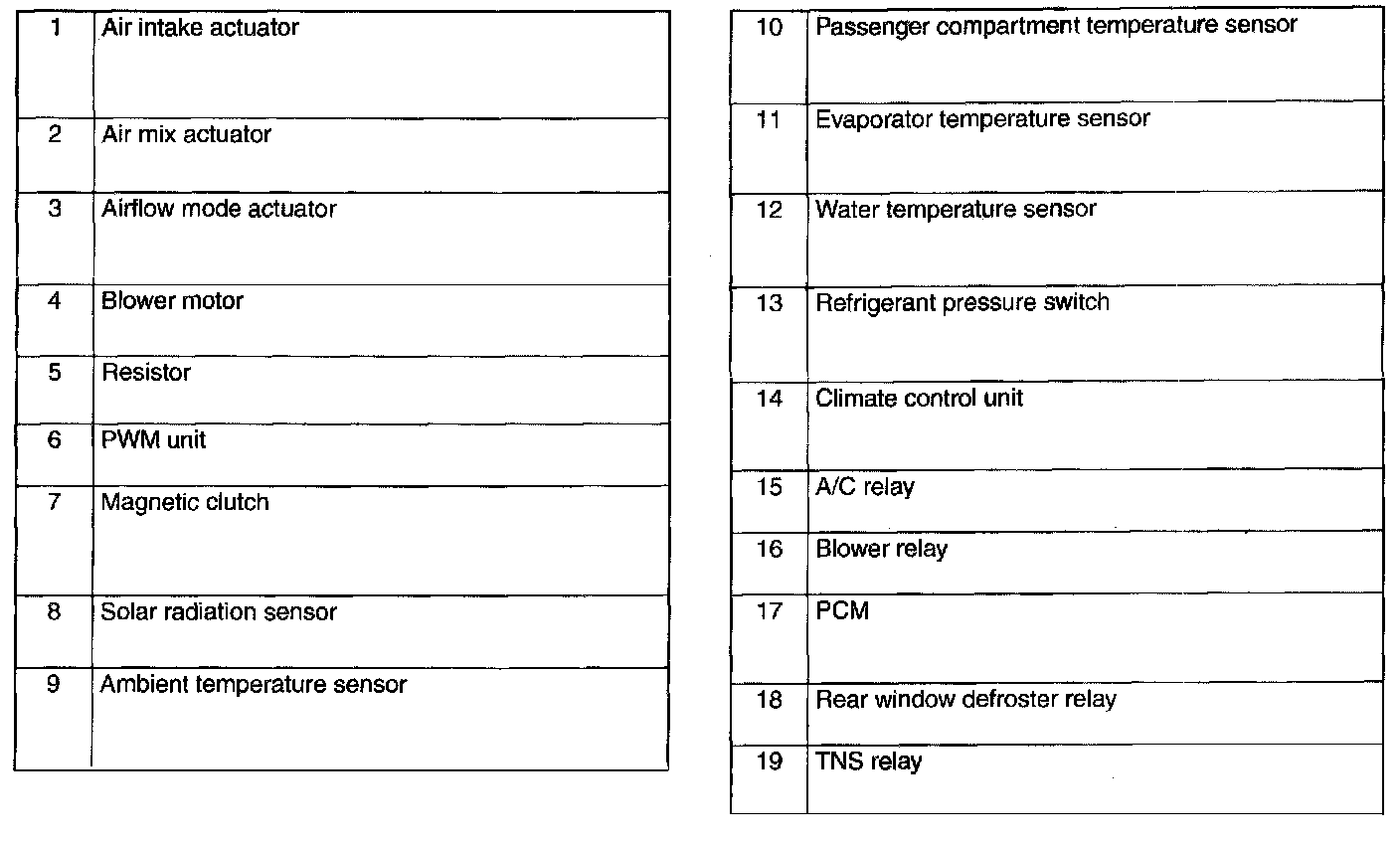

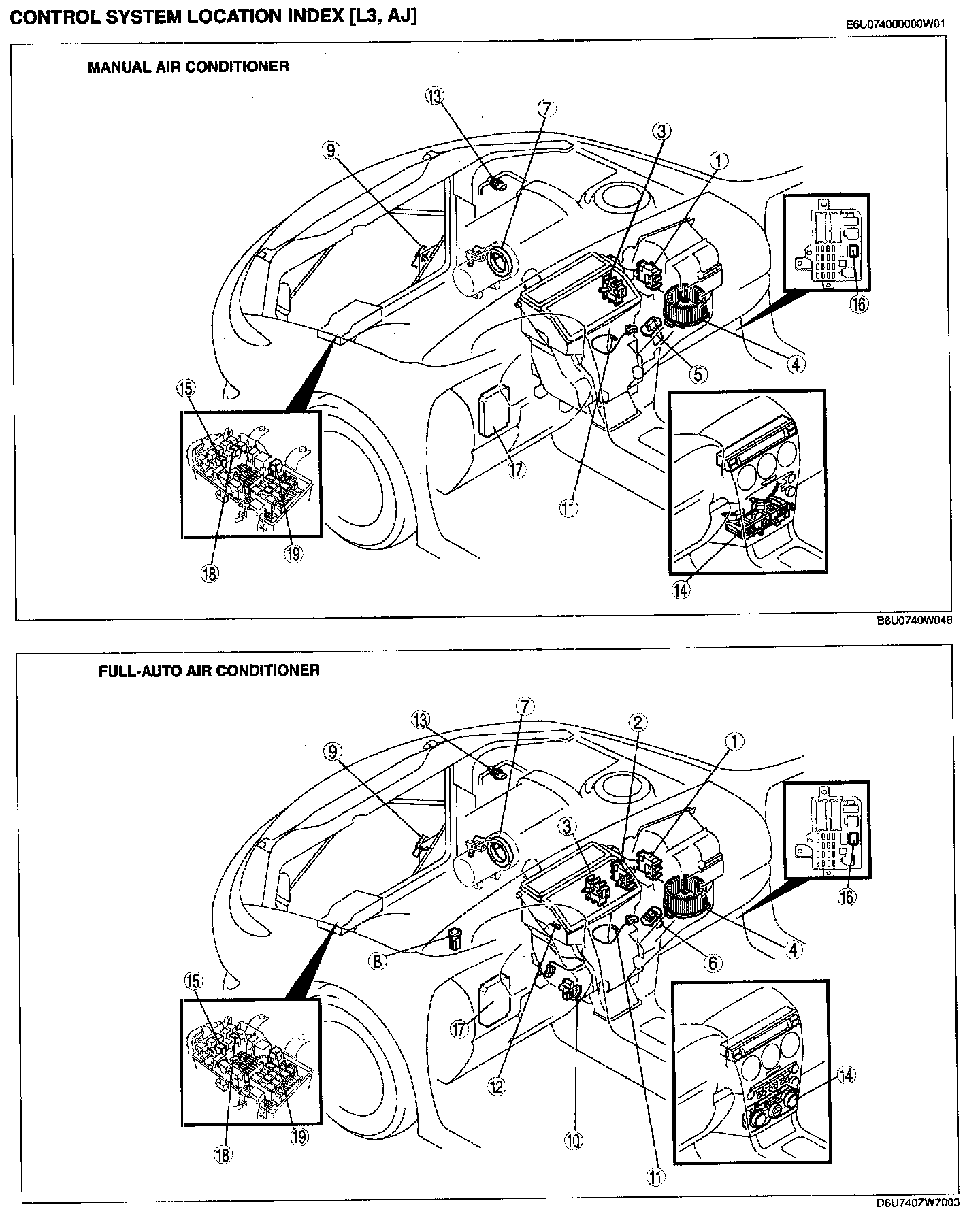

Control System Location Index:

Control System Location Index:
