Home >> Mazda >> 2007 >> 6 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PID/Data Monitor Table (Advanced Keyless System)

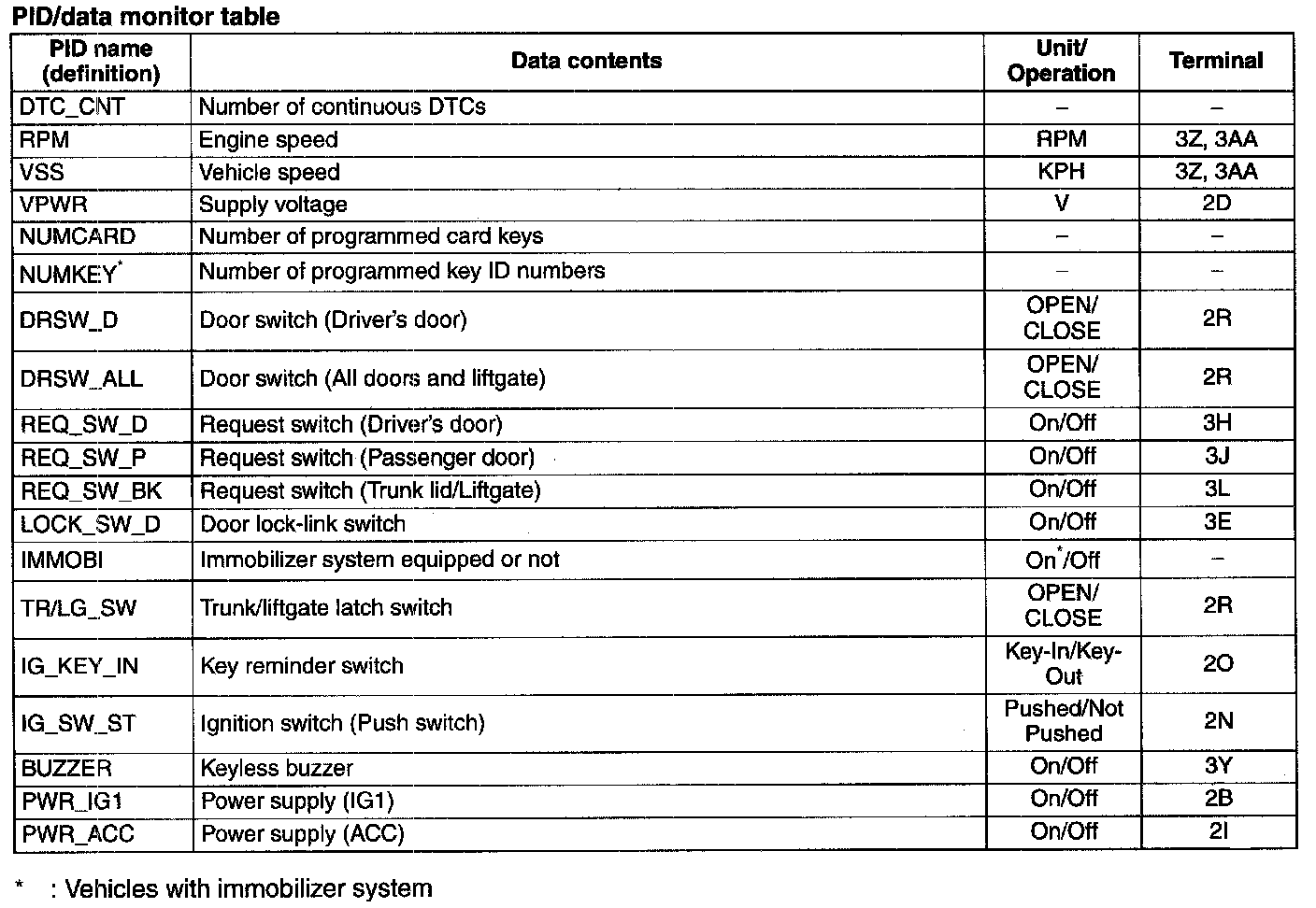

PID/Data Monitor Table (Advanced Keyless System)

PID/DATA Monitor Table [ADVANCED KEYLESS SYSTEM]:
