(Full-Auto Air Conditioner)
(Full-Auto Air Conditioner)

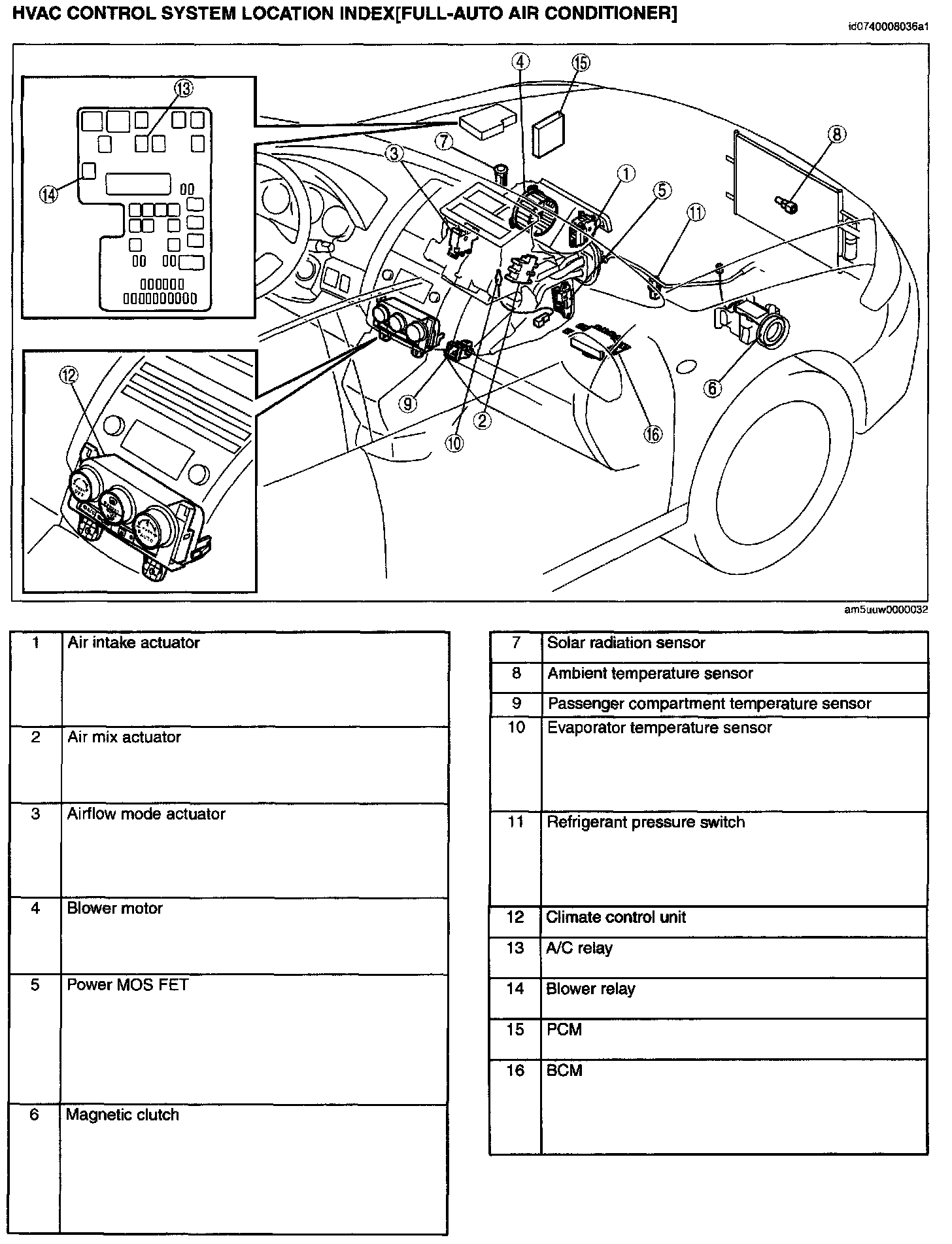

HVAC Control System Location Index(Full-Auto Air Conditioner):
