Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry >> System Schematic

System Schematic

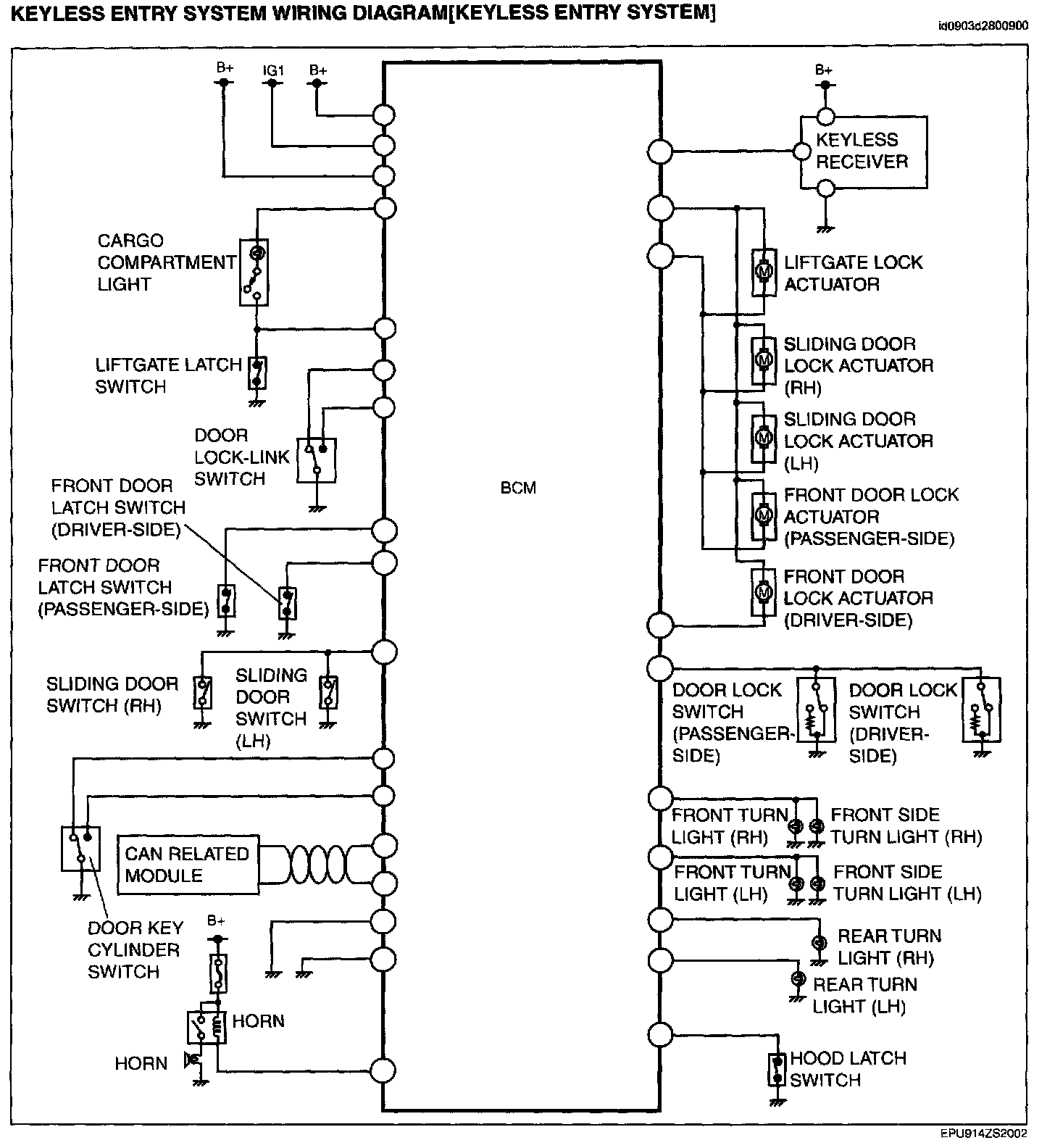

Keyless Entry System Wiring Diagram(Keyless Entry System):
