Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Flowchart

Flowchart

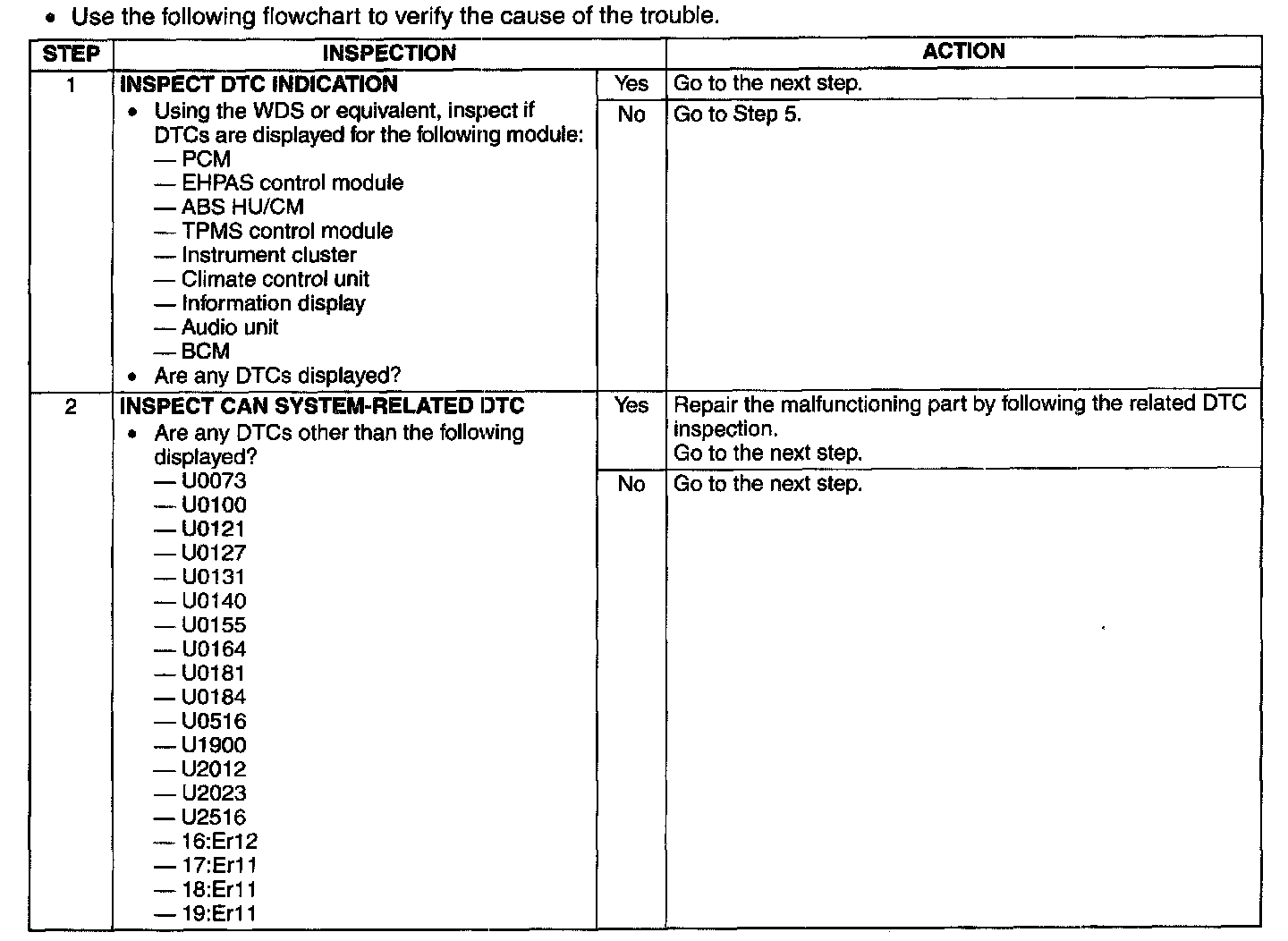

Step 1-Step 2:

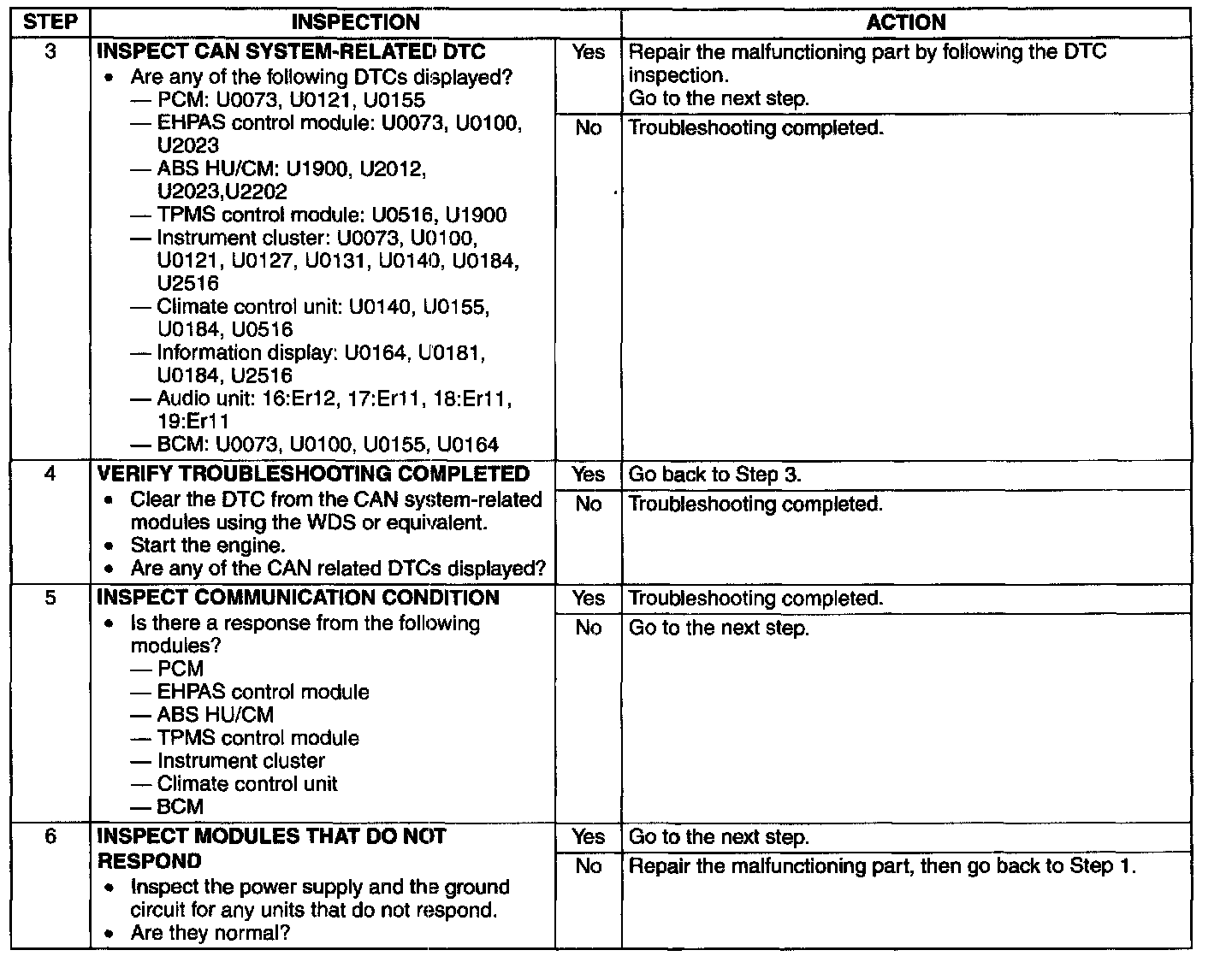

Step 3-Step 6:

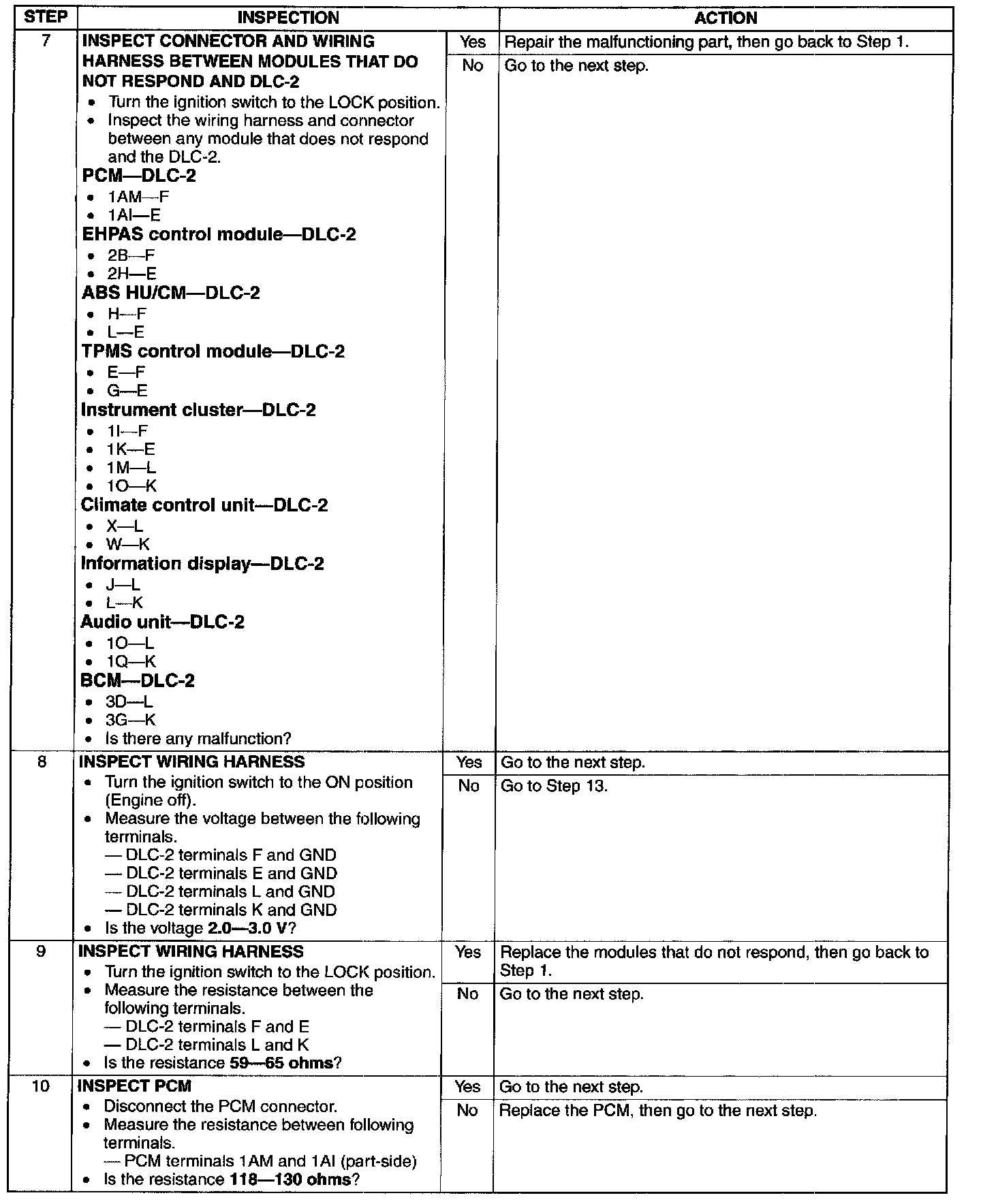

Step 7-Step 10:

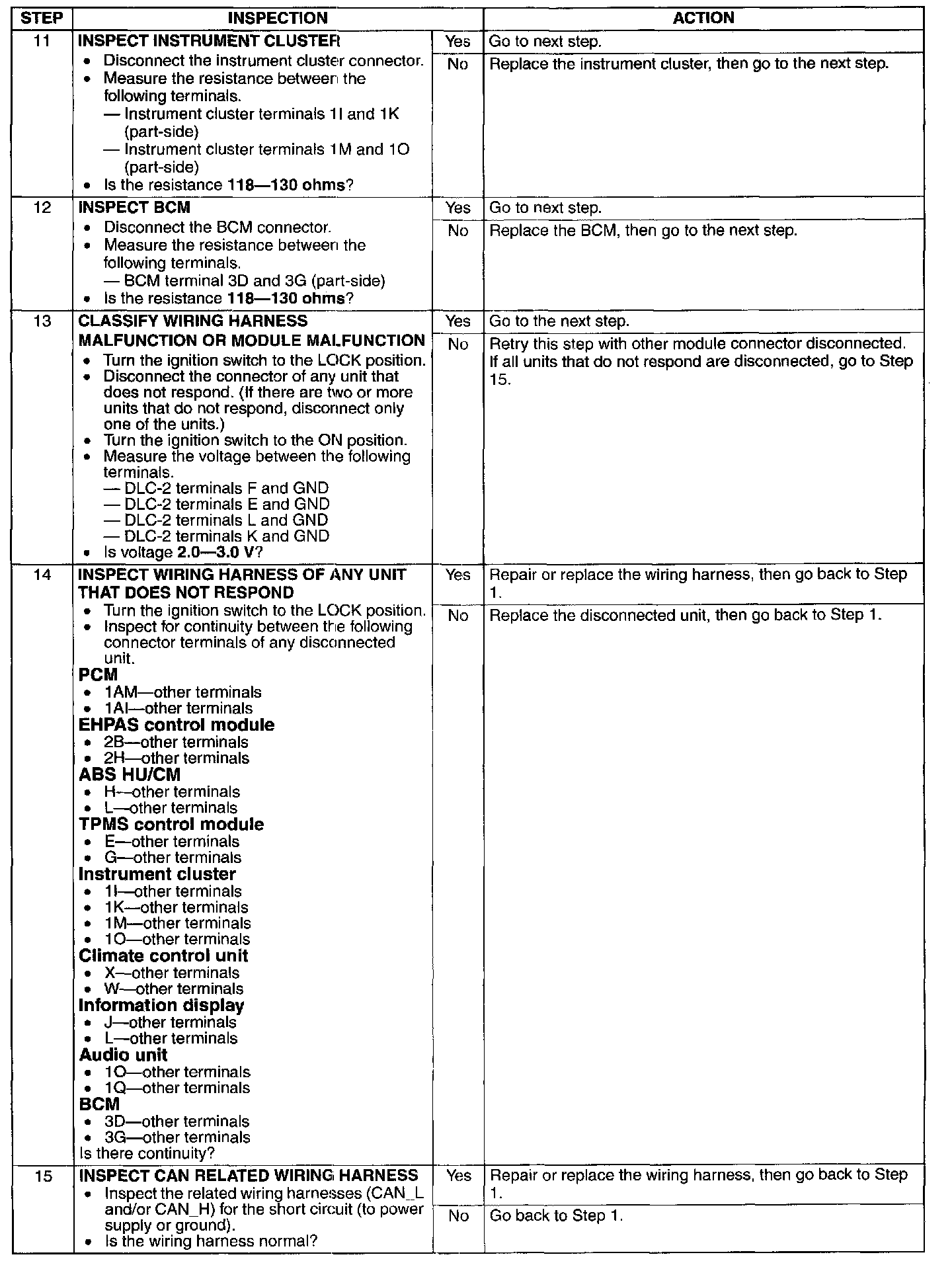

Step 11-Step 15:
