Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Flowchart

Flowchart

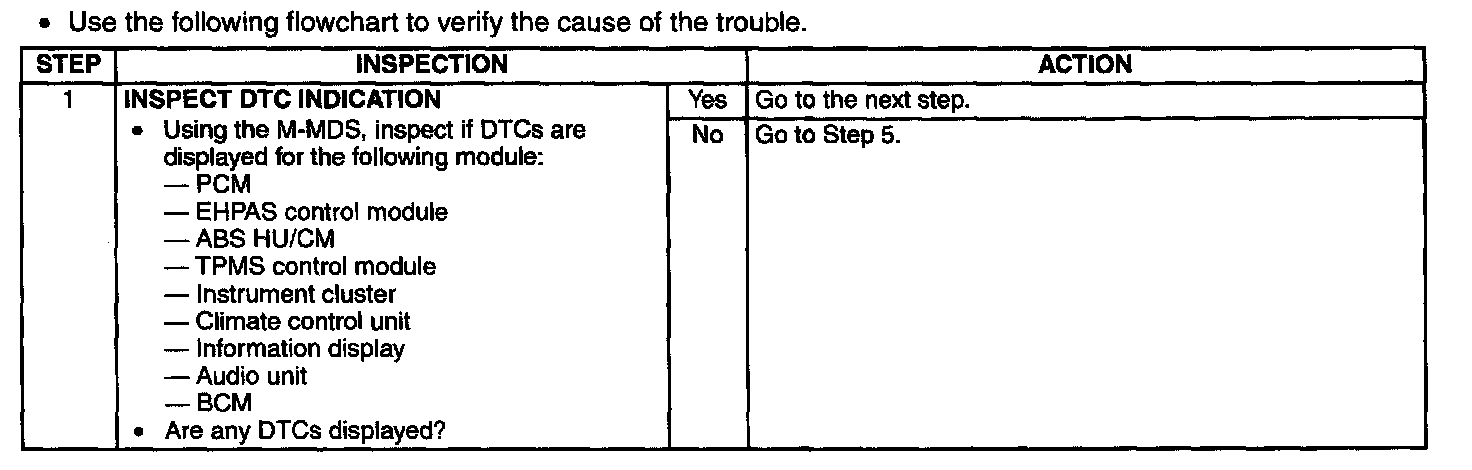

Step 1:

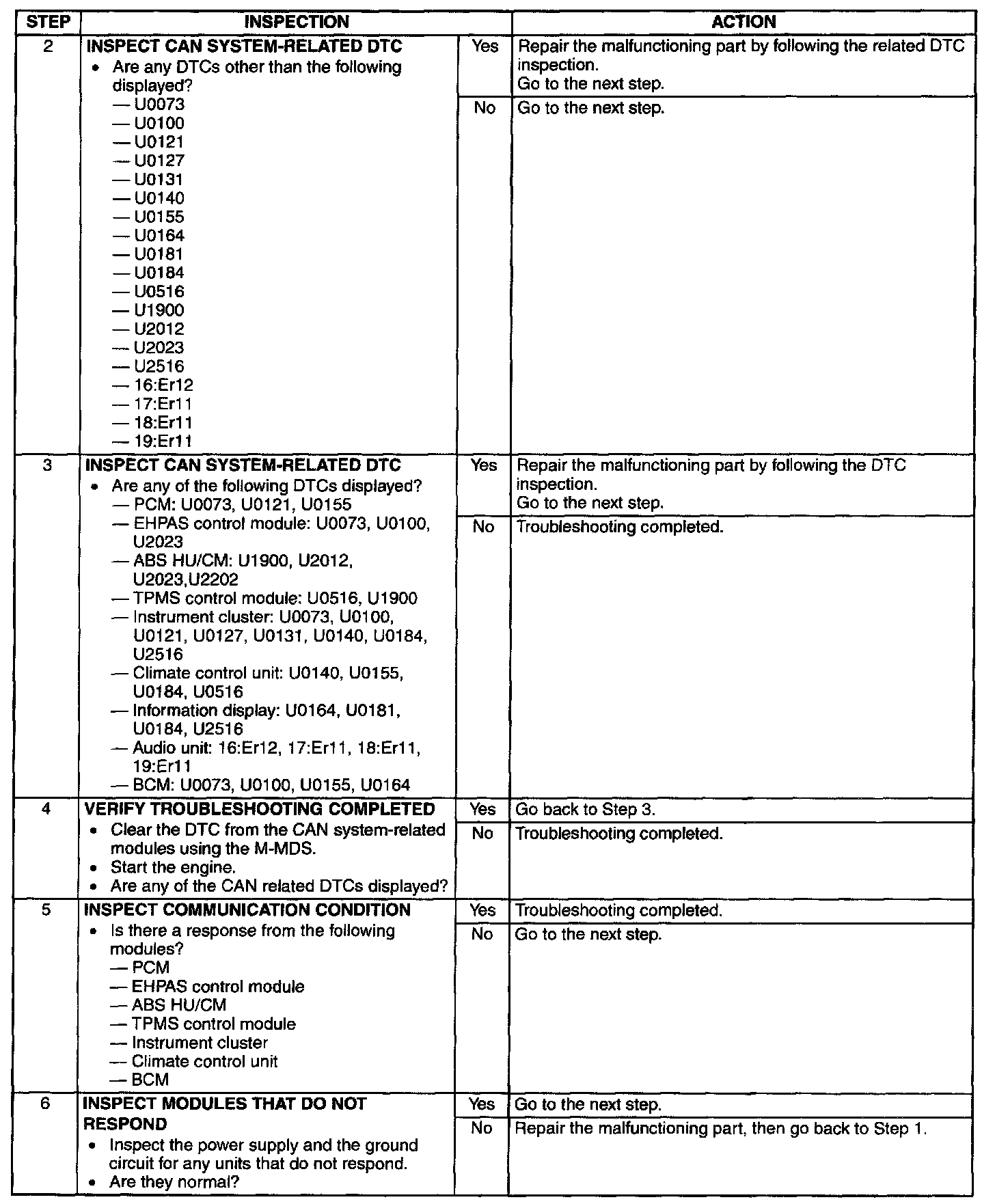

Step 2-Step 6:

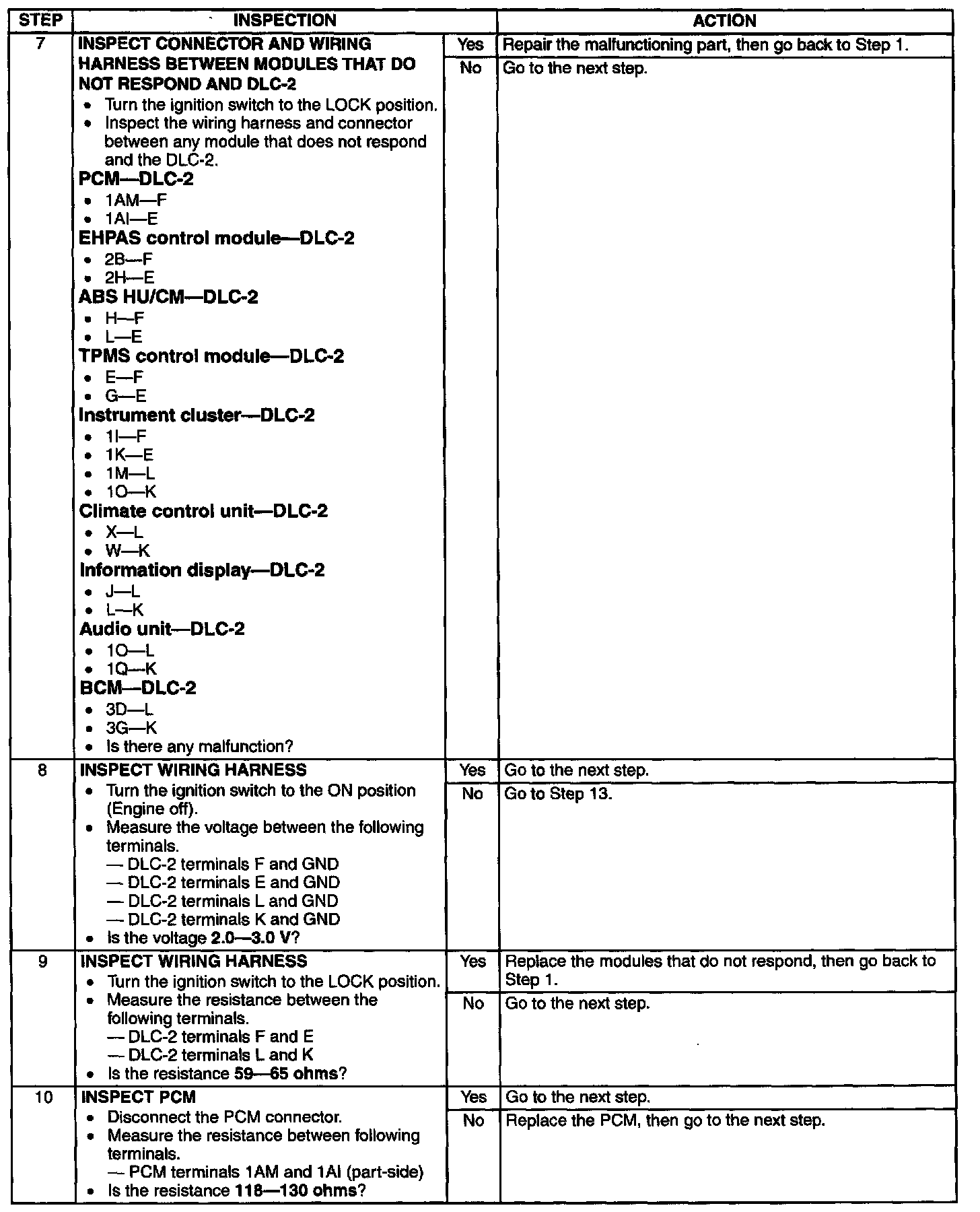

Step 7-Step 10:

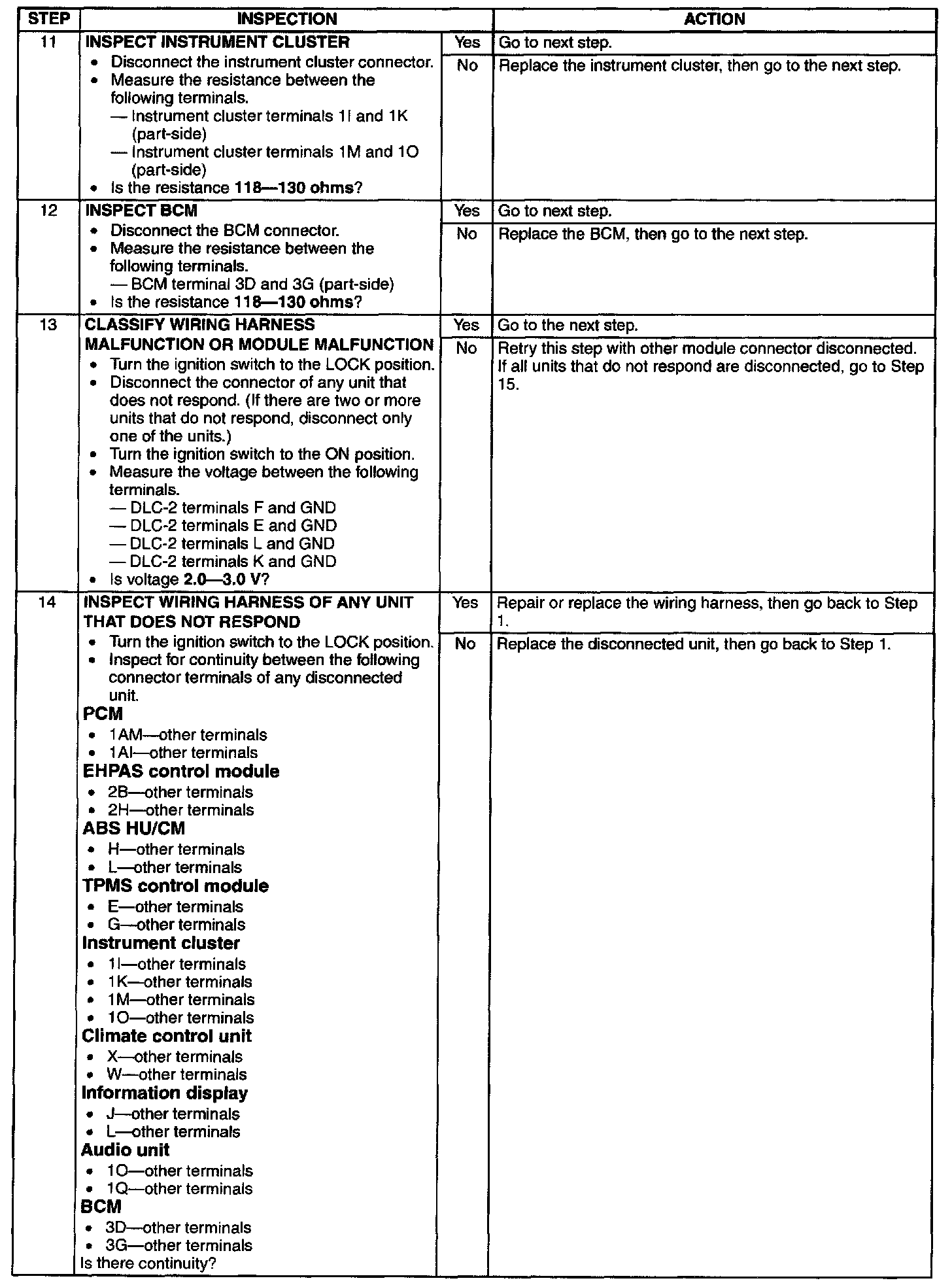

Step 11-Step 14:

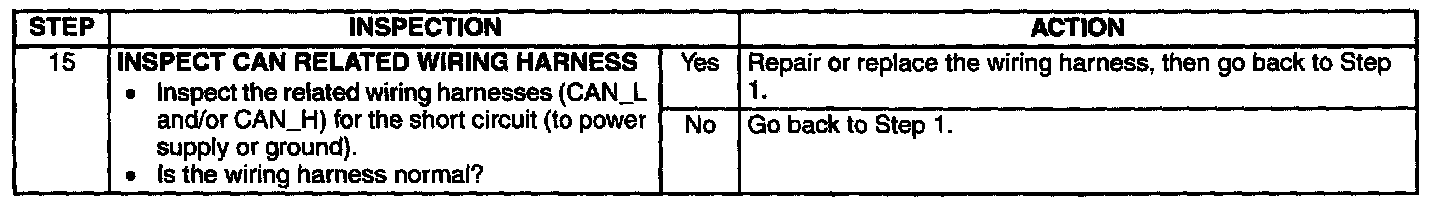

Step 15:
