Refrigerant System General Procedures

REFRIGERANT SYSTEM GENERAL PROCEDURES

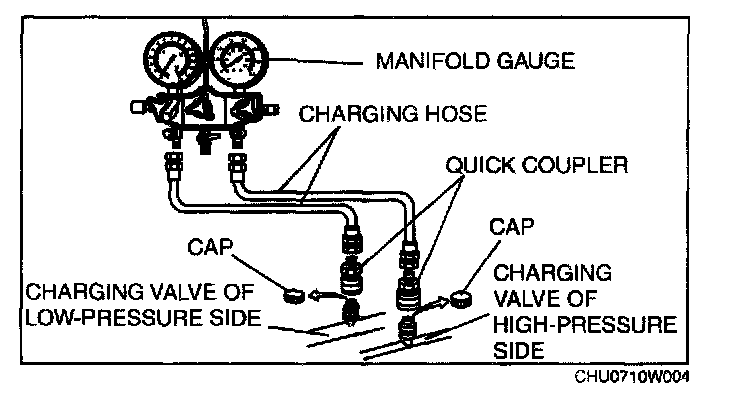

1. Fully close the valves of the manifold gauge.




2. Connect the charging hoses to the high and low-pressure side joints of the manifold gauge.
3. Connect the quick couplers to the ends of the charging hoses.
4. Connect the quick couplers to the charging valves.
