Home >> Mazda >> 2007 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Clutch, M/T

Clutch, M/T

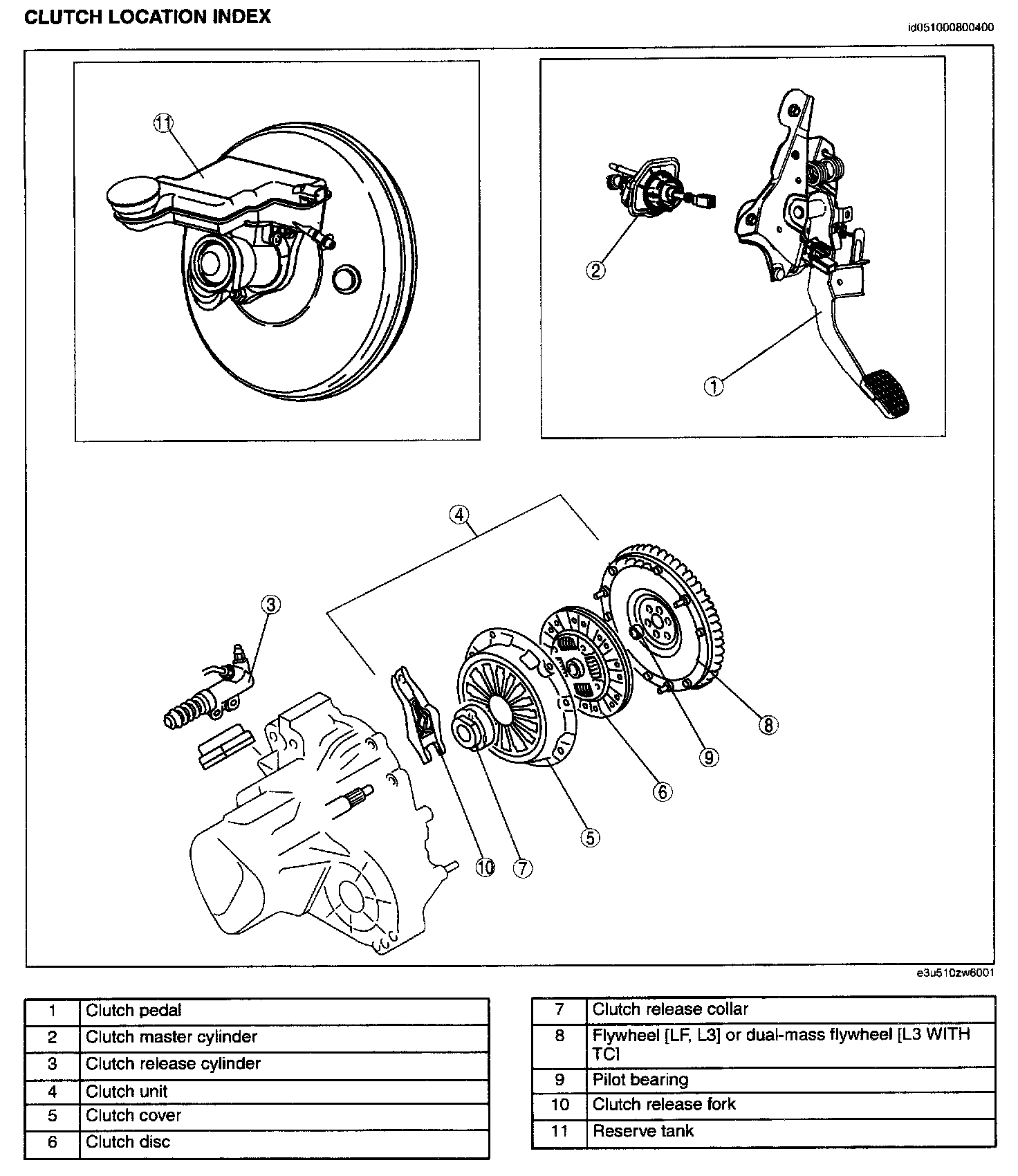

CLUTCH LOCATION INDEX

Clutch Location Index:
