Home >> Mazda >> 2007 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Components >> Front Harness-Short Cord

Front Harness-Short Cord

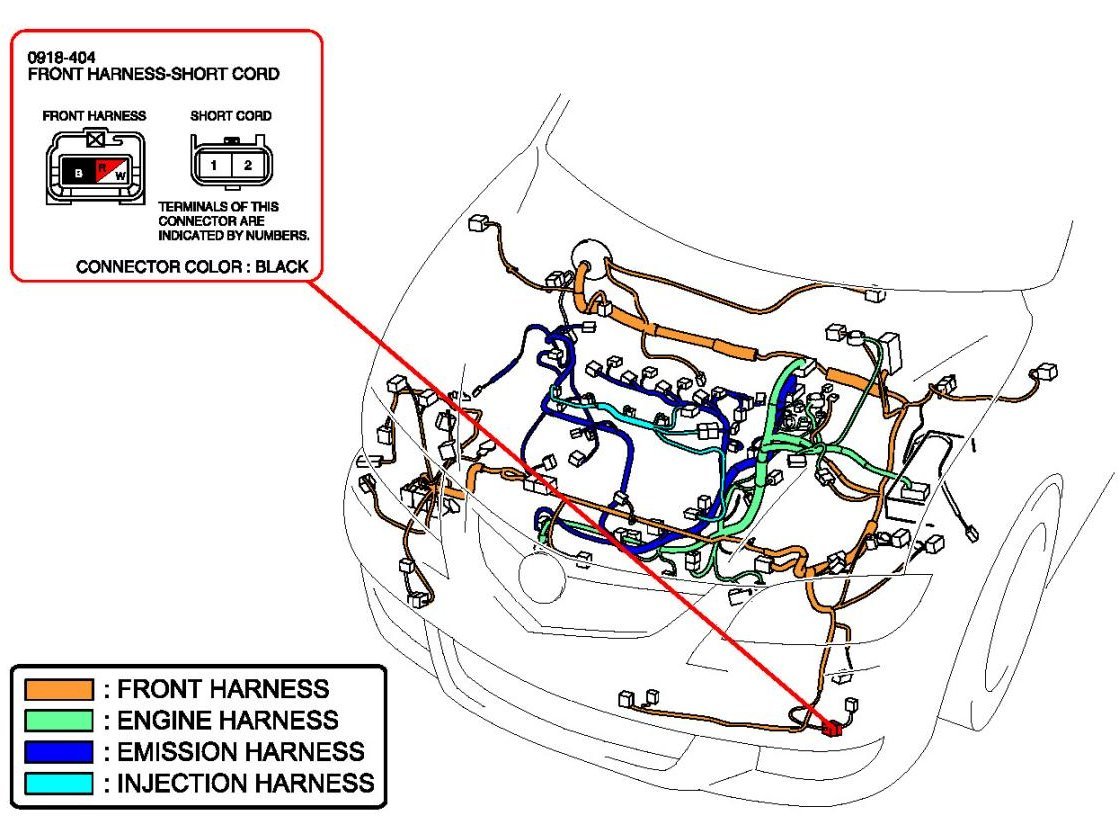

Front Harness-Short Cord:

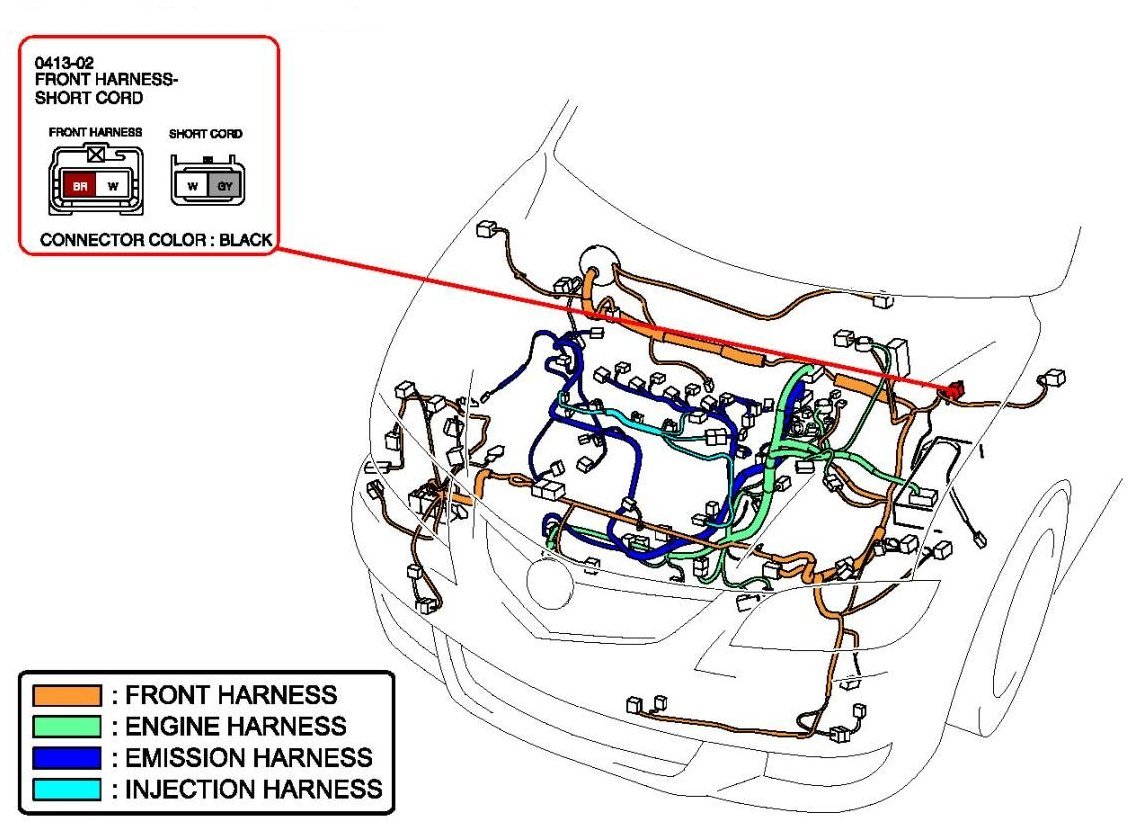

Front Harness-Short Cord:

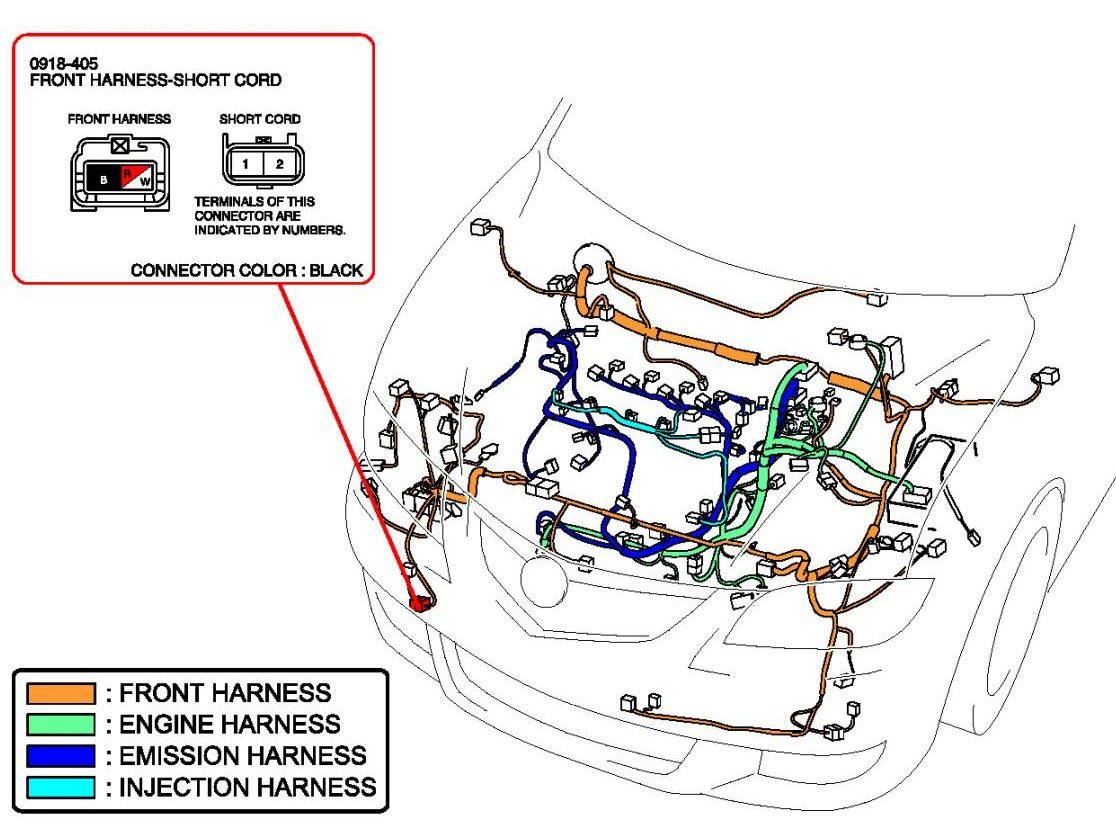

Front Harness-Short Cord:

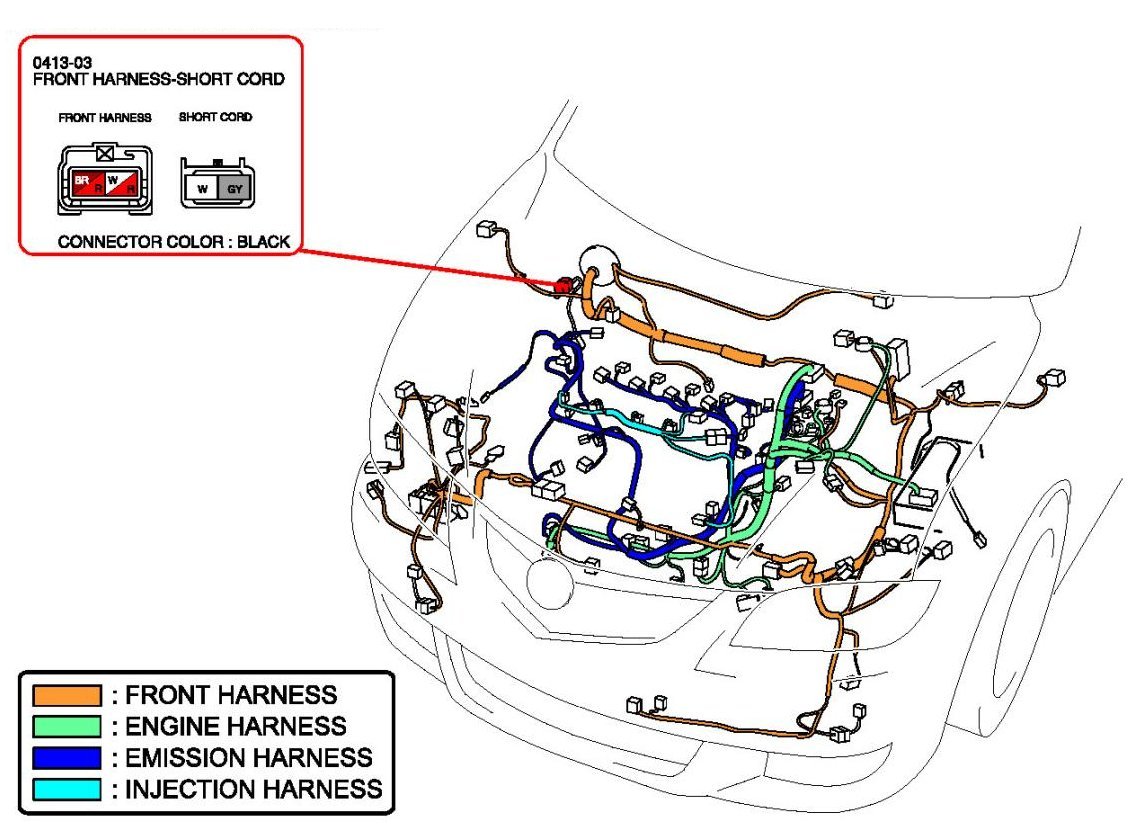

Front Harness-Short Cord:

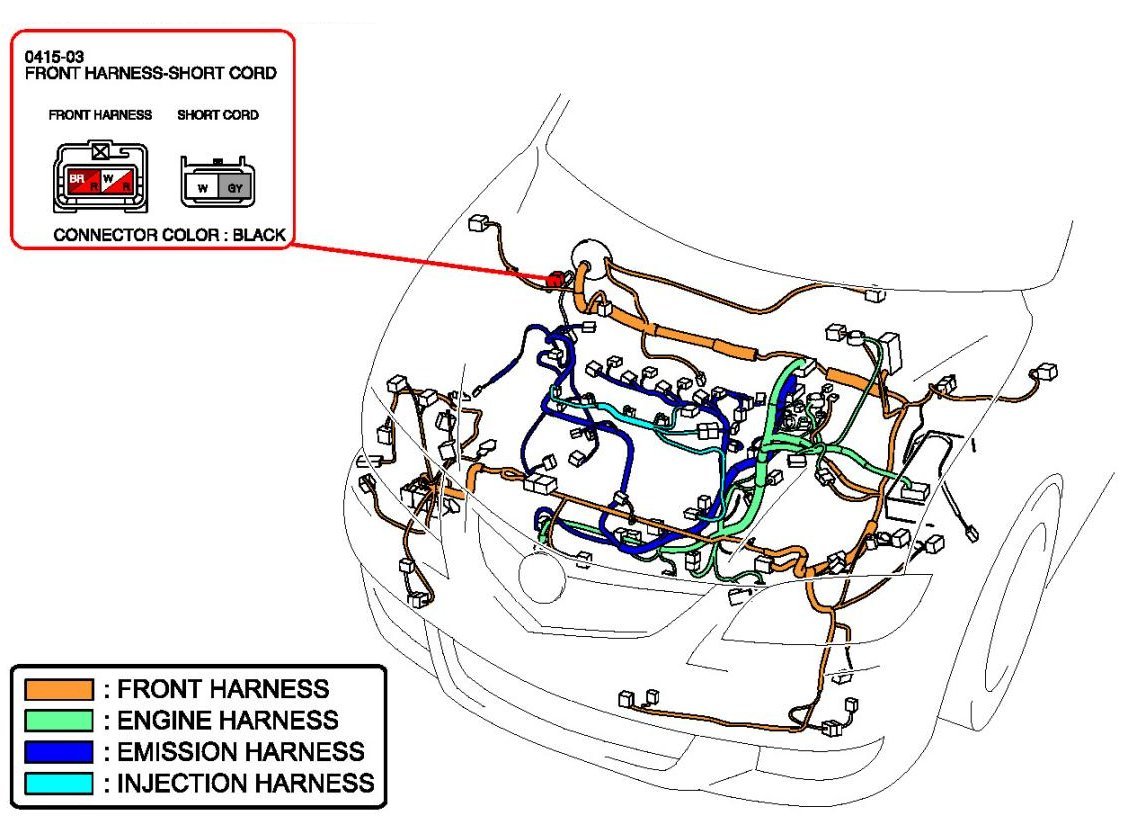

Front Harness-Short Cord:

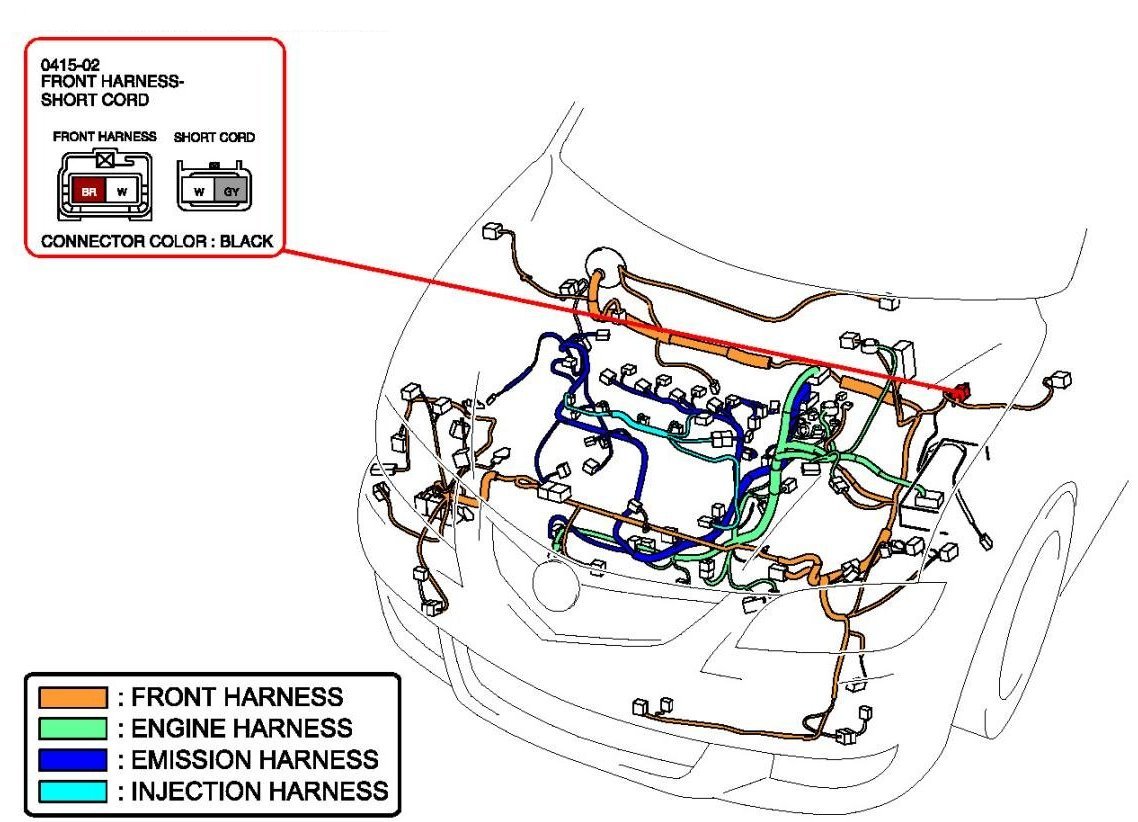

Front Harness-Short Cord:
