Home >> Mazda >> 2007 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Components >> Engine Harness-Transaxle Short Cord

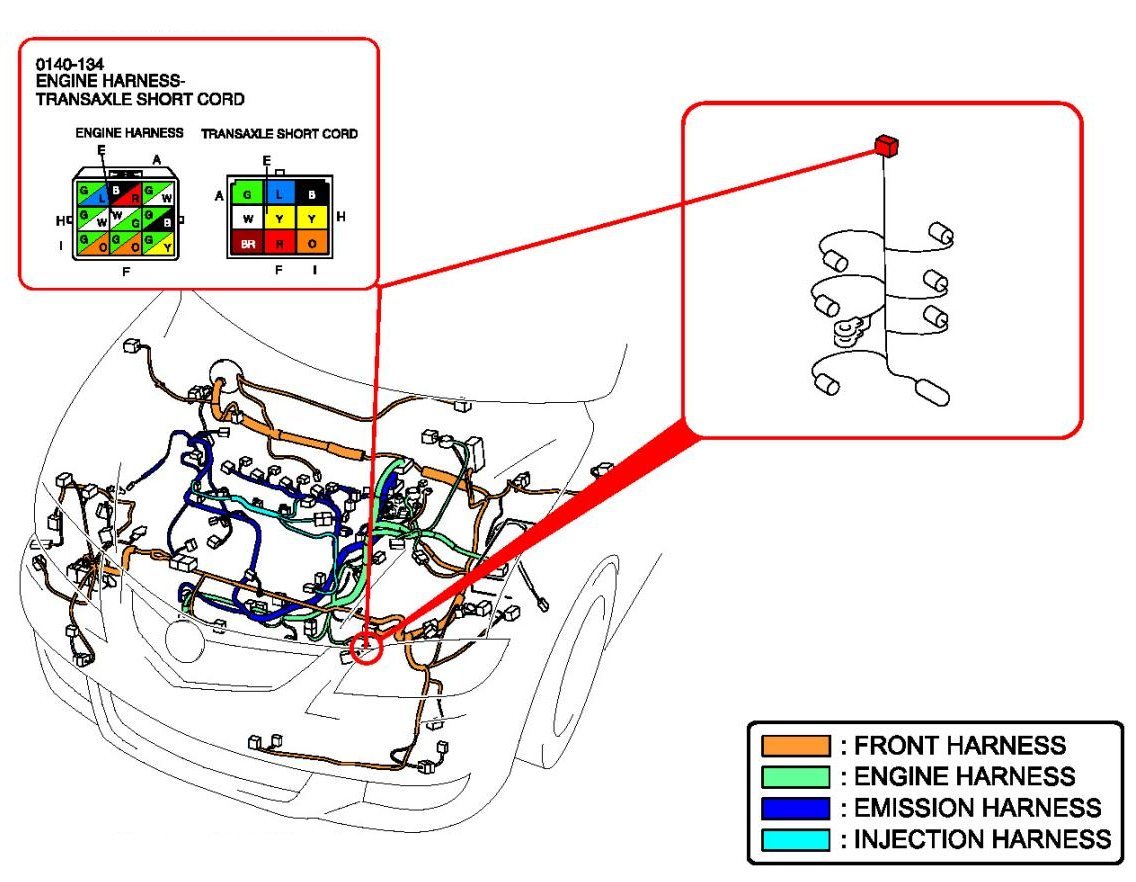

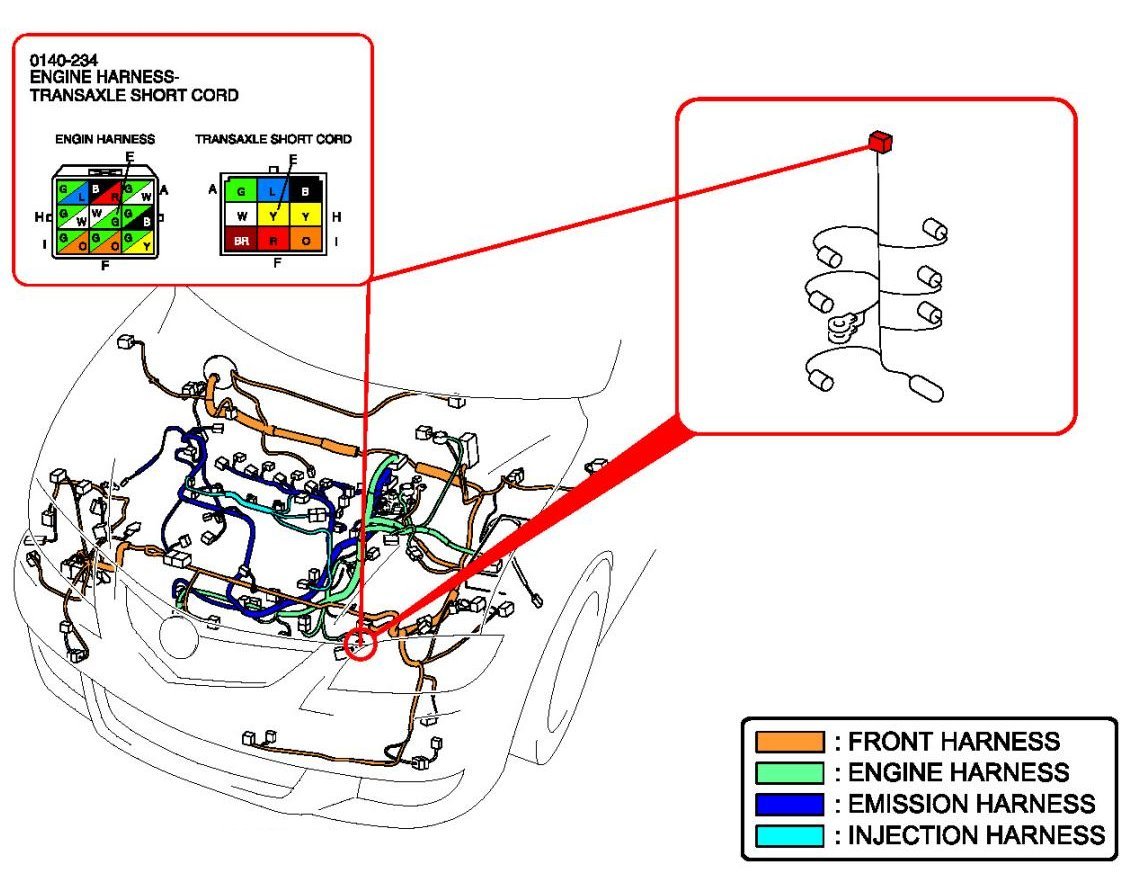

Engine Harness-Transaxle Short Cord

Engine Harness-Transaxle Short Cord:



Engine Harness-Transaxle Short Cord:
