Fuel Injector Control Module: Service and Repair

INJECTOR DRIVER MODULE REMOVAL/INSTALLATION [L3 WITH TC]




1. Disconnect the negative battery cable.
2. Remove the battery and the battery tray.

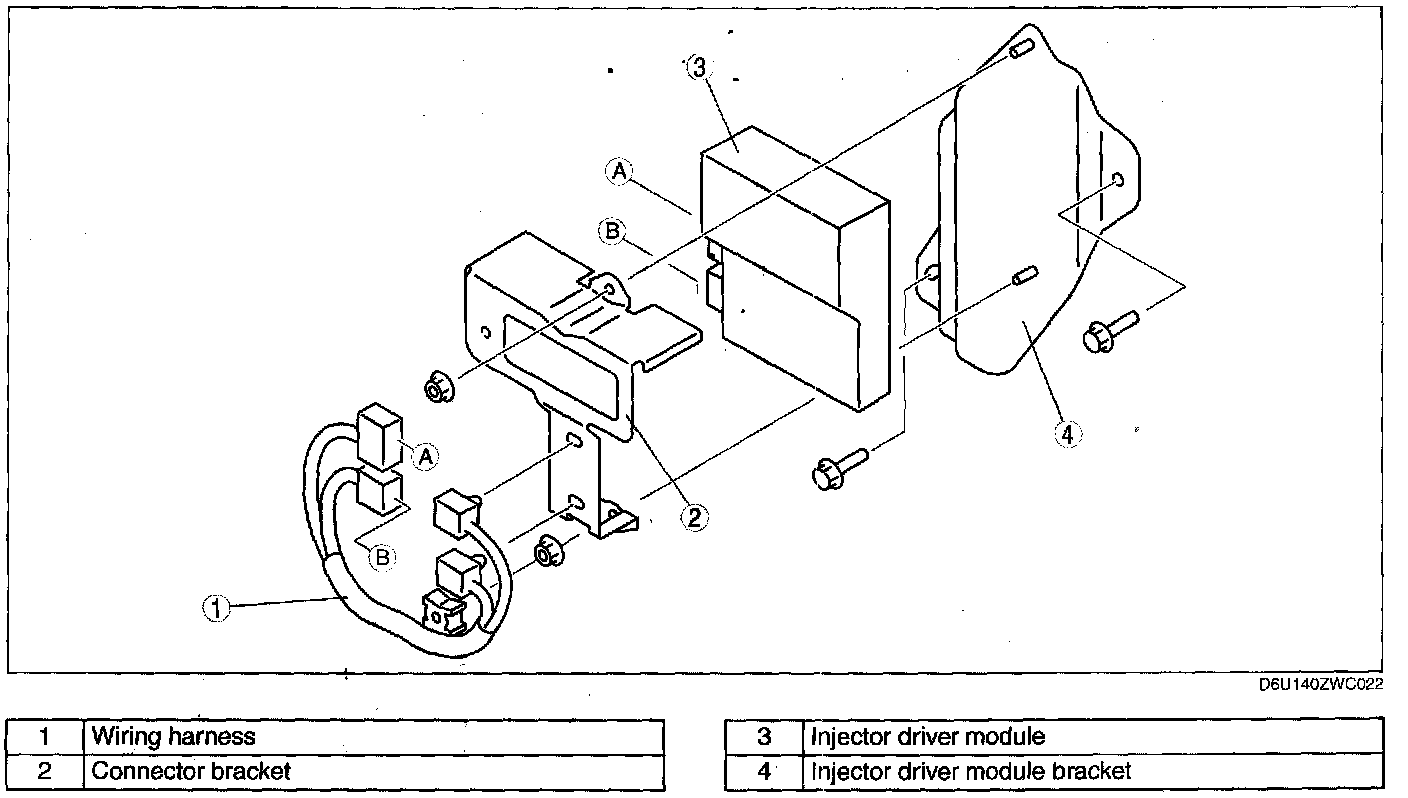

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
