Engine Control Module: Service and Repair

PCM REMOVAL/INSTALLATION [L3 WITH TC]

NOTE: For PCM replacement, set up the WDS and perform the PCM configuration.




1. Disconnect the negative battery cable.

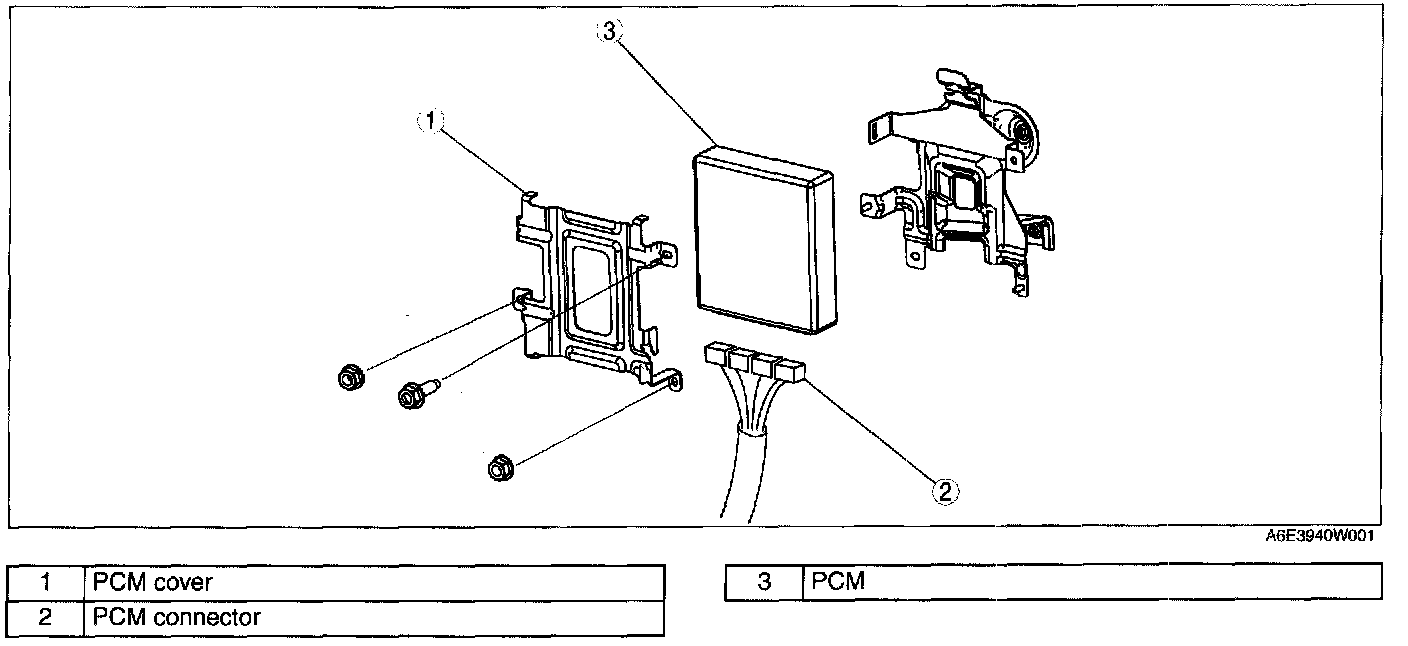

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
