Component Locations

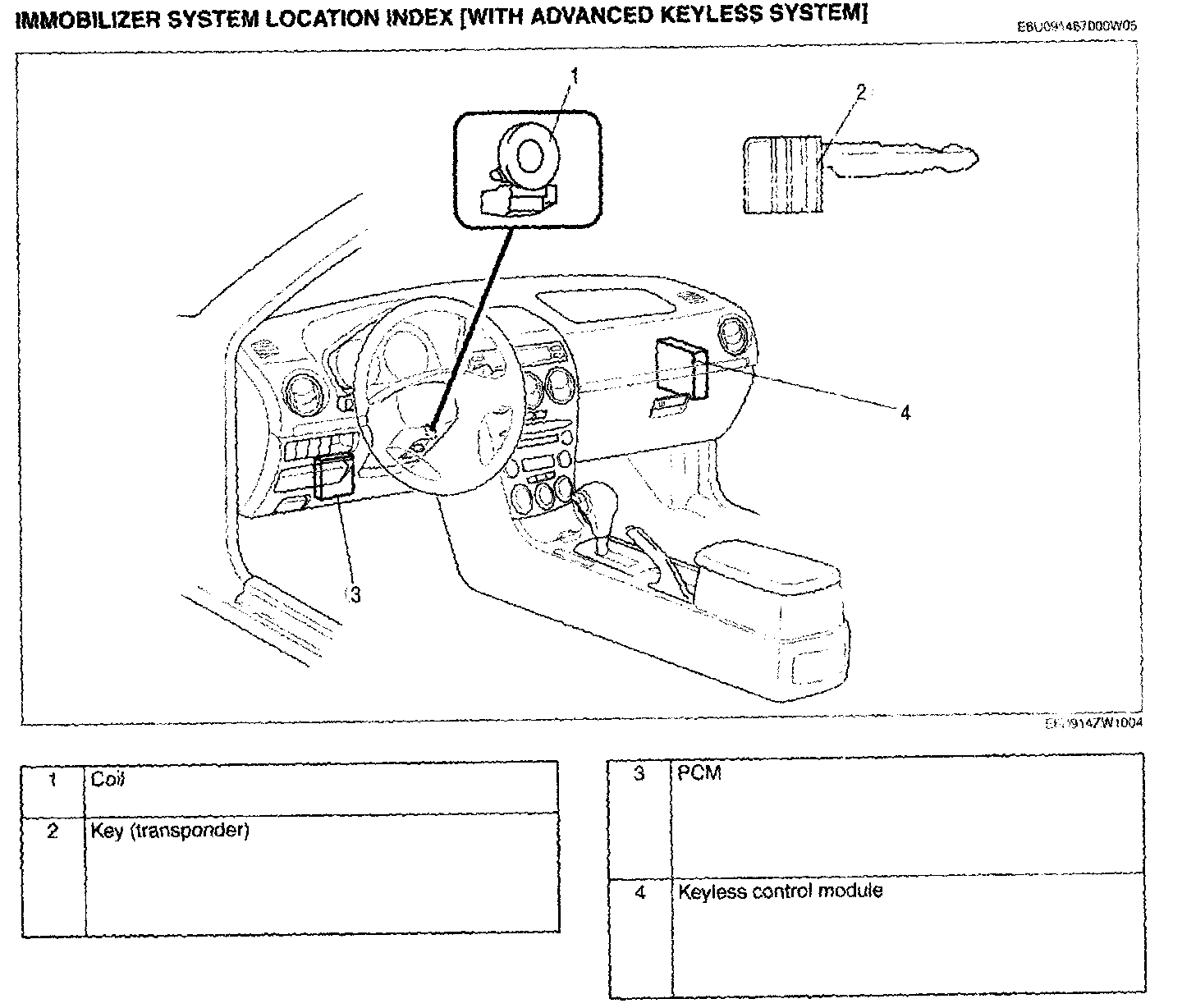

Immobilizer System Location Index [With Advanced Keyless System]:

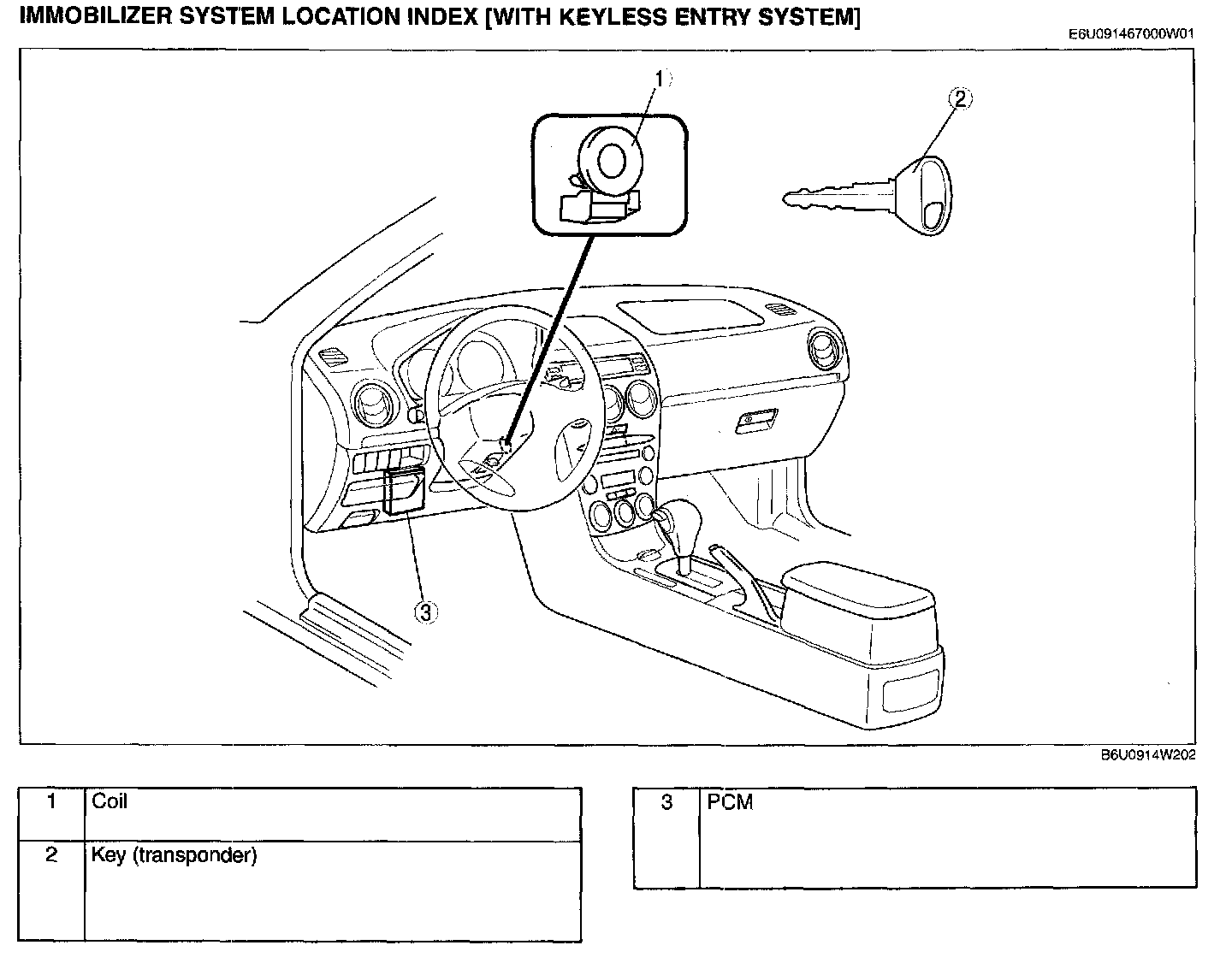

Immobilizer System Location Index [With Keyless Entry System]:

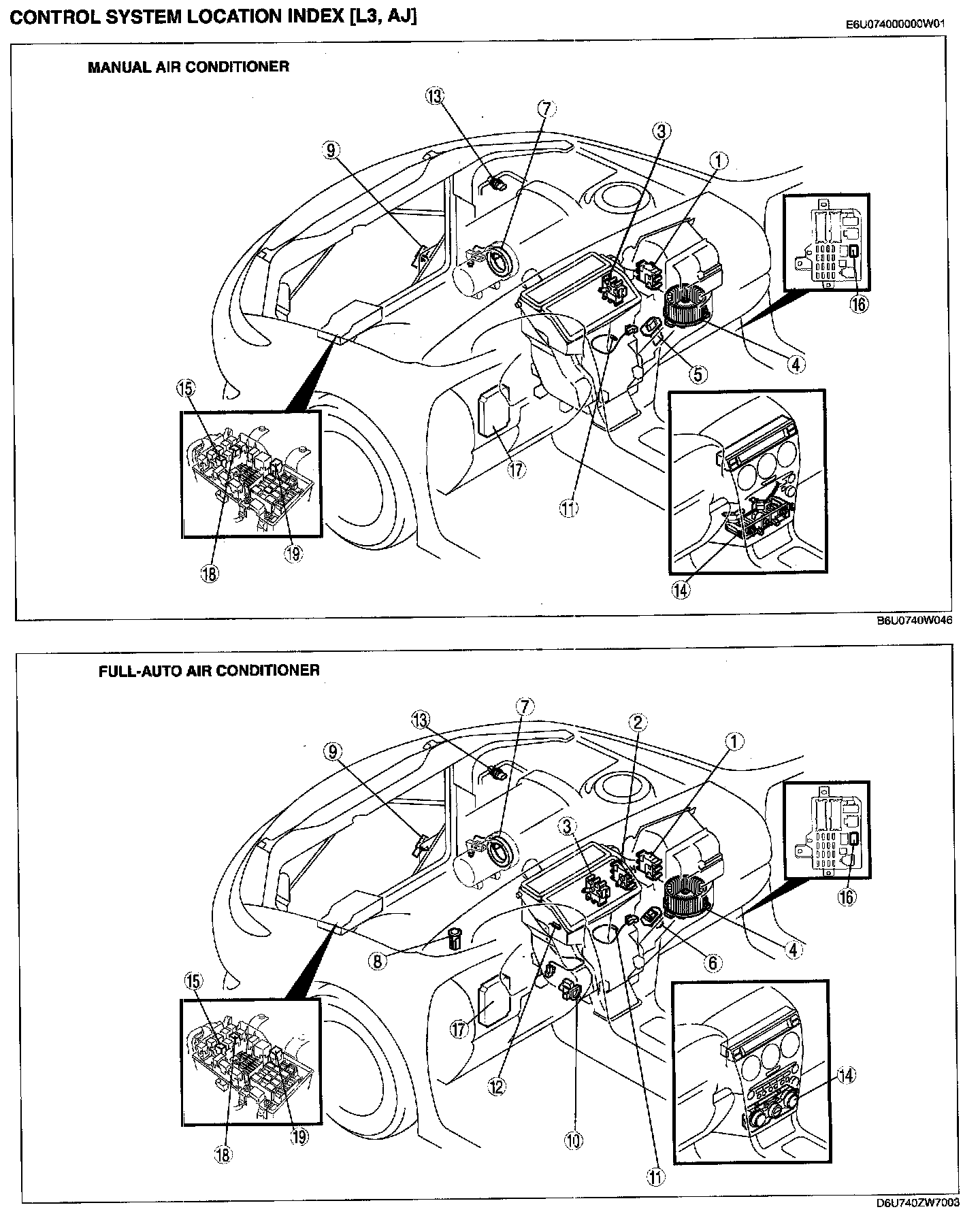

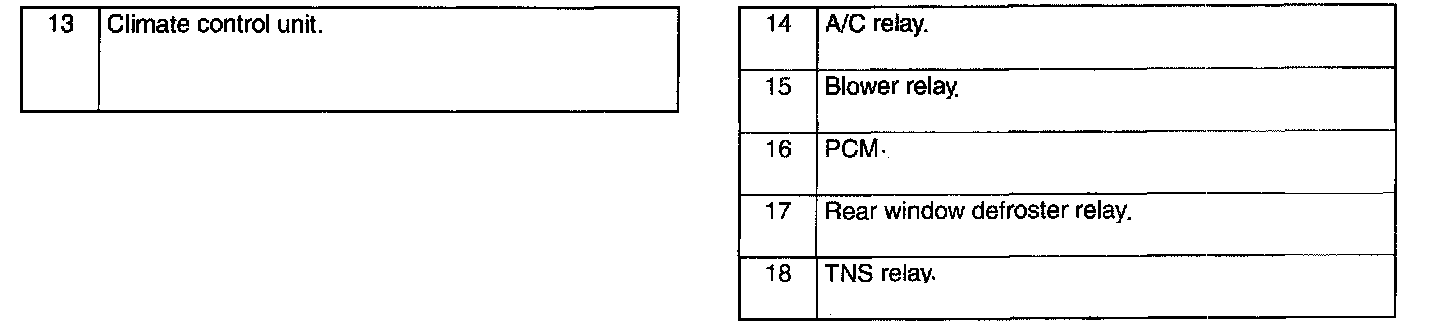

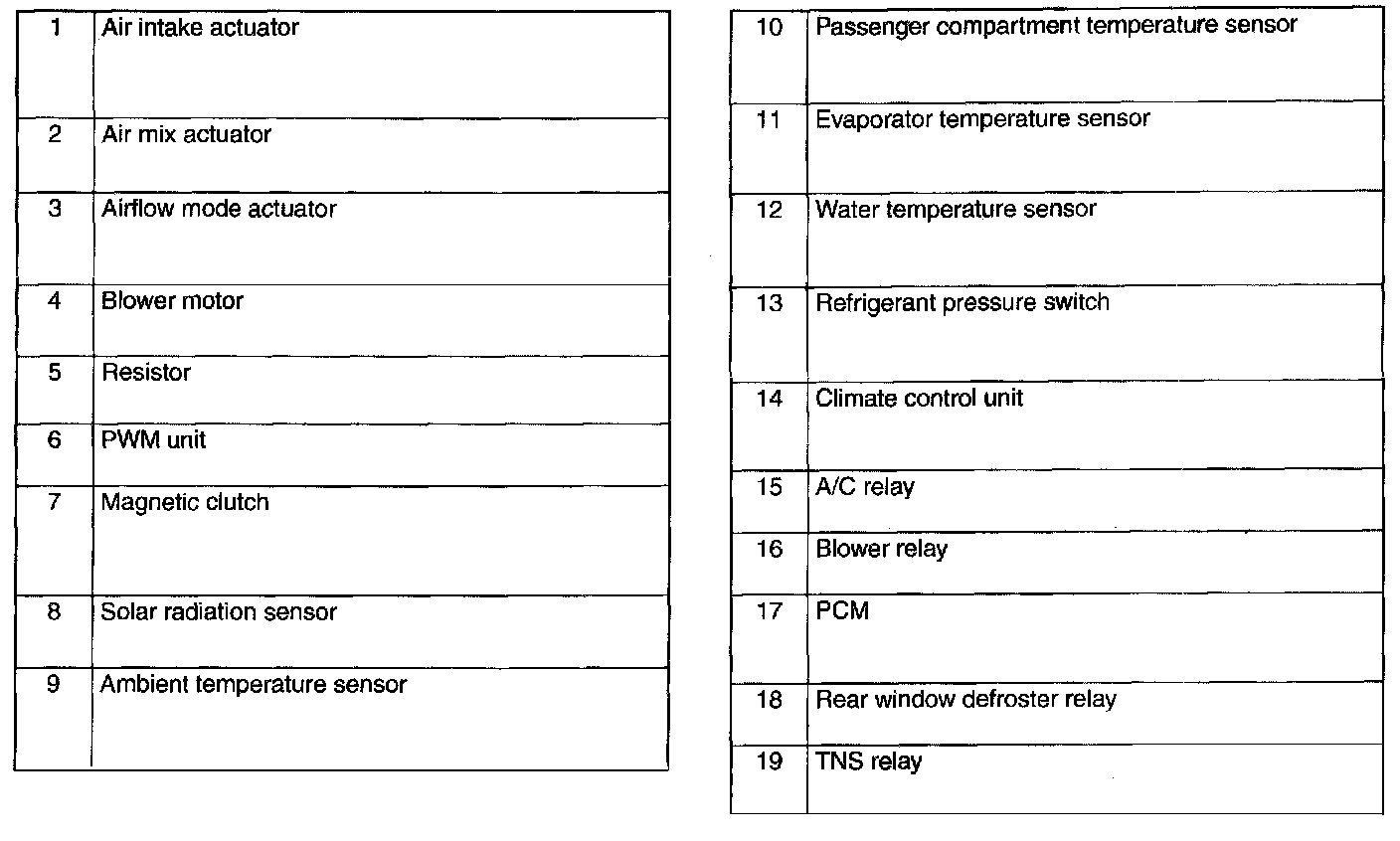

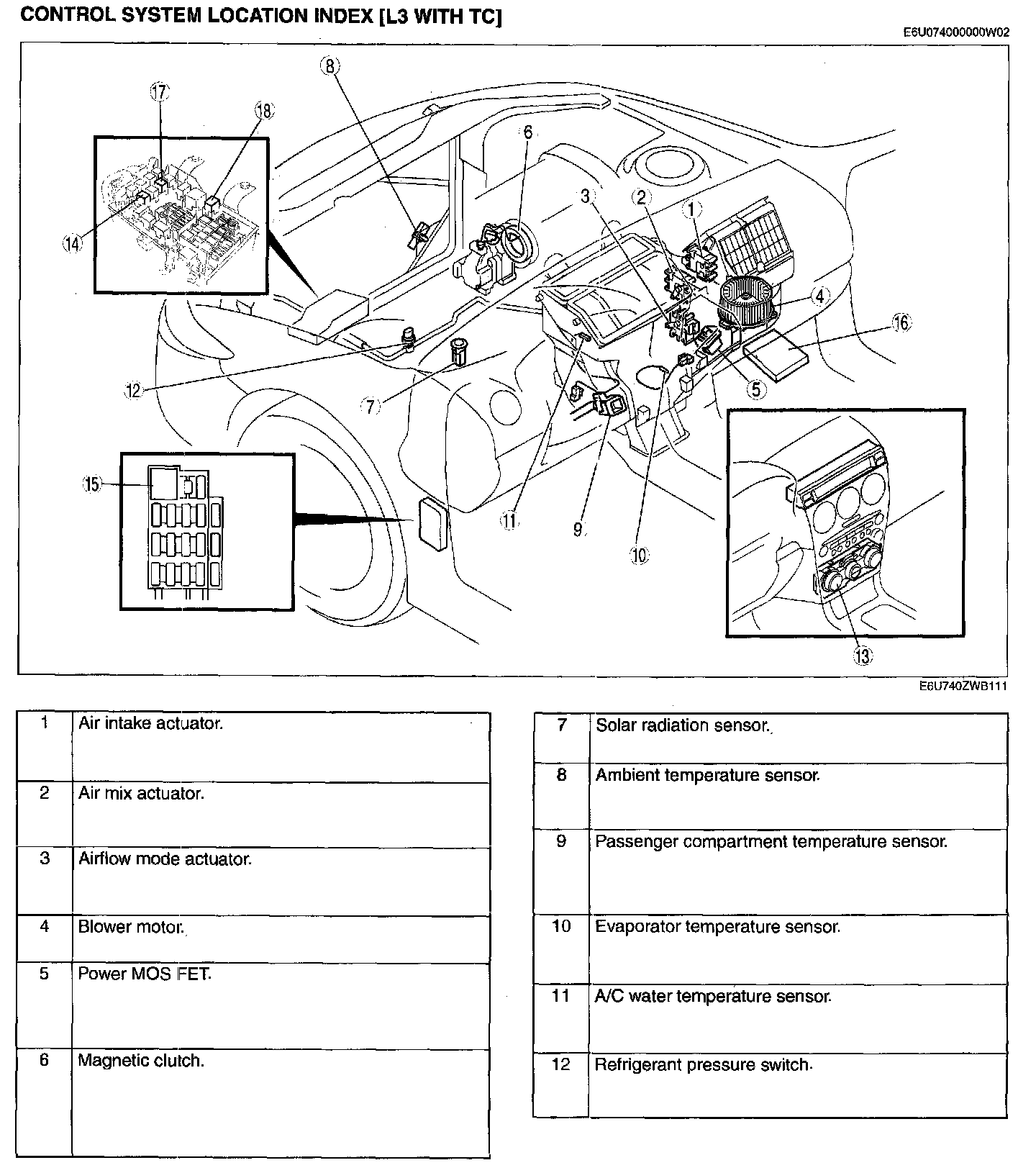

Control System Location Index:



Control System Location Index:



Control System Location Index:



Control System Location Index:

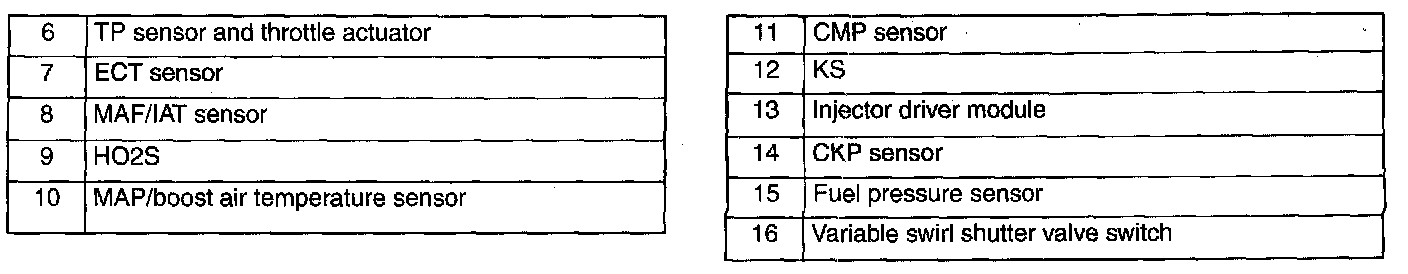

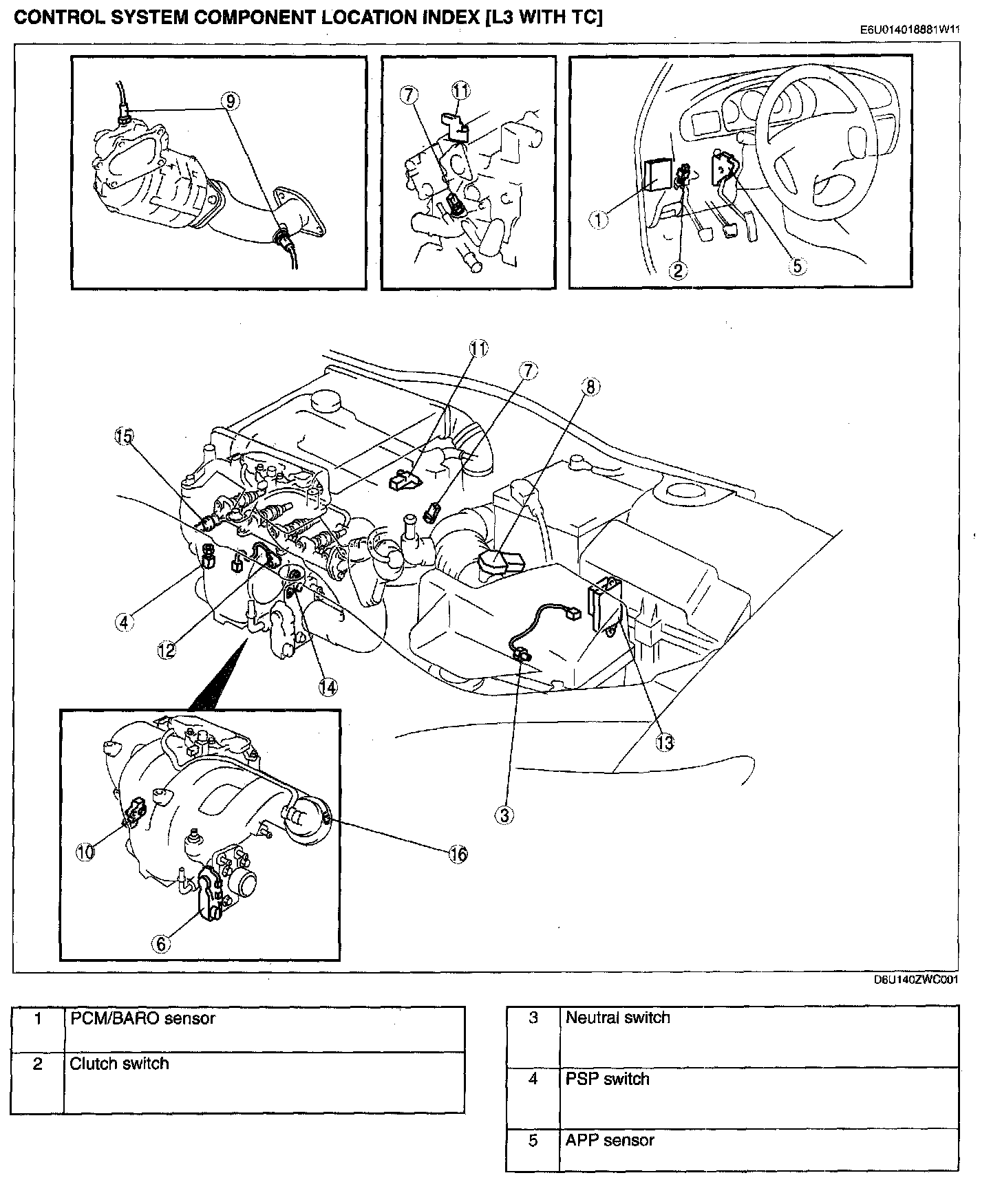

Control System Component Location Index (part 1):



Control System Component Location Index (part 2):
