Home >> Mazda >> 2006 >> 5 L4-2.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Cover

Timing Cover

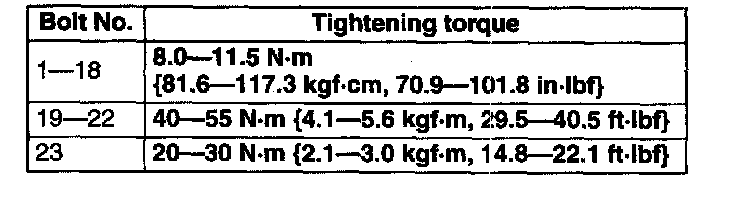

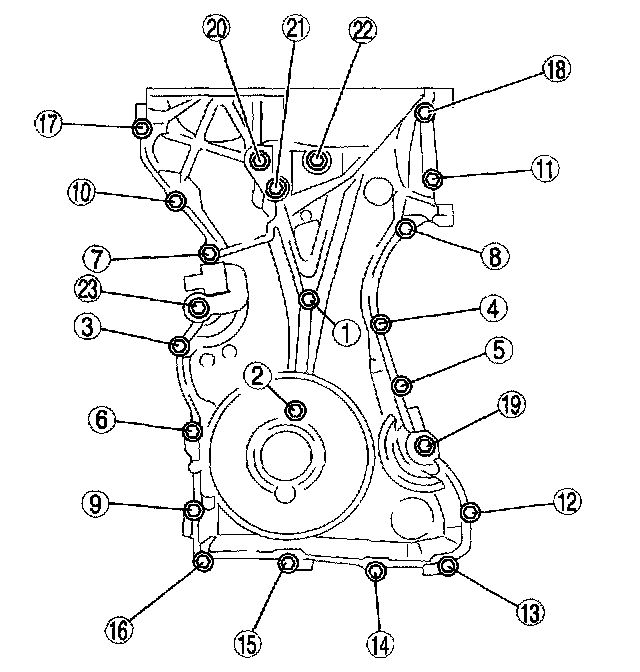

Install the engine front cover bolts in the order shown in the figure
