California Emission Regulation Applicable ATX Model

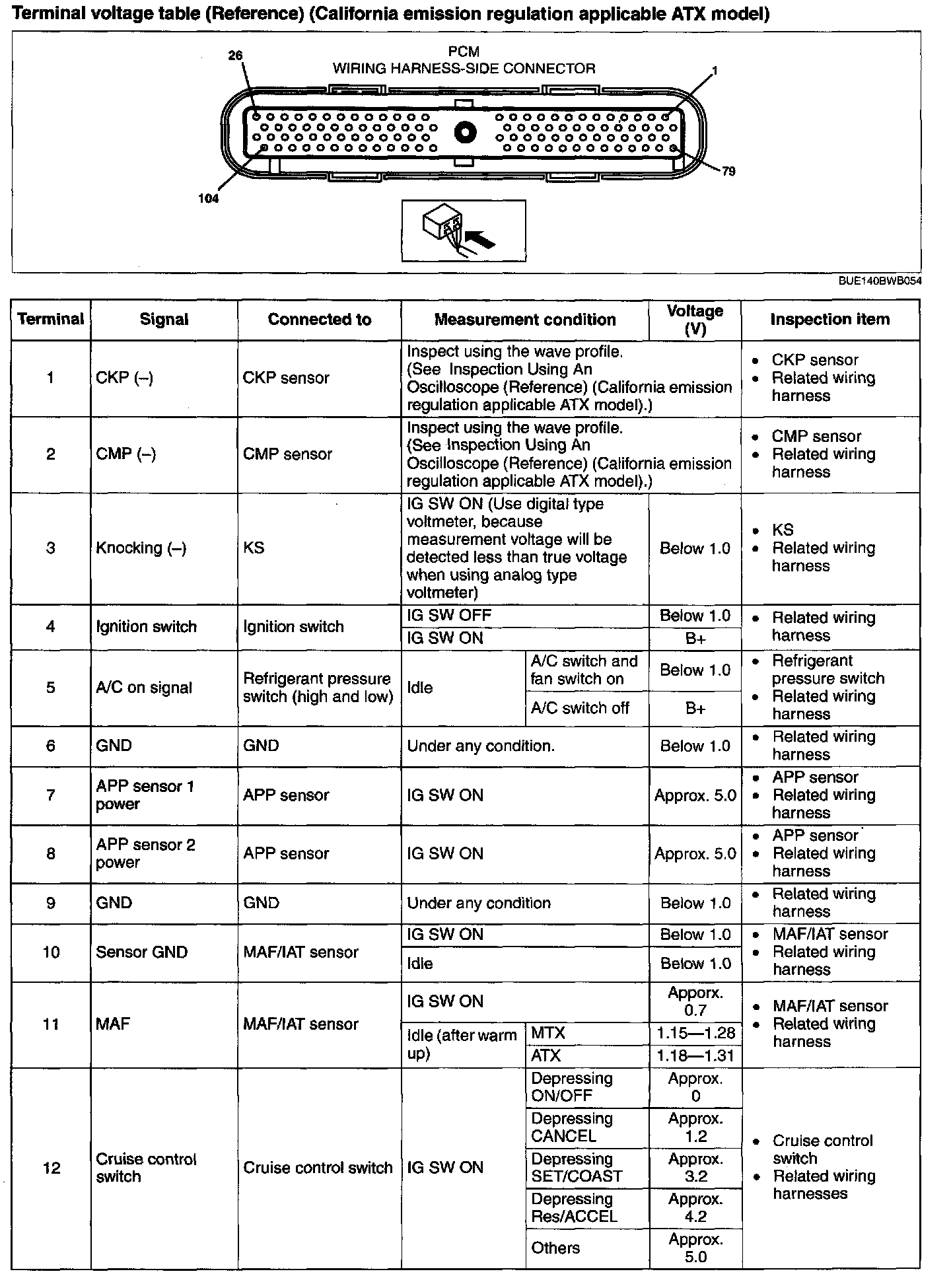

Terminal Voltage Table (Reference) - Terminals (1 - 12):

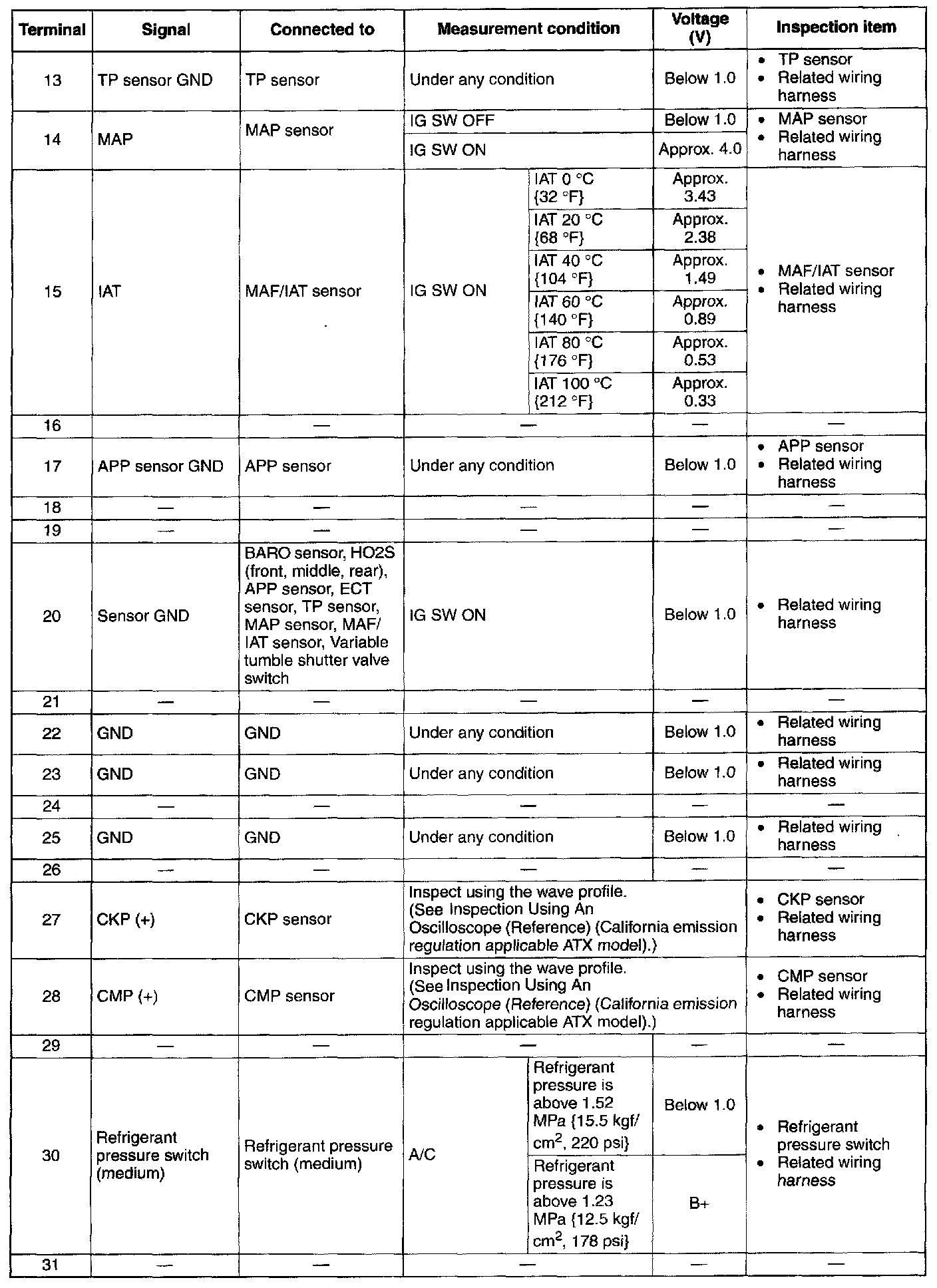

Terminal Voltage Table (Reference) - Terminals (13 - 31):

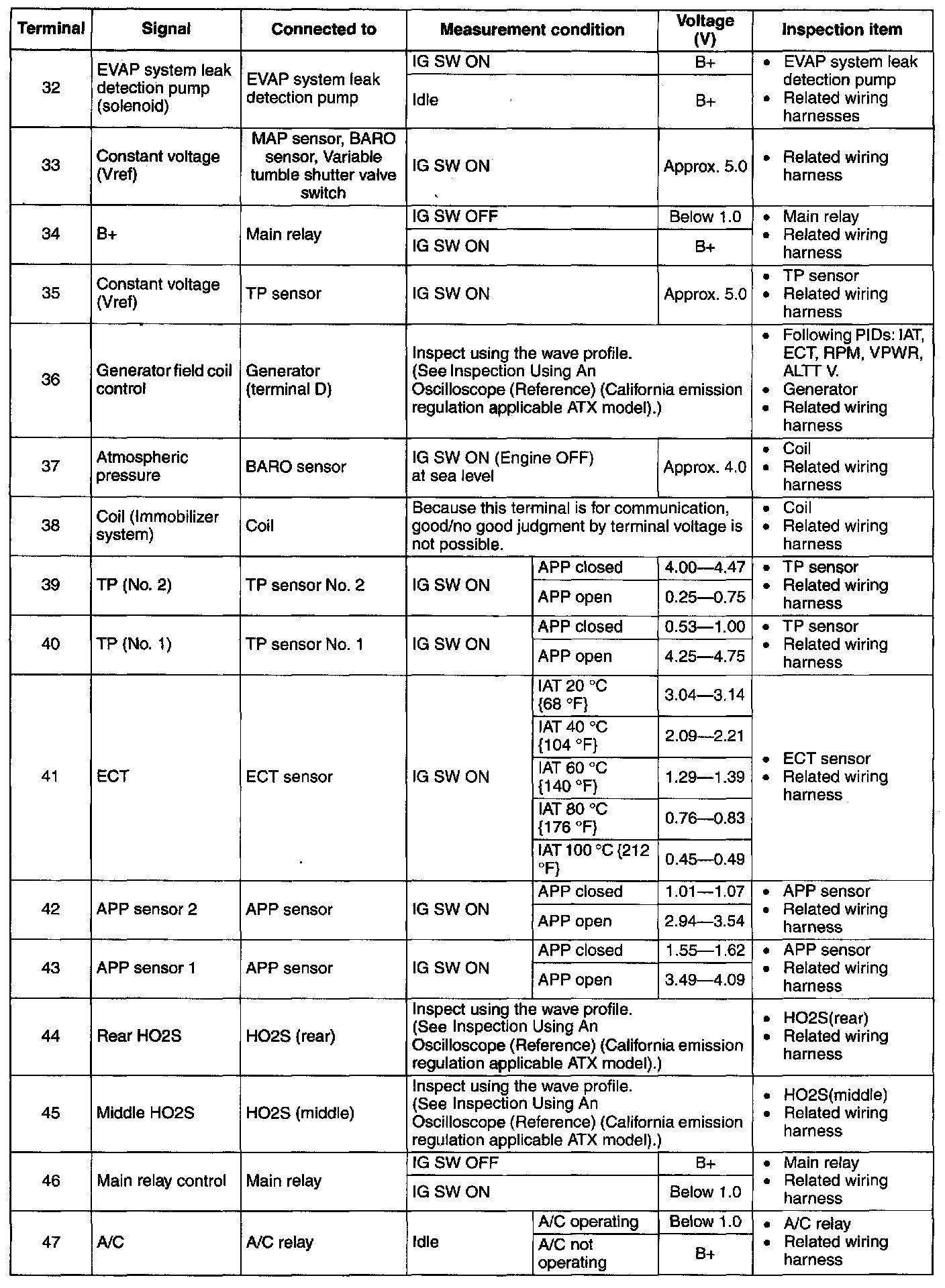

Terminal Voltage Table (Reference) - Terminals (32 - 47):

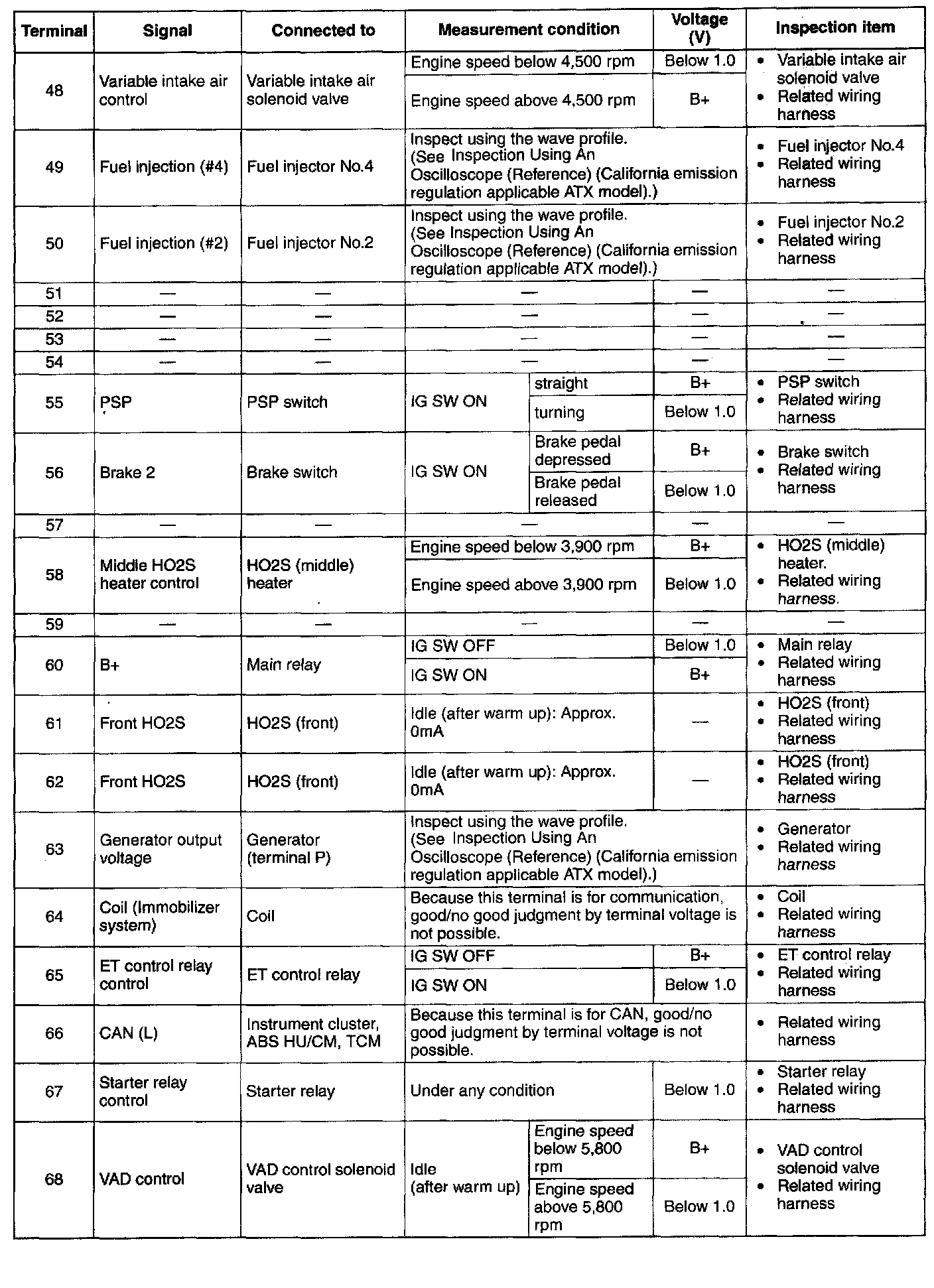

Terminal Voltage Table (Reference) - Terminals (48 - 68):

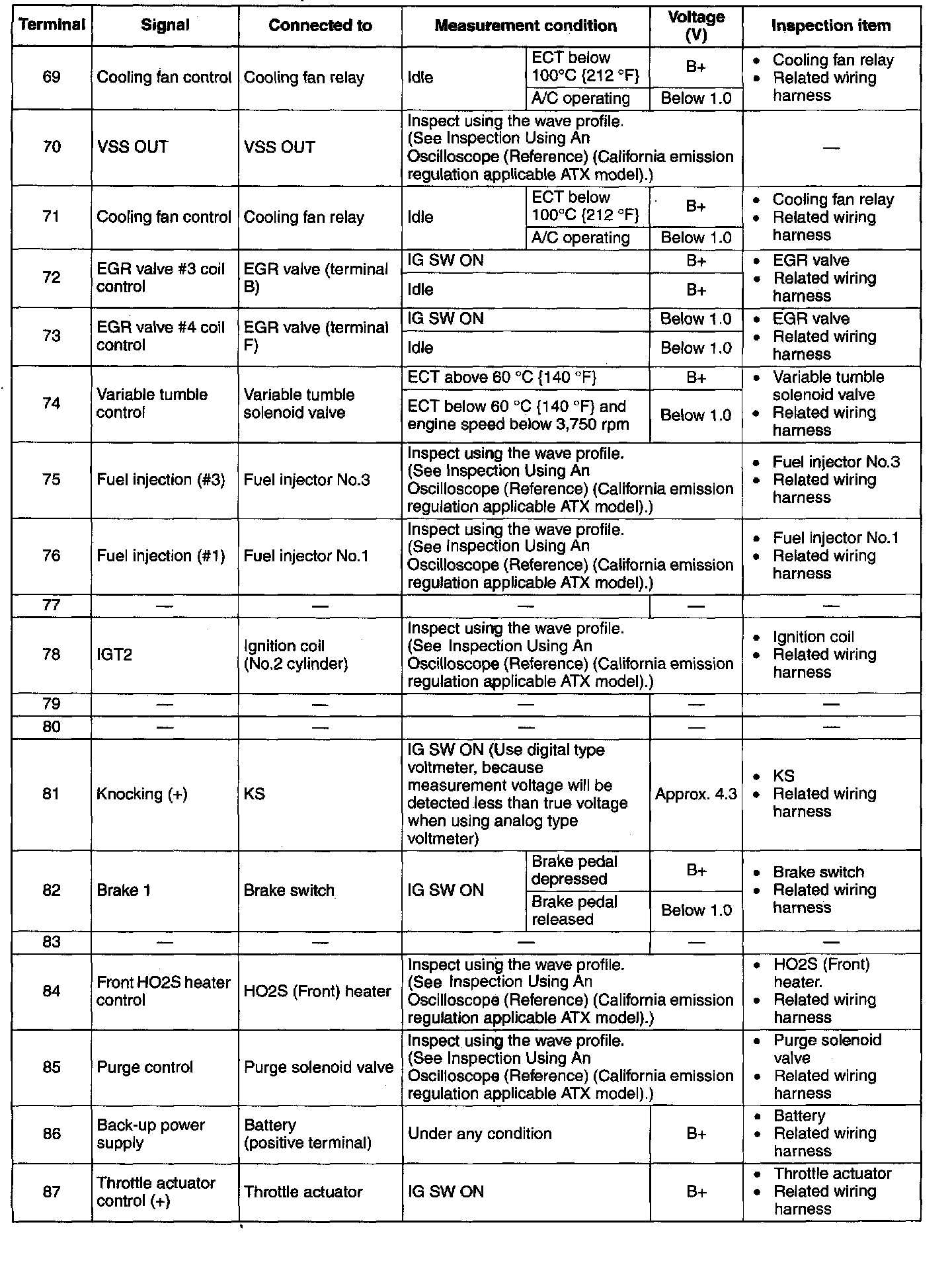

Terminal Voltage Table (Reference) - Terminals (69 - 87):

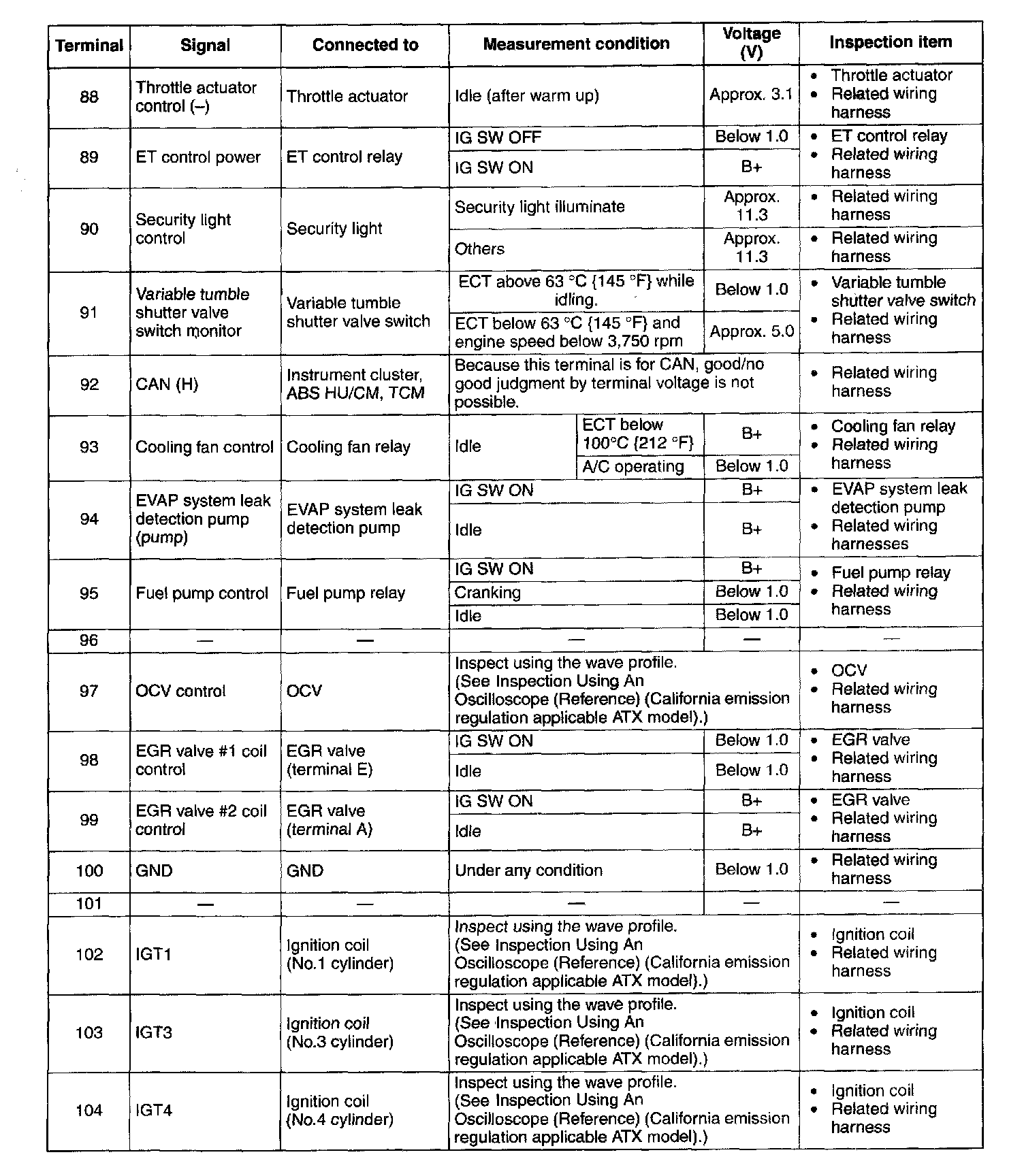

Terminal Voltage Table (Reference) - Terminals (88 - 104):
