Component Locations
Component Locations

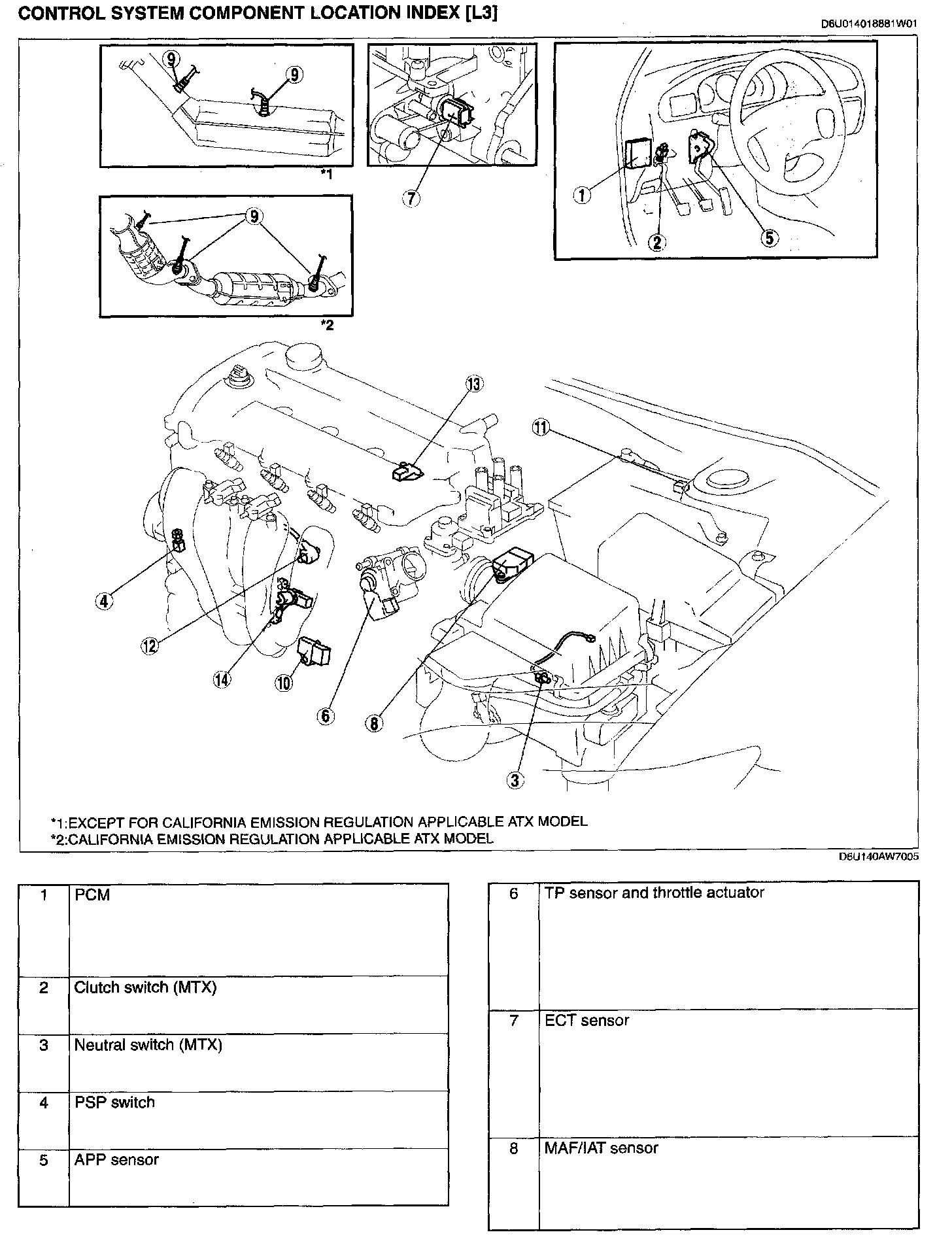

Control System Component Location Index Part 1:

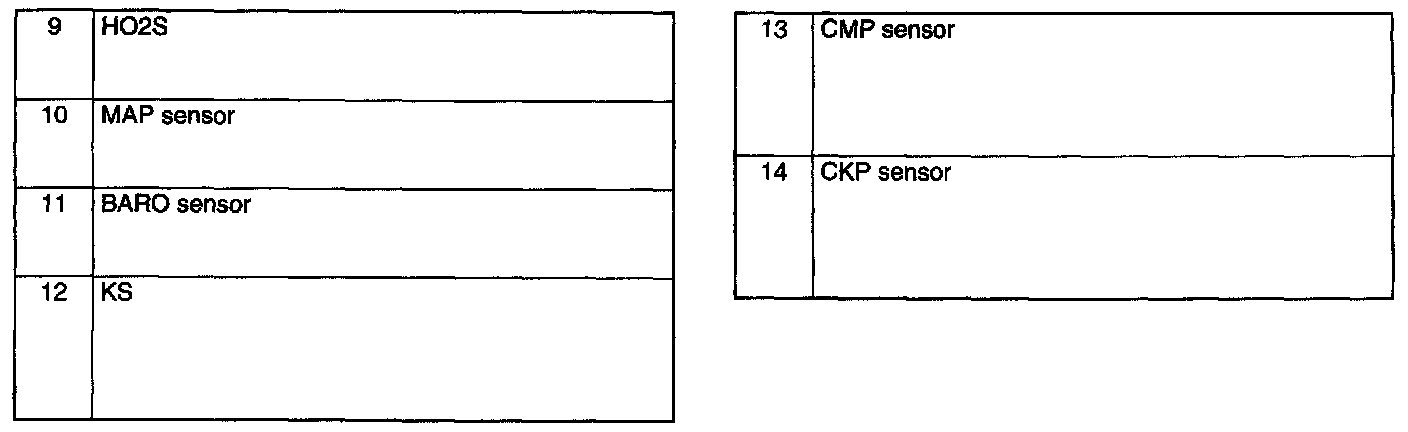

Control System Component Location Part 2:
