Home >> Mazda >> 2005 >> 6 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Control Module >> Locations

Power Door Lock Control Module: Locations

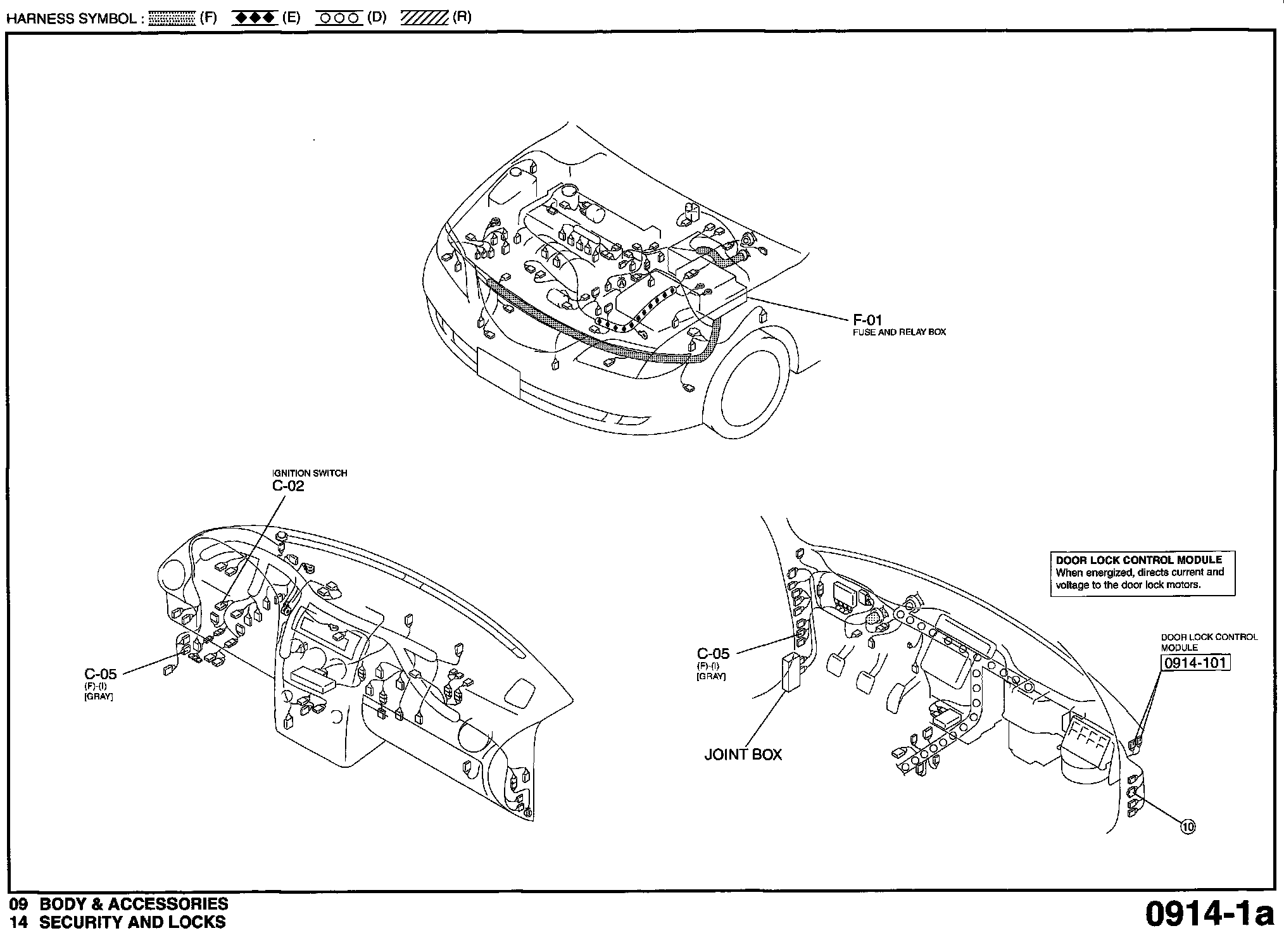

Routing View 0914-1a:
