Home >> Mazda >> 2005 >> 3 L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

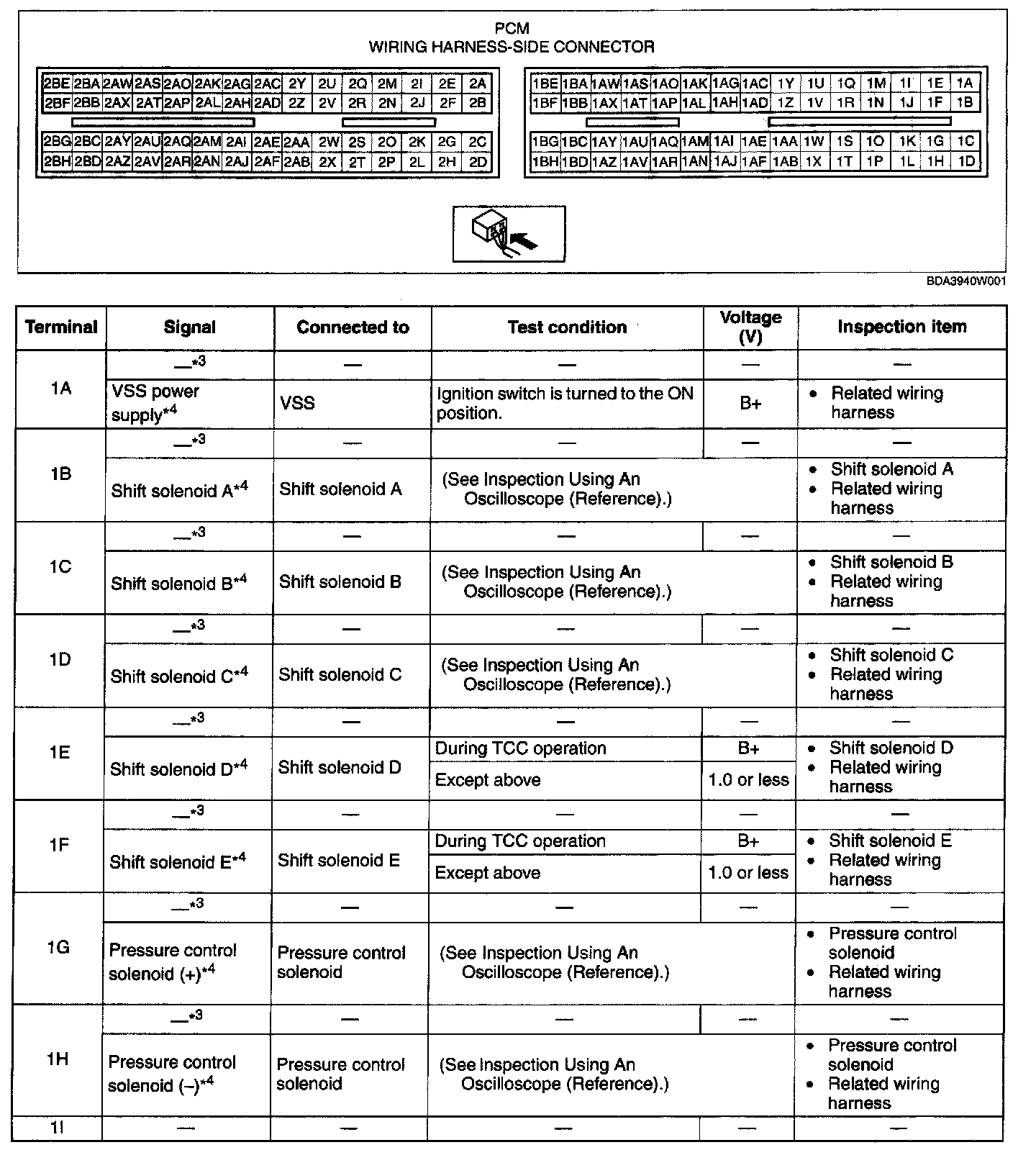

PCM Terminal Voltage Table (Reference) - Terminals (1A - AI):

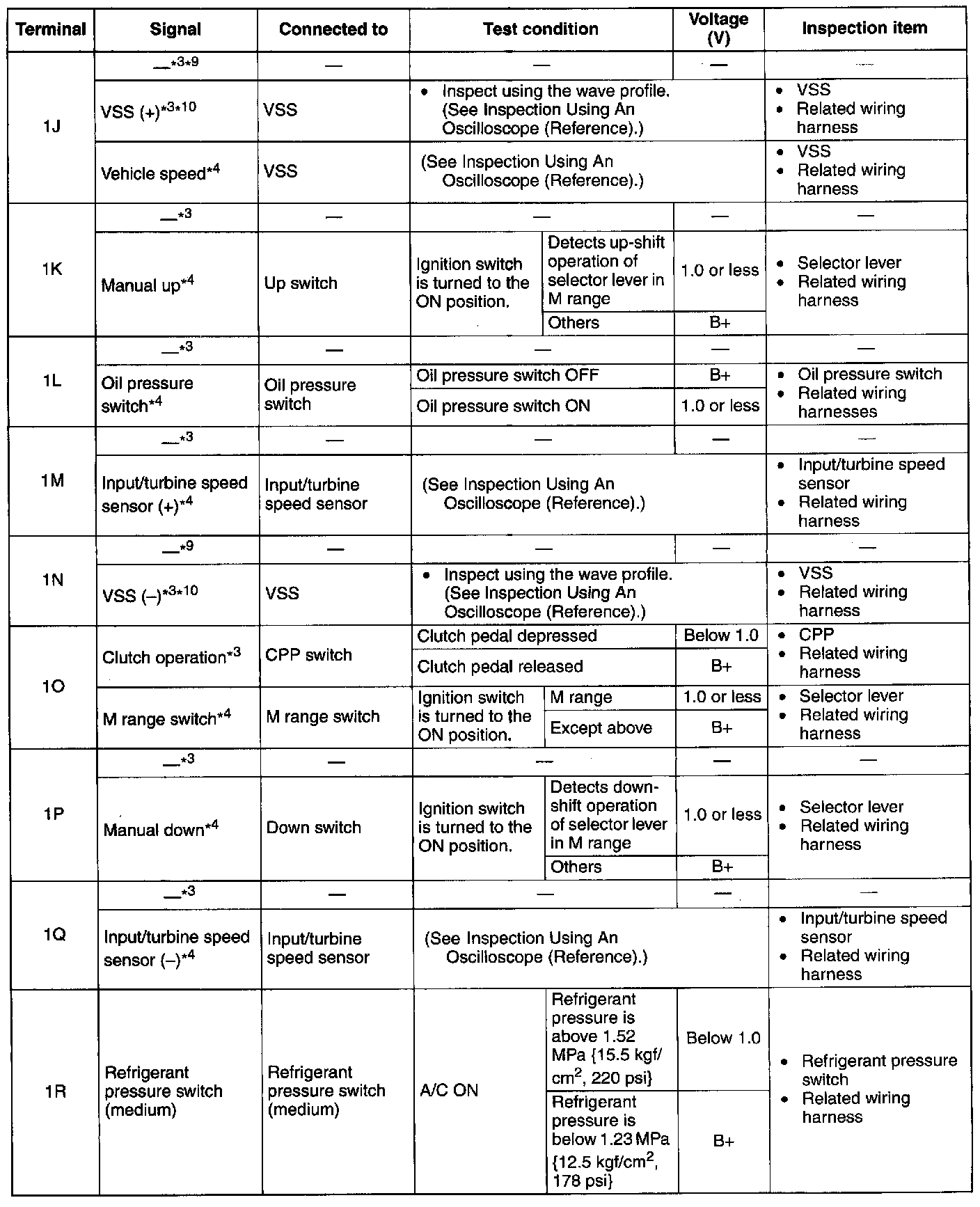

PCM Terminal Voltage Table (Reference) - Terminals (1J - 1R):

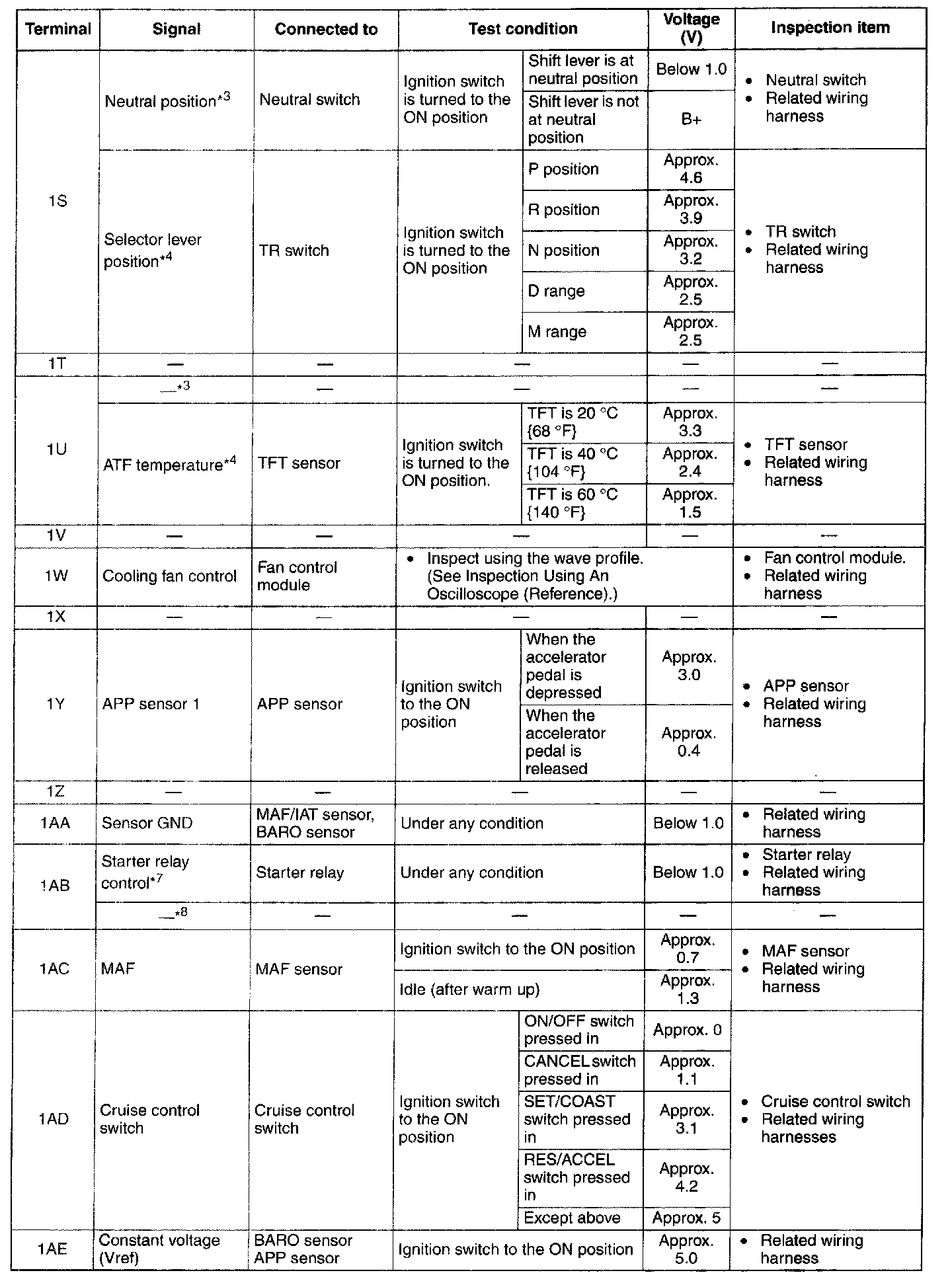

PCM Terminal Voltage Table (Reference) - Terminals (1S - 1AE):

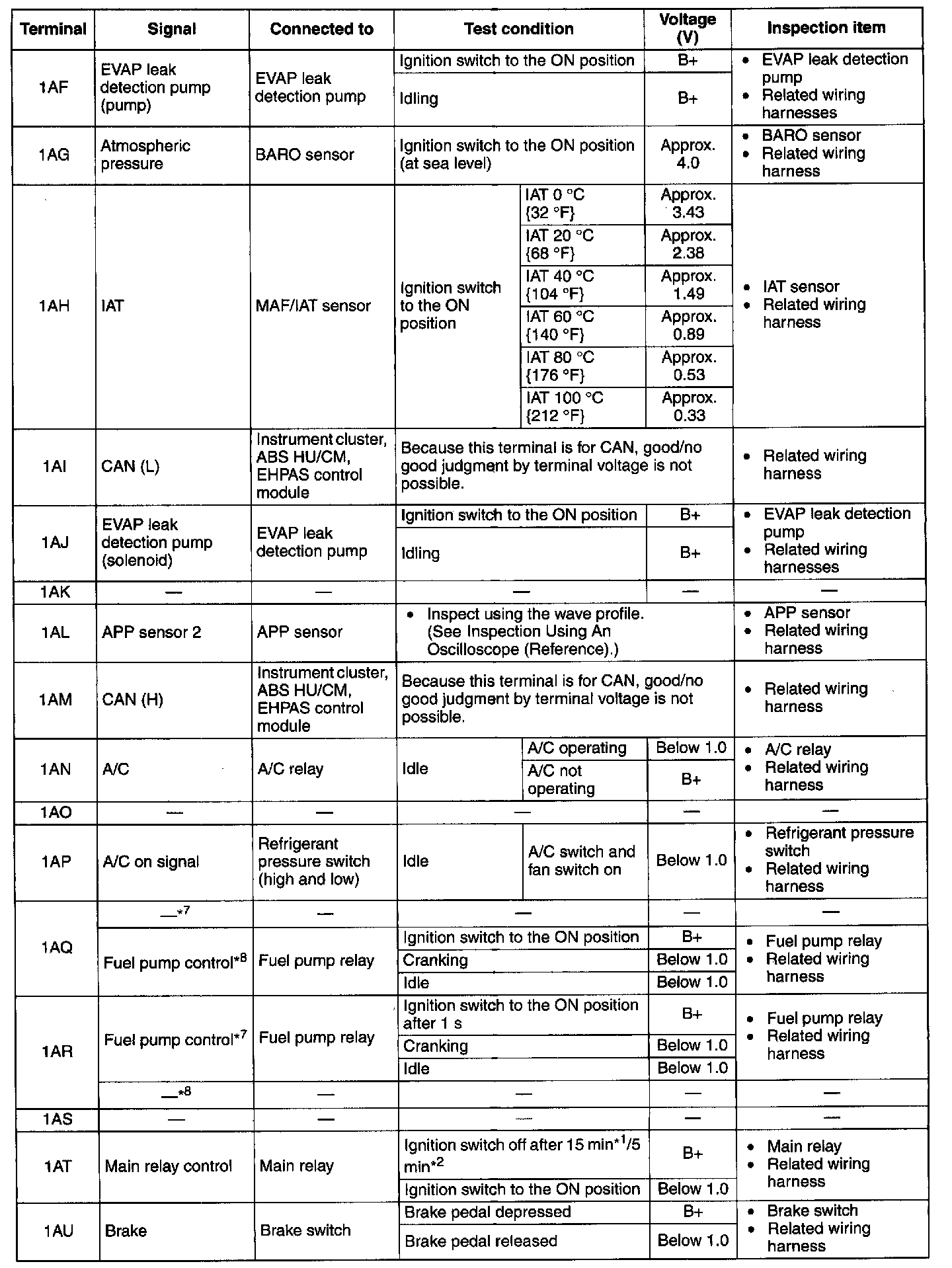

PCM Terminal Voltage Table (Reference) - Terminals (1AF - 1AU):

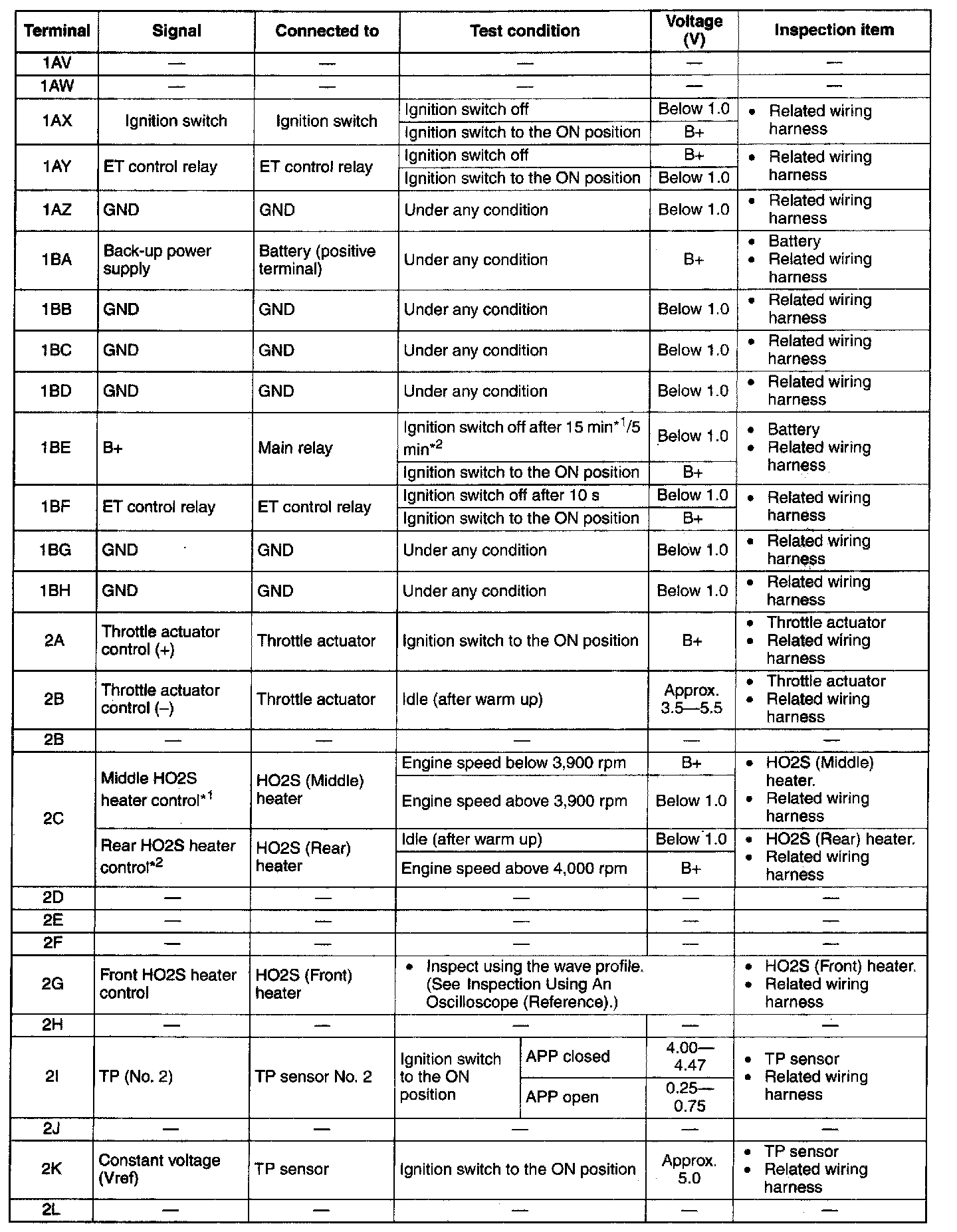

PCM Terminal Voltage Table (Reference) - Terminals (1AV - 2L):

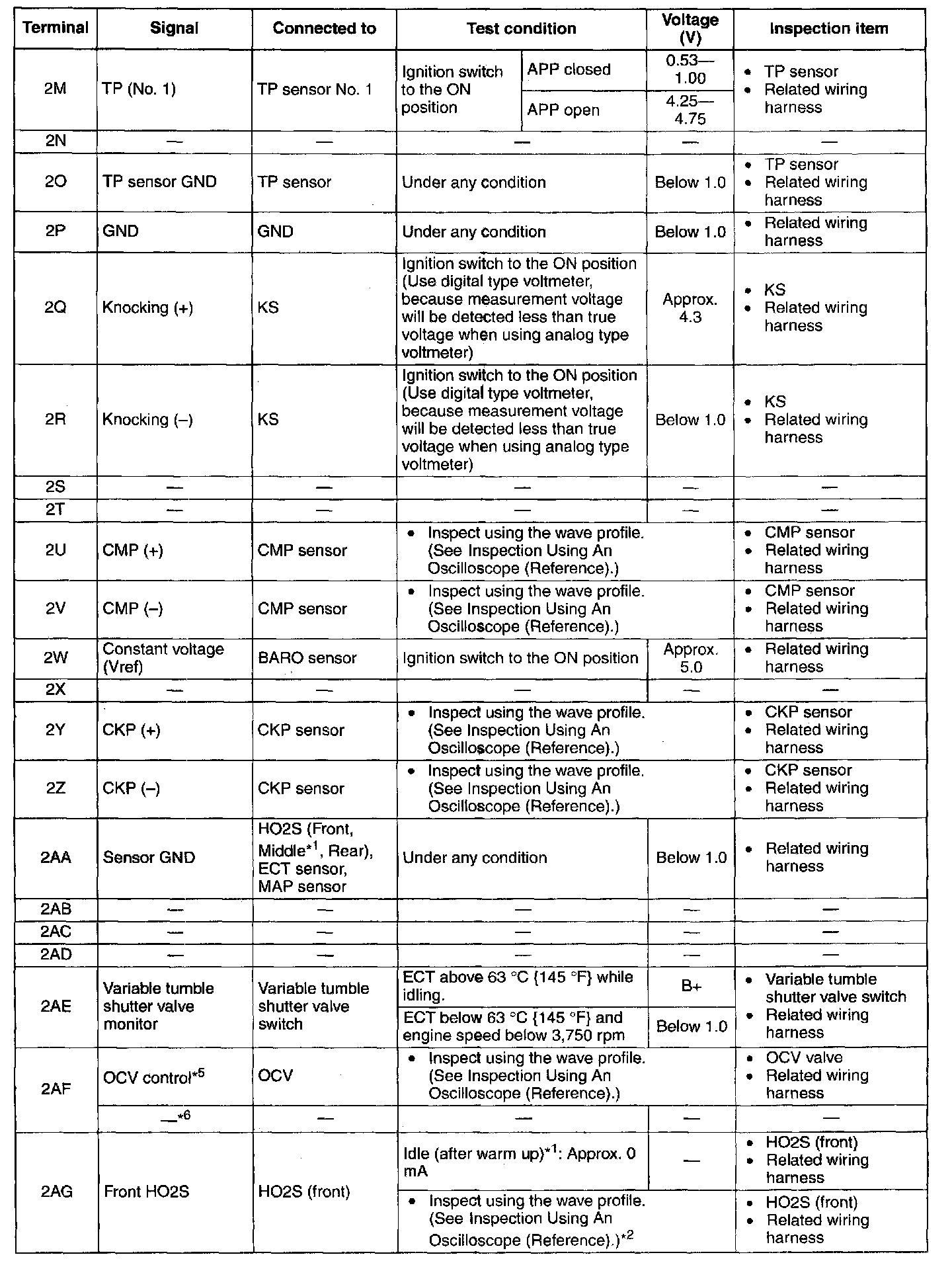

PCM Terminal Voltage Table (Reference) - Terminals (2M - 2AG):

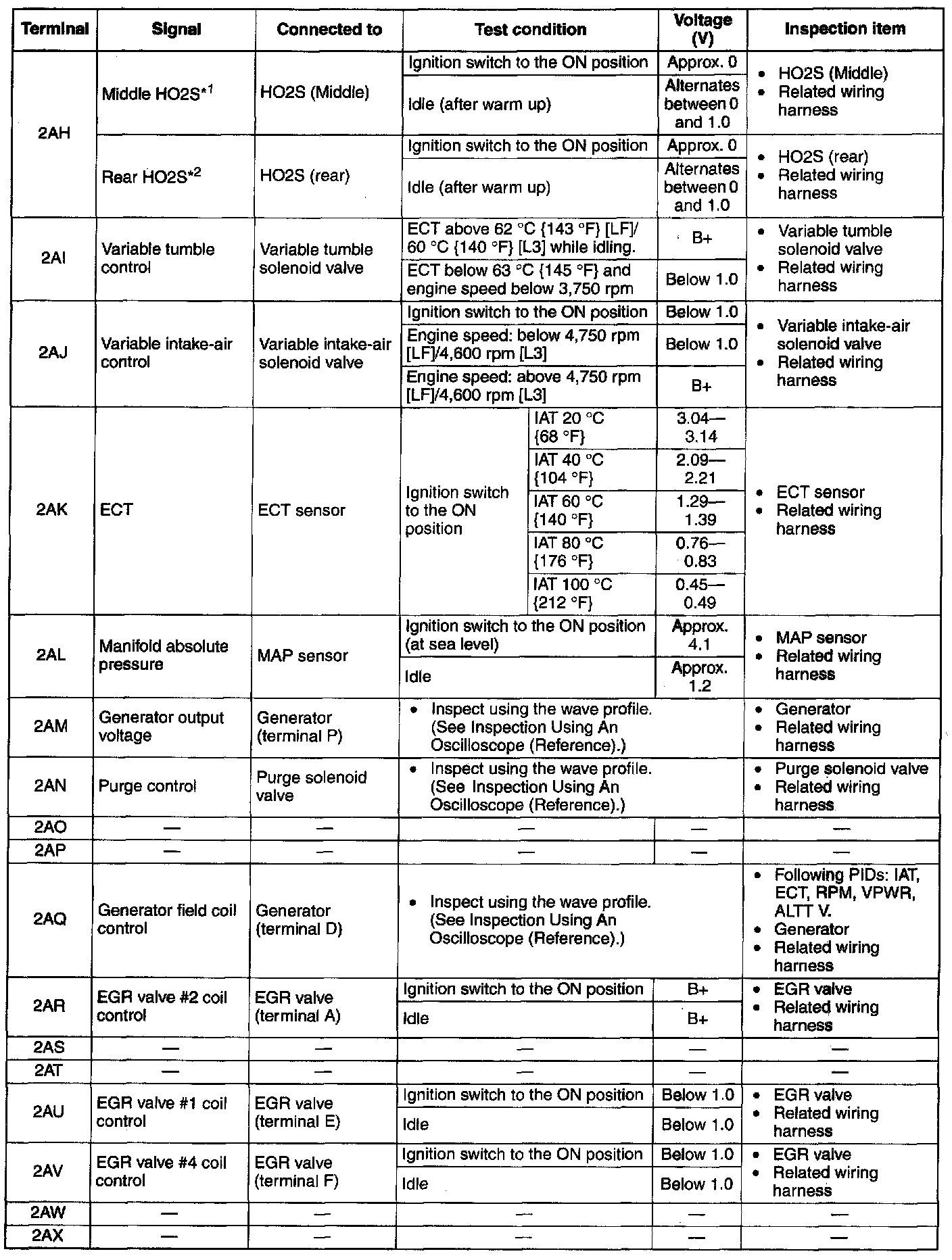

PCM Terminal Voltage Table (Reference) - Terminals (2AH - 2AX):

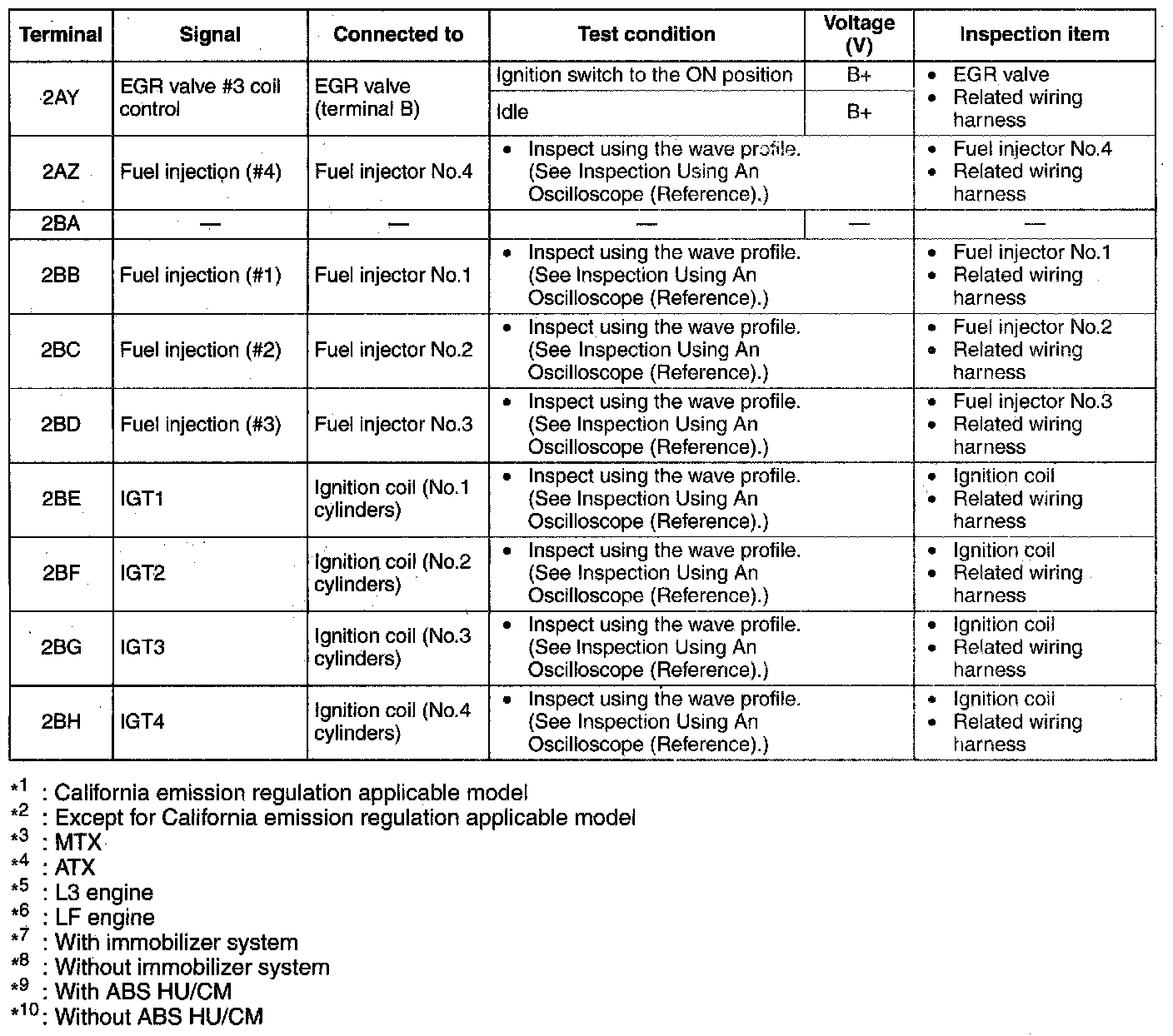

PCM Terminal Voltage Table (Reference) - Terminals (2AY - 2BH):
