Flex Plate

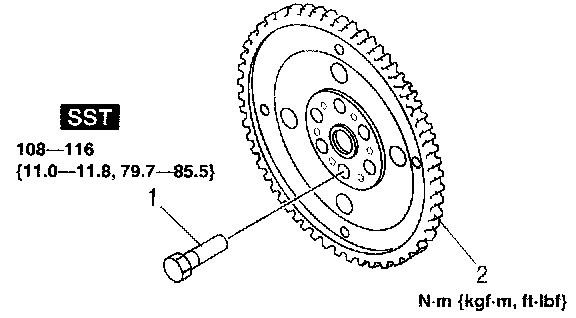

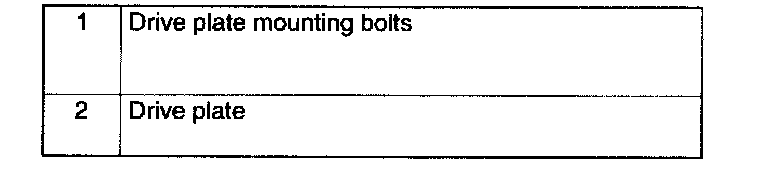

Part 1:

Part 2:

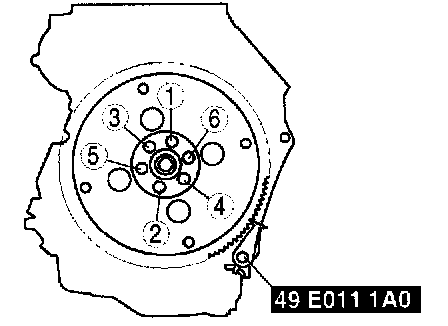

Drive Plate sequence





Tighten the drive plate mounting bolts in two or three steps.
Tightening torque 108 - 116 Nm (11.0 - 11.8 kgf-m, 79.7 - 85.5 ft. lbs.)

Flywheel Runout 0.1 mm (0.004 inch) max.
