Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

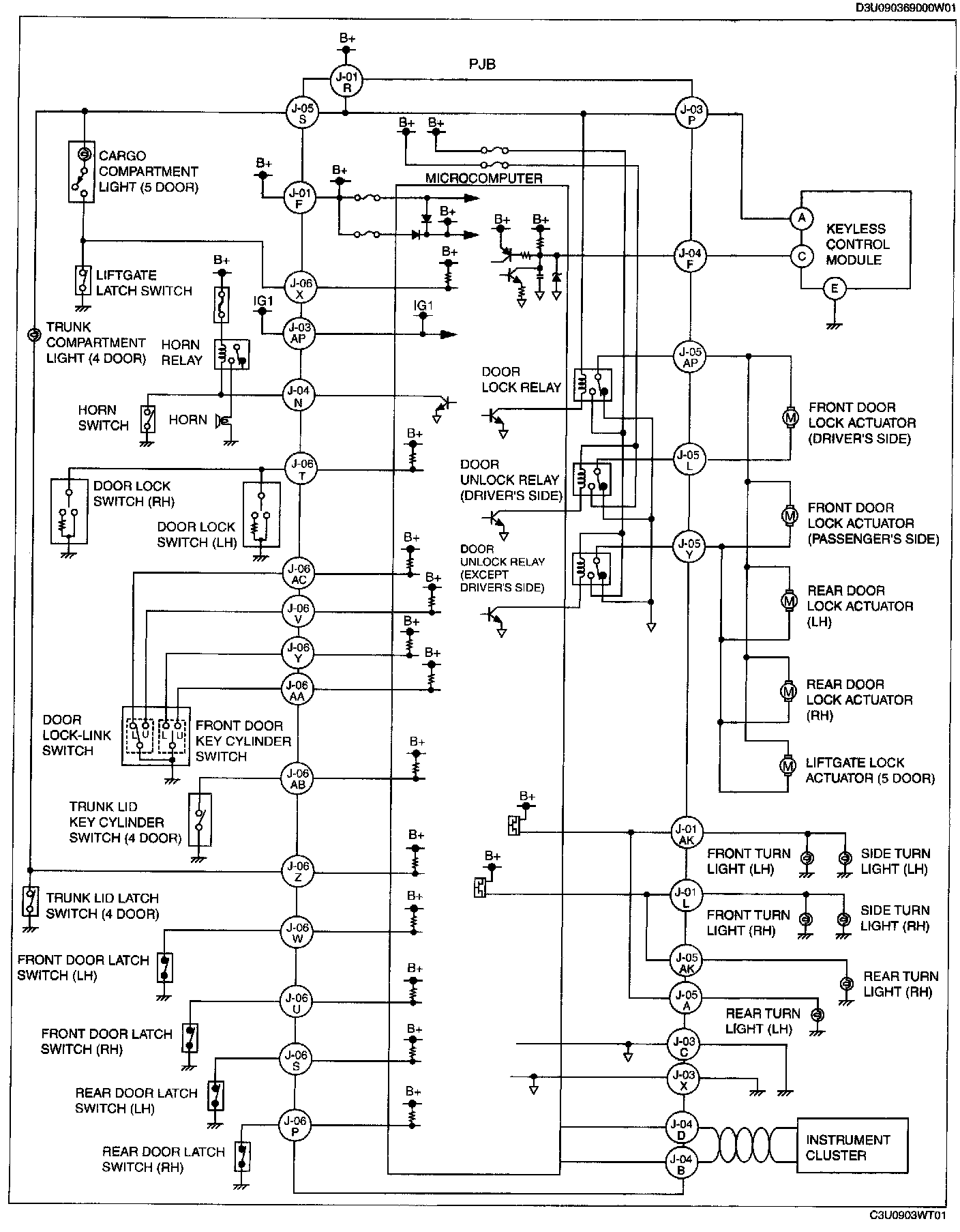

Keyless Entry System Wiring Diagram:
