Technical Data A65M-R
Technical Data A65M-R

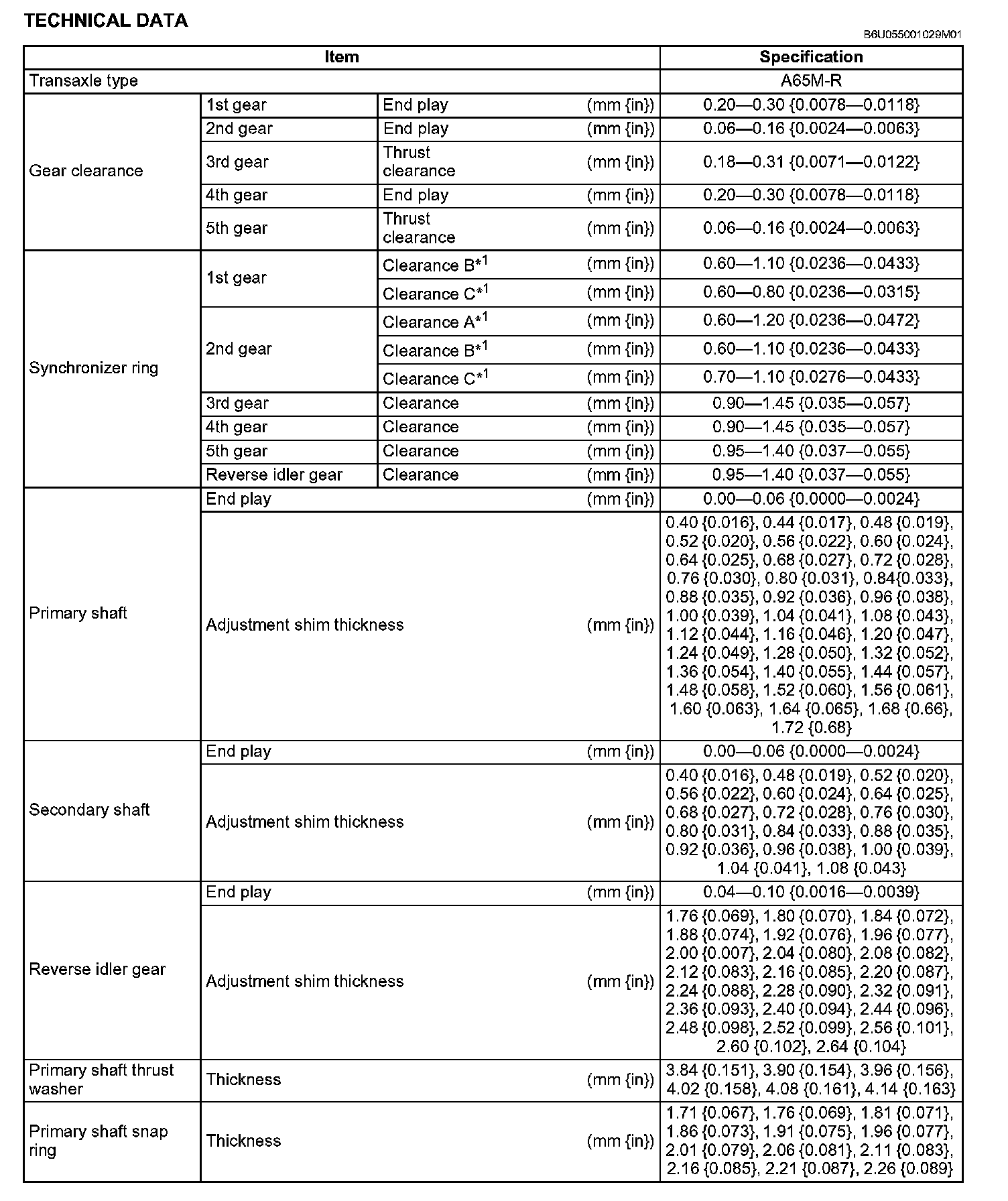

TECHNICAL DATA

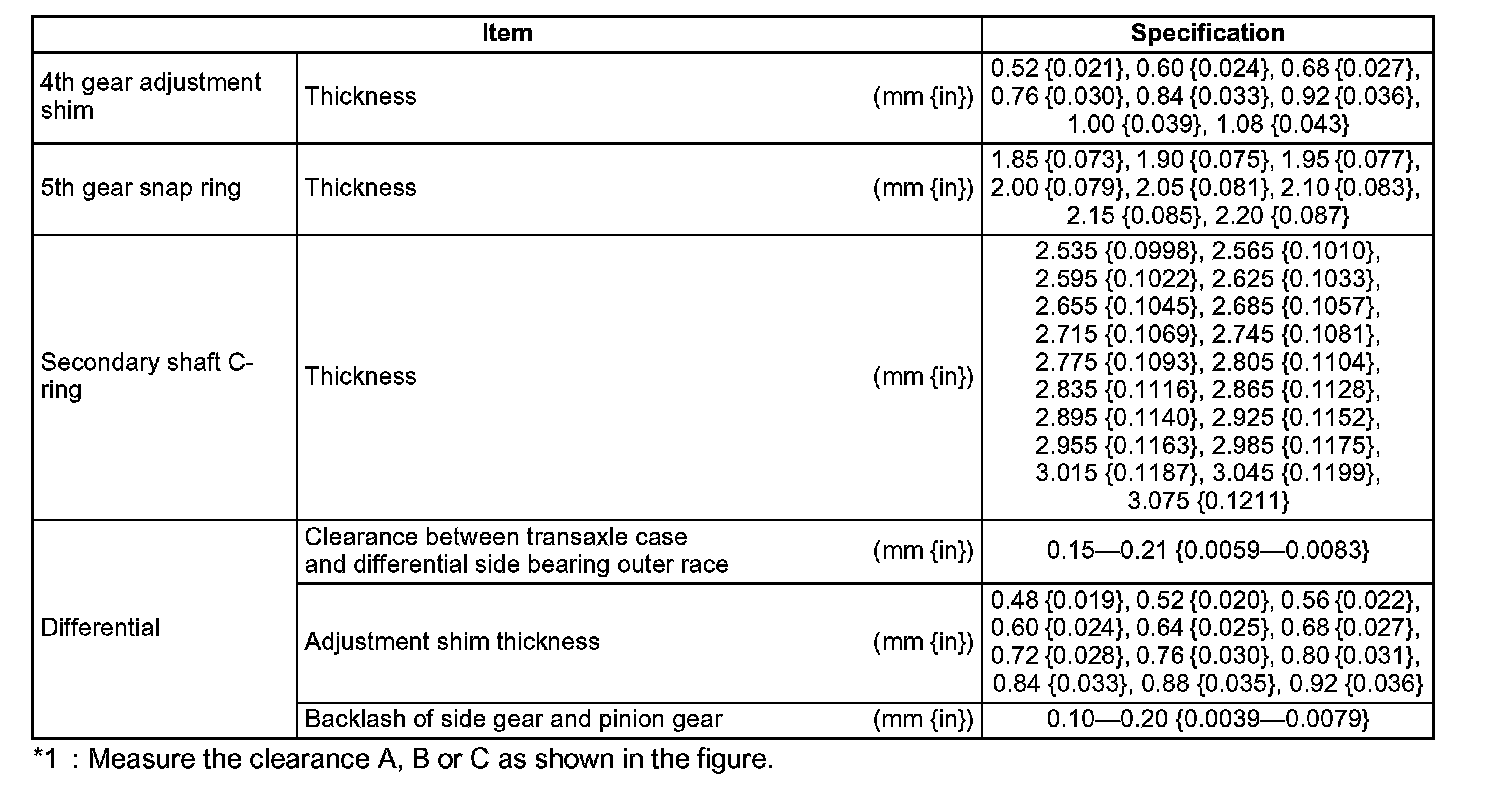

Technical Data (Part 1):
Technical Data (Part 2):
MANUAL TRANSAXLE:

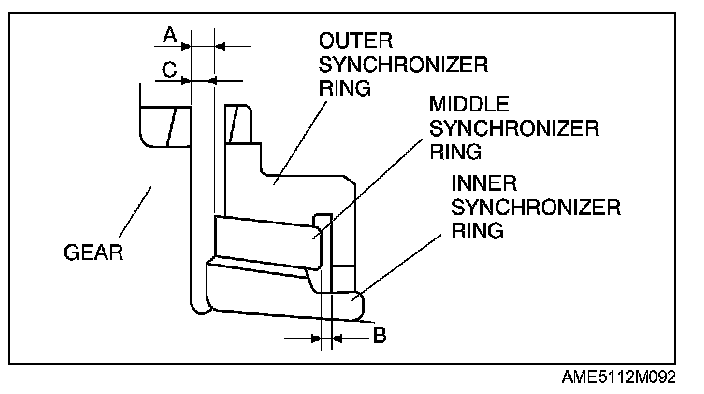

*1: Measure the clearance A, B or C as shown in the figure.
