Exhaust Manifold

Part 1:




Part 2:

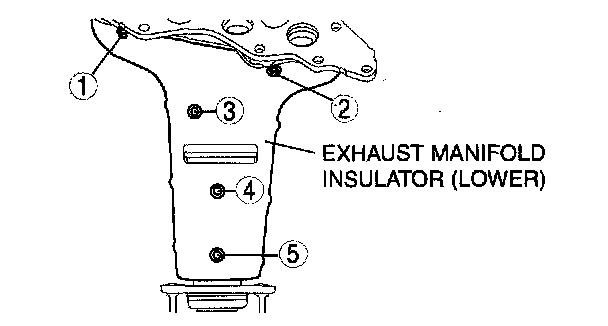

Tighten the exhaust manifold insulator (lower) installation bolts in the order shown.
