Direction of View For Connector

Direction of View for Connector

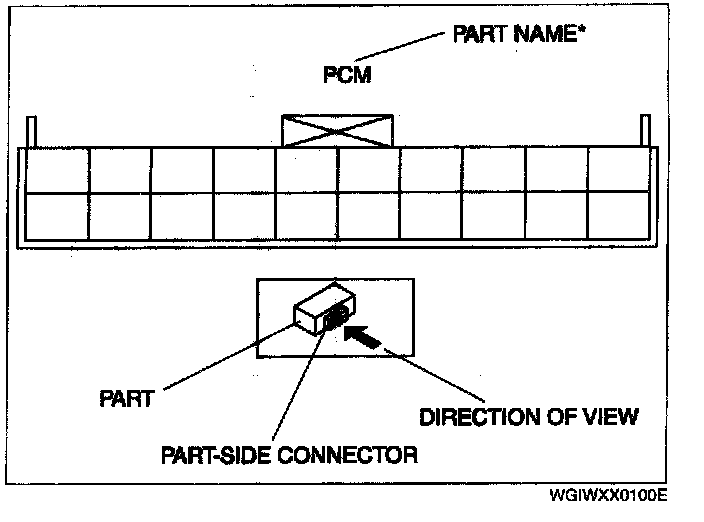

Part-side connector




Direction of view is from the terminal side.
* : Part names are shown only when there are multiple connector drawings.

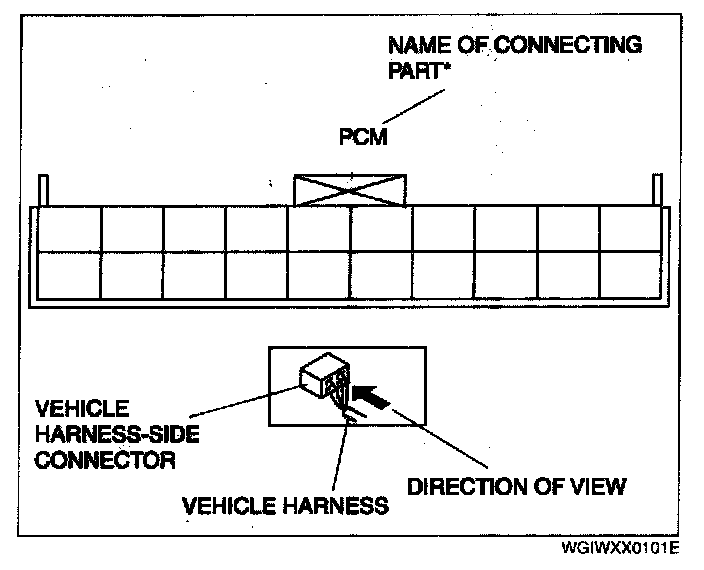

Vehicle harness-side connector




Direction of view is from the harness side.
* : Part names are shown only when there are multiple connector drawings.

Other

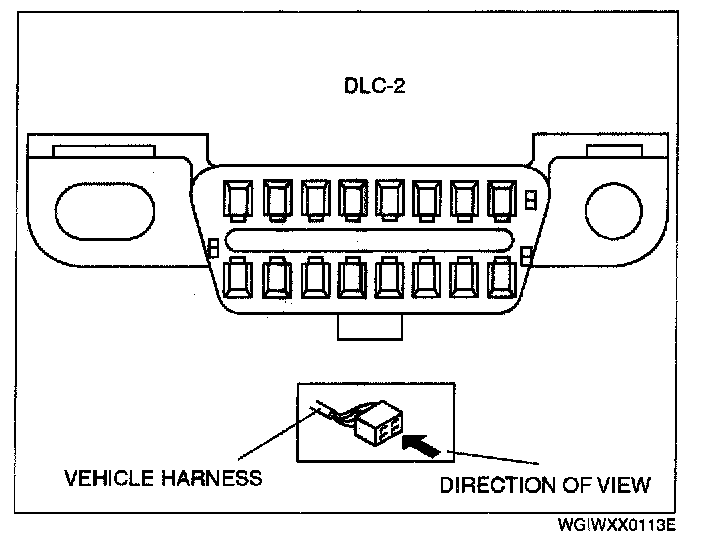

Because vehicle harness-side connectors, such as the DLC-2, have to be viewed from the terminal side, the direction of view is from the terminal side.
