Home >> Mazda >> 2001 >> Tribute DX 2WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Data Monitor Procedure >> PID/Data Monitor Item Table

PID/Data Monitor Item Table

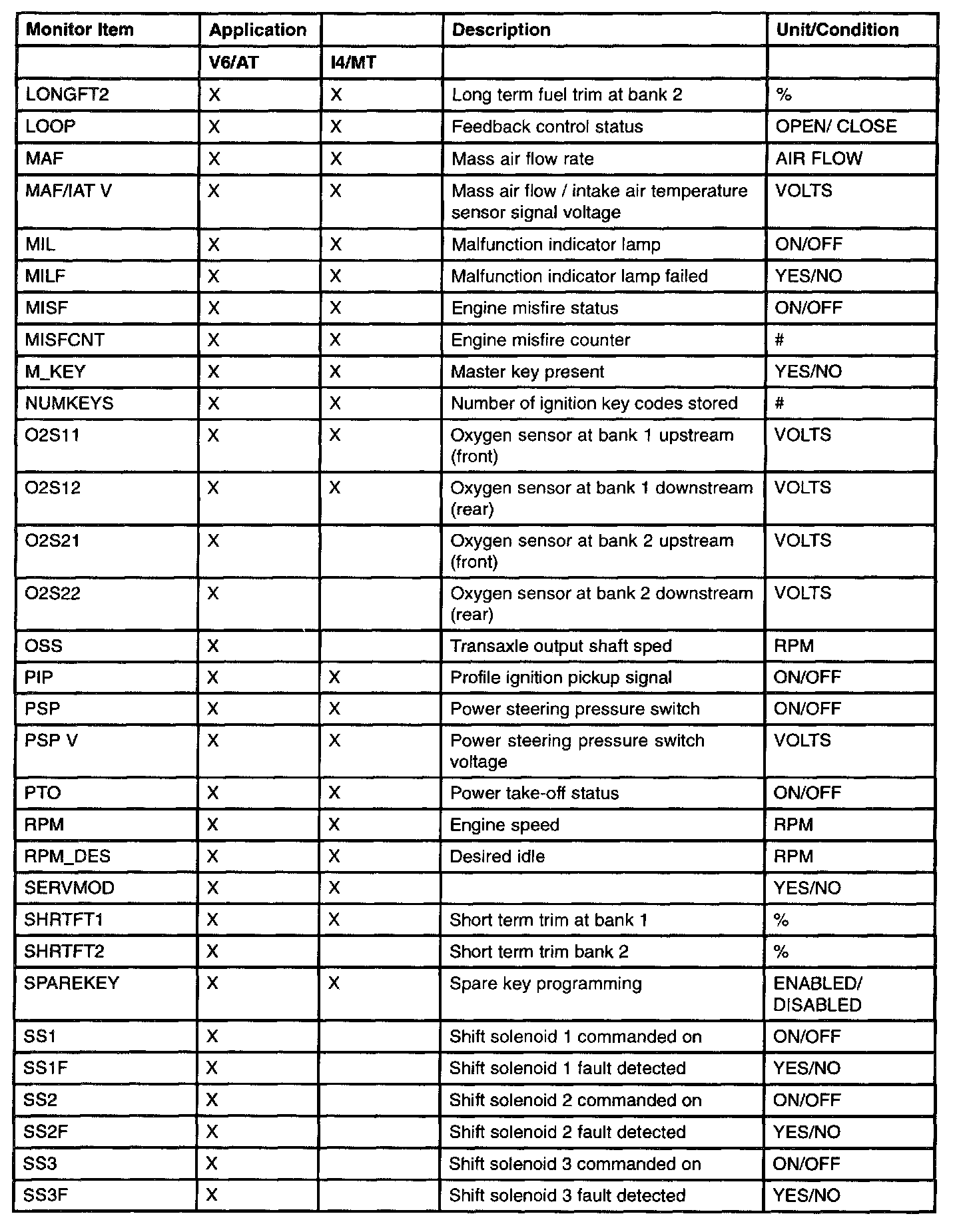

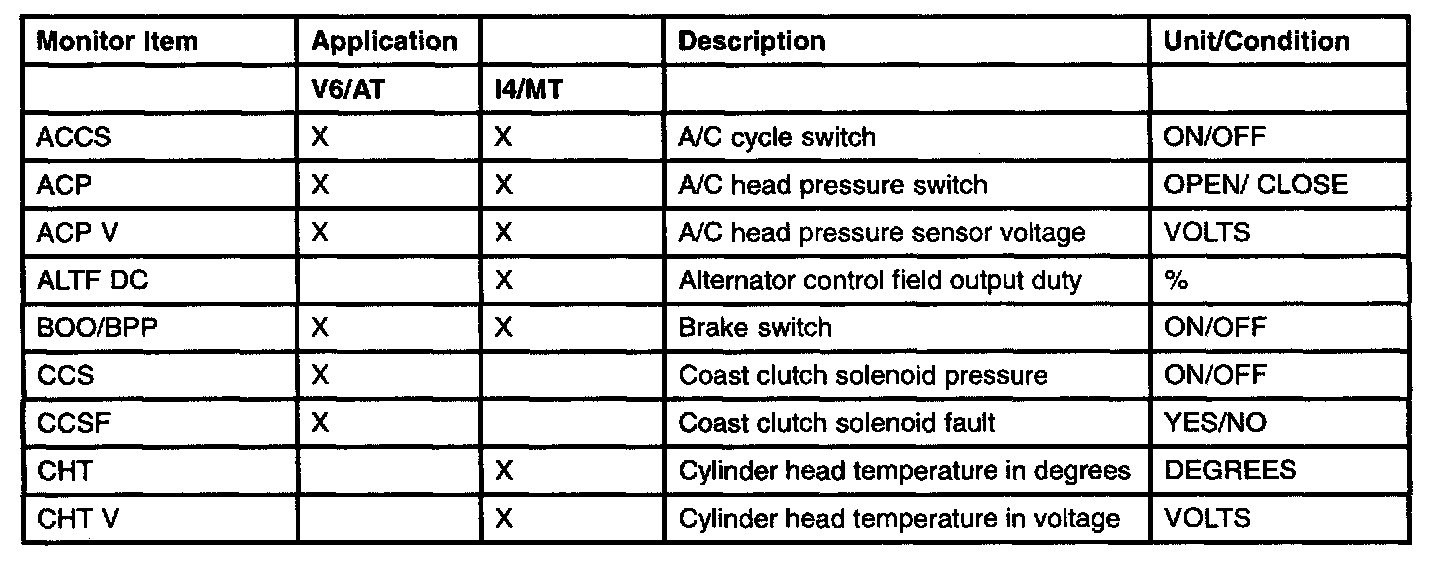

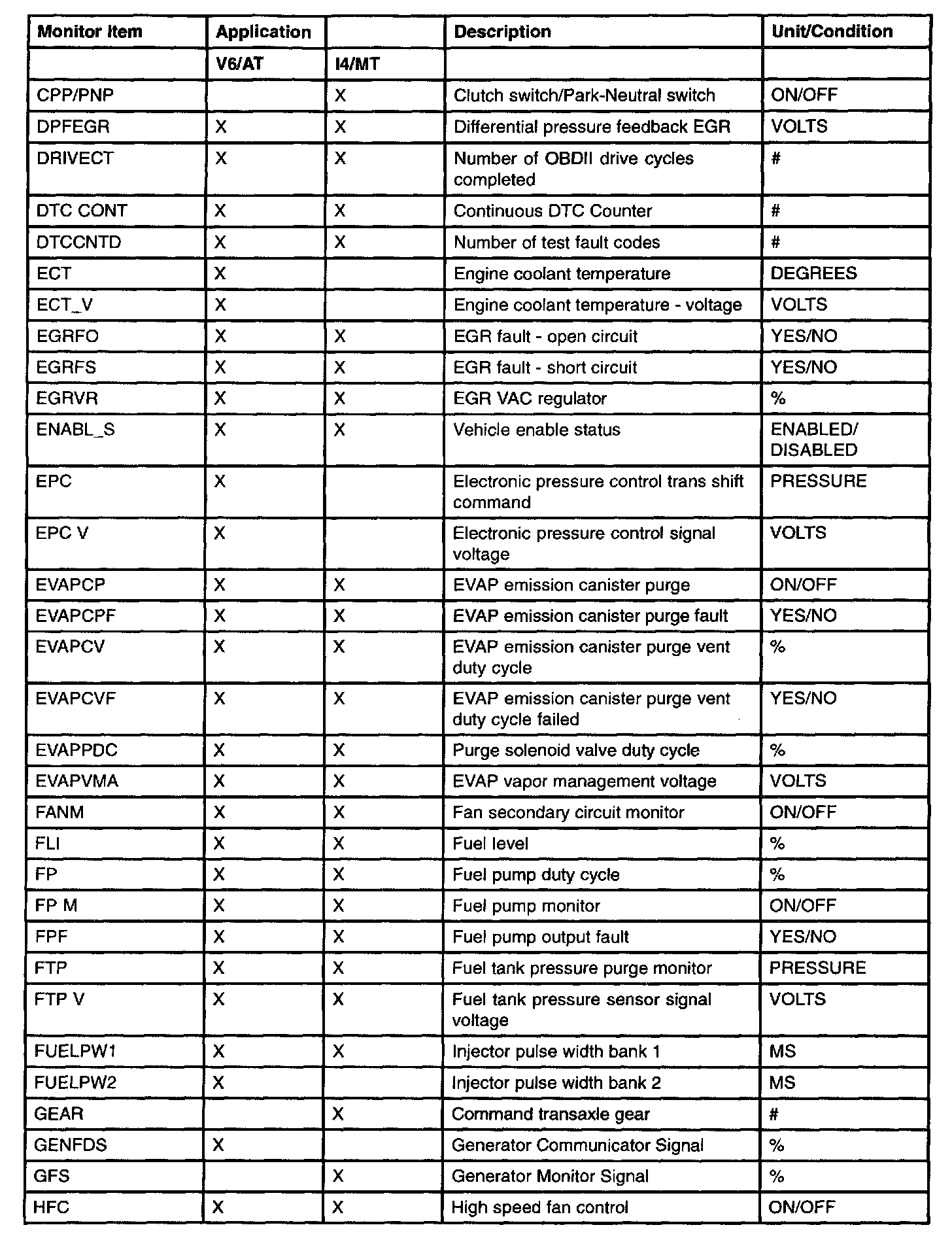

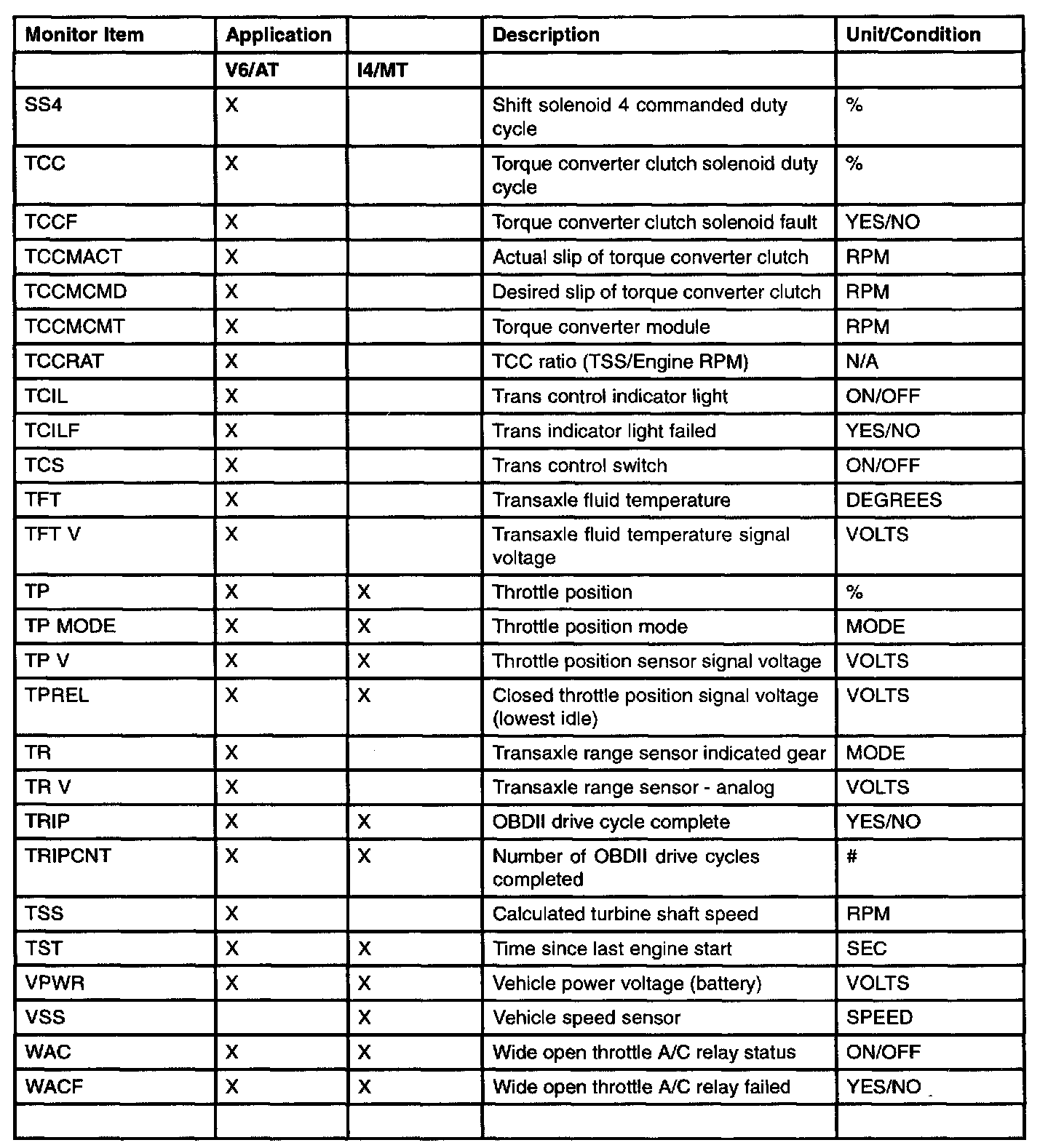

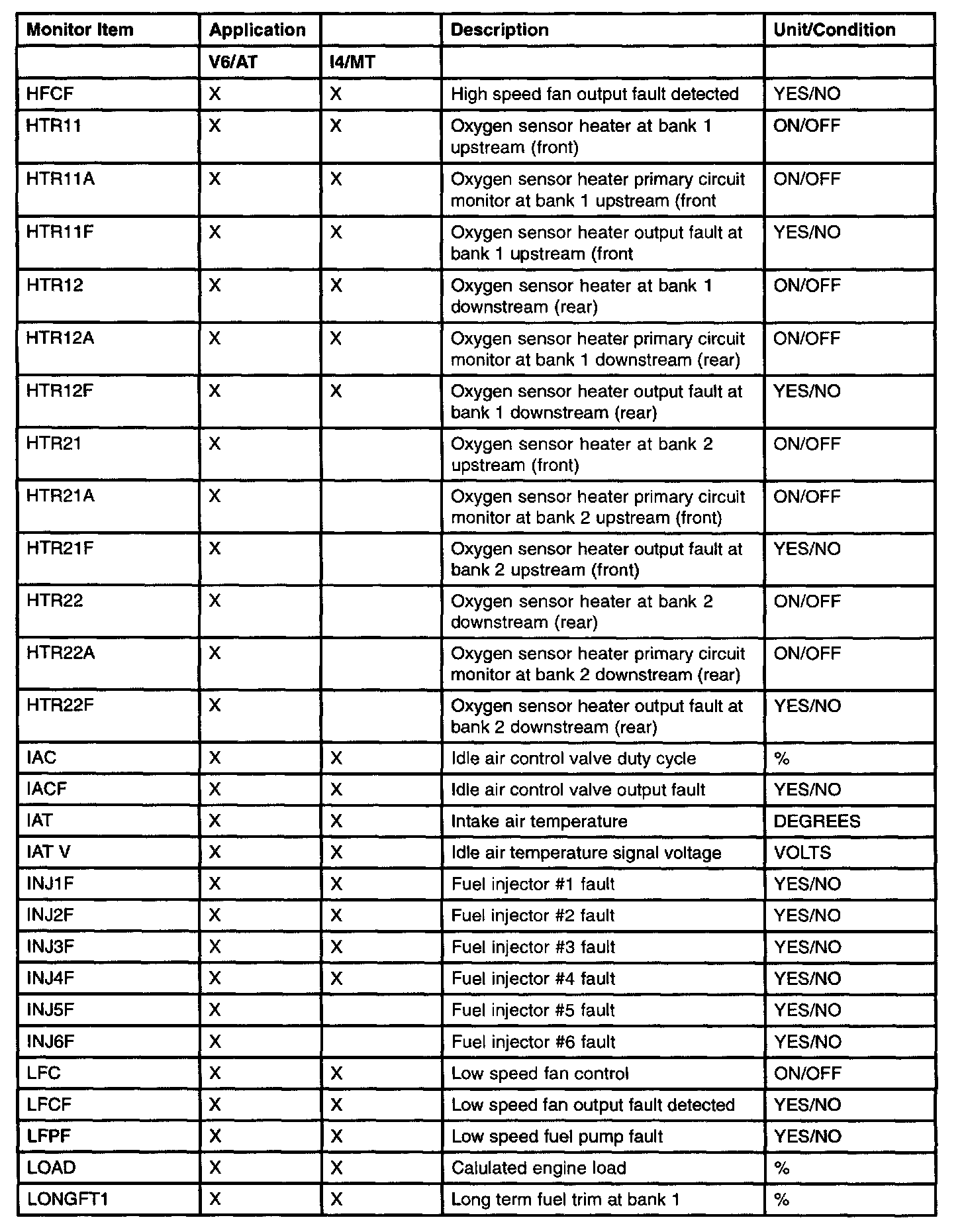

PID/DATA Monitor Item Table (Part 1):



PID/DATA Monitor Item Table (Part 2):



PID/DATA Monitor Item Table (Part 3):



PID/DATA Monitor Item Table (Part 4):



PID/DATA Monitor Item Table (Part 5):

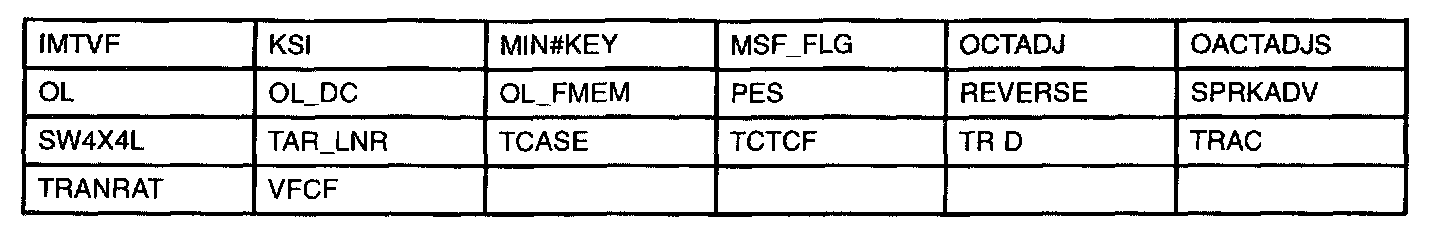

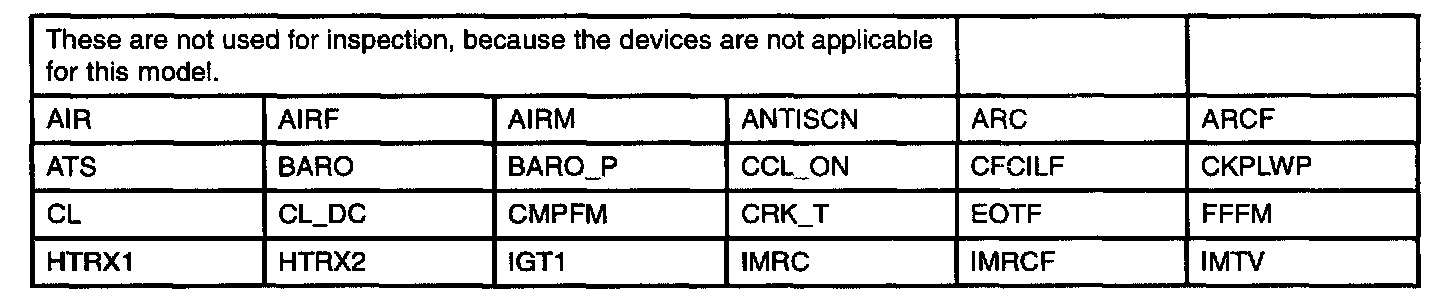

PID/DATA Monitor Item Table (Part 1):



PID/DATA Monitor Item Table (Part 2):
