Automatic Transmission/Transaxle
DISASSEMBLED VIEWS

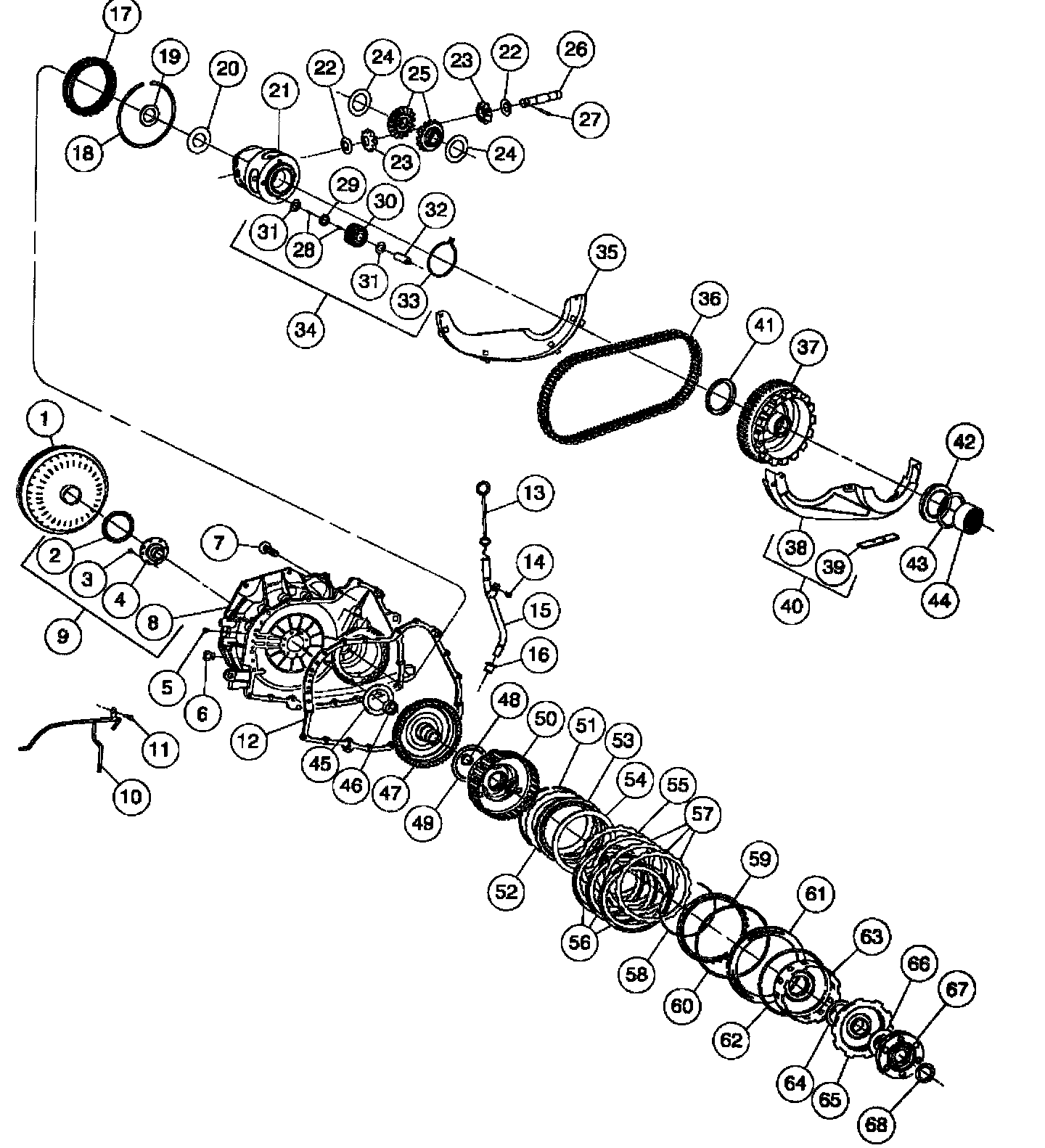

Exploded view #1 - 68

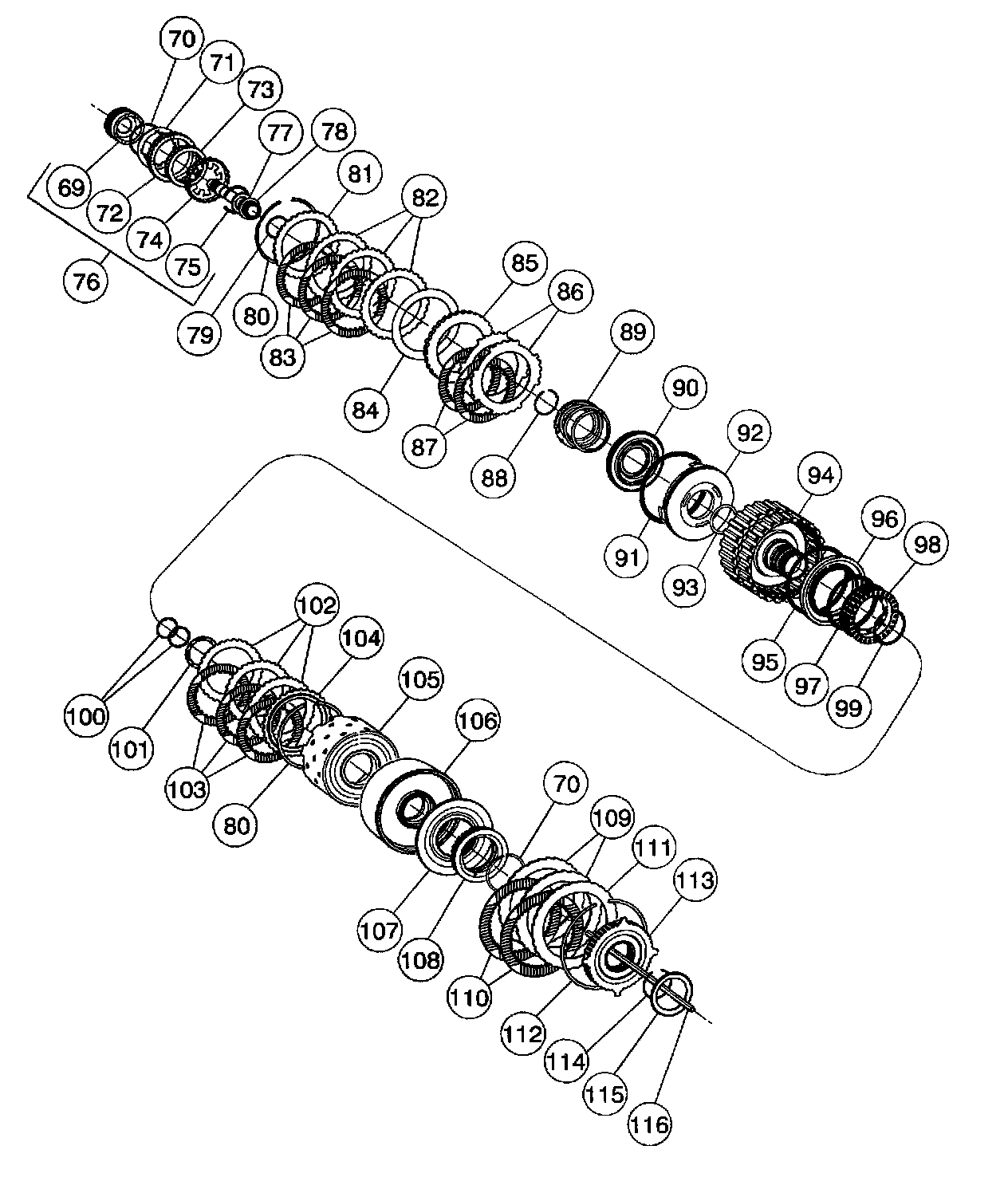

Exploded view #69 - 116

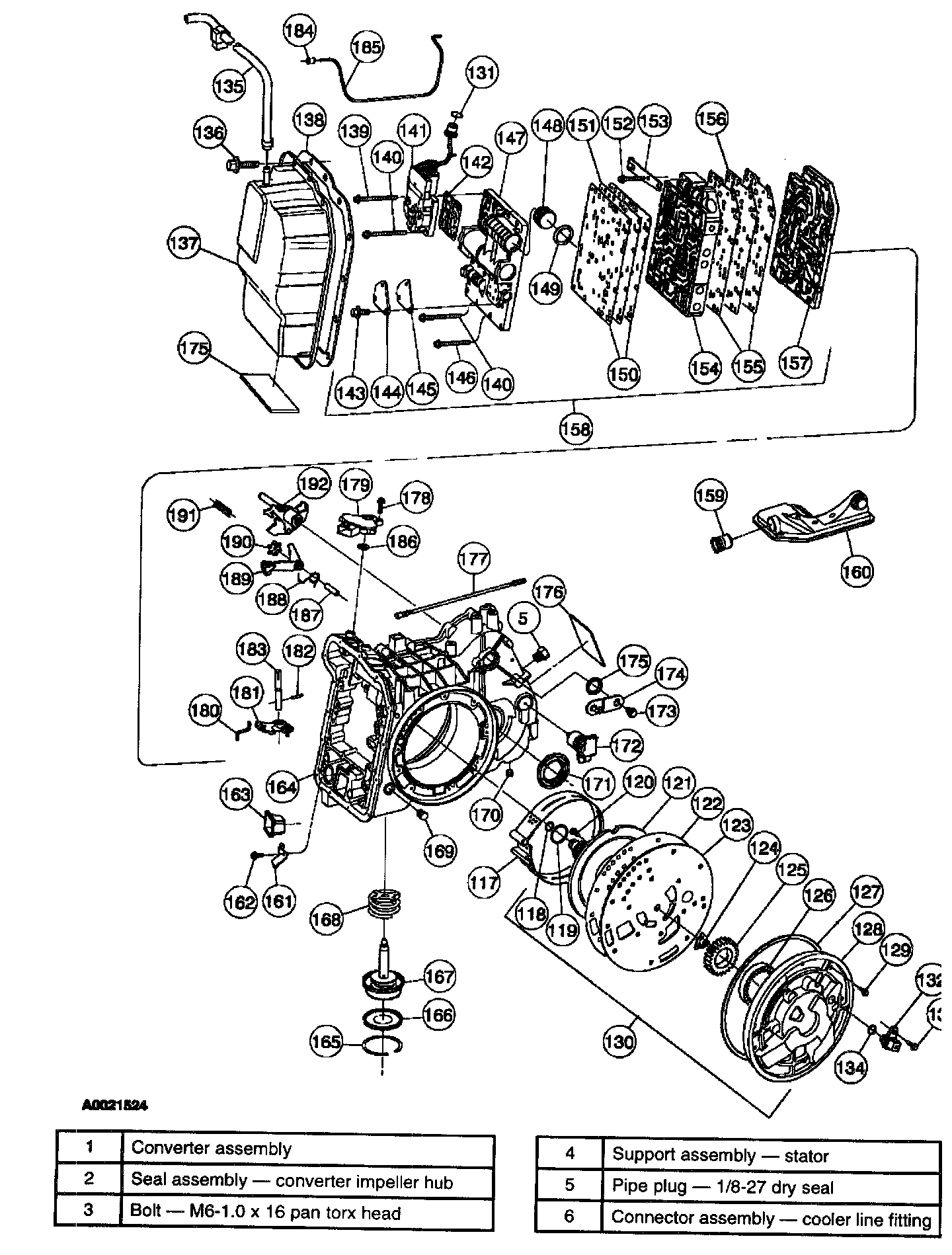

Exploded view #117 - 192/Legend ID 1 - 6

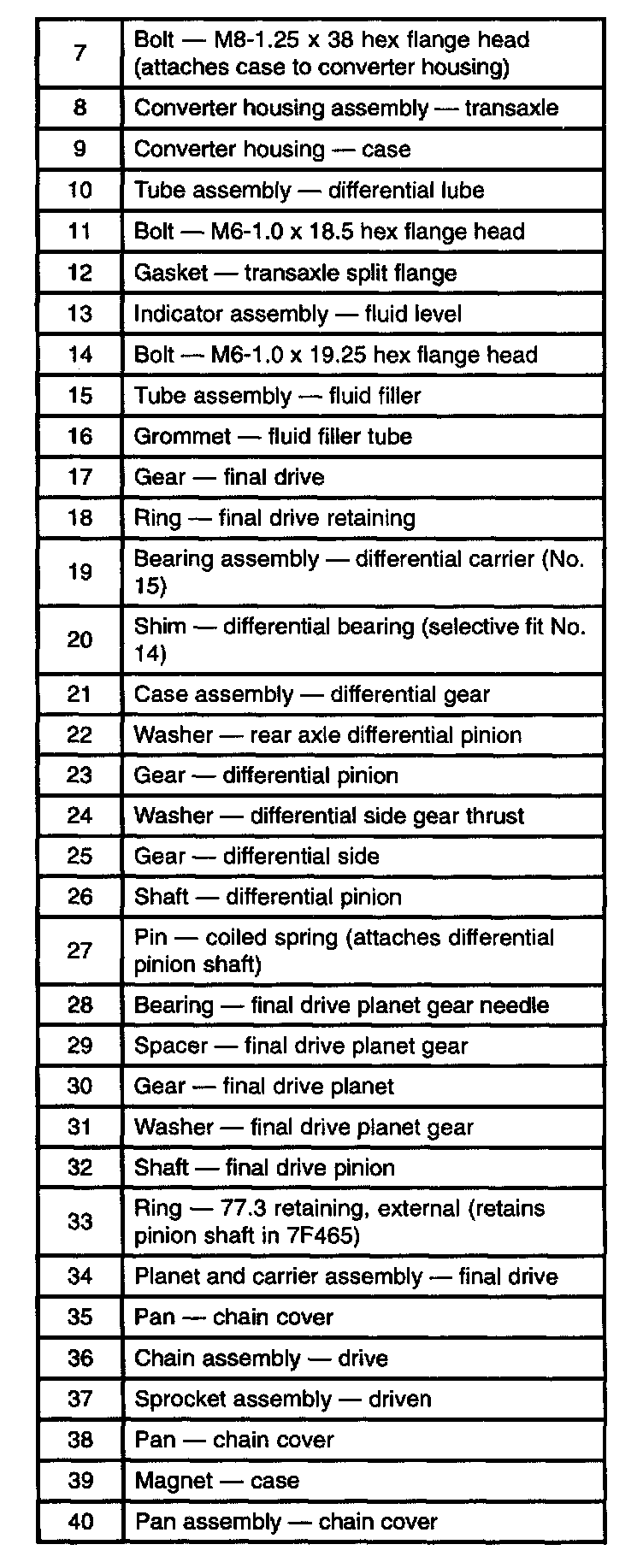

Legend ID 7 - 40

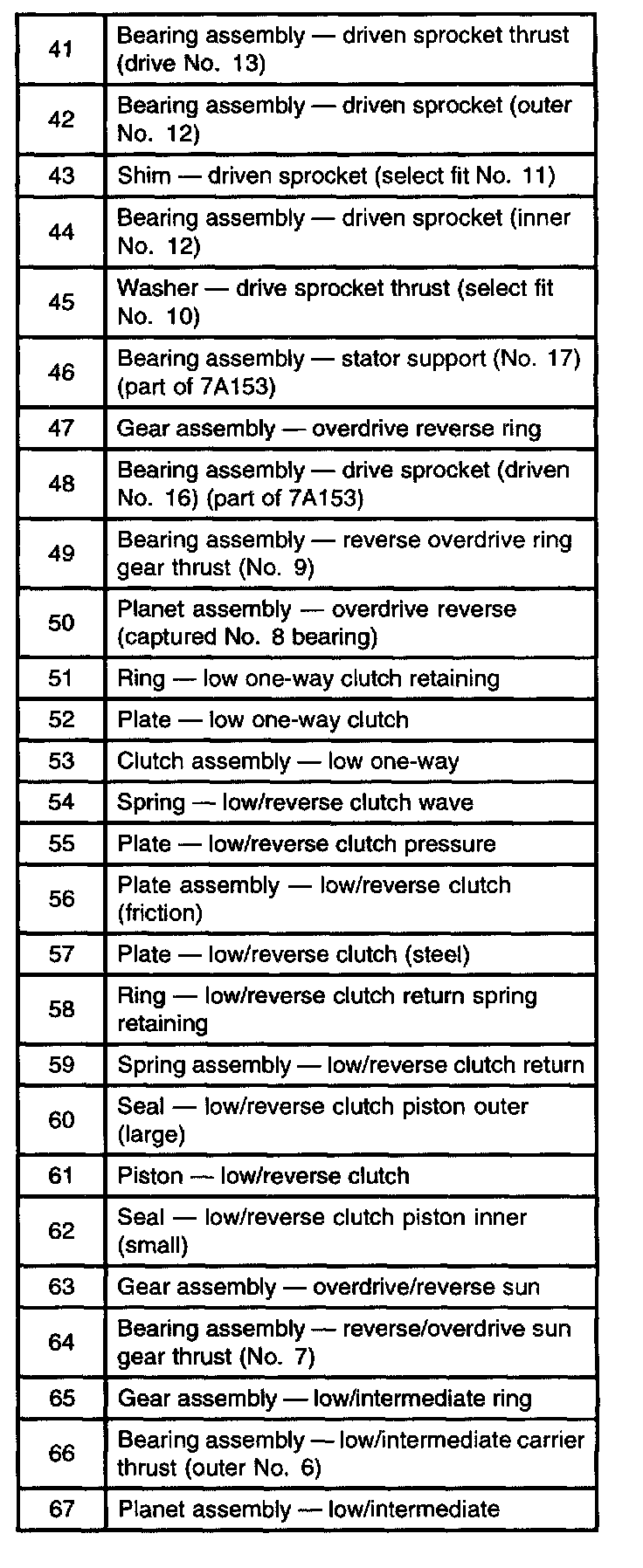

Legend ID 41 - 67

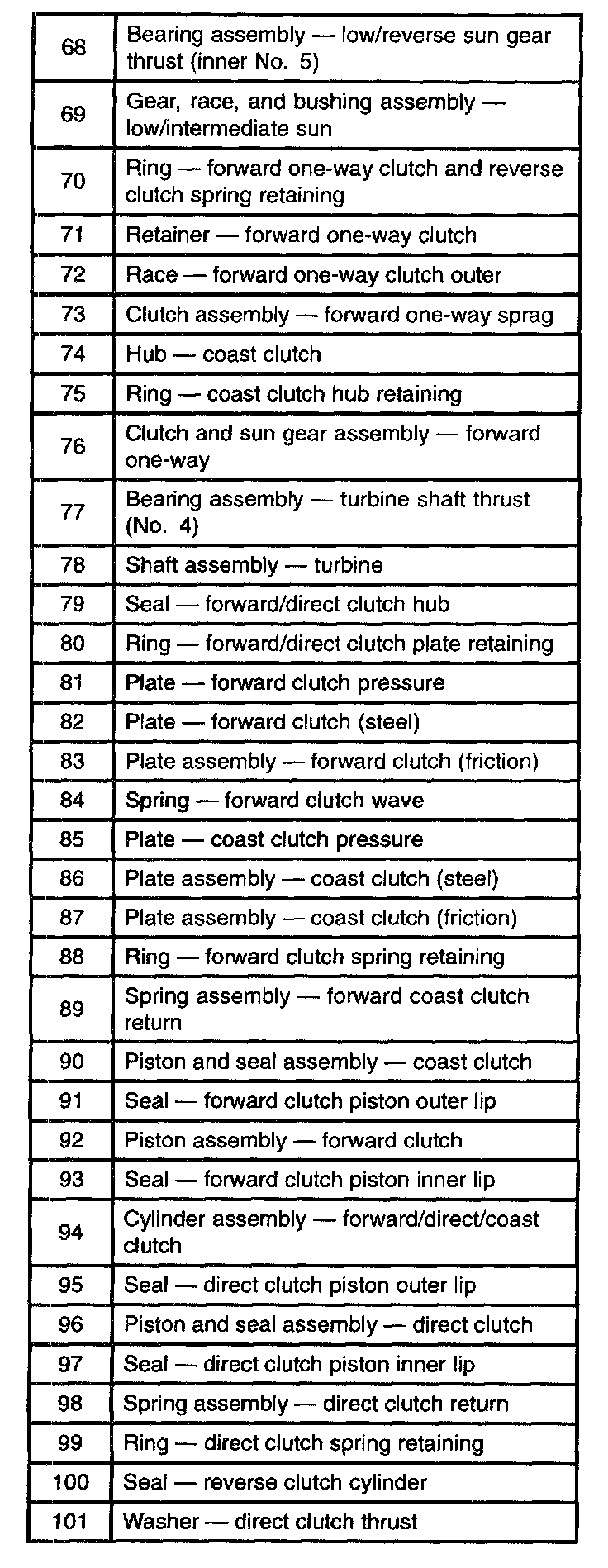

Legend ID 68 - 101

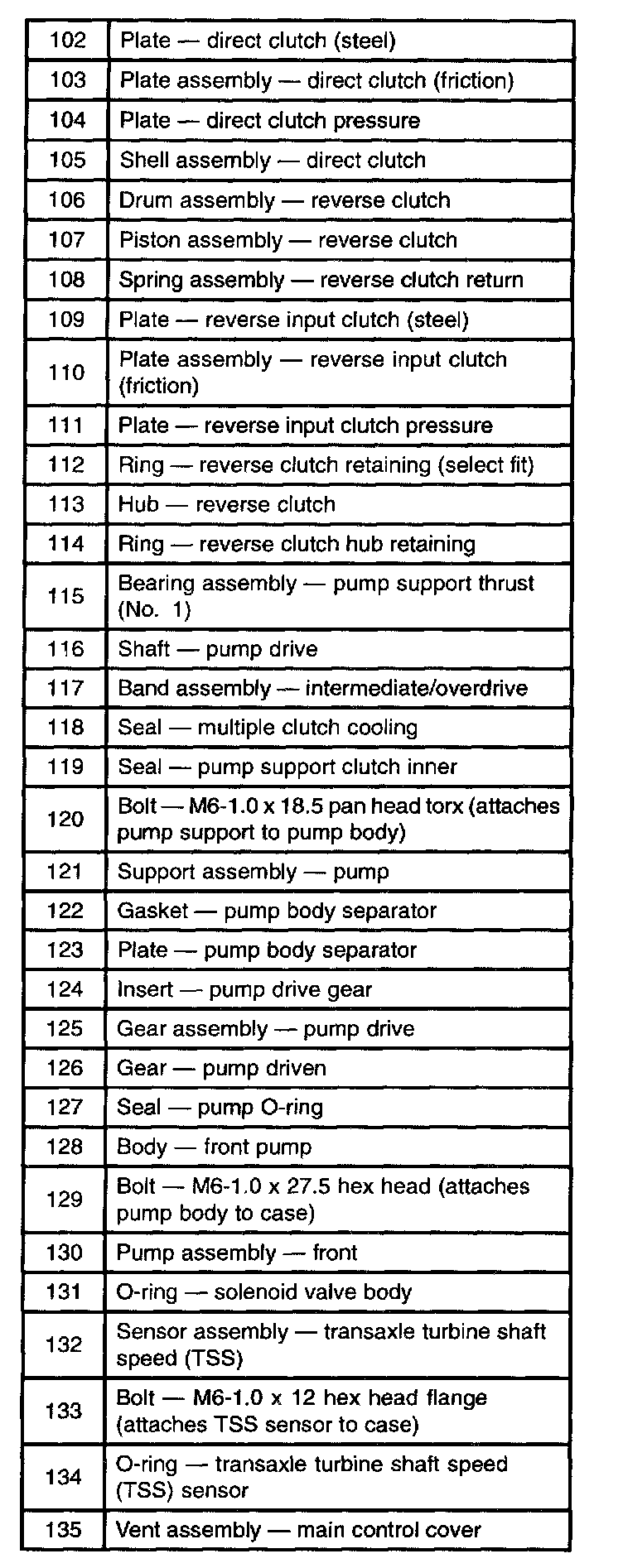

Legend ID 102 - 135

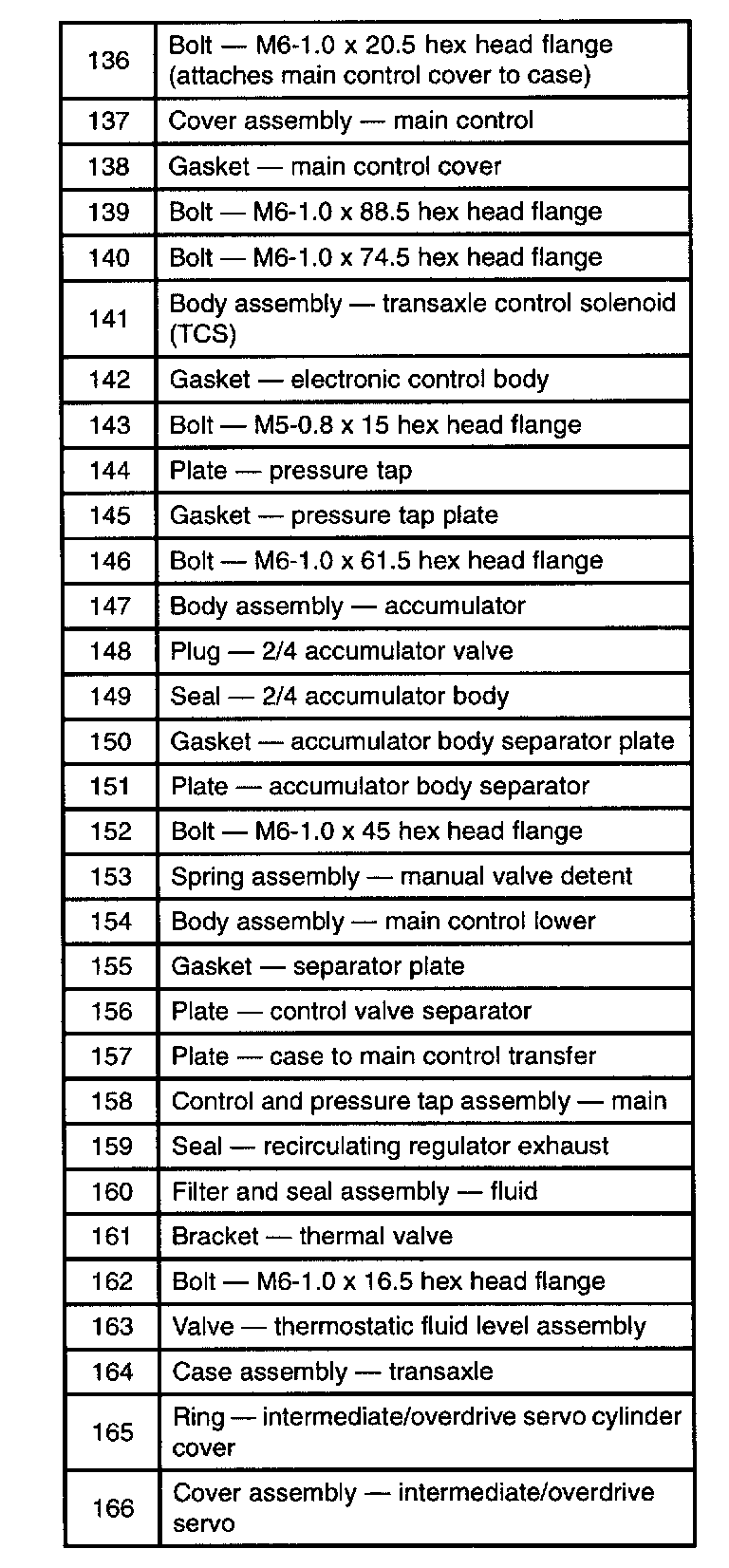

Legend ID 136 - 166

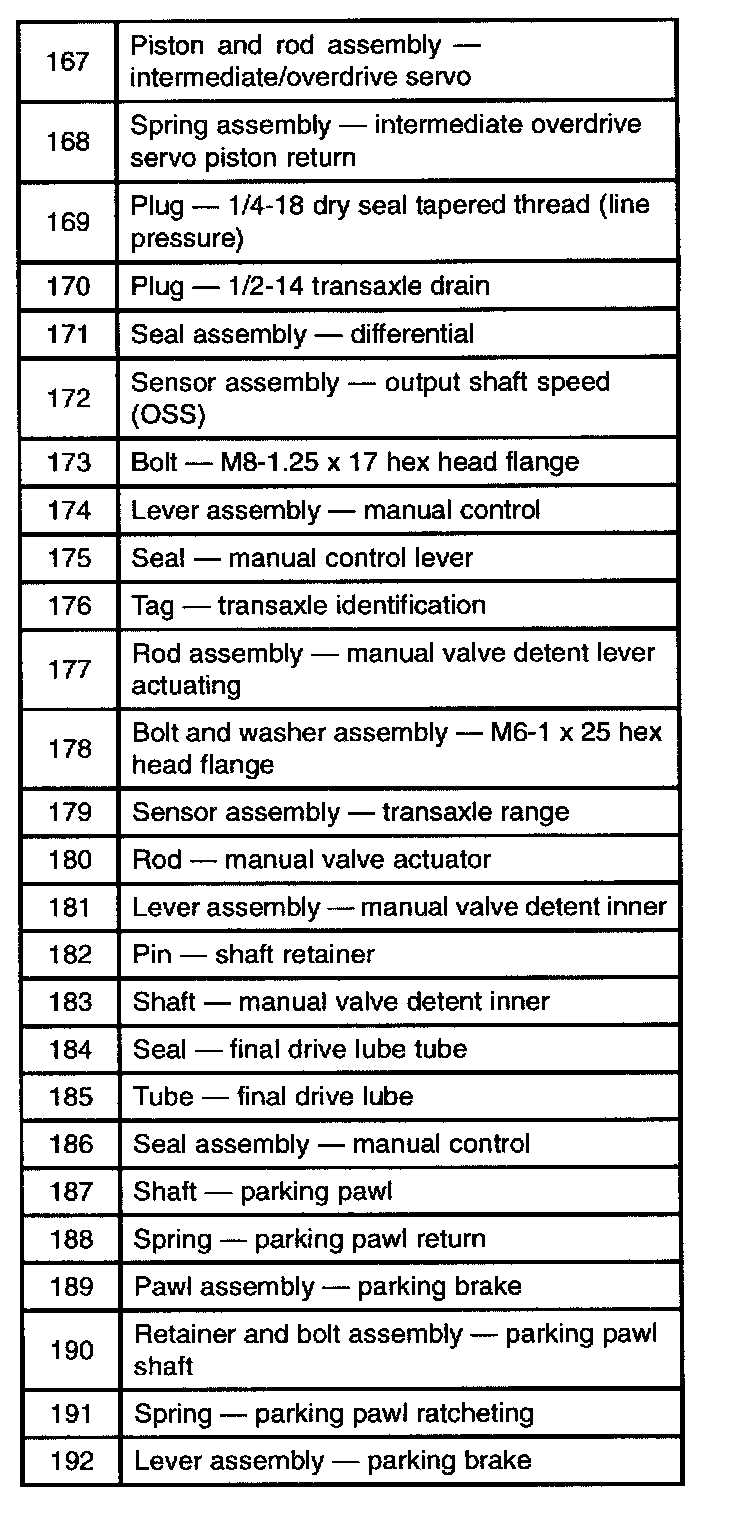

Legend ID 167 - 192
