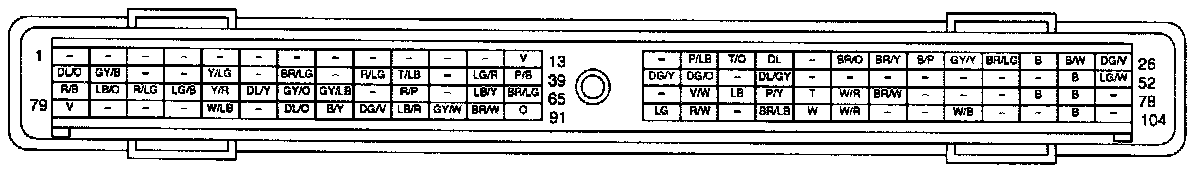

Engine Control Module

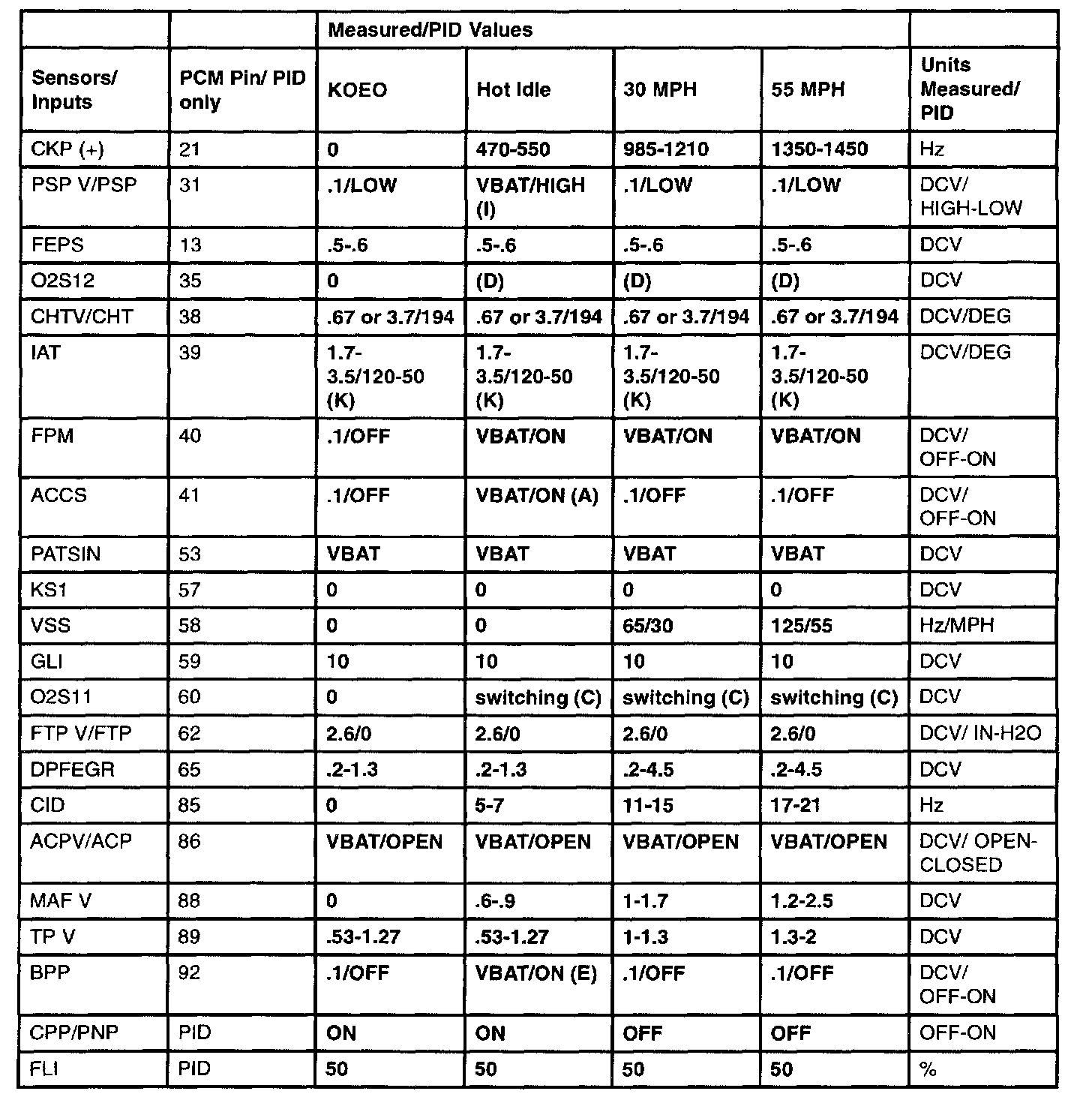

PID/DATA Monitor Reference Value (M/T) (Part 1):

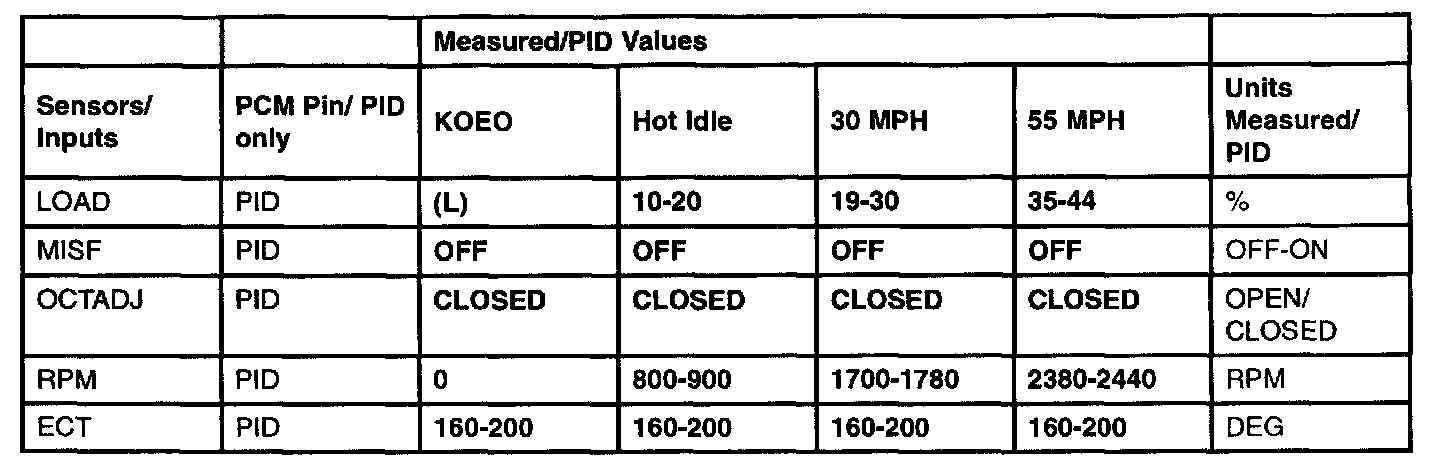

PID/DATA Monitor Reference Value (M/T) (Part 2):

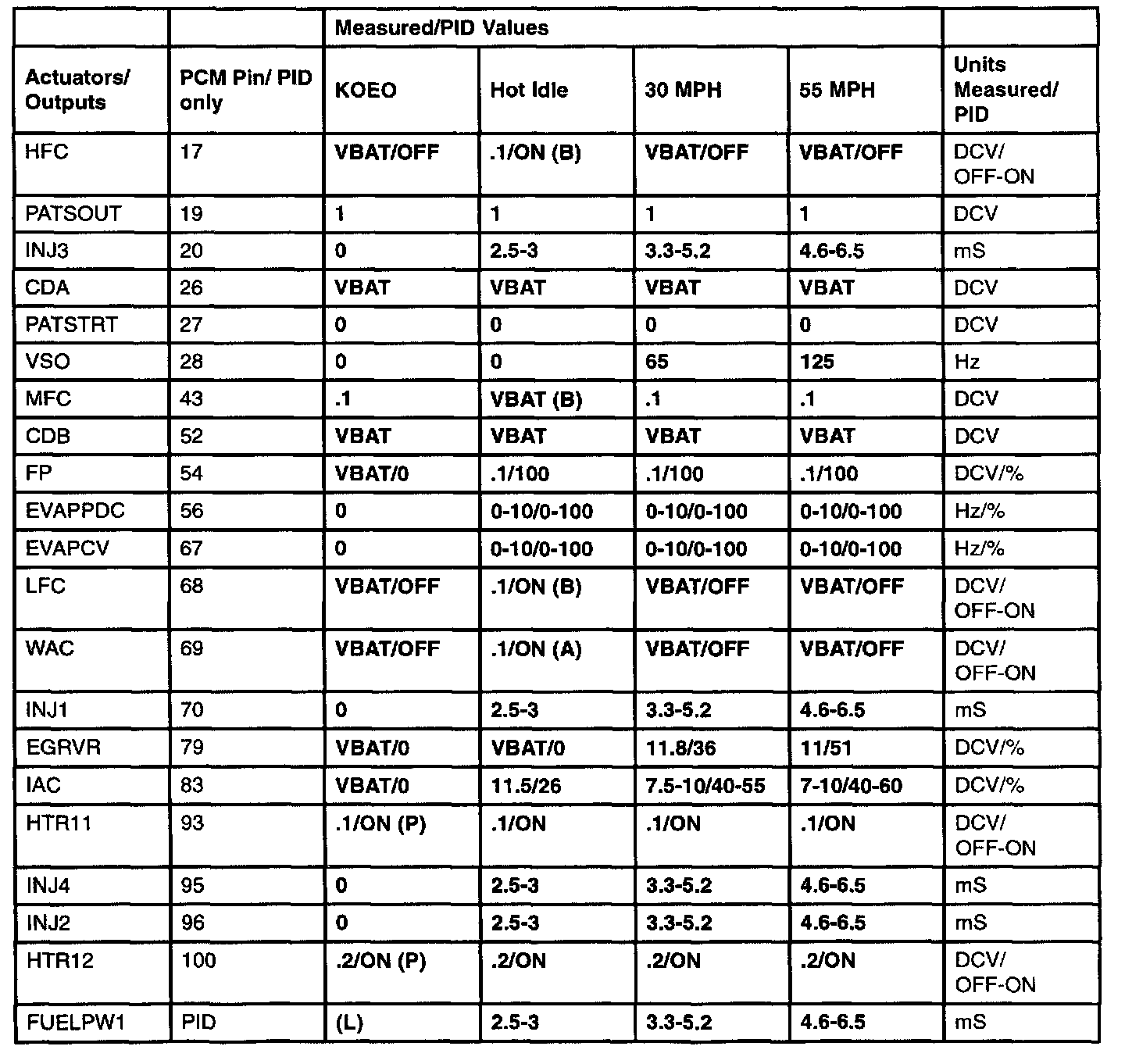

Typical Diagnostic Reference Values (Part 1):

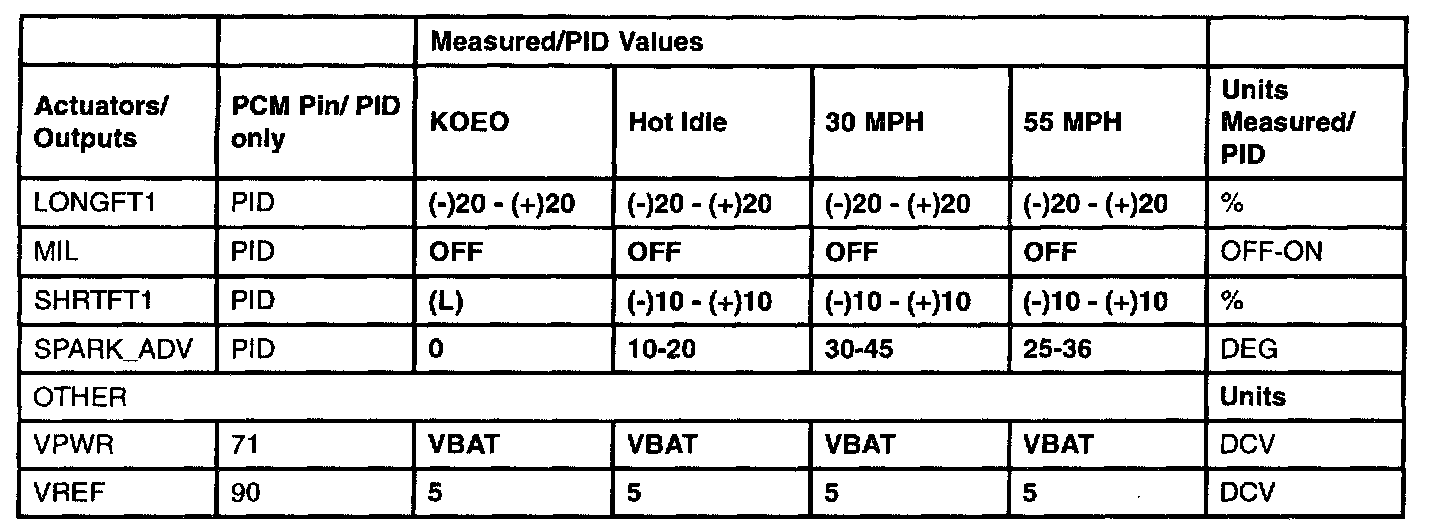

Typical Diagnostic Reference Values (Part 2):
