Piston
Piston Dimensions

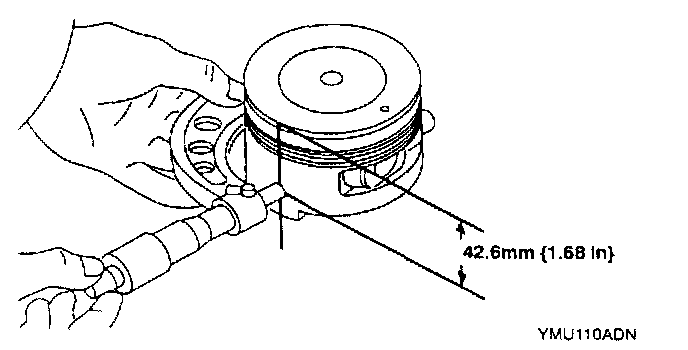

Measure the outer diameter of each piston at right angle 90° to the piston pin, 42.6 mm 11.68 inch) below the top of the piston.

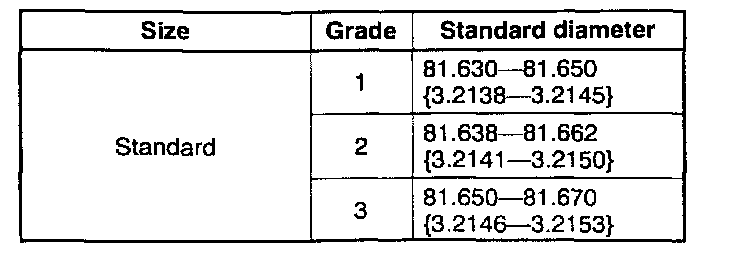

Piston Diameter
PISTON CLEARANCE
Standard clearance: -0.012 - 0.022 mm (-0.0004 - 0.0008 inch)
Piston Dimensions
Measure the outer diameter of each piston at right angle 90° to the piston pin, 42.6 mm 11.68 inch) below the top of the piston.
Piston Diameter
PISTON CLEARANCE
Standard clearance: -0.012 - 0.022 mm (-0.0004 - 0.0008 inch)
