lemon-mirror
:
Home
>>
Lincoln
>>
2012
>>
MKZ FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C175T Powertrain Control Module (PCM)

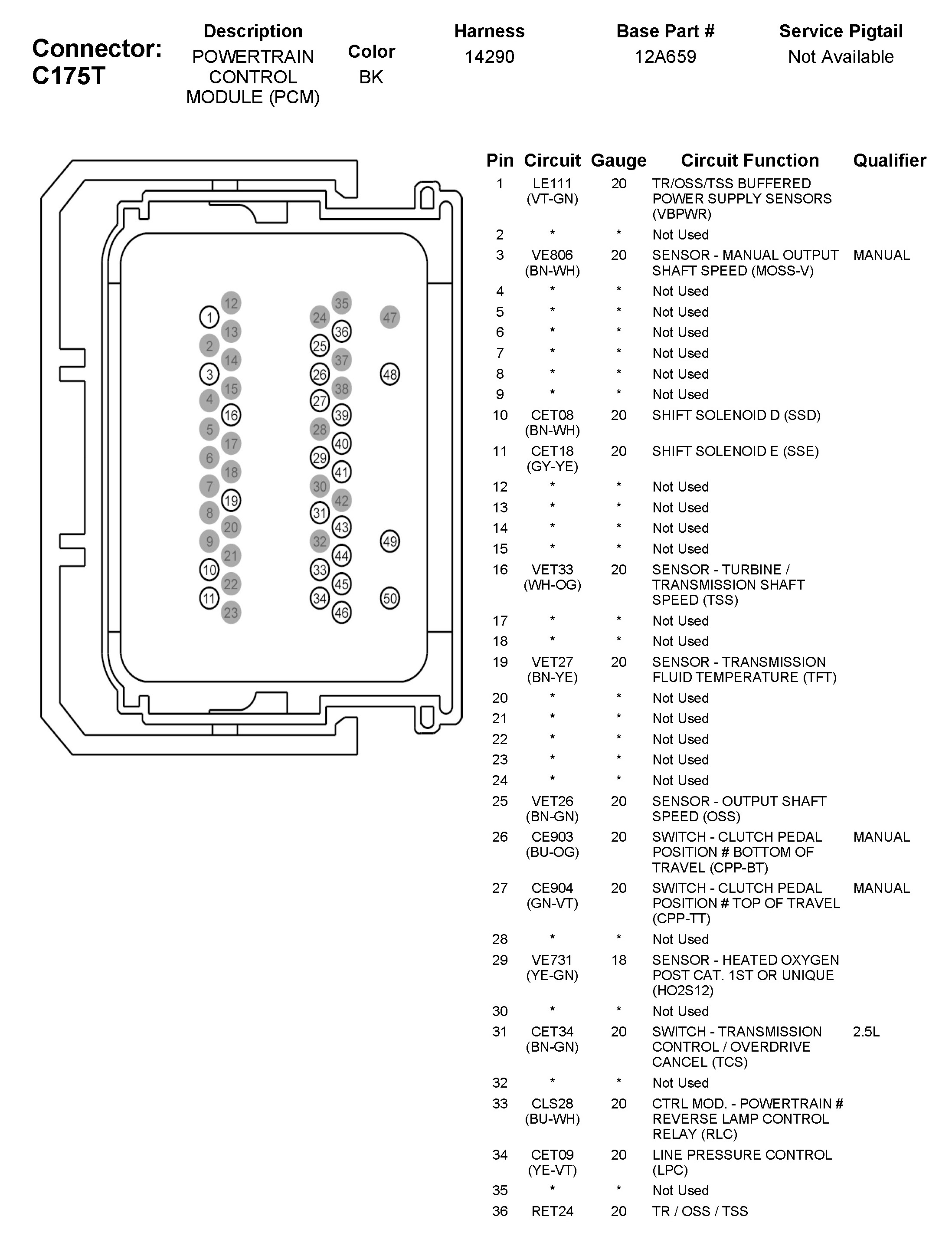

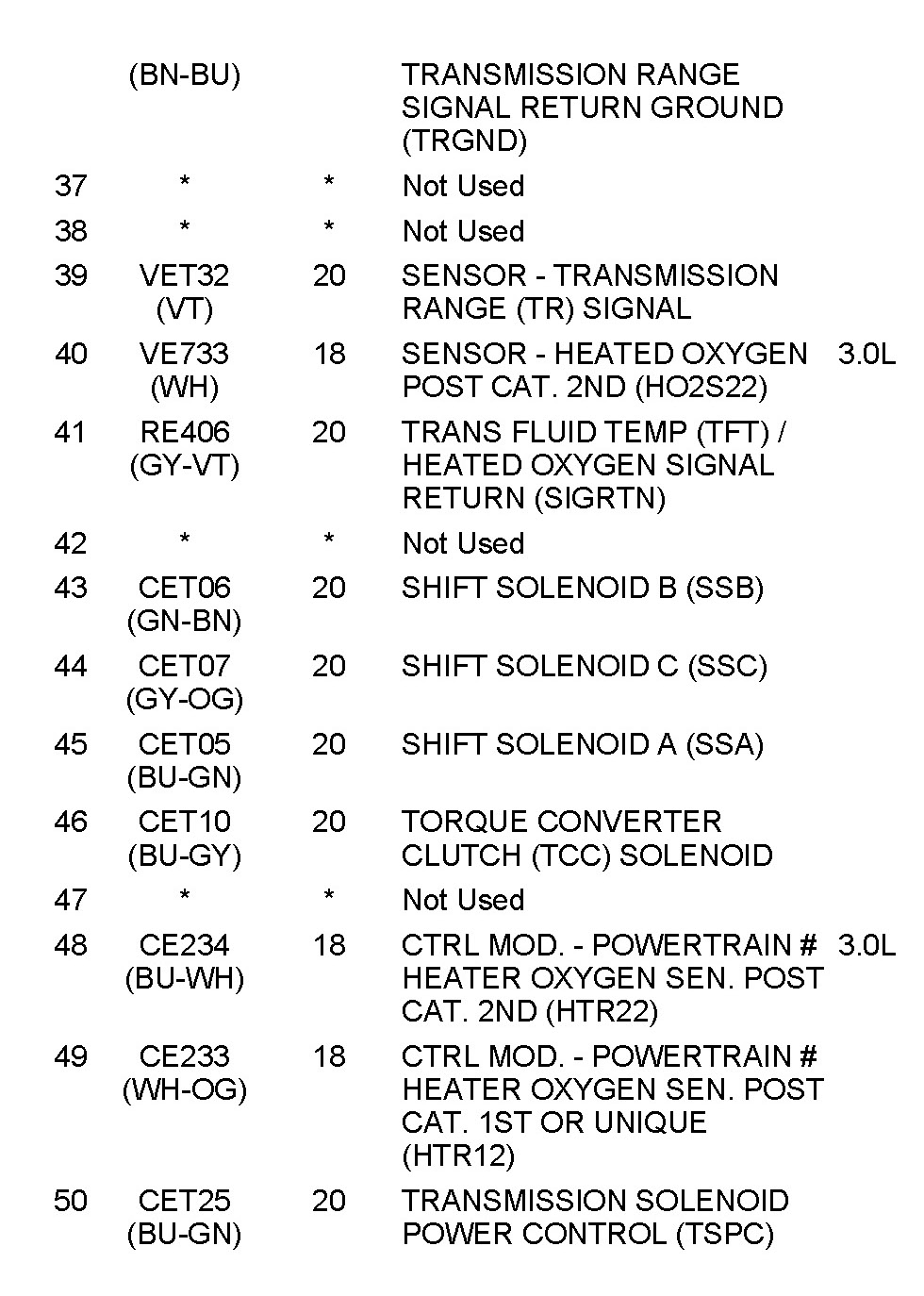

C175T Powertrain Control Module (PCM)
