Oxygen Sensor

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

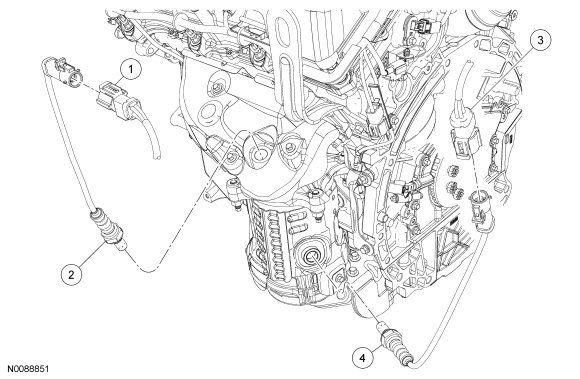

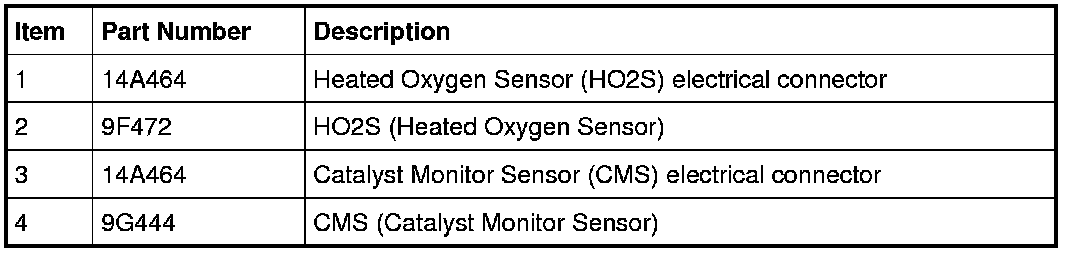

RH 3.7L Sensors

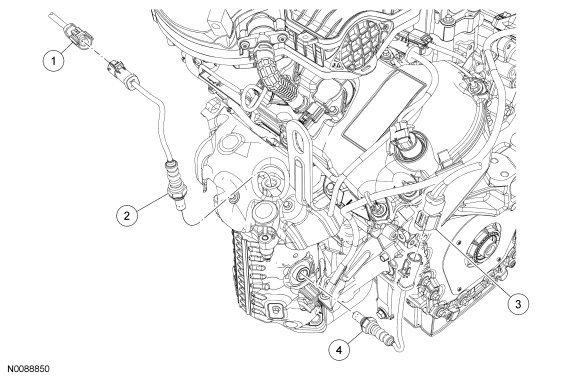

LH 3.7L Sensors

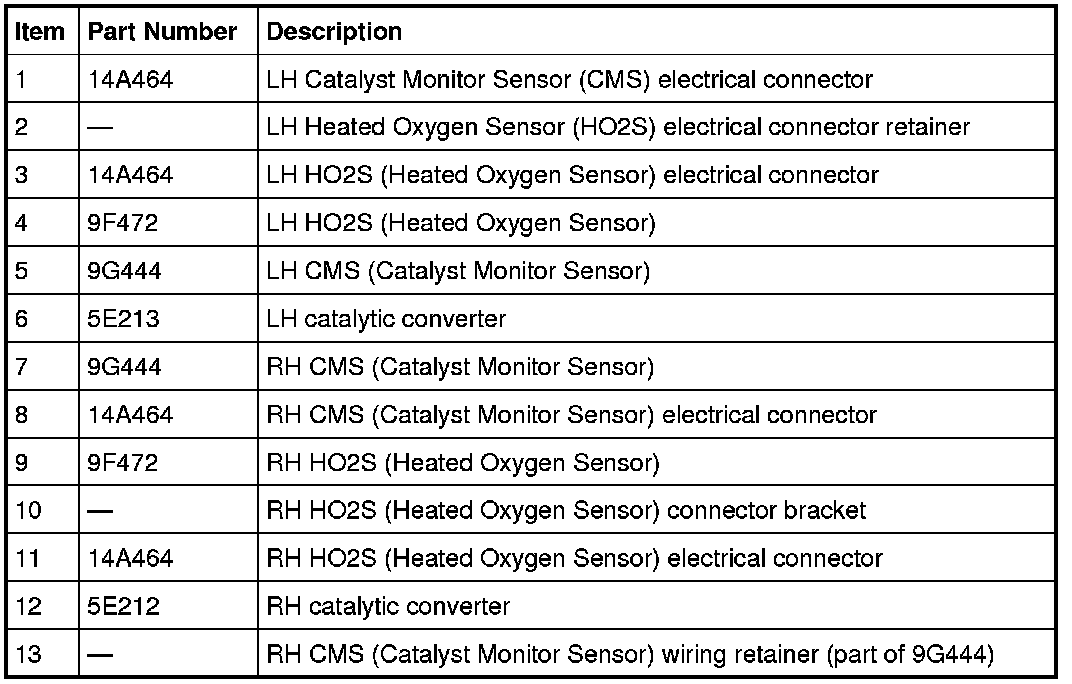

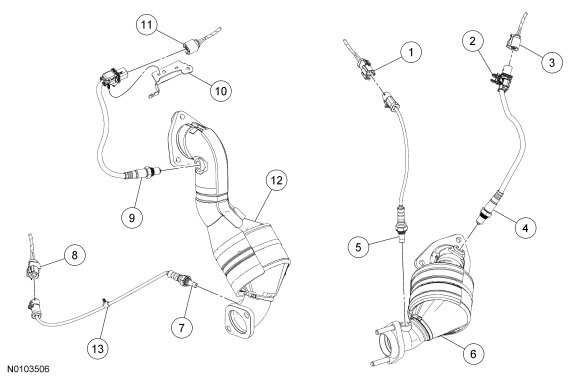

3.5L Gasoline Turbocharged Direct Injection (GTDI) Sensors
