Home >> Lincoln >> 2012 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1381E Powertrain Control Module (PCM)

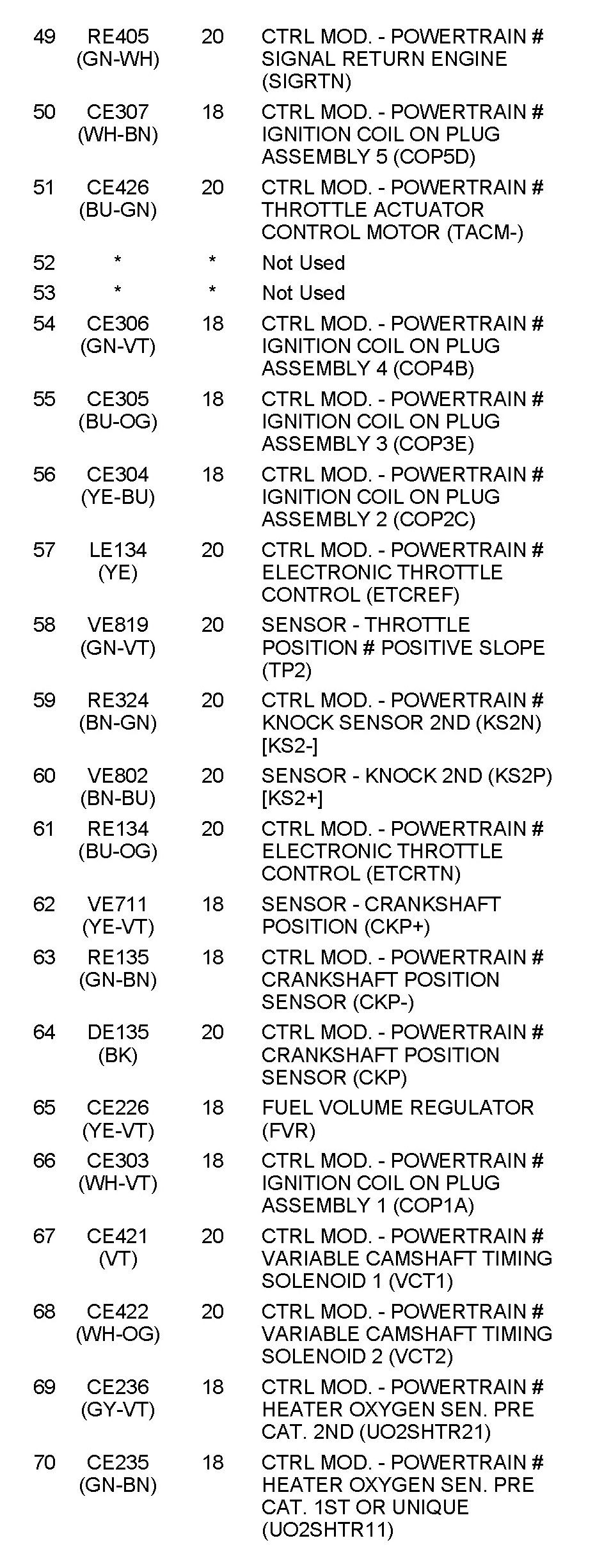

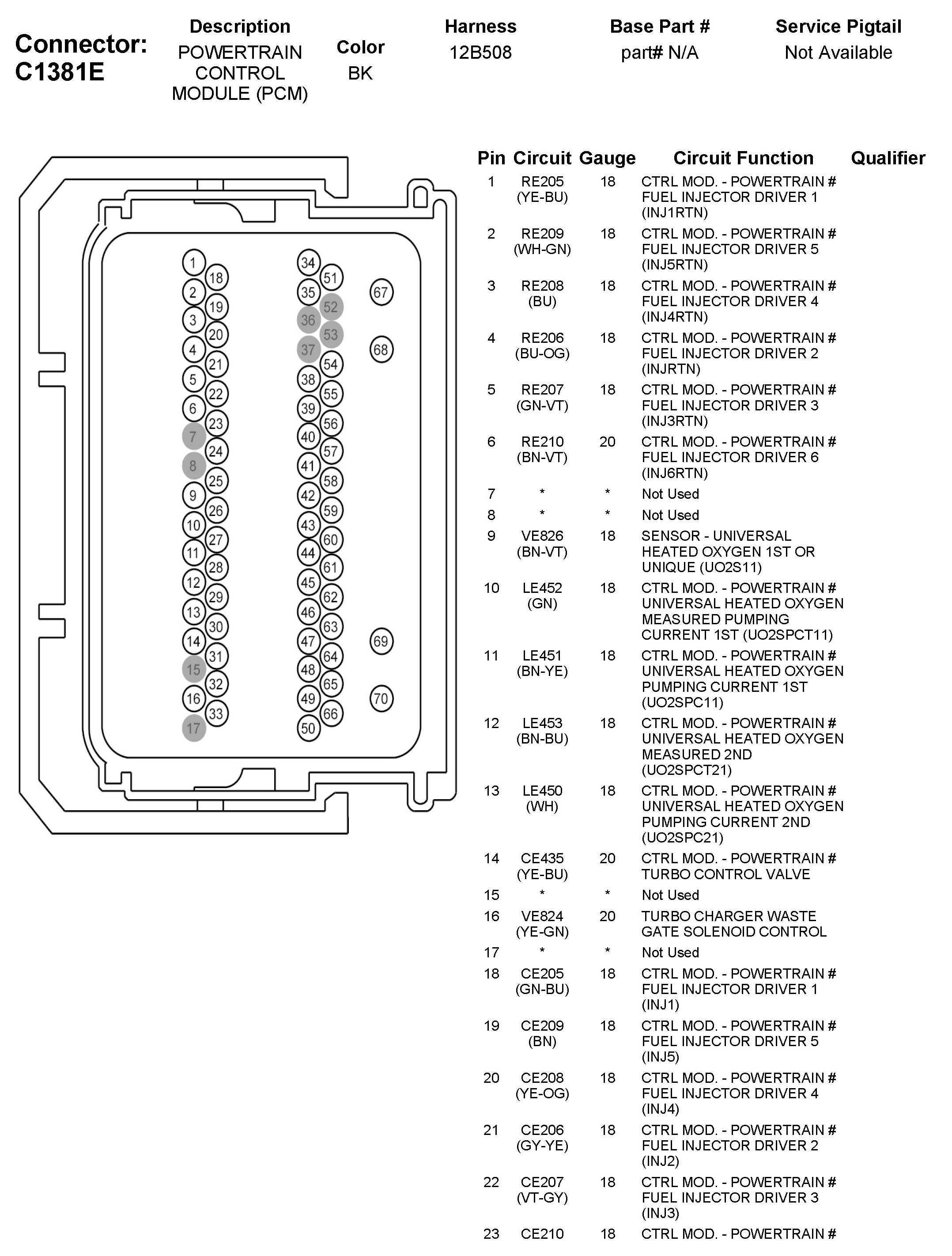

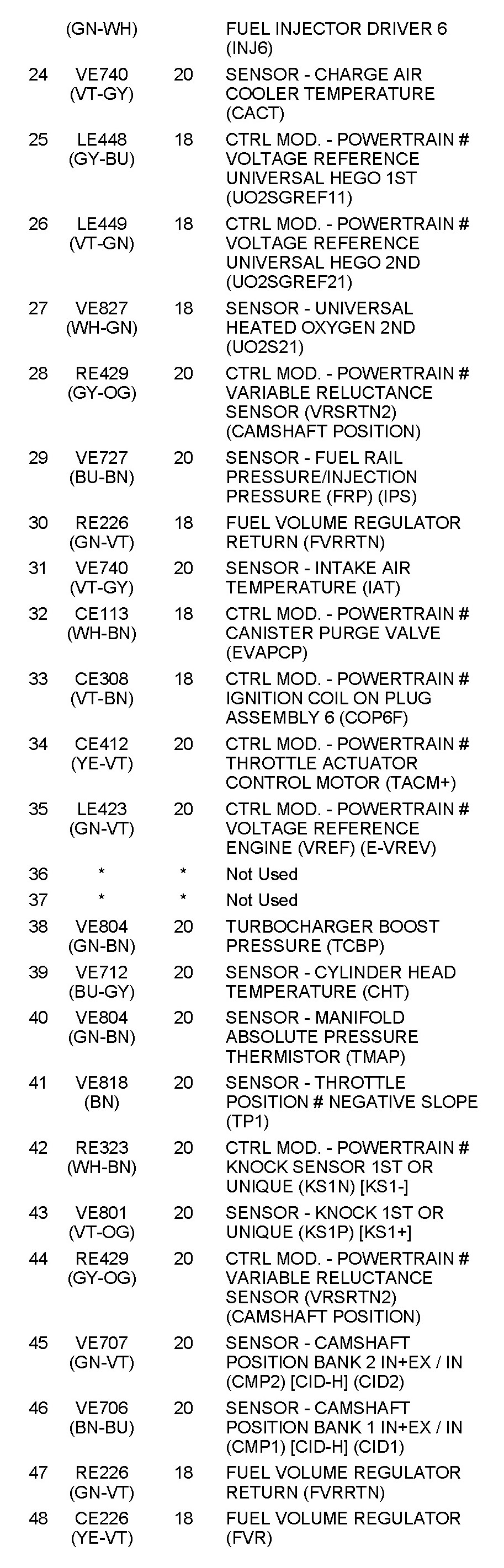

C1381E Powertrain Control Module (PCM)
