Home >> Lincoln >> 2012 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> C240D Audio Control Module (ACM)

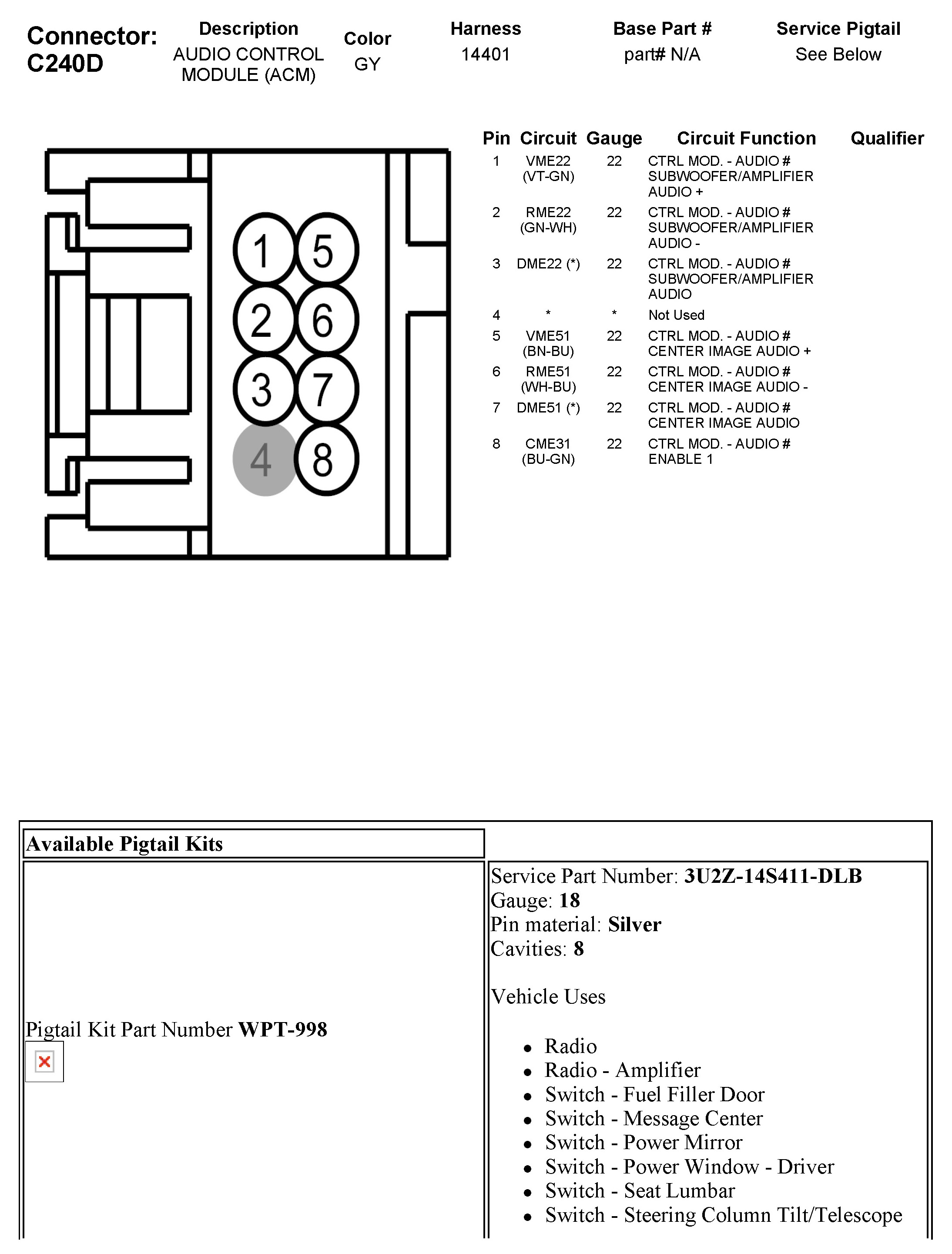

C240D Audio Control Module (ACM)
